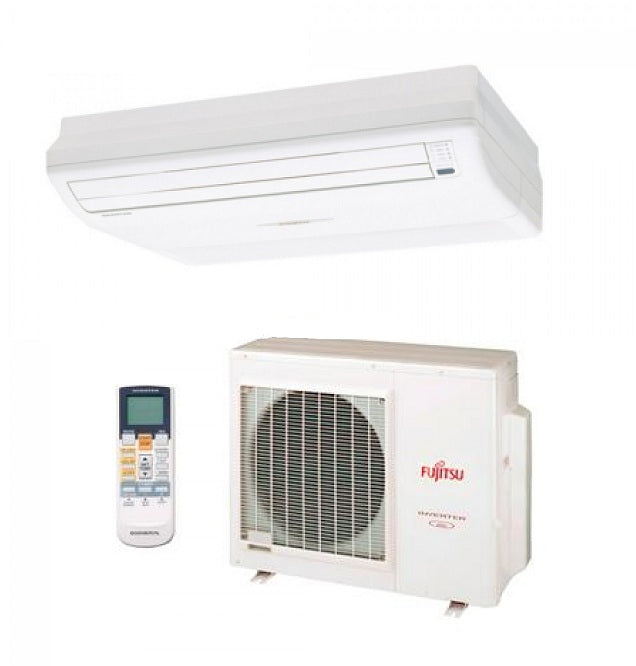

Fujitsu Air Conditioner Floor/Ceiling Inverter Lv Series Abyg24lvta 24000 Btu

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Description

Overview

AIR CONDITIONER FUJITSU SPLIT FLOOR/CEILING INVERTER ABYG24LV 24000 BTU.

Technical specifications

Model:

Internal catalog unit code: ABYG24LV

External unit catalog code : AOYG24

Typology : DC Inverter

Energy efficiency:

SEER/EER (W/W): 5.60

SCOP/COP (W/W): 3.90

Seasonal Energy Efficiency Class (Cooling) : A+

Seasonal Energy Efficiency Class (Heating) : A

Energy consumption year Cooling kWh/a: 425

Energy consumption year Heating kWh/a: 2150

Power (BTU) : 24000

Performance:

Dehumidification l/h: 2.7

Nominal Capacity Cooling (kW): 6.80

Nominal heating capacity (kW): 8.0

Absorbed power in Cooling (kW): 2.21

Absorbed power in heating (kW): 2.26

Indoor unit sound pressure (Hi/Mi/Lo/Qu) (dB-A): 49/45/41/36

Indoor unit sound power dB(A): 61

External unit sound pressure (max) dB(A): 52

Outdoor unit sound power (max) dB(A): 67

Electrical data:

Power supply (V/Hz/?) : 230/50/1

Characteristics:

Refrigerant gas : R410A

Pipes for liquid/gas connections (mm): 6.35/15.88

Piping Max. length IU/UE: 30 metres

Piping Max difference in level U.I.- UE/UI-UE: 20 metres

Operating range:

-Cooling: -10~46 øC

-Heating: -15~24 øC

Dimensions:

Indoor Unit HxLxP (mm): 199 x 990 x 655 ; 27kg

Outdoor Unit HxLxP (mm): 578 x 790 x 315 ; 44kg

Main features

Maximum energy efficiency

The exclusive V-Palm technology of Fujitsu models, together with the use of DC compressors and fans, allows to obtain yields much higher than other Inverter systems with lower energy consumption.

Flexibility and versatility of installation

All the units can be placed without distinction on the attic floor thanks to the special "L" shaped condensate tray, which allows the condensation water to be collected in any position. The anchoring system is also designed to be able to support the fixture in both positions. These units easily adapt to any type of installation without the need for work in the room for their placement

ModHigh Ceiling

This function allows you to adjust the operation when the installation is made on very high ceilings, so that the performance is optimal.

Max airflow

These units are extremely suitable for large commercial premises, warehouses and offices, given that their large air flow makes it possible to perfectly air-condition rooms of several meters in height and surface

Renewal of the air

By connecting a duct in the upper rear part of the indoor unit, it is possible to draw in fresh air from the outside thanks to the ventilation of the same.

Minimum sound level

The fan of the indoor units incorporates the super silent "quiet" mode which allows you to work with a minimum level of sound, down to 11dBA

Filter cleaning alerts

These units incorporate a luminous indicator which warns of the optimum time elapsed for carrying out the cleaning of the filters. The "filter reset" button on the remote control cancels the warning light

Weekly programming and "Set back" function

Weekly programming and "Set back" function It allows you to create different start stop programmings for every day of the week, with the possibility of excluding public holidays. Furthermore, the "Set back" function combined with the weekly programming function makes it possible to consider different temperatures for the same programmed time space.

Warranty

All products for sale on our site are new and packed. The guarantee on this item is 24 months from the date of purchase.

Fujitsu Air Conditioner Floor/Ceiling Inverter Lv Series Abyg24lvta 24000 Btu

Product form

Overview AIR CONDITIONER FUJITSU SPLIT FLOOR/CEILING INVERTER ABYG24LV 24000 BTU. Technical specifications Model: Internal catalog unit code: ABYG24LV External unit... Read more

€1.290,00 Incl. VAT

    Description

    Overview

    AIR CONDITIONER FUJITSU SPLIT FLOOR/CEILING INVERTER ABYG24LV 24000 BTU.

    Technical specifications

    Model:

    Internal catalog unit code: ABYG24LV

    External unit catalog code : AOYG24

    Typology : DC Inverter

    Energy efficiency:

    SEER/EER (W/W): 5.60

    SCOP/COP (W/W): 3.90

    Seasonal Energy Efficiency Class (Cooling) : A+

    Seasonal Energy Efficiency Class (Heating) : A

    Energy consumption year Cooling kWh/a: 425

    Energy consumption year Heating kWh/a: 2150

    Power (BTU) : 24000

    Performance:

    Dehumidification l/h: 2.7

    Nominal Capacity Cooling (kW): 6.80

    Nominal heating capacity (kW): 8.0

    Absorbed power in Cooling (kW): 2.21

    Absorbed power in heating (kW): 2.26

    Indoor unit sound pressure (Hi/Mi/Lo/Qu) (dB-A): 49/45/41/36

    Indoor unit sound power dB(A): 61

    External unit sound pressure (max) dB(A): 52

    Outdoor unit sound power (max) dB(A): 67

    Electrical data:

    Power supply (V/Hz/?) : 230/50/1

    Characteristics:

    Refrigerant gas : R410A

    Pipes for liquid/gas connections (mm): 6.35/15.88

    Piping Max. length IU/UE: 30 metres

    Piping Max difference in level U.I.- UE/UI-UE: 20 metres

    Operating range:

    -Cooling: -10~46 øC

    -Heating: -15~24 øC

    Dimensions:

    Indoor Unit HxLxP (mm): 199 x 990 x 655 ; 27kg

    Outdoor Unit HxLxP (mm): 578 x 790 x 315 ; 44kg

    Main features

    Maximum energy efficiency

    The exclusive V-Palm technology of Fujitsu models, together with the use of DC compressors and fans, allows to obtain yields much higher than other Inverter systems with lower energy consumption.

    Flexibility and versatility of installation

    All the units can be placed without distinction on the attic floor thanks to the special "L" shaped condensate tray, which allows the condensation water to be collected in any position. The anchoring system is also designed to be able to support the fixture in both positions. These units easily adapt to any type of installation without the need for work in the room for their placement

    ModHigh Ceiling

    This function allows you to adjust the operation when the installation is made on very high ceilings, so that the performance is optimal.

    Max airflow

    These units are extremely suitable for large commercial premises, warehouses and offices, given that their large air flow makes it possible to perfectly air-condition rooms of several meters in height and surface

    Renewal of the air

    By connecting a duct in the upper rear part of the indoor unit, it is possible to draw in fresh air from the outside thanks to the ventilation of the same.

    Minimum sound level

    The fan of the indoor units incorporates the super silent "quiet" mode which allows you to work with a minimum level of sound, down to 11dBA

    Filter cleaning alerts

    These units incorporate a luminous indicator which warns of the optimum time elapsed for carrying out the cleaning of the filters. The "filter reset" button on the remote control cancels the warning light

    Weekly programming and "Set back" function

    Weekly programming and "Set back" function It allows you to create different start stop programmings for every day of the week, with the possibility of excluding public holidays. Furthermore, the "Set back" function combined with the weekly programming function makes it possible to consider different temperatures for the same programmed time space.

    Warranty

    All products for sale on our site are new and packed. The guarantee on this item is 24 months from the date of purchase.
