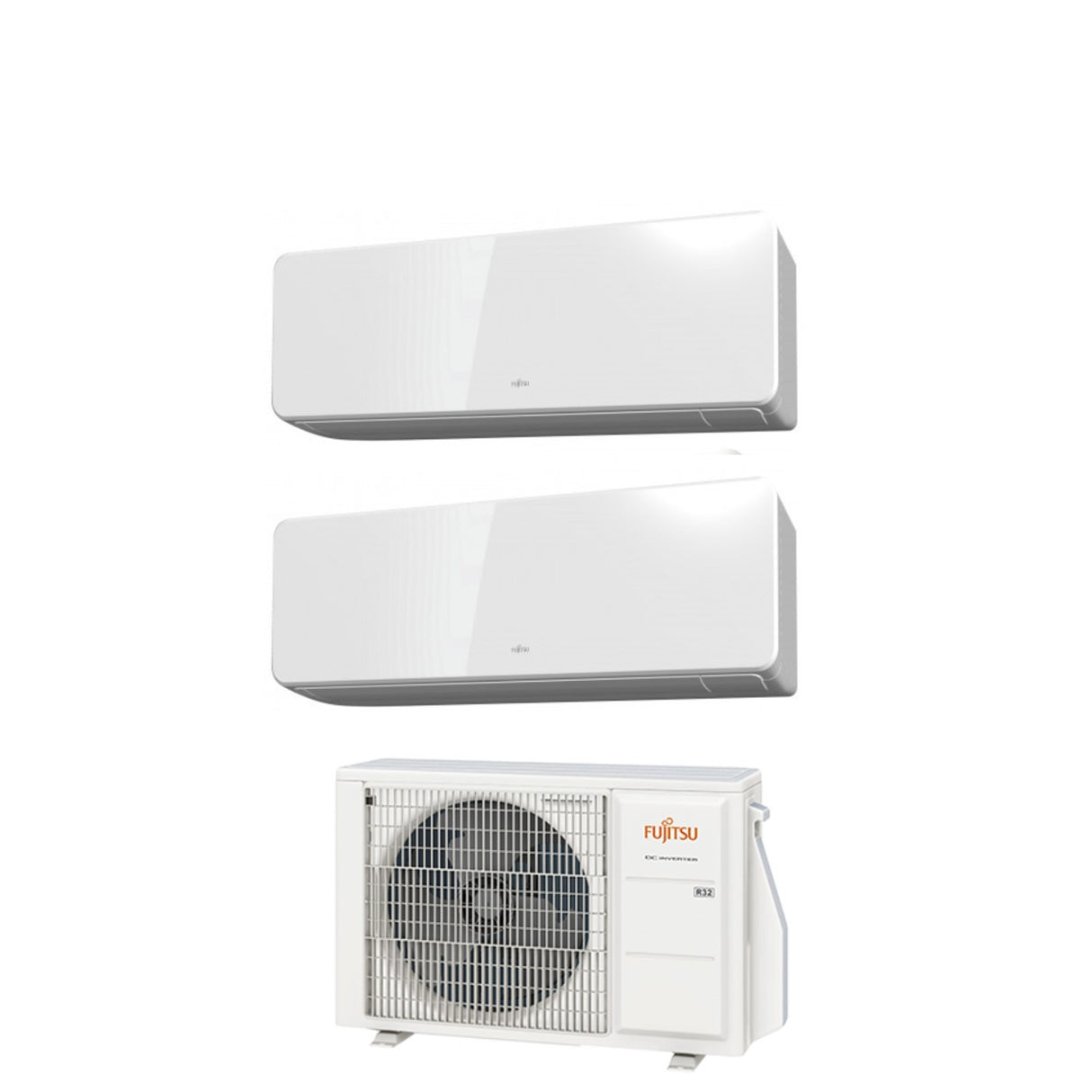

Fujitsu Air Conditioner Dual Split Inverter Series Kg 9+12 With Aohg14kbta2 R-32 Wi-Fi Optional 9000+12000

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Description

Technical features

Indoor Units

1) Model

  • Internal Unit Catalog Code: 1x ASYG09KGTB
  • Internal Unit Code: 3NGF7092
  • Power: 9000 btu/h
  • Cooling Capacity : 2.5 kW
  • Heating Capacity : 2.8 kW
  • Internal Unit Air Flow : 700 m 3 /h
  • Sound Power Level : 55~57 dB(A)
  • Sound pressure level : 21~40 dB(A)
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (HxWxD): 270x834x215 mm
  • Indoor Unit Weight: 10 Kg
  • Wi-Fi Optional : ( Code UTY-TFSXW1 )

2) Model

  • Internal Unit Catalog Code: 1x ASYG12KGTB
  • Internal Unit Code: 3NGF7098
  • Power: 12000 btu/h
  • Cooling Capacity : 3.4 kW
  • Heating Capacity : 4.0 kW
  • Internal Unit Air Flow : 700 m 3 /h
  • Sound Power Level : 55~58 dB(A)
  • Sound pressure level : 21~40 dB(A)
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Internal Unit Dimensions (HxWxD): 270x834x215 mm
  • Indoor Unit Weight: 10 Kg
  • Wi-Fi Optional : ( Code UTY-TFSXW1 )
Outdoor Unit

Model:

  • OUTDOOR Unit catalog code: AOYG14KBTA2
  • Max indoor units: up to 2 indoor units

Energy efficiency:

  • EER: 4.12
  • COP: 4.36

Performance:

  • Cooling Capacity: 4.0 kW
  • Heating Capacity: 4.4 kW
  • Sound power level : 60 dB(A)
  • Sound pressure level : 47 dB(A)

Characteristics:

  • Power supply (V/Hz/Φ) : 230/50/1
  • Refrigerant gas : R-32
  • Pipe diameter Liquid : 6.35 mm (1/4") x2
  • Gas pipe diameter : 9.52 mm (3/8") x2
  • Guaranteed temperature range:
  • - Cooling: -15° ~ 46°C
  • - Heating: -15° ~ 24°C

Dimensions:

  • External Unit Dimensions (HxWxD): 542×799×290 mm
  • Weight of Outdoor Unit: 33 Kg

Fujitsu KG series

Comfortable ventilation and silent operation

The large baffle and the new diffusion structure allow for a comfortable airflow that spreads wider to the user's feet and silent operation.


Motion sensor

The motion sensor detects the presence of people in a room by reducing the power of the air conditioner when people leave the room. When people return to the room, the air conditioner automatically returns to the previous operating mode.


Functions

  • Presence sensor The sensor detects the presence of people inside the room
  • Automatic ventilation speed Automatic modification of the ventilation speed according to the temperature required in the room
  • Automatic Restart In the event of a momentary power failure, the air conditioner restarts automatically when the power returns
  • 10°C HEAT 10°C is the minimum attenuation temperature that can be set in heating
  • Automatic cold/heat switching By comparing the room temperature and the set temperature, the air conditioner automatically activates in heating or cooling
  • Maximum power Function that allows you to activate the climate control system at maximum power for rapid achievement of comfort
  • Daily timer Four possible selections within 24 hours ON, OFF, ON OFF or OFF ON
  • Automatic switch-off Sleep Night comfort is guaranteed by the gradual regulation of the temperature before the programmed switch-off of the air conditioner
  • Weekly timer ON-OFF functions can be set freely on a daily and weekly basis Filter status indicator Allows filter cleaning control

High energy savings

High-Tech Components: DC technology is used for the compressor, indoor/outdoor fan motor and inverter control

Motore


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Fujitsu Air Conditioner Dual Split Inverter Series Kg 9+12 With Aohg14kbta2 R-32 Wi-Fi Optional 9000+12000

Product form

Technical features Indoor Units 1) Model Internal Unit Catalog Code: 1x ASYG09KGTB Internal Unit Code: 3NGF7092 Power: 9000 btu/h Cooling... Read more

€1.370,00 Incl. VAT

    Description

    Technical features

    Indoor Units

    1) Model

    • Internal Unit Catalog Code: 1x ASYG09KGTB
    • Internal Unit Code: 3NGF7092
    • Power: 9000 btu/h
    • Cooling Capacity : 2.5 kW
    • Heating Capacity : 2.8 kW
    • Internal Unit Air Flow : 700 m 3 /h
    • Sound Power Level : 55~57 dB(A)
    • Sound pressure level : 21~40 dB(A)
    • Pipe diameter Liquid : 6.35 mm (1/4")
    • Gas pipe diameter: 9.52 mm (3/8")
    • Internal Unit Dimensions (HxWxD): 270x834x215 mm
    • Indoor Unit Weight: 10 Kg
    • Wi-Fi Optional : ( Code UTY-TFSXW1 )

    2) Model

    • Internal Unit Catalog Code: 1x ASYG12KGTB
    • Internal Unit Code: 3NGF7098
    • Power: 12000 btu/h
    • Cooling Capacity : 3.4 kW
    • Heating Capacity : 4.0 kW
    • Internal Unit Air Flow : 700 m 3 /h
    • Sound Power Level : 55~58 dB(A)
    • Sound pressure level : 21~40 dB(A)
    • Pipe diameter Liquid : 6.35 mm (1/4")
    • Gas pipe diameter: 9.52 mm (3/8")
    • Internal Unit Dimensions (HxWxD): 270x834x215 mm
    • Indoor Unit Weight: 10 Kg
    • Wi-Fi Optional : ( Code UTY-TFSXW1 )
    Outdoor Unit

    Model:

    • OUTDOOR Unit catalog code: AOYG14KBTA2
    • Max indoor units: up to 2 indoor units

    Energy efficiency:

    • EER: 4.12
    • COP: 4.36

    Performance:

    • Cooling Capacity: 4.0 kW
    • Heating Capacity: 4.4 kW
    • Sound power level : 60 dB(A)
    • Sound pressure level : 47 dB(A)

    Characteristics:

    • Power supply (V/Hz/Φ) : 230/50/1
    • Refrigerant gas : R-32
    • Pipe diameter Liquid : 6.35 mm (1/4") x2
    • Gas pipe diameter : 9.52 mm (3/8") x2
    • Guaranteed temperature range:
    • - Cooling: -15° ~ 46°C
    • - Heating: -15° ~ 24°C

    Dimensions:

    • External Unit Dimensions (HxWxD): 542×799×290 mm
    • Weight of Outdoor Unit: 33 Kg

    Fujitsu KG series

    Comfortable ventilation and silent operation

    The large baffle and the new diffusion structure allow for a comfortable airflow that spreads wider to the user's feet and silent operation.


    Motion sensor

    The motion sensor detects the presence of people in a room by reducing the power of the air conditioner when people leave the room. When people return to the room, the air conditioner automatically returns to the previous operating mode.


    Functions

    • Presence sensor The sensor detects the presence of people inside the room
    • Automatic ventilation speed Automatic modification of the ventilation speed according to the temperature required in the room
    • Automatic Restart In the event of a momentary power failure, the air conditioner restarts automatically when the power returns
    • 10°C HEAT 10°C is the minimum attenuation temperature that can be set in heating
    • Automatic cold/heat switching By comparing the room temperature and the set temperature, the air conditioner automatically activates in heating or cooling
    • Maximum power Function that allows you to activate the climate control system at maximum power for rapid achievement of comfort
    • Daily timer Four possible selections within 24 hours ON, OFF, ON OFF or OFF ON
    • Automatic switch-off Sleep Night comfort is guaranteed by the gradual regulation of the temperature before the programmed switch-off of the air conditioner
    • Weekly timer ON-OFF functions can be set freely on a daily and weekly basis Filter status indicator Allows filter cleaning control

    High energy savings

    High-Tech Components: DC technology is used for the compressor, indoor/outdoor fan motor and inverter control

    Motore


    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 55.0 kg
    • classe energetica raffreddamento: A+++
    • classe energetica riscaldamento: A++
    • gas: R-32
    • marca: Fujitsu
    • metri quadri : 25/35
    • modello: Fujitsu KGTB 9+12 14
    • potenza btu: 9000+12000
    • superficie riscaldabile mq: 25/35
