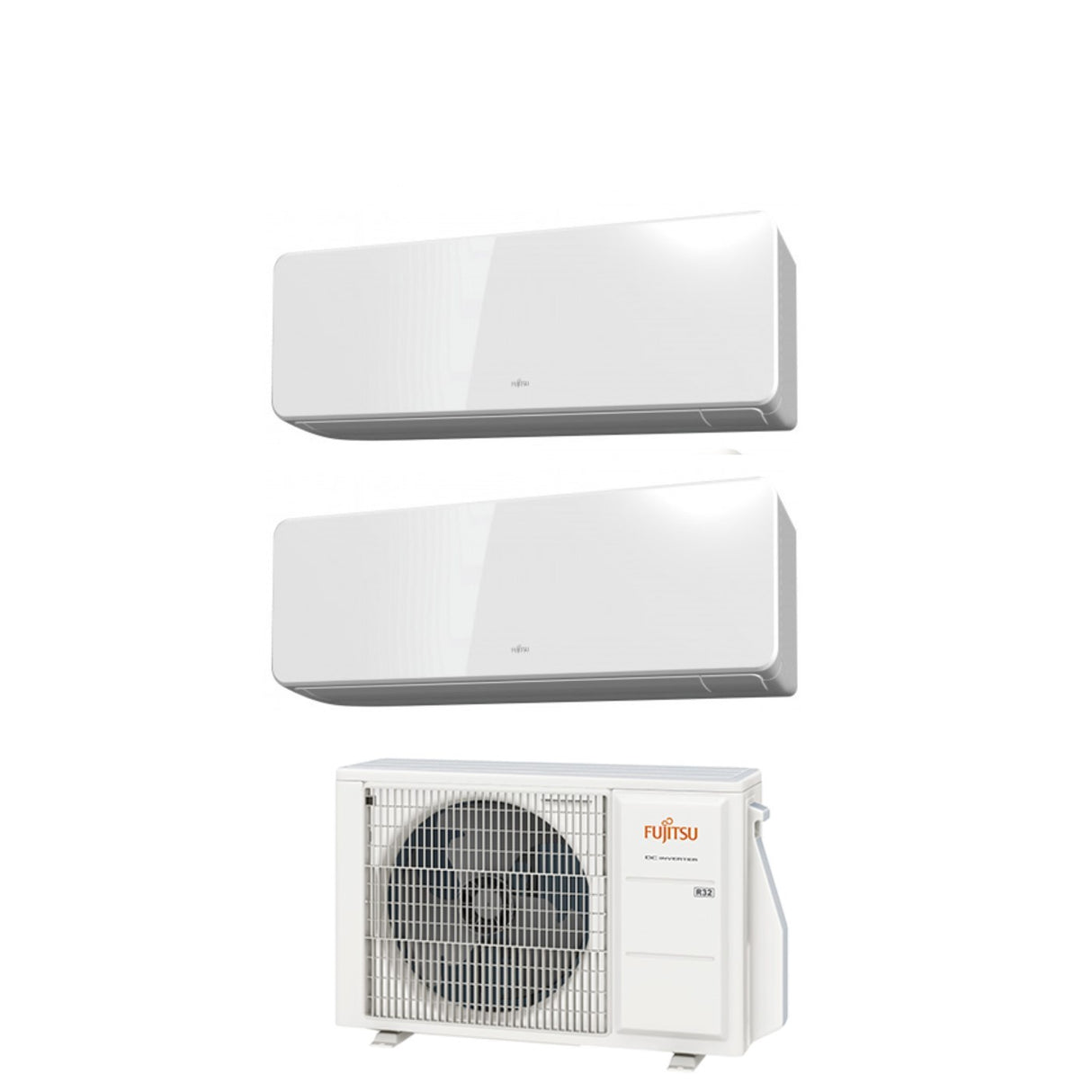

Fujitsu Air Conditioner Dual Split Inverter Series Kg 7+9 With Aoyg14kbta2 R-32 Wi-Fi Optional 7000+9000
Fujitsu Air Conditioner Dual Split Inverter Series Kg 7+9 With Aoyg14kbta2 R-32 Wi-Fi Optional 7000+9000 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of your order. Our shipping services:
- Standard Shipping: Estimated delivery within 2 to 5 business days
- Premium Shipping: Guaranteed delivery within 24 business hours
- Premium Shipping + Home Delivery: Guaranteed delivery within 24 business hours
See the tables for standard shipping prices for Italy and the Minor Islands and Disadvantaged Areas.
For more details on Premium Shipping, please visit the Premium Shipping page.
Customer service
Customer service
Our customer service team is dedicated to providing support to our customers with any issues or questions they may have before or after purchasing our products.
Use the direct communication channel to speak with one of our representatives, or send us an email at one of the addresses listed on the contact us page.
Our customer service team is made up of highly qualified professionals who are always ready to help customers resolve any issue or answer any question quickly and efficiently. We are committed to ensuring maximum customer satisfaction and providing the highest quality after-sales service. So, if you need assistance, don't hesitate to contact us; we'll be happy to help in any way we can.
Description
Description
Technical features
Indoor Units
1) Model
- Internal Unit Catalog Code: 1x ASYG07KGTB
- Internal Unit Code: 3NGF7091
- Power: 7000 btu/h
- Cooling Capacity : 2.0 kW
- Heating Capacity : 2.5 kW
- Internal Unit Air Flow : 650 m 3 /h
- Sound Power Level : 54~56 dB(A)
- Sound pressure level : 21~38 dB(A)
- Pipe diameter Liquid : 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (HxWxD): 270x834x215 mm
- Indoor Unit Weight: 10 Kg
- Wi-Fi Optional : ( Code UTY-TFSXW1 )
2) Model
- Internal Unit Catalog Code: 1x ASYG09KGTB
- Internal Unit Code: 3NGF7092
- Power: 9000 btu/h
- Cooling Capacity : 2.5 kW
- Heating Capacity : 2.8 kW
- Internal Unit Air Flow : 700 m 3 /h
- Sound Power Level : 55~57 dB(A)
- Sound pressure level : 21~40 dB(A)
- Pipe diameter Liquid : 6.35 mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (HxWxD): 270x834x215 mm
- Indoor Unit Weight: 10 Kg
- Wi-Fi Optional : ( Code UTY-TFSXW1 )
Model:
- Indoor Unit catalog code: AOYG14KBTA2
- Max indoor units: up to 2 indoor units
Energy efficiency:
- EER: 4.12
- COP: 4.36
Performance:
- Cooling Capacity: 4.0 kW
- Heating Capacity: 4.4 kW
- Sound power level : 60 dB(A)
- Sound pressure level : 47 dB(A)
Characteristics:
- Power supply (V/Hz/Φ) : 230/50/1
- Refrigerant gas : R-32
- Pipe diameter Liquid : 6.35 mm (1/4") x2
- Gas pipe diameter : 9.52 mm (3/8") x2
- Guaranteed temperature range:
- - Cooling: -15° ~ 46°C
- - Heating: -15° ~ 24°C
Dimensions:
- External Unit Dimensions (HxWxD): 542×799×290 mm
- Weight of Outdoor Unit: 33 Kg
Fujitsu KG series
Comfortable ventilation and silent operation
The large baffle and the new diffusion structure allow for a comfortable airflow that spreads wider to the user's feet and silent operation.
Motion sensor
The motion sensor detects the presence of people in a room by reducing the power of the air conditioner when people leave the room. When people return to the room, the air conditioner automatically returns to the previous operating mode.
Functions
- Presence sensor The sensor detects the presence of people inside the room
- Automatic ventilation speed Automatic modification of the ventilation speed according to the temperature required in the room
- Automatic Restart In the event of a momentary power failure, the air conditioner restarts automatically when the power returns
- 10°C HEAT 10°C is the minimum attenuation temperature that can be set in heating
- Automatic cold/heat switching By comparing the room temperature and the set temperature, the air conditioner automatically activates in heating or cooling
- Maximum power Function that allows you to activate the climate control system at maximum power for rapid achievement of comfort
- Daily timer Four possible selections within 24 hours ON, OFF, ON OFF or OFF ON
- Automatic switch-off Sleep Night comfort is guaranteed by the gradual regulation of the temperature before the programmed switch-off of the air conditioner
- Weekly timer ON-OFF functions can be set freely on a daily and weekly basis Filter status indicator Allows filter cleaning control
High energy savings
High-Tech Components: DC technology is used for the compressor, indoor/outdoor fan motor and inverter control
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
Technical Data Sheet
Technical Data Sheet
- peso: 55.0 kg
- classe energetica raffreddamento: A+++
- classe energetica riscaldamento: A++
- gas: R-32
- marca: Fujitsu
- metri quadri : 20/25
- modello: Fujitsu KGTB 7+9 14
- potenza btu: 7000+9000
- superficie riscaldabile mq: 20/25
