icon Fujitsu Cassette 4-Way Air Conditioner KV ECO Series 9000 Btu R-32 Cod. AUXG09KVLA A++ - NEW | CaldaieMurali

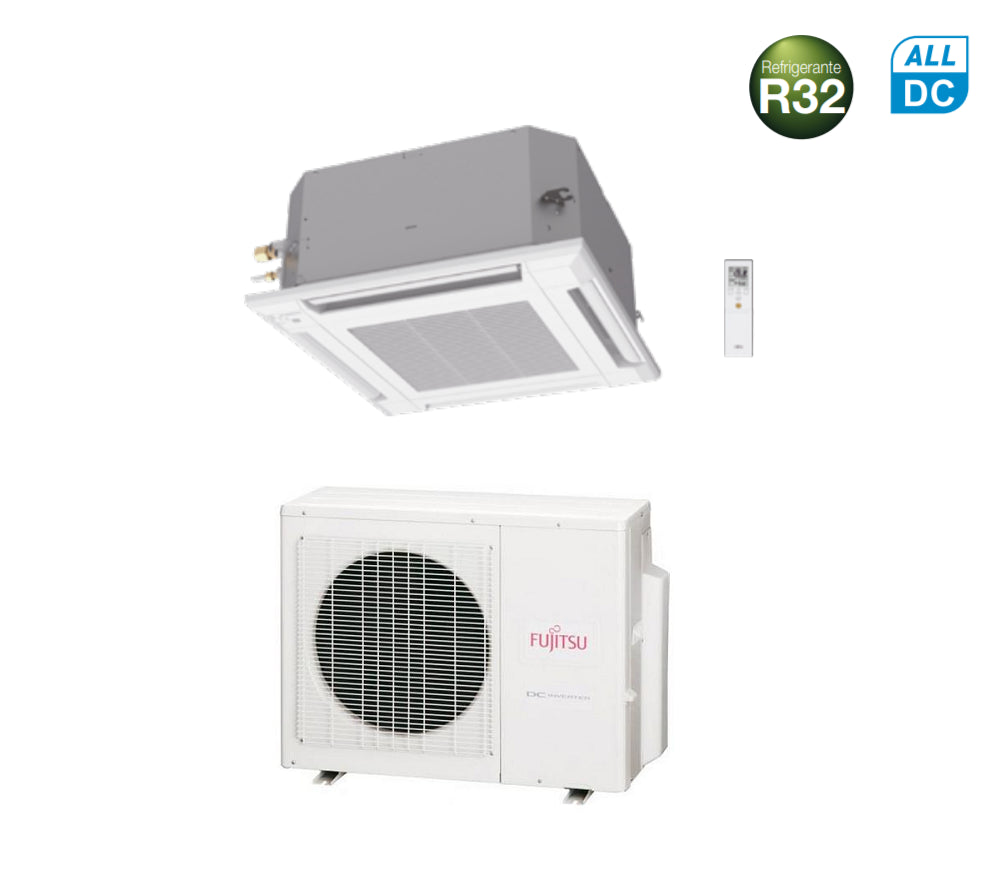

Fujitsu Cassette 4-Way Air Conditioner KV ECO Series 9000 Btu R-32 Cod. AUXG09KVLA A++ - NEW

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Description

Fujitsu Cassette 4-Way Air Conditioner KV ECO Series 9000 Btu R-32 Cod. 3NGF88100 A++ - NEW


Model:

  • Indoor unit catalog code: AUXG09KVLA
  • Outdoor unit catalog code: AOYG09KATA
  • Kit Code: 3NGF88100
  • Remote control and grill included

Energy Efficiency:

  • Cold power (kW) 2.5(0.9-2.7)
  • Heating power (kW) 3.2(0.9-3.9)
  • SEER 6.2
  • SCOP 4.0
  • class A++
  • class A+

Performance:

  • Dehumidification l/h: 0.6
  • Power consumption in cooling/heating (kW): 0.68/0.88
  • Indoor unit sound pressure (Hi/Mi/Lo/Qu) (dB-A): 33/31/29/27
  • Sound power indoor unit dB(A): 46/47
  • Sound pressure external unit (max) dB(A): 47/48
  • Sound power outdoor unit (max) dB(A): 60

Electrical data:

  • Power supply (V/Hz/Φ) : 230/50/1

Characteristics:

  • Refrigerant gas: R-32
  • Liquid/gas connection pipes (mm): 6.35 / 9.52
  • Pipes Max. length UI/UE: 15 (15)
  • Pipelines Max height difference: 15 meters
  • Operating range:
    -Cooling: -10~46 °C
    -Heating: -15~24°C

Dimensions:

  • Internal Unit HxWxD (mm): 245x570x570; 15kg
  • External Unit HxWxD (mm): 541×663×290; 23 kg

KV Series

Compact and elegant panel design

The compact and elegant design of the panel fits perfectly into modular false ceilings. The dimensions of the grid of 620x620 mm hide the presence of the unit installed in the room.

Easy maintenance

Maintenance is easier by removing the false ceiling panel next to the unit. Construction costs can be reduced by not having an inspection hatch. The air inlet grille can be installed in various directions for easier cleaning.

Flexible installation

Suitable for modular false ceilings, it has a high degree of freedom of installation, it can be installed next to lighting fixtures or ventilation grilles.

Climate Control Functions

  • Up and down movement of the deflectors. Automatic opening and closing of the deflectors.
  • Automatic ventilation speed Automatically changes the ventilation speed according to the required temperature in the room
  • Condensate drain pump as standard.
  • Automatic Restart In the event of a temporary power failure, the air conditioner restarts automatically when the power returns.
  • Automatic cold/hot switching By comparing the room temperature and the set temperature, the air conditioner automatically activates heating or cooling.
  • 10°C HEAT 10°C is the minimum attenuation temperature that can be set in heating mode
  • Energy saving Control system for energy saving.
  • Automatic Sleep Switch-Off Night-time comfort is guaranteed by the gradual regulation of the temperature before the programmed switch-off of the air conditioner.
  • Daily Timer Four possible selections within 12 hours ON, OFF, ON OFF or OFF ON.
  • Filter status indicator Allows you to check the cleanliness of the filters.

Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase

Fujitsu Cassette 4-Way Air Conditioner KV ECO Series 9000 Btu R-32 Cod. AUXG09KVLA A++ - NEW

Product form

Fujitsu Cassette 4-Way Air Conditioner KV ECO Series 9000 Btu R-32 Cod. 3NGF88100 A++ - NEW Model: Indoor unit catalog... Read more

€1.195,00 Incl. VAT

    Description

    Fujitsu Cassette 4-Way Air Conditioner KV ECO Series 9000 Btu R-32 Cod. 3NGF88100 A++ - NEW


    Model:

    • Indoor unit catalog code: AUXG09KVLA
    • Outdoor unit catalog code: AOYG09KATA
    • Kit Code: 3NGF88100
    • Remote control and grill included

    Energy Efficiency:

    • Cold power (kW) 2.5(0.9-2.7)
    • Heating power (kW) 3.2(0.9-3.9)
    • SEER 6.2
    • SCOP 4.0
    • class A++
    • class A+

    Performance:

    • Dehumidification l/h: 0.6
    • Power consumption in cooling/heating (kW): 0.68/0.88
    • Indoor unit sound pressure (Hi/Mi/Lo/Qu) (dB-A): 33/31/29/27
    • Sound power indoor unit dB(A): 46/47
    • Sound pressure external unit (max) dB(A): 47/48
    • Sound power outdoor unit (max) dB(A): 60

    Electrical data:

    • Power supply (V/Hz/Φ) : 230/50/1

    Characteristics:

    • Refrigerant gas: R-32
    • Liquid/gas connection pipes (mm): 6.35 / 9.52
    • Pipes Max. length UI/UE: 15 (15)
    • Pipelines Max height difference: 15 meters
    • Operating range:
      -Cooling: -10~46 °C
      -Heating: -15~24°C

    Dimensions:

    • Internal Unit HxWxD (mm): 245x570x570; 15kg
    • External Unit HxWxD (mm): 541×663×290; 23 kg

    KV Series

    Compact and elegant panel design

    The compact and elegant design of the panel fits perfectly into modular false ceilings. The dimensions of the grid of 620x620 mm hide the presence of the unit installed in the room.

    Easy maintenance

    Maintenance is easier by removing the false ceiling panel next to the unit. Construction costs can be reduced by not having an inspection hatch. The air inlet grille can be installed in various directions for easier cleaning.

    Flexible installation

    Suitable for modular false ceilings, it has a high degree of freedom of installation, it can be installed next to lighting fixtures or ventilation grilles.

    Climate Control Functions

    • Up and down movement of the deflectors. Automatic opening and closing of the deflectors.
    • Automatic ventilation speed Automatically changes the ventilation speed according to the required temperature in the room
    • Condensate drain pump as standard.
    • Automatic Restart In the event of a temporary power failure, the air conditioner restarts automatically when the power returns.
    • Automatic cold/hot switching By comparing the room temperature and the set temperature, the air conditioner automatically activates heating or cooling.
    • 10°C HEAT 10°C is the minimum attenuation temperature that can be set in heating mode
    • Energy saving Control system for energy saving.
    • Automatic Sleep Switch-Off Night-time comfort is guaranteed by the gradual regulation of the temperature before the programmed switch-off of the air conditioner.
    • Daily Timer Four possible selections within 12 hours ON, OFF, ON OFF or OFF ON.
    • Filter status indicator Allows you to check the cleanliness of the filters.

    Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase

    Data sheetData sheet
    • peso: 35.0 kg
    • classe energetica raffreddamento: A++
    • classe energetica riscaldamento: A+
    • gas: R-32
    • marca: Fujitsu
    • metri quadri : 15-25 sq m
    • modello: 3NGF88100
    • potenza btu: 9000
    • superficie riscaldabile mq: 25
