Overview

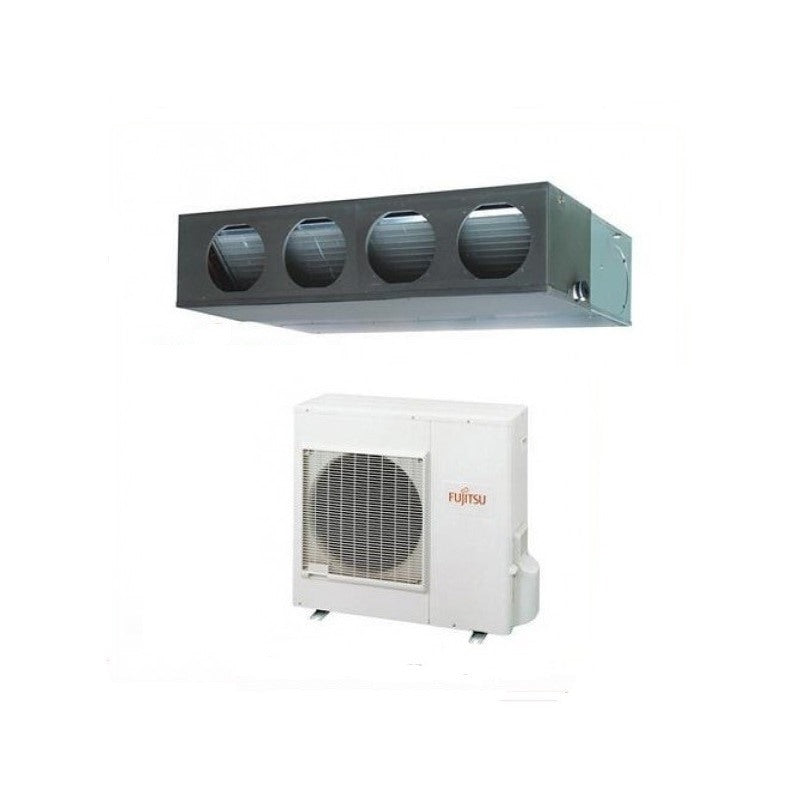

FUJITSU SPLIT AIR CONDITIONER DUCTED INVERTER LM series ARYG45LMLA 45000 BTU.
Technical specifications
Model:
Internal catalog unit code: ARYG45LMLA
Typology : DC Inverter
Performance:
Dehumidification l/h: 4.0
Nominal capacity Cooling (kW): 12.1
Nominal heating capacity (kW): 13.3
Absorbed power in cooling (kW): 3.77
Absorbed power in heating (kW): 3.68
Indoor unit sound pressure (Hi/Mi/Lo/Qu) (dB-A): 42/38/32/28
External unit sound pressure (max) dB(A): 55
Electrical data:
Power supply (V/Hz/?) : 230/50/1
Characteristics:
Refrigerant gas : R410A
Pipes for liquid/gas connections (mm): 9.52/15.88
Piping Max. length IU/UE: 50 metres
Piping Max difference in level U.I.- UE/UI-UE: 30 metres
Operating range:
-Cooling: -15~46 øC
-Heating: -15~24 øC
Dimensions:
Indoor Unit HxLxP (mm) : 270 x 1135 x 700 ; 40kg
Outdoor Unit HxLxP (mm) : 1290 ?? 900?? 330; 86kg
Main features
LM series
Inverter Technology
Partial power works for 90% of the air conditioning times. Fujitsu air conditioners, on the other hand, thanks to DC inverter technology and high-efficiency electronic controls, guarantee efficiency levels and excellent performance in all environmental conditions.
Energy classification
Provisions 626 /2011/ EU on the new energy labeling: Our products have reached the classification of "Class A", the highest level of energy efficiency indicated on energy labels in Europe.
Compact and slim models
The extremely limited thickness of the internal units allows installation in all those cases where the space in the false ceiling is very reduced. In addition, the location of the vanschede allows for easy access to the connections.
Easy maintenance
The structural improvement of these models includes the division into two parts (front and rear) of the lower panel. In this model the maintenance of the motor and the fan is easier and can be done completely from the bottom of the unit.
Features list
Comfort Performance
The large surface area of the heat exchanger, the DC rotary compressor and the innovative inverter system guarantee a high heating capacity even with low outside temperatures.
Automatic switching function The air conditioner switches automatically from heating to cooling (and vice versa) according to the required room temperature.
Energy saving: Energy saving control function
Can be connected to a duct distribution system and to an external air intake system
Warranty
All products for sale on our site are new and packed. The guarantee on this item is 24 months from the date of purchase.
