Overview

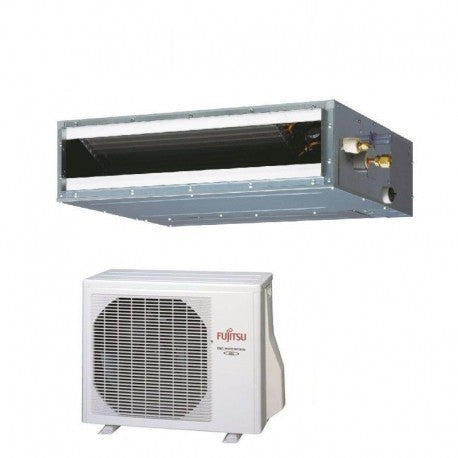

AIR CONDITIONER FUJITSU SPLIT DUCTED INVERTER series LL ARYG14LLTB A+ 14000 BTU
Technical specifications
Model:
Internal unit catalog code: ARYG14LLTB
Typology : DC Inverter
Energy efficiency:
SEER/EER (W/W): 5.80
SCOP/COP (W/W): 3.90
Seasonal Energy Efficiency Class (Cooling) : A+
Seasonal Energy Efficiency Class (Heating) : A
Energy consumption year Cooling kWh/a: 259
Energy consumption year Heating kWh/a: 1614
Power (BTU) : 14000
Performance:
Dehumidification l/h: 1.5
Nominal capacity Cooling (kW): 4.3
Nominal heating capacity (kW): 5.0
Absorbed power in Cooling (kW): 1.33
Absorbed power in heating (kW): 1.34
Indoor unit sound pressure (Hi/Mi/Lo/Qu) (dB-A): 32/30/28/26
Indoor unit sound power dB(A): 60
External unit sound pressure (max) dB(A): 49
Outdoor unit sound power (max) dB(A): 62
Electrical data:
Power supply (V/Hz/?) : 230/50/1
Characteristics:
Refrigerant gas : R410A
Pipes for liquid/gas connections (mm): 6.35/12.70
Piping Max. length IU/UE: 25 metres
Piping Max difference in level U.I.- UE/UI-UE: 15 metres
Operating range:
-Cooling: -10~46 øC
-Heating: -15~24 øC
Dimensions:
Indoor Unit HxLxP (mm) : 198 x 700 x 620 ; 19kg
Outdoor Unit HxWxD (mm) :578 ?? 790?? 300; 40kg
Main features
LL series
Inverter Technology
Partial power works for 90% of the air conditioning times. Fujitsu air conditioners, on the other hand, thanks to DC inverter technology and high-efficiency electronic controls, guarantee efficiency levels and excellent performance in all environmental conditions.
Energy classification
Provisions 626 /2011/ EU on the new energy labeling: Our products have reached the classification of "Class A", the highest level of energy efficiency indicated on energy labels in Europe.
Slim design
With only 198 mm in height, these models allow for flexible installation both in the ceiling and on the floor.
Gruppalette kit (optional)
Elegant self-directing fins diffuse the air uniformly inside the room.
Features list
Comfort Performance
The large surface area of the heat exchanger, the DC rotary compressor and the innovative inverter system guarantee a high heating capacity even with low outside temperatures.
Automatic switching function The air conditioner switches automatically from heating to cooling (and vice versa) according to the required room temperature.
Energy saving: Control function for energy saving
Can be connected to a duct distribution system and to an external air supply system
Warranty
All products for sale on our site are new and packed. The guarantee on this item is 24 months from the date of purchase.
