Overview

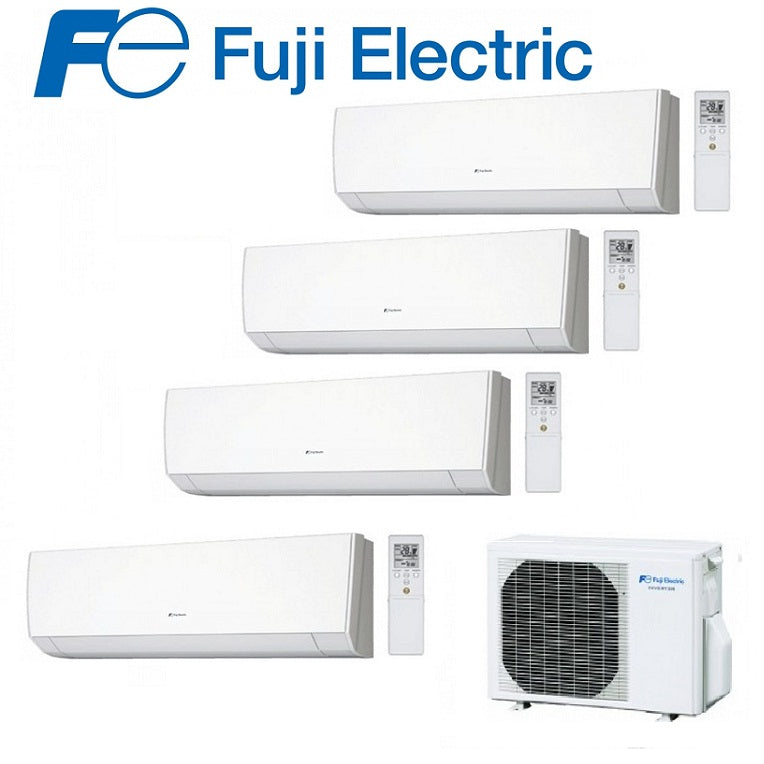

AIR CONDITIONER FUJI INVERTER QUAD SPLIT WALL MOUNTED LM series 9000+9000+9000+12000 with ROG30Lÿ
ÿ
Technical specifications
ÿ
INDOOR UNIT
1) Model
Product Code: RSG 09 LMC
Feeding:ÿ230/1/50
Sound pressure (Cooling-Heating)ÿH/M/L/Q: 37/33/29/21ÿdB(A)
Sound power (Cooling-Heating): 52
Air flow:ÿ 600/520/430/310
Dimensions: 268x840x203ÿ; 8.5kg
2) Model
Product code: RSG 12 LMC
Feeding:ÿ230/1/50
Sound pressure (Cooling-Heating)ÿH/M/L/Q: 42/38/33/25ÿdB(A)
Sound power (Cooling-Heating): 56/57
Air flow:ÿ 600/520/430/310
Dimensions: 268x840x203ÿ; 8.5kg
ÿ
OUTDOOR UNIT
Model:ÿROG30L
Nominal capacity (Cool-Heat): 8.0 - 9.6 Kw
EER-COP: 3.60 / 4.00 KW
Performance:
Sound pressure (Cool-Heat): 50-51 dB(A)
Sound Power (Cool-Heat): 68-70 dB(A)
Electrical Data:
Power supply V/ÇÓ?/Hz:ÿ230/1/50
Dimensions:
Liquid-Gas piping connections: 9.52 / 12.7
Maximum height difference U.IU.E: 10 m
External Unit Dimensions: 830x900x330 ; 68 kgs
ÿ
Main features
MULTISPLIT INVERTER TECHNOLOGY
Well-being in all rooms; ÿDistributing different indoor units in the various areas of the house, the desired temperature is reached evenly. Fuji Electric Multisplit Inverter systems can combine from 2 to 8 indoor units with a single outdoor unit which, in addition to offering great placement versatility, prevents the external aesthetics of the home from being modified.
ÿ
Energy savings:ÿThe use of the compressor and the DC fan increases the performance of the air conditioners and in the same temper guarantees lower electricity consumption
ÿ
Elegant indoor units: Fuji Electric has a wide range of elegantly designed indoor units ranging from 2 to 7 kW. The ultra-slim Slim ductable units of only 198 mm in height come standard with the condensate lifting pump and as accessories the Kit Group Self-directing flaps (AutLouver).ÿ
ÿ
The best performance on the marketÿThis range equipped with the latest Inverter technology makes it possible to achieve high energy efficiency values: great comfort and energy savings.ÿ
ÿ
Maximum flexibility The indoor units can operate individually or simultaneously. Combinations of 2 large capacity indoor units can also be made with 3x1 and 4x1 outdoor units.ÿ
ÿ
Easy installationÿ Thanks to the possibility of being able to reach considerable lengths for the pipes, the outdoor units can be installed almost anywhere.ÿ
ÿ
INDOOR UNITÿ
ÿ
Elegant and compact internal units (models LU, LM and LF) Equipped with bacterial filters and catechin filters guarantee greater energy efficiency: all 2x1 combinations are in class A and have very low noise levels.
ÿ
ÿ
WALL SPLIT INVERTER LM series
Cutting-edge design and compact dimensions:ÿThe internal units have compact dimensions, only 203 mm deep, and allow for both greater energy savings and easy maintenance thanks to the removable and washable front panel.
ÿ
"Low Noise" functionÿfor the outdoor unit It is activated from the remote control and allows to further reduce the sound level of the outdoor unit.
ÿ
Maximum comfort at home:ÿLow energy consumption, optimal performance and cleanliness are what characterize the Fuji Electric Split Inverter range. These features allow you to make the most of your home.ÿ
ÿ
Elegant compact designÿWith its elegant compact design, the Slide becomes a decorative piece of furniture, as well as guaranteeing a high level of comfort with the greatest energy savings
ÿ
Warranty
All products sold on our website are brand new and packed. The warranty on this item is 24 months from the date of purchase.
