Technical features

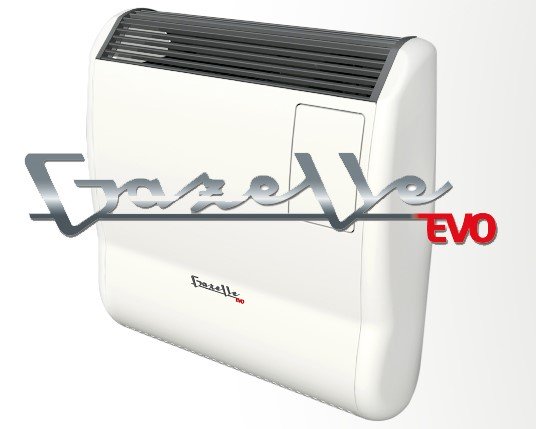

Model : Gazelle Evo 3000
- Typology : Gas radiator
- Rated power : 2.72 kW
- Minimum power : 1.9 kW
- Maximum absorbed power: 24 W
- Useful efficiency at nominal heat output: 93.7%
- Useful efficiency at minimum thermal power: 94.5%
- Nominal heat input : 2900 W
- Reduced thermal input : 2000 W
- Nominal heat output : 2720W
- Reduced thermal power : 1890 W
- NOx emission class : 5
- Energy class: A
- Power supply: METHANE
- Supply Voltage/Frequency : 230 - 50 V/Hz
- Combustion chamber : Forced draft
- Electrical protection degree : 20 IP
- External diameter of straight exhaust pipes (C13) : 2 x 55/2 mm
- External diameter of split pipes (C53): 35 or 60 mm
- Gas connection diameter: G 1/2 M inches
- White color
- Dimensions LxHxP : 547 x 550 x 195
- Weight : 20Kg
NB* 2 x 55/2 refers to n2 pipes (one for air intake and one for flue gas discharge) each having the same shape as a semicircle with a diameter of 55 mm
General characteristics
NEW GAZELLE EVO
The Strength of EVO lution
The single convective gas stove with a heat input of less than 5 kW is not considered a heating system, therefore one might think that there are no legislative obligations to carry out periodic annual maintenance.
In reality, even when the convective gas stove is not considered a heating system, only the obligation of energy efficiency control falls but all the prescriptions contained in the supplier's instruction booklet remain valid, which has always prescribed annual maintenance by qualified personnel .
Maintenance allows the machine to work in the best conditions of efficiency and safety, thus allowing fuel savings, better environmental well-being and prolonging the life of the machine. An extraordinary one must also be added to the periodic maintenance, in case of breakage or wear of the device.
According to the provisions of Ministerial Decree n.37 of 22 January 2008, the installation and maintenance of the appliances must only be carried out by expert professionals who must issue the declaration of conformity of the product itself.
By professionally qualified personnel we mean those having specific technical competence in the sector of components of heating systems for civil use, or qualified according to the legislation in force.
To guarantee maximum efficiency and safety of the appliance, it is therefore recommended to have the inspection certificate completed by an authorized Technical Assistance Center (TAC). In reference to the installation it is good to consider some guidelines:
• The appliance must be installed on walls directly communicating with the outside, alternatively alternative installations must be arranged, always in compliance with current regulations.
• The correct distance from other surrounding elements must be respected as follows:
Gas convection stoves , such as the Gazelle Evo, are an excellent solution in terms of efficiency and safety for heating domestic and industrial environments but, like any other product, they must be used and maintained with care and precision.
By relying on one of our experts, you will therefore be able to benefit from all the advantages of our products in the safety of your own home.
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
