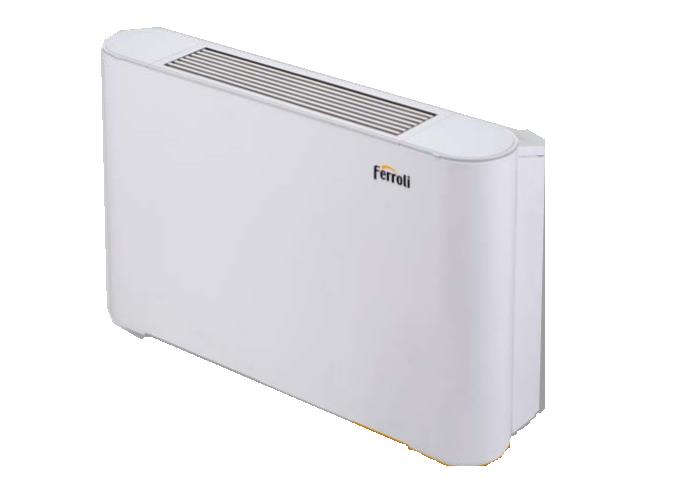

Fan Coil Fan Coil Ferroli Jolly Top 3V 250 vm250K - NEW
- Power supply V-ph-Hz 230-1-50
- Total cooling capacity max/med/min kW 2.65/2.02/1.4
- Thermal power max/med/min kW 3,05/2,24/1,52
General Data
- Air flow max/med/min m³/h 400/273/180
- Power consumption max/med/min W 47/26/14
- Current consumption max/med/min A 0.20/0.11/0.06
- Sound power max/med/min dB(A) 46/37/31
Dimensions
JOLLY 3V
New series of fan coil units with centrifugal fan with 3-speed AC motor. Characterised by a maximum depth of 200 mm and in the version with casing by a particularly attractive aesthetic line, they are suitable for residential heating and air conditioning applications. Available in 5 sizes with cooling capacities from 1.65 to 6.00 kW and air flow rates from 255 to 1300 m3 /h. In the standard version they are offered with a single 3-row coil which can be combined as an accessory, in the case of 4-pipe systems, with an additional 1-row coil. Available in two versions, VM with casing and VN without casing for built-in applications. The units can be installed both vertically and horizontally.
VM version
Fan coil unit with bottom suction casing Composed of a sheet metal covering casing, a delivery grille with doors for access to any controls, in thermoplastic material and a regenerable air filter, placed on a metal frame housed on guides obtained in the lower part of the frame.
Construction Features
- LOAD-BEARING STRUCTURE It is made of galvanized sheet metal of adequate thickness. On the rear part there are slots for fixing the appliance. For models without a covering casing, a closing panel for the ventilation unit is provided, mounted at the front
- HEAT EXCHANGE COIL 3-row coil made of copper pipe and aluminium finning blocked by mechanical expansion of the pipes. The collectors in the upper part of the coil are equipped with air vents, while in the lower part they have a water drain tap*. * The default hydraulic connection for the coil is on the LEFT. However, it is possible to turn the coil and change it to the RIGHT (see Installation Manual).
- CONDENSATE COLLECTION TRAY optional Made of thermoplastic material to prevent corrosion, it allows the machine to be installed either vertically or horizontally. In particular, in horizontal installation its shape allows it to collect the condensation drops that form on the collectors during cold operation. The drain hole is obtained directly from the condensation collection tray and allows its elimination during cold operation. It is present on both sides of the machine to facilitate the rotation of the battery
- FAN MOTOR (for version I) The electric motor is of the DC brushless type with continuous speed regulation with high efficiency and is directly coupled to the fans and cushioned by elastic supports.
- FAN MOTOR (for 3V version) The electric motor, protected from any overloads, has three speeds with a running capacitor always inserted, directly coupled to the fans and cushioned by elastic supports. CENTRIFUGAL FAN The fan unit is made up of double-intake centrifugal fans with blades developed in length to obtain high flow rate with a low number of revolutions.
- AIR FILTER Easily removable and regenerable by simply washing with water.
- COVERING (VM only) Made partly of steel sheet painted with epoxy powders to ensure high resistance to corrosion and partly of anti-UV thermoplastic material to ensure resistance to ultraviolet rays. The upper part includes the air diffusion grilles and the door to access the control panel, both in anti-UV thermoplastic material.
- HYDRAULIC CONNECTIONS The connections, positioned on the left side, are of the ¾” gas female type. It is possible to rotate the battery, which is supplied standard with left-hand side connections, by moving the hydraulic connections to the right side.
These new units are characterized by an elegant aesthetic line and multiple possibilities for insertion in different types of systems. The cabinet models are suitable for wall or niche solutions (raised or supported on feet), or suspended horizontally from the ceiling. The dismantled models are particularly suitable for concealed solutions in built-in or inside false ceilings.
Product Warranty All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
