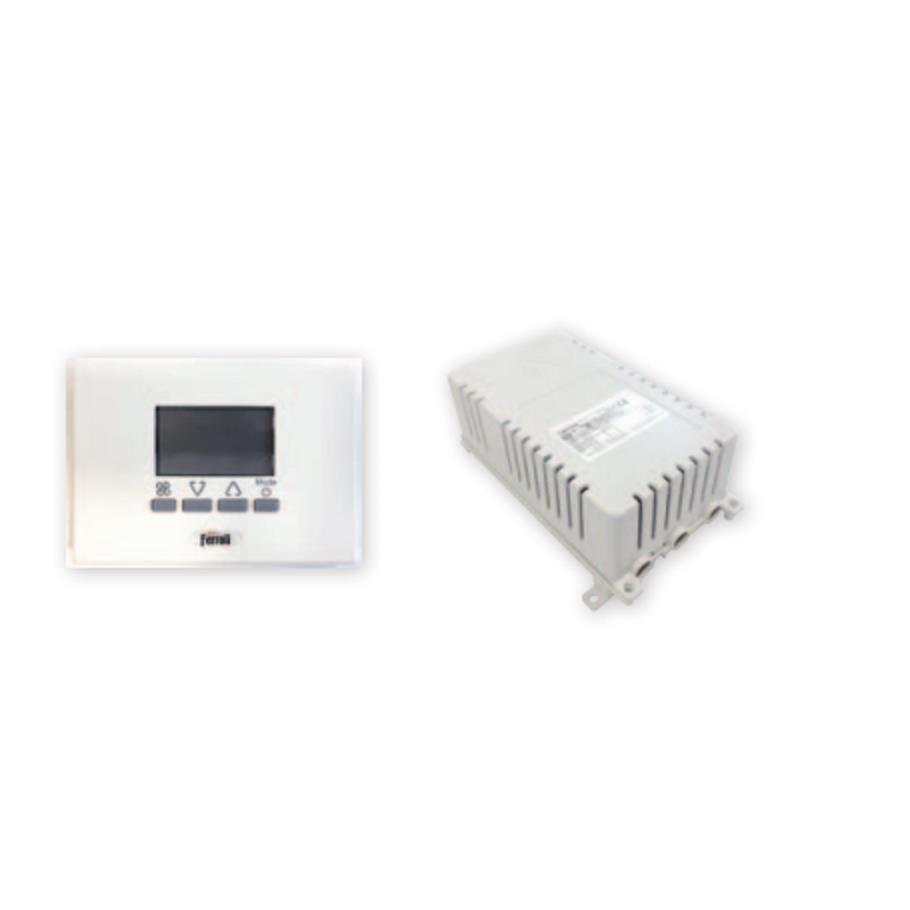

Ferroli Master Remote Terminal + 3v Power Module (Replaces Tar-F And Ter-F)

3V POWER MODULE.

Module to be installed on each unit, it is able to activate the three fan speeds as well as any hot and cold valves. By means of microswitches it is able to manage different system configurations, 2 or 4 pipes or solutions with integration of electric resistance. It manages heating and cooling functions and accepts presence status inputs from the place to be air-conditioned. It receives the settings directly from one of the two Master controllers, on the machine or remotely, or from a serial connection with other units belonging to a single group of terminals with Master setting.

MASTER REMOTE TERMINAL.

By means of the remote terminal, which can be wall-mounted and connected with three wires to the power module, it is possible to set all the operating parameters of the units. The display allows you to view the room temperature (via an air probe integrated in the terminal) and the set point, and is complete with icons for status indication (on/off), operating mode (hot/cold/auto), fan speed (1 /2/3/car). Using the 4 keys it is therefore possible to modify the status, the operating mode, the set point and the fan speed. The display also shows any operating errors. The terminal allows the control of a single fan coil while via serial connection, it performs the function of master terminal and allows the management of a zone of fan coils.

Replaces Basic Remote Thermostat TAR-F and Advanced Remote Thermostat TER-F.
