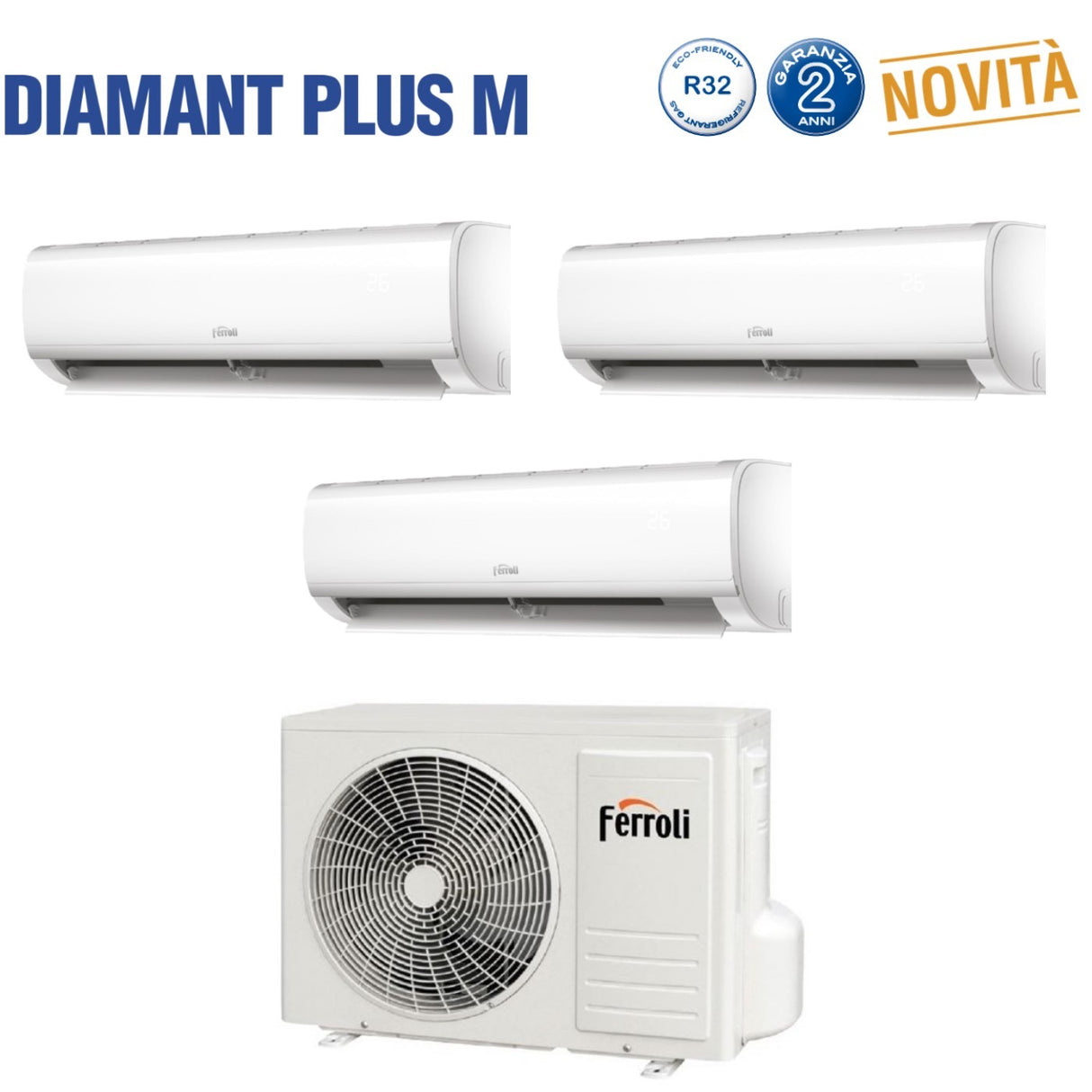

Ferroli Trial Split Air Conditioner Diamant Plus M 9+9+18 Series With UE 28-4 Gas R-32 - 9000+9000+18000

Description

Ferroli Quadri Split Air Conditioner Diamant Plus M 9+9+9+18 Series With UE 28-4 Gas R-32 - 9000+9000+9000+18000


Indoor Unit:

1) Model:

  • Indoor unit code: x3 2C09B01F
  • Power : 9000 Btu/h
  • Internal Unit Dimensions (HxWxD): 285 x 805 x 194 mm
  • Indoor Unit Weight: 7.5 Kg
2) Model:
  • Indoor unit code: 2C09B03F
  • Power : 18000 Btu/h
  • Internal Unit Dimensions (HxWxD): 302 x 957 x 213 mm
  • Indoor Unit Weight: 7.5 Kg

Outdoor Unit:

  • Model: 2C09AA2F
  • Outdoor unit code : 28-4
  • Typology: heat pump
  • Refrigerant gas : R-32

Energy efficiency:

  • SEER (W/W): 6.1
  • SCOP (WW): 4.0
  • Energy Efficiency Class (Cooling) : A++
  • Energy Efficiency Class (Heating) : A

Performance:

  • Total absorbed power cold (W): 2540
  • Total absorbed power when hot (W): 2200
  • Air flow m3/h 3800
  • Sound pressure dB(A) 61.5

Dimensions

  • Outdoor Unit HxWxD (mm) : 810 x 946(+84) x 420 mm ; 68kg

Ferroli DIAMANT PLUS Climatic Comfort and Elegance in Shapes

New and clean air in Ferroli

The latest proposal from the Ferroli house is appreciated for the elegant lines and the compactness of the machine body. It combines design, technology, energy saving, respect for the external environment and for that of the home, where Ferroli has always been at the forefront.

Features and Functions

  • R-32 : R32 ecological refrigerant. It complies with the Montreal protocol, it does not damage the ozone layer because it is free of HCFCs
  • 2 year European guarantee
  • Universal indoor units that can be combined with mono or multi split outdoor units
  • ROHS : The products are all ROHS compliant according to Directive 2002/95/CE
  • Direct Current (DC) Inverter Technology
  • Infrared remote control: for controlling all the functions of the air conditioner
  • AUTO function: automatically activates Cool/Heat operation based on the room temperature and the Set Point
  • SWING function: motorized deflector flap
  • DRY function: accentuates the summer dehumidification phenomenon
  • TURBO function: takes operation to maximum speed for rapid achievement of the SET POINT
  • SLEEP function: Increases night comfort
  • FAN function: activates the indoor unit in ventilation only
  • FROST PROTECTION function: It fixes a minimum anti-freeze safety set point of 8°C
  • Self-diagnosis : Self-diagnosis system and description of any anomalies
  • Memory retention and automatic restart in the event of a voltage drop
  • Double Filtration: "Cold Catalyst" (cold catalyst) and "Biohepa"
  • Operation in Cooling
  • Operation in Cooling
  • Timer
  • Remote control with dedicated smartphone App
  • Outdoor Unit that can be combined with different types of indoor units
  • Outdoor Unit equipped with connection cover cap and sound-absorbing hood
  • Suction grille and easily removable filters for quick cleaning
  • Outdoor unit treated with anti-rust protective substances

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Ferroli Trial Split Air Conditioner Diamant Plus M 9+9+18 Series With UE 28-4 Gas R-32 - 9000+9000+18000

Product form

Ferroli Quadri Split Air Conditioner Diamant Plus M 9+9+9+18 Series With UE 28-4 Gas R-32 - 9000+9000+9000+18000 Indoor Unit: 1)... Read more

€1.650,00 Incl. VAT

    Description

    Ferroli Quadri Split Air Conditioner Diamant Plus M 9+9+9+18 Series With UE 28-4 Gas R-32 - 9000+9000+9000+18000


    Indoor Unit:

    1) Model:

    • Indoor unit code: x3 2C09B01F
    • Power : 9000 Btu/h
    • Internal Unit Dimensions (HxWxD): 285 x 805 x 194 mm
    • Indoor Unit Weight: 7.5 Kg
    2) Model:
    • Indoor unit code: 2C09B03F
    • Power : 18000 Btu/h
    • Internal Unit Dimensions (HxWxD): 302 x 957 x 213 mm
    • Indoor Unit Weight: 7.5 Kg

    Outdoor Unit:

    • Model: 2C09AA2F
    • Outdoor unit code : 28-4
    • Typology: heat pump
    • Refrigerant gas : R-32

    Energy efficiency:

    • SEER (W/W): 6.1
    • SCOP (WW): 4.0
    • Energy Efficiency Class (Cooling) : A++
    • Energy Efficiency Class (Heating) : A

    Performance:

    • Total absorbed power cold (W): 2540
    • Total absorbed power when hot (W): 2200
    • Air flow m3/h 3800
    • Sound pressure dB(A) 61.5

    Dimensions

    • Outdoor Unit HxWxD (mm) : 810 x 946(+84) x 420 mm ; 68kg

    Ferroli DIAMANT PLUS Climatic Comfort and Elegance in Shapes

    New and clean air in Ferroli

    The latest proposal from the Ferroli house is appreciated for the elegant lines and the compactness of the machine body. It combines design, technology, energy saving, respect for the external environment and for that of the home, where Ferroli has always been at the forefront.

    Features and Functions

    • R-32 : R32 ecological refrigerant. It complies with the Montreal protocol, it does not damage the ozone layer because it is free of HCFCs
    • 2 year European guarantee
    • Universal indoor units that can be combined with mono or multi split outdoor units
    • ROHS : The products are all ROHS compliant according to Directive 2002/95/CE
    • Direct Current (DC) Inverter Technology
    • Infrared remote control: for controlling all the functions of the air conditioner
    • AUTO function: automatically activates Cool/Heat operation based on the room temperature and the Set Point
    • SWING function: motorized deflector flap
    • DRY function: accentuates the summer dehumidification phenomenon
    • TURBO function: takes operation to maximum speed for rapid achievement of the SET POINT
    • SLEEP function: Increases night comfort
    • FAN function: activates the indoor unit in ventilation only
    • FROST PROTECTION function: It fixes a minimum anti-freeze safety set point of 8°C
    • Self-diagnosis : Self-diagnosis system and description of any anomalies
    • Memory retention and automatic restart in the event of a voltage drop
    • Double Filtration: "Cold Catalyst" (cold catalyst) and "Biohepa"
    • Operation in Cooling
    • Operation in Cooling
    • Timer
    • Remote control with dedicated smartphone App
    • Outdoor Unit that can be combined with different types of indoor units
    • Outdoor Unit equipped with connection cover cap and sound-absorbing hood
    • Suction grille and easily removable filters for quick cleaning
    • Outdoor unit treated with anti-rust protective substances

    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
    Data sheetData sheet
    • peso: 75.0 kg
    • classe energetica raffreddamento: A++
    • classe energetica riscaldamento: A+
    • gas: R-32
    • marca: Ferroli
    • modello: 9+9+18DiamantPlus+28
    • potenza btu: 9000+9000+18000
    • superficie riscaldabile mq: 25/25/50
