Technical features

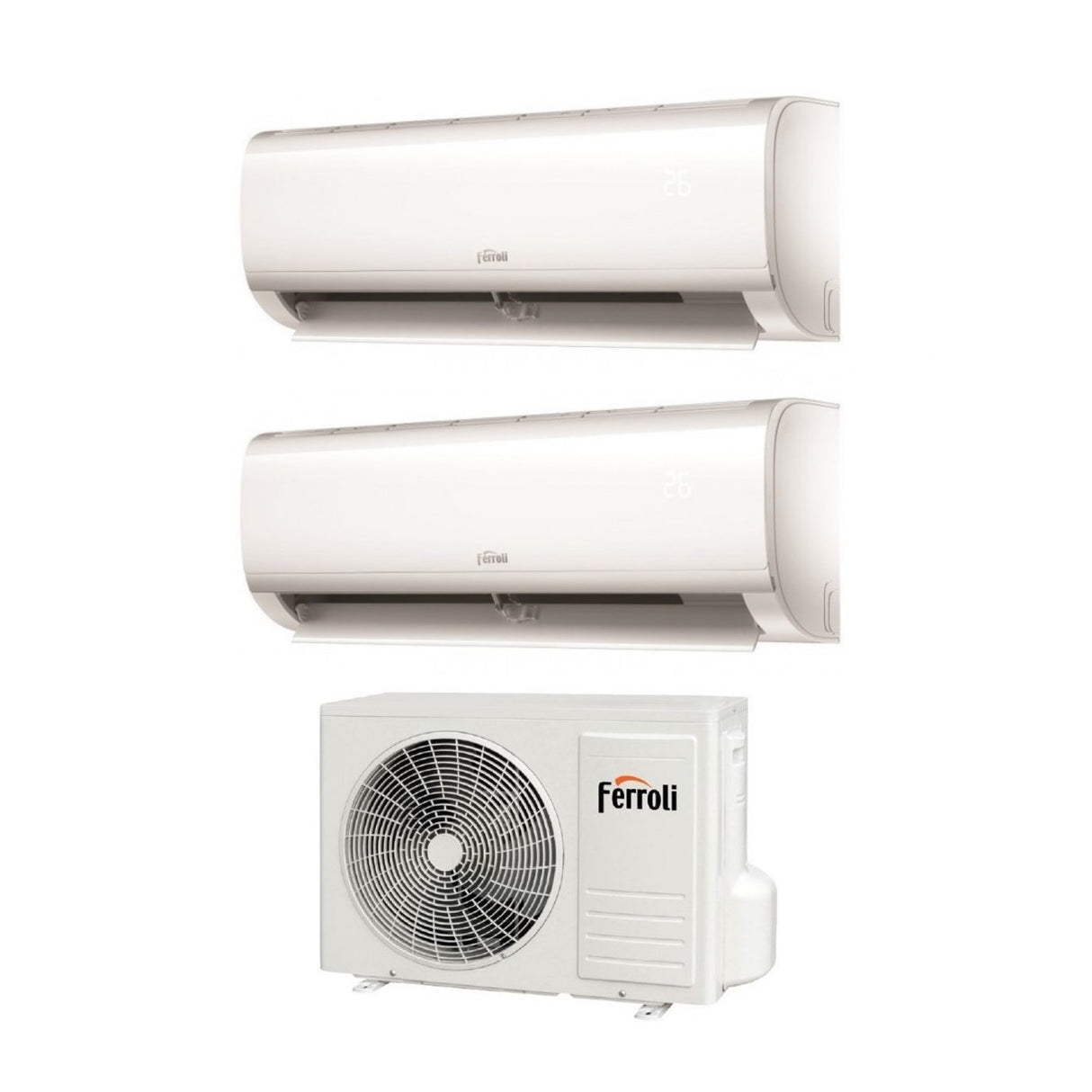

Indoor Units
1) Model
- Internal Unit Code : Amber M 20
- Power : 7000 Btu/h
- Cooling Capacity: 2050 W
- Thermal Output : 2345 W
- Air Flow : 520 / 460 / 340 m 3 /h
- Sound Pressure : 40 / 30 / 26 / 21 dB(A)
- Sound Power : 54 dB(A)
- Liquid / gas line connections inch 1/4" - 3/8"
- Internal Unit Dimensions (HxWxD): 285 x 805 x 194 mm
- Indoor Unit Weight: 7.5 Kg
2) Model
- Internal Unit Code : Amber M 25 (x2)
- Power : 9000 Btu/h
- Cooling Capacity: 2640 W
- Thermal Output: 2930 W
- Air Flow : 520 / 460 / 340 m 3 /h
- Sound Pressure : 40 / 30 / 26 / 21 dB(A)
- Sound Power : 54 dB(A)
- Liquid / gas line connections inch 1/4" - 3/8"
- Internal Unit Dimensions (HxWxD): 285 x 805 x 194 mm
- Indoor Unit Weight: 7.5 Kg
Outdoor Unit
Model
- Outdoor Unit Catalog Code: 27-3
- Maximum total length 60 m
- Maximum single unit length 30 m
- Maximum height difference (m): H+ 15, H- 15, DH 10;
- Maximum total length of pipes with standard charge 7.5 m
-
Additional refrigerant quantity per meter 12 g/m
Characteristics:
- Power supply : 220/240 V - 1 Phase - 50 Hz
- Refrigerant gas : R-32
Dimensions and weight
- Dimensions Outdoor Unit (HxWxD): 702 x 845 (69) x 363 mm
- Dimensions Weight Outdoor Unit: 48 kg;
Performance combination 7000+9000+9000
Energy efficiency
- SEER : 6.1 (W/W)
- SCOP : 4 (W/W)
- Energy Efficiency Class (Cooling) : A++
- Energy Efficiency Class (Heating) : A+
Performance
- Cooling Capacity: 8.69 kW
- Heating Capacity: 9.96 kW
- Std cooling absorption: 2.91 kW
-
Std heating absorption: 2.78 kW

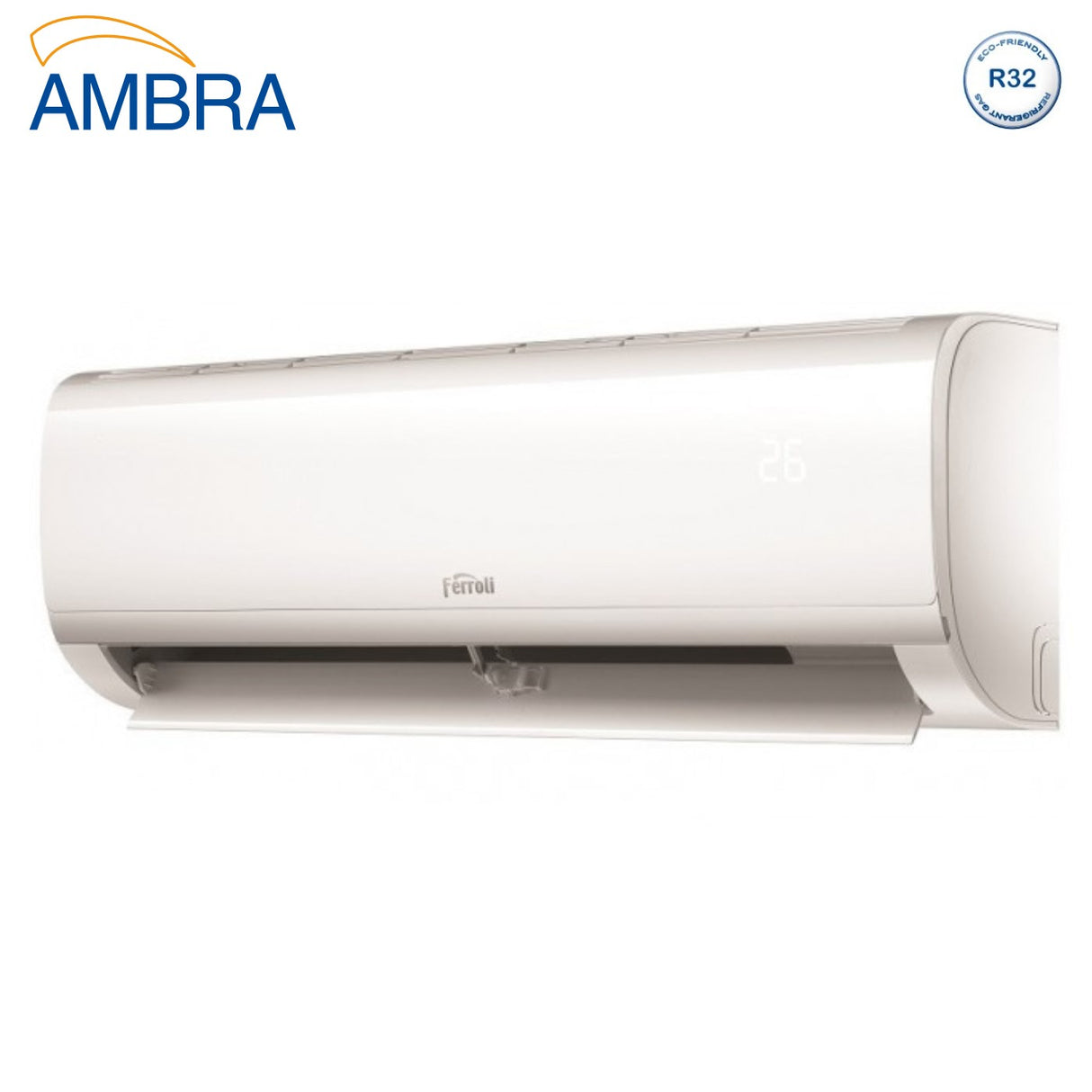

AMBER M
> GENERAL FEATURES:
- Ecological refrigerant R32
- Class of Efficiency A++ and A+++
- Double filtering with “Cold Catalyst” and “Biohepa”
- Remote control with dedicated smartphone App
- Temperature visualization on the display on the machine
- Equipped with DC inverter technology
- Indoor unit with a particularly attractive and modern design
- External unit equipped with connection cap and soundproof hood
- Easily removable suction grille and filters for quick cleaning
- Automatic reset in case of voltage drop
- Night operating mode
- "AUTOMATIC" operating mode
- Timer function
- Outdoor unit treated with anti-rust protective substances
- Wi-Fi connectivity as standard
THERE IS NEW AIR IN FERROLI
Thanks to the optimized refrigerant circuit and the regulation that modulates the compressor with DC inverter technology, these machines are able to precisely and punctually follow your temperature setpoints, both in hot and cold.
This translates into reduced noise, maximum comfort and top efficiency, saving you kilowatt hours of electricity on your bill. The mono-split versions of Ambra, for example, never go below class A++.
Furthermore, they use R32 refrigerant, an ecologically more sustainable gas: it does not affect the ozone layer and has a GWP of about a third compared to the more classic R410A.
All Ambras can then connect to your Wi-Fi, as standard, without expensive accessories.
Thanks to our free App, you can manage and program them simply and remotely.
But that's not all, a double stage of filtration and an advanced treatment for the external battery are also included to protect it for a long time from atmospheric agents.
With regard to air quality, Ambra air conditioners, both in the Mono and Multi Split versions, are fitted with a double filtration stage, consisting of a "Cold Catalyst" filter plus a "Biohepa" filter.
- Col Catalyst Filter: This filter has active action against volatile organic compounds (TVOC), formaldehyde, ammonia, and sulfuric acid (or hydrogen sulphide).
- Biohepa filter: This filter instead manages to filter very small dust particles, bacteria and fungi; made up of special enzymes, it counteracts its proliferation.
LIMITS ON LENGTH AND DIFFERENCE IN LEVEL OF REFRIGERANT PIPES
The length of the refrigerant pipes between the indoor and outdoor units must be as short as possible, and is in any case limited by respecting the maximum height difference values between the units. By decreasing the difference in height between the units (H1,H2) and the length of the pipes (L), the load losses will be limited, consequently increasing the overall efficiency of the machine. Respect the limits shown in the following tables.
