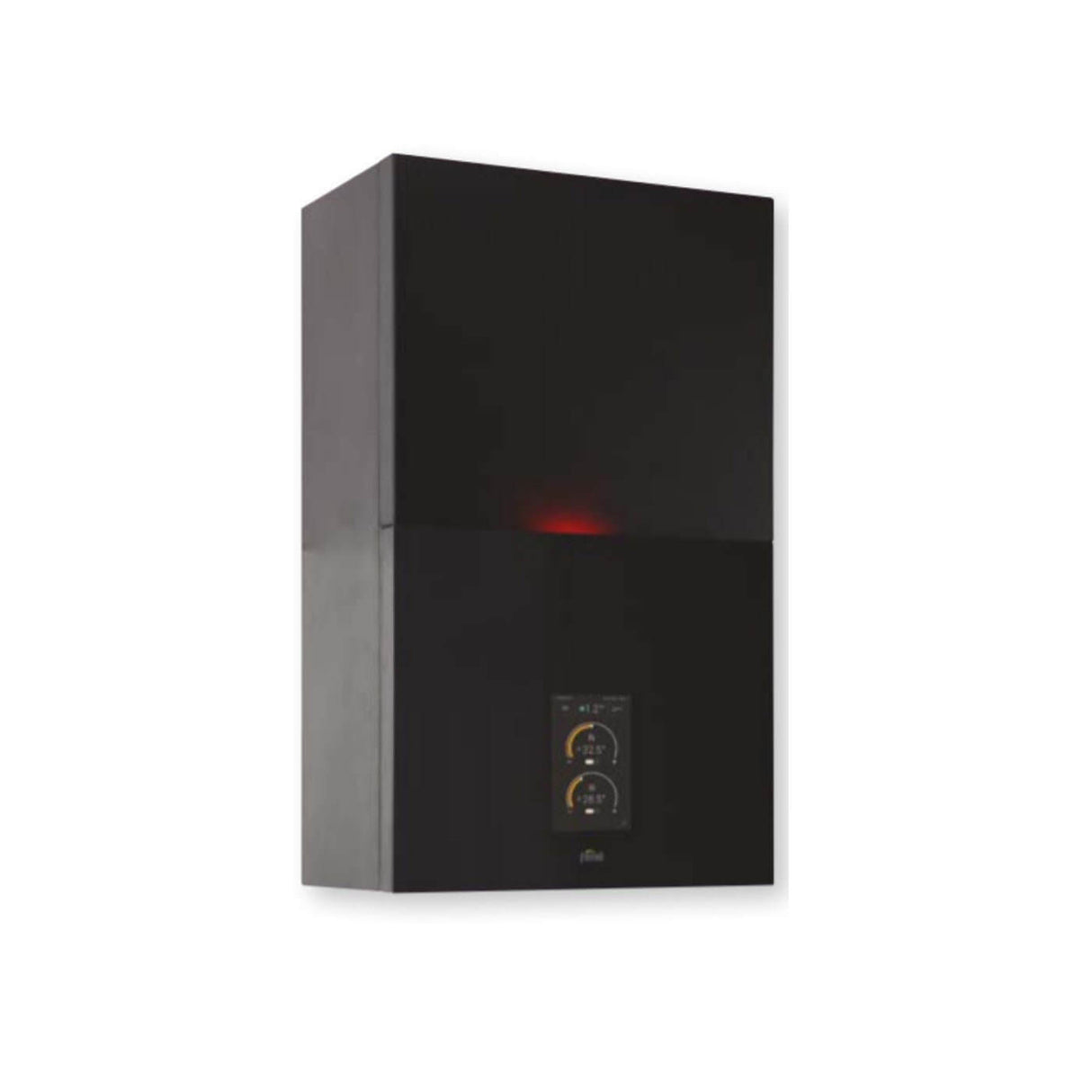

Ferroli Bluehelix Sublime 34C condensing boiler cod. 0TSB7AWA complete with IOt connect fume exhaust kit with remote control and methane or LPG external probe - New
- Heating ERP class A+
- Sanitary ERP Class A
- Load profile XXL
- Heating max / min heat input (Hs) kW 30.6 / 2.9
- Max / min heat output heating (80/60°C) kW 30 / 2.8
- Max / min heat output heating (50/30°C) kW 32.5 / 3.1
- Max / min DHW heat input (Hi) kW 34.7 / 2.9
- Max / min DHW thermal power kW 34.0 / 2.8
- Efficiency 30% (Hi) % 109.5
- Max / min heating pressure bar 3 / 0.8
- Sanitary flow rate ∆t 25°C l/min 19.5
- Dimensions HxWxD 700x420x320
BLUEHELIX extension
The most beautiful boiler ever
BLUEHELIX SUBLIME, the most beautiful wall boiler ever with an exclusive design (Patented) has finally arrived on the market. Its exclusive lines radically innovate the aesthetic concept proposed so far, through the use of crystal and the revolutionary use of curved shapes. A multicolored ambient LED, set in a central position, allows you to perceive the status and operating modes of the boiler, even on a chromatic level. The large 7'' color full touch screen display integrated in the front surface of black tempered glass allows the user to interact with the product in a totally smart way. Supplied with a rich series of accessories such as: smart remote control manageable from iOS and Android apps, plumbing connection kit complete with taps and cover, external temperature probe, router with integrated mobile network connectivity. Conceived to fully satisfy the requests of a "robust " product from every point of view: primary heat exchanger with high passages, secondary sanitary exchanger enhanced with 20 plates, high head circulator, new control electronics with integrated connectivity on the VODAFONE mobile network BUSINESS that does not require a home wifi network. All elements designed to ensure maximum efficiency and reliability over time.
INNOVATION
Developing sustainable and low environmental impact solutions capable of combating global warming is now a reality! BLUEHELIX SUBLIME is already capable of autonomously self-regulating (plug-in) and functioning correctly in total safety with mixtures of natural gas enriched with hydrogen already foreseen for distribution in Europe (*).
BLUEHELIX SUBLIME is not only beautiful but achieves one of the highest energy efficiency of the room heating in the boiler category: ηs 94% and when combined with the remote timer control and the external probe (supplied as standard) it reaches the energy class system grade A+ (scale from G to A+++).
TOP SILENCE: ONLY 45 dB*
The particularly careful design of BLUEHELIX SUBLIME has made it possible to achieve significant values in terms of silence and acoustic comfort , so much so that it could almost be difficult to distinguish the background noise of a home from the noise produced by the boiler during normal operation. Even the boiler on/off transients have been optimized as a function of acoustic comfort, so that the customer will no longer have the hassle of understanding whether the boiler is on or off from its noise as with older generations of boilers.
THE CONNECTION REVOLUTION!
BLUEHELIX SUBLIME is the first connected boiler that uses IoT technology integrated into the mobile network powered by Vodafone Business. (*) Finally an intelligent boiler capable of communicating with the user both via the App, with smartphone devices, but also via text messages or voice messages (Patent Pending) to all other telephone devices, without the need for a home wifi network! More than easy, easy! Thanks to the self-configured "mobile" gateway that does not require any user intervention.
THE BOILER CONTROL
It has never been so SMART to interact with a boiler. The innovative control and management electronics of BLUEHELIX SUBLIME is at the top levels of the category. The large 7'' full touch screen color graphic display allows real-time viewing of operating information thanks to simple and intuitive graphic screens. With a simple touch it is possible to set the temperature set points for heating and domestic hot water. Thanks to the contextual help, BLUEHELIX SUBLIME directly informs the user of the possible causes of the anomaly while providing the qualified technician with indications on possible solutions to be undertaken. If necessary, thanks to the standard integrated Vodafone Business IoT connectivity, it is possible to directly request the intervention of the authorized technical assistance centre. Even the system pressure is no longer a problem because thanks to the semi-automatic system electroloading function, a simple ''touch'' is enough and the boiler automatically restores the adequate pressure without requiring manual intervention by the user
RICH EQUIPMENT OF ACCESSORIES
- Wired remote control for home comfort management also from Smartphone
- Available APP for boiler on/off and domestic heating/DHW comfort management remotely via Smartphone (iOS and Android)
- Maximization of room comfort with modulating regulation of the delivery temperature using the Room Climatic Compensation (CCA) and External Climatic Compensation (CCE) functions
- It improves the average seasonal efficiency in space heating by +4%.
- Weekly time programming in 30 minute intervals via app
- Alarm display also via app
- Operating modes: Off, Holiday, Automatic, Manual
- Three modifiable temperature levels: Comfort, Economy, Antifreeze
MANAGEMENT THROUGH APP The new FERROLI digital platform makes it possible to manage domestic comfort in an extremely simple and intuitive way and to use the remote connectivity services of the Authorized Assistance Centre. Using the FERROLI SMART CONNECT smartphone app, it is possible to check the operating status of BLUEHELIX SUBLIME and change its settings to obtain the best possible room comfort. Similarly, the innovative EASY SERVICE management platform created for Authorized Assistance Centers allows you to remotely monitor the product, guaranteeing comfort and assistance at all times.
HYDRAULIC ACCESSORIES The attention paid to aesthetics for BLUEHELIX SUBLIME has no limits.
The boiler is standard equipped with a connection cover matching the product to cover the hydraulic kit (5 pipes + 4 taps). Finally, for the most demanding and design-conscious customers, a complete series of optional flue accessories in a color coordinated with the boiler is available.
THE FERROLI THERMOBALANCE TM THERMAL GROUP IN ITS 5 ELEMENTS The combustion cell and the exchanger of BLUEHELIX SUBLIME maximize the functional advantages and the constructive sturdiness. The single-circuit design ensures that any air bubbles in the system do not remain trapped in the exchanger, and makes it as easy as possible to clean it with chemical washing.
- High flow single circuit stainless steel heat exchanger, resistant to clogging and easy to clean
- Self-cooled burner door without insulating panel
- Exclusive special stainless steel hemispherical burner with long-life gasket
- Intelligent "Gas-adaptive" system derived from industrial boilers, which monitors and self-stabilises combustion as the gas + flue conditions vary
THE ENGINE: COMBUSTION CELL The tube that makes up the BLUEHELIX SUBLIME exchanger is made of stainless steel, a material that allows for the creation of an extremely smooth surface, therefore less susceptible to encrusting agents and deposits.
THE ENHANCED HYDRAULIC UNIT All models in the BLUEHELIX SUBLIME series are equipped with a 20-plate DHW plate exchanger and a 7.5 mWc boosted heating circulator. The significant increase in the passage section of the 20-plate exchanger compared to a traditional 14 plates) greatly reduces clogging over time, even in the presence of particularly hard water, greatly increasing its average life and minimizing maintenance costs.
The enhanced system circulation pump with a head of 7.5 meters allows all BLUEHELIX SUBLIME models to function correctly, delivering all the necessary power even in systems with high head losses (particularly large new systems or old systems with ).
MC2 : MULTI COMBUSTION CONTROL The electronics control the flame ionization current in order to ensure optimal combustion as the air density or gas quality varies. The relationship between the air/gas ratio (λ) and the flame ionization signal is used to control the air-gas ratio itself and therefore the combustion. MC2 : Multi Combustion Control, the new combustion system with patented gas-adaptive technology improves the adaptability of use as the conditions of the gas network vary (e.g. fluctuations or reduced pressures).
Furthermore, the new control electronics allow to reach high modulation fields which can reach up to 1:12 for the 34C model. In this way BLUEHELIX SUBLIME is able to adapt to the effective power required by the system with extreme ease and efficiency, avoiding annoying on/off operations which increase operating costs and reduce the average life of the product.
IDENTITY CARD
- Aesthetics with exclusive lines (Patent) that radically innovate the design concept through the use of tempered glass and curved shapes
- IoT CONNECT: Vodafone Business advanced connectivity on standard mobile network capable of interacting with the user via App/Sms with smartphone devices, but also via voice messages to any telephone device
- Wide range of accessories supplied as standard: wired remote control that can be managed via the App, external probe, router for mobile network connectivity, hydraulic connection kits, connection cover
- Boiler with thick stainless steel primary exchanger, with increased passages to guarantee durability and reduced maintenance
- Enhanced modulating heating circulator with high head on all models able to adapt even to particularly resistant systems > Standard electrocharging
- Enhanced domestic hot water exchanger with a high number of plates particularly immune to blockages and capable of maintaining the domestic hot water production capacity constant over time
- thanks to the combination with the modulating remote control and the external temperature probe, supplied as standard, it reaches the maximum energy efficiency A+(scale from G to A+++)
- Easily adapts to load conditions thanks to the wide modulation range which can reach up to 1:12 (mod. 34C, 1:10 mod. 28C)
- MC2 : Multi Combustion Control, new combustion system with patented gas-adaptive technology for better adaptability of use to varying gas network conditions
- Thanks to the standard mobile network connectivity, the user does not need to purchase additional components/contracts for setting up a home wifi network.
- 7 inch color graphic touch screen display
- Immediate display of the operating status thanks to the front multicolor LED
- Particularly suitable for operation in flues that require "heavy" ducting
- Designed to simplify and facilitate normal maintenance and cleaning operations
- Simplified electrical wiring that does not require removal of the boiler shell thanks to direct access to the external connection terminal block available on the bottom of the product
- EASY SERVICE: thanks to the continuous monitoring of the operating parameters, it is possible to activate remote technical assistance contracts through the Authorized Assistance Centers
