Ferroli Bluehelix Pro S 27c Kw LPG Condensing Gas Boiler Complete With Fume Exhaust Kit - New Erp

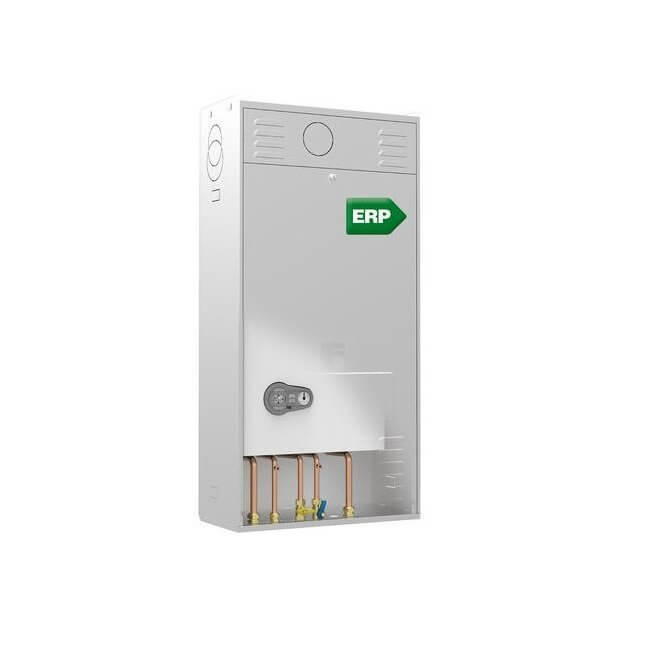

OPTIONAL RECESSED ENCLOSURE

FERROLI BLUEHELIX PRO S 27 kW CONDENSING BOILER COMPLETE WITH FUME EXHAUST KIT - NEW ErP

• Heating ERP class: A

• Healthcare ERP class: A
• Load profile: XL

• Heating capacity (PCI) Min / Max Heating 5.3 / 25.2
• Heating power 80°C-60°C Min / Max Heating 5.2 / 24.6 kW
• Useful thermal efficiency 80°C-60°C Pmax % / Pmin % 98.3 / 97.3
• Domestic hot water production Δt 30°C 12.7 l/min
• Heating working pressure Max / Min bar 3 / 0.8
• Empty weight kg 32
• Dimensions (HxWxD): 700x420x260 mm

BLUEHELIX PRO S

SMALL FOOTPRINT, GREAT PERFORMANCE ... FULL CONDENSATION

BLUEHELIX PRO S has been designed to guarantee maximum energy efficiency and performance both in heating and in the supply of domestic hot water thanks to the new bivalent exchanger in Aisi 316 Ti stainless steel.

This new exchanger integrates the heating circuit and the production of instantaneous domestic hot water in a single element, thus optimizing the phenomenon of condensation.

The galvanized sheet casing, supplied separately from the boiler body, has been designed to facilitate access to the hydraulic connections and to allow the smoke ducts and air intake pipes to exit on each side of the same.

Bluehelix Pro S achieves one of the highest energy efficiency of space heating in its category: ηs 94% . Furthermore, when combined with the external probe and the Romeo remote timer control, it reaches system energy class A+ .

Strengths:

• - Achieves one of the highest seasonal space heating efficiency in its category: ηs 94%
• - A+ SYSTEM : in combination with the Romeo modulating remote timer control and the external probe
• - Primary heat exchanger in thick Aisi 316 Ti stainless steel with integrated sanitary production (dual stainless steel heat exchanger)
• - Total premix burner in stainless steel
• - Digital control panel
• - Electronic flame modulation both in heating and DHW
• - Can be combined with the modulating remote timer control
• - Large backlit multifunction graphic display for easy and correct setting of the parameters
• - Standard by-pass

Advantages:

• - Exchanger with "SELF-CLEANING" function which reduces limescale deposits inside the DHW circuit
• - High yields both in heating and in sanitary production
• - Ease of access to internal components for any maintenance
• - ECO function in DHW for greater savings in the period of low use of hot water
• - 3-star certified comfort in sanitary production according to EN 13203, amended by Reg. 812/2013
• - Sliding temperature operation via optional external probe
• - Low consumption modulating heating pump (Erp Ready - Class A)
• - Digital flame control with three re-ignition attempts in the event of malfunction due to lack of flame detection (methane model)
• - Predisposition for solar systems : prearranged for the production of domestic hot water combined with solar panel systems
• - Certified operation also with propane air (50% air - 50% G31) by means of a specific transformation to be requested from the Authorized Assistance Center (max total price of 30 euros + VAT)
• - Also works on LPG with the use of a special conversion kit to be requested from the Authorized Assistance Centre. Free transformation during product verification and activation of the guarantee only if the specific code running on LPG is not available.

Functions:

• ECO-COMFORT function : In COMFORT mode, thanks to the particular system for maintaining the temperature of the heat exchanger, the dispensing of domestic hot water becomes even faster and more comfortable. In ECO mode, the production of domestic hot water takes place according to traditional standards.

• Sliding temperature operation : With the installation of the “External probe” kit it is possible to operate the boiler in sliding temperature. This means that without using the system temperature adjustment keys, the boiler will self-regulate according to the variations in external temperatures. All this translates into energy savings while ensuring maximum comfort for the user.

• Antifreeze function : In the event that the temperature in the boiler drops to 5°C, the burner automatically turns on and the circulator is activated in order to protect the appliance from damage caused by freezing. This function is active with the boiler powered by the gas circuit and under electrical voltage.

• Sun Easy function : BLUEHELIX PRO S has been designed to be easily inserted in systems made with the latest technologies. The SUN EASY system, standard on the boiler, makes use of electronics that simplify the combination with both natural and forced circulation solar panels. Through a sensor placed on the DHW circuit, it continuously monitors the temperature of the water coming from the solar panels, foreseeing the ignition of the burner only if the latter drops below the level necessary to guarantee optimal comfort for the user.

• peso: 40.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• gas: LPG
• marca: Ferroli
• metri quadri : 180
• modello: CALD_2424G
• potenza in kw: 27
• potenza nominale: 27
• superficie riscaldabile mq: 180
