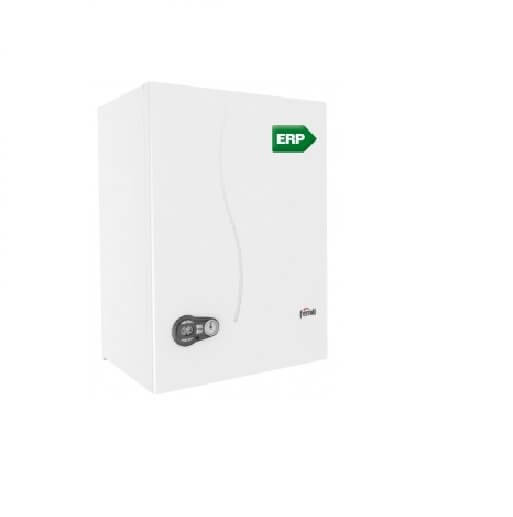

Ferroli Bluehelix K 50 32 Kw LPG Condensing Gas Boiler Complete With Fume Exhaust Kit - New Erp

FERROLI BLUEHELIX K 50 32 Kw LPG CONDENSING GAS BOILER COMPLETE WITH FUME EXHAUST KIT - NEW ErP

Technical features

• Product code: 20133714
• Energy label specifications according to the European ErP directive
• Class A heating energy efficiency
• Sanitary energy efficiency profile XL Class A
• Heating/sanitary performance
• DHW nominal heat input kW 25.00
• Sanitary nominal thermal power kW 26.25
• Nominal heat input Heating kW 20.00
• Nominal thermal power Heating (80°/60°) kW 19.48
• Useful efficiency Pn max - Pn min (80°/60°): 97.4 - 97.1%
• Useful efficiency 30% Pn max (30th return): 108%
• Overall electric power (max heating/DHW power): 87/97 W
• Supply voltage V-Hz 230-50
• IP X5D degree of protection
• Warm-up exercise
• Maximum pressure: 3 bars
• Minimum pressure for standard operation: 0.25-0.45 bar
• Heating H2O temperature selection range: 20/45 ÷ 40/80 °C
• Pump: maximum head available for the system: 390 mbar
• at a flow rate of 1,000 l/h
• Membrane expansion tank: 10 lt
• Sanitary exercise
• Max-min pressure: 0.15/8bar
• Quantity of hot water:
• - with Δt 25°C l/min 15.1
• - with Δt 30° C l/min 12.5
• - with Δt 35° C l/min 10.8
• Minimum domestic water flow rate l/min 2
• Sanitary H2O temperature selection range °C 37-60

Dimensions

• Dimensions (hxwxd) mm 740 x 470 x 275 ; 35 kgs
• NOx class: 6
• Power supply: CNG/LPG
• Dedicated codes are no longer necessary in the case of LPG because the new Family is able to automatically adapt its operation to the type of fuel

General characteristics

New Family: the best ever:

• The new Family is the Riello solution for the most demanding user. The primary exchanger, entirely made of stainless steel, guarantees maximum efficiency and reliability over time and the new optimized sanitary exchanger ensures exceptional comfort and the best class of merit (class A). The new Family is available with powers of 25, 30 and 35 kW, in instantaneous combined and heating only versions.
• ACC self-adaptive electronic combustion control
• Range Rated Approval
• Possibility of integration in hybrid systems via integrated ModBus protocol
• New panel with color display and intelligent system filling function
• 10 liter expansion tank
• High head, low consumption modulating circulator
• Modulation ratio 1:8
• Standard flue gas flange with dedicated flue system
• Clapet valve and SRD device as standard
• Standard thermoregulation in combination with the external probe, available as an accessory
• Possibility of recessed installation (model 25 KIS) and outdoors in partially protected places (IPX5D)
• Assembly template, hydraulic fittings, power supply cable and hole plug for interface remote control supplied
• Kit for REC10 remote control in supplied room
• Plumbing fittings with shut-off system taps, gas tap and cold water supplied
• Ease of installation and wide choice of accessories

New primary exchanger in stainless steel

• Riello has always designed its products with care and dedication.
• Continuous improvement leads today to the evolution of the Family condensing range, starting from its primary element: the exchanger. The new Family exchanger is made of stainless steel, with a smooth tube with a large section to guarantee the best efficiency and cleanliness over time. Access remains from the front, to facilitate maintenance operations.

FAMILY IS AVAILABLE IN 3 POWER LEVELS, IN COMBINED (KIS) AND HEATING ONLY (IS) VERSIONS

• FAMILY 25 - KIS AND IS VERSION
• FAMILY 30 - KIS VERSION
• FAMILY 35 - KIS AND IS VERSION

Dedicated codes are no longer necessary in the case of LPG because the new Family is able to automatically adapt its operation to the type of fuel. The characteristics of Family and its compact dimensions make it the ideal solution for both indoor and recessed installation (25 kW model) or outdoors in a partially protected place.

• Even clearer, more intuitive and easier to use, it integrates elegantly into the aesthetics of the machine.
• The large backlit display, the raised keys and the interface enriched with explanatory texts and icons help the user and the installer in navigation.
• Through the panel it is possible to view the operating status, carry out the programming and access the regulation of the boiler and system.
• The RiCLOUD intelligent remote control allows you to manage the comfort of your home in a simple and intuitive way, even when you are away from home. Through the dedicated app it is in fact possible to check the status of the heating system, but also to program the boiler's switching on and off, temperature and operating times directly from your smartphone or tablet. It is possible to manage up to 8 different zones, each controlled by its own RiCLOUD. RiCLOUD can also be installed in total wireless mode using a radio frequency receiver, available as an accessory, thus avoiding any electrical or masonry intervention.
• Intelligent system loading
• Through the panel it is possible to independently carry out the filling of the system, if the pressure drops below the minimum reference value.
• Information display
• In addition to the date and time, the display shows the basic information relating to boiler operation: the water delivery temperature and the system pressure. Via an icon on the display, the boiler also warns of the need to carry out scheduled maintenance.
• Programming
• Programming boiler operation according to your needs is easy and intuitive. From the panel it is possible to carry out the hourly and daily programming for each zone of the system.

• peso: 65.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• gas: LPG
• marca: Ferroli
• metri quadri : 220
• modello: CALD_2410G
• potenza in kw: 32
• potenza nominale: 32
• superficie riscaldabile mq: 220
