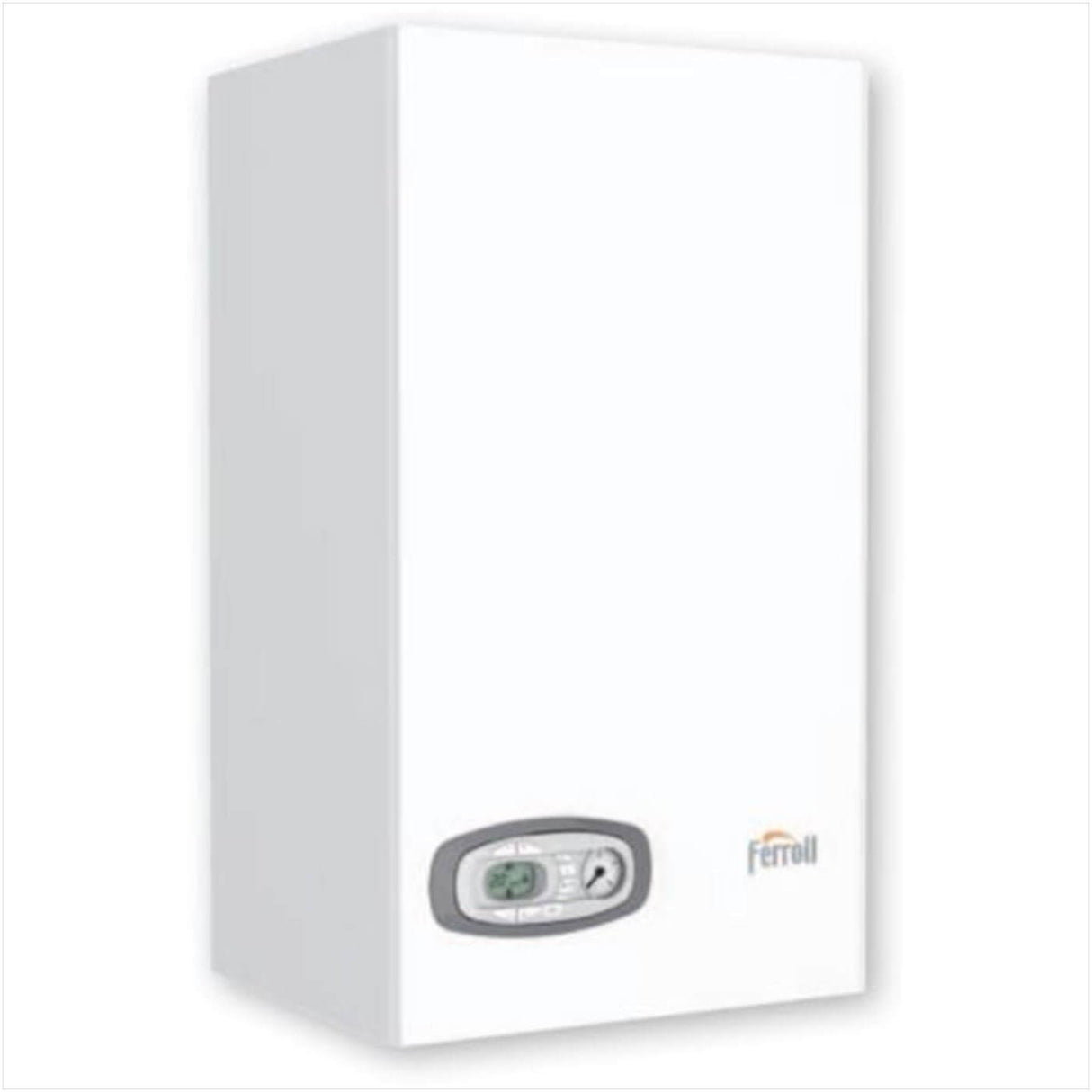

Ferroli Divacondens D F24 LPG Condensing Boiler Complete With Smoke Exhaust Kit

LPG operation with the use of a special conversion kit to be requested from the Authorized Assistance Centre, we recommend contacting the local assistance center before purchasing

In case of unavailability we will supply the new model DIVACONDENS D PLUS F24 LOW NOx

Technical features

• Model : Divacondens D F24
• Power supply: LPG

Energy efficiency

• Heating energy efficiency class: B
• Sanitary energy efficiency class: A
• ACS profile : XL

Performance

• Heat output : 10.0 ~ 25.0 kW
• Thermal power 80°C ~ 60°C : 9.2 ~ 24.1 kW
• Thermal power 50°C ~ 30°C : 9.6 ~ 25.9 kW
• Useful thermal efficiency 80°C ~ 60°C : 92.0% ~ 96.5%
• Useful thermal efficiency 50°C ~ 30°C : 96.0 ~ 103.5%
• NOx emissions : 3
• Maximum production of domestic hot water Δt 25°C : 14.0 l/min
• Maximum production of domestic hot water Δt 30°C : 11.6 l/min
• Heating working pressure: 0.8 ~ 3 bar
• Sanitary operating pressure: 9 bar

• Dimensions (LxHxP): 400x680x330 mm
• Empty weight: 35.0 kg

5 years without worries

Extension of the manufacturer's standard warranty to 5 YEARS on Ferroli brand gas condensing boilers of less than 35 kW in the DIVACONDENS and BLUEHELIX series through the local authorized Ferroli technical assistance centre.

Wall mounted boiler Ferroli DIVACONDENS Wall mounted condensing boiler with instantaneous production of domestic hot water

The simplest solution for a condensing boiler

DIVACONDENS is the condensing heat generator for traditional heating systems. The tried and tested Ferroli technology in the field of traditional wall mounted boilers has been enriched by increasing the performance of the product in the simplest way, with the use of a robust recuperator which preheats the primary circuit using the residual heat of the exhaust fumes.

The quality of the DIVACONDENS line is unquestionable, and Ferroli is ready to put it to the test by offering its customers extended warranty coverage which also ensures periodic maintenance and legal checks

Product plus

> Forced draft boiler, atmospheric burner in AISI 304 stainless steel, for traditional medium and high temperature systems . It is not suitable for combination with direct delivery to systems with low temperature radiant panels

> Multi-zone management possible with the use of the Ferroli FZ4 control unit

> Double exchanger : copper primary with aluminum cladding; secondary in stainless steel for domestic hot water

> Exhaust gas heat recovery unit , for pre-heating the primary circuit

> Backlit liquid crystal display that is easy to use for the user

> Possible combination with modulating remote control

> High efficiency circulator for the primary circuit, synchronous motor with low operating noise and torque control

> Timed anti-blocking system of the circulator and the diverter valve

> Domestic hot water pre-heating function for rapid delivery to the user

> Smoke accessories in special polypropylene , less prone to thermal expansion than metal ones, as well as being immune to corrosion and easy to connect. Their integrity is controlled by the fume thermostat

> Suitable for installation in particularly harsh climates, thanks to the condensate collection device which protects the air pressure switch from humidity

> Connection to solar thermal systems : set up for the production of domestic hot water combined with solar panels

> IPX5D protection index, which means excellent electrical protection of the luminaire against the intrusion of liquids and foreign bodies

Boiler control

The DIVACONDENS control box consists of an easy-to-use interface with a backlit display. Using the buttons, it is possible to easily adjust the heating flow temperature, the domestic hot water setpoint, switch the generator on/off or activate the comfort function, monitoring the status of the boiler. The control panel is completed by a traditional pressure gauge which can check the system pressure at any time.

Main components

1. Condensate trap Protects the air pressure switch from external humidity
2. Recovery unit with condensate drain
3. Steel frame Made with high precision automated processes. Incorporates an 8 liter expansion tank
4. Copper central heating primary exchanger , protected by a non-toxic aluminum coating
5. Burner Made of AISI 304 stainless steel ramps. Modulation takes place both in heating and in the production of domestic hot water
6. High efficiency circulator , for heating and exchange with the DHW circuit
7. High efficiency domestic hot water exchanger , for heating and exchange with the domestic hot water circuit

Optimize comfort and savings "ROMEO" timer control

The Romeo remote control allows control and setting of the boiler functions directly from the room in which it is installed. Comfort programming is possible on a weekly basis and also includes the 'holiday' function. Romeo is available with wired or wireless connection.

The ROMEO modulating function allows boiler output to be modulated as the set room temperature value is reached. This improves the quality of comfort by eliminating heat peaks with consequent energy savings.

Solar circuit integration Sun Easy function

DIVACONDENS boasts electronics that simplify integration with thermal solar systems, both with natural and forced circulation. The microprocessor controls the temperature of the water coming from the solar circuit through the domestic hot water sensor and turns on the burner only if necessary.

In case of insufficient irradiation and therefore a modest pre-heating of the domestic water, the boiler will contribute with the heat necessary to reach the required setpoint temperature

If the sun and the solar system fulfill their "duty" no integration by the boiler will be necessary, the hot water will be conveyed to the tap, without the need for additional devices, with the mixing of the thermostatic valves.

To reach the desired temperature, SUN EASY allows considerable savings even during the coldest seasons, exploiting and integrating even the smallest solar contribution, otherwise lost.

Safety and comfort Functions

Antifreeze In the event that the temperature in the boiler drops to 5°C, the burner ignites automatically and the circulator is activated in order to protect the appliance from damage caused by freezing. This function is active with the boiler powered by the gas circuit and under electrical voltage

Post-circulation This function makes it possible to recover all the heat supplied by thermal inertia of the exchanger and transfer it to the heating system, and consequently to the rooms to be heated. This is a timer function and is active after the burner goes out in heating mode.

Opentherm The DIVACONDENS electronic board adopts the Opentherm protocol. It allows the integration of other peripheral control units, such as, for example FZ4 - multi-zone manager - or Romeo - remote timer control. In fact, the Opentherm standard has been specially designed to share the logic and operating algorithms of the boiler with other additional control units. As a digital protocol, it allows total integration between the boiler and the satellite, with full control of the functions from the boiler and similarly from its satellite

Product Guarantee : All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: B
• gas: LPG (LPG operation with the use of a special conversion kit to be requested from the Authorized Assistance Centre, we recommend contacting the local assistance center before buying)
• marca: Ferroli
• metri quadri : 120
• modello: CALD_F24
• potenza in kw: 24
• potenza nominale: 24
• superficie riscaldabile mq: 120
