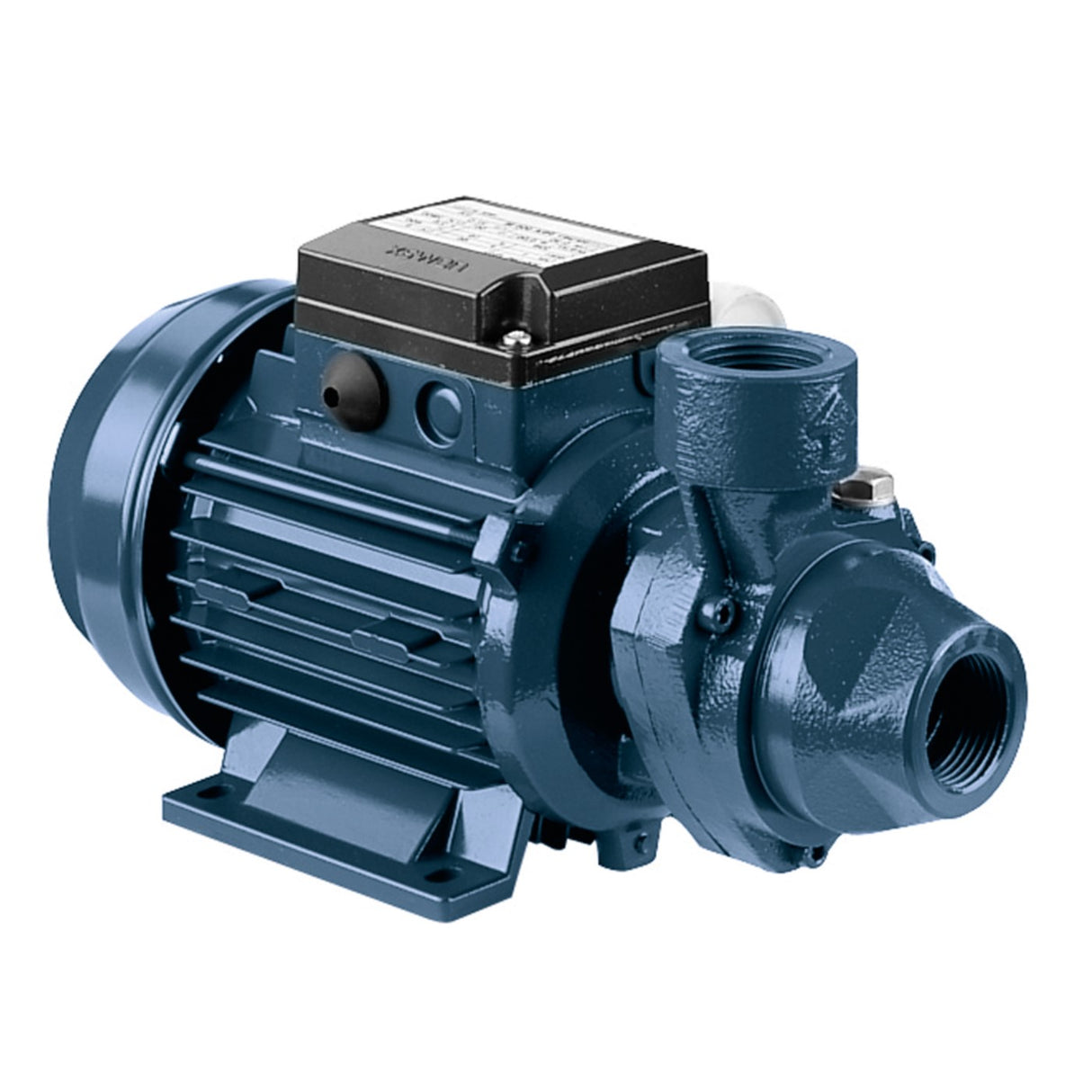

Ebara Cast Iron Peripheral Electric Pump Model Prn 0.50 M Hp 0.5 Single-Phase

Description

Technical features

  • Model : PRN 0.50M
  • Single-phase motor 230V ±10% 50Hz
  • Power: 0.37kW (0.5HP)
  • Capacitor capacity: 10mF
  • Operating range: flow rate up to 35 l/min (2.1 m3/h) with heads up to 37 metres.
  • Maximum working pressure: 6 bar (600 kPa)
  • Maximum liquid temperature: 80°C
  • IE2 and IE3 energy efficient motors starting from 0.75kW
  • Noise level: <70 db(A)
  • Insulation class F
  • Degree of protection IP44
  • Pump body and support in cast iron
  • Impeller in brass

EBARA

Over 20 years of experience in the construction of electric pumps for the industrial and domestic market with a multinational company with over one hundred years of experience behind it. It is a philosophy that unites three inseparable concepts: quality , avant-garde and life .

Each EBARA product is designed and built to achieve the highest levels of functionality, guaranteed by a rigorous and complete quality control program which involves the entire manufacturing cycle. EBARA centrifugal electric pumps, covered by several international patents, represent the future in fluid pumping. The stainless steel electric pumps are made through a completely robotic process which allows the optimization of the use of materials, rapid changes of the production line, high levels of standardization, quality control in line. Thanks to the construction technique acquired from the Japanese parent company, the EBARA stainless steel electric pumps are distinguished by their unmistakable hydraulic design.

Two production plants , in Veneto (Brendola) and in Trentino (Cles). The Cles production line, fully automated and robotic, is designed to maximize the use of raw materials, allowing the creation of products at the highest levels of standardization and efficiency and minimizing energy requirements. The manufacturing processes are carefully structured to optimize the quality and reliability of the products. The experience accumulated over many years of activity, the ISO 9001 certification and the flexible manufacturing process, supported by advanced information systems (CAD, CAM, SAP), are synonymous with Quality: of the product, of the service, of the brand

PRA-PRN

Peripheral electric pumps in cast iron

Applications:
  • Domestic uses
  • Boiler supply
  • Autoclave groups
Technical features:
  • Silent
  • Practice
  • Easily transportable
  • Also available in the nickel-plated version (model PRN 0.50)
Pump technical data:
  • Maximum working pressure:
    - 6 bars for PRA 0.50
    - 7.5 bar for PRA 0.80
    - 12 bars for the rest of the range
  • Maximum liquid temperature: 80°C
  • G1 delivery connection
  • G1 suction connection
Engine technical data:
  • IE2 and IE3 energy efficient motors starting from 0.75kW
  • 2 pole asynchronous motor
  • Insulation class F
  • Degree of protection IP44
  • Single-phase voltage 230V ± 10% 50Hz, three-phase voltage 230/400V ±10% 50Hz
  • Permanently inserted capacitor and built-in automatic reset thermo-amperometric protection for the single-phase motor
  • Protection by the user for the three-phase version
Materials:
  • Pump body and support in cast iron
  • Shaft in AVZ for the PRA 0.50 model, in AISI 303 (part in contact with the liquid) for the rest of the range
  • Impeller in brass
  • Mechanical seal in Carbon/Ceramic/NBR

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase

Ebara Cast Iron Peripheral Electric Pump Model Prn 0.50 M Hp 0.5 Single-Phase

Product form

Technical features Model : PRN 0.50M Single-phase motor 230V ±10% 50Hz Power: 0.37kW (0.5HP) Capacitor capacity: 10mF Operating range: flow... Read more

€90,00 Incl. VAT

    Description

    Technical features

    • Model : PRN 0.50M
    • Single-phase motor 230V ±10% 50Hz
    • Power: 0.37kW (0.5HP)
    • Capacitor capacity: 10mF
    • Operating range: flow rate up to 35 l/min (2.1 m3/h) with heads up to 37 metres.
    • Maximum working pressure: 6 bar (600 kPa)
    • Maximum liquid temperature: 80°C
    • IE2 and IE3 energy efficient motors starting from 0.75kW
    • Noise level: <70 db(A)
    • Insulation class F
    • Degree of protection IP44
    • Pump body and support in cast iron
    • Impeller in brass

    EBARA

    Over 20 years of experience in the construction of electric pumps for the industrial and domestic market with a multinational company with over one hundred years of experience behind it. It is a philosophy that unites three inseparable concepts: quality , avant-garde and life .

    Each EBARA product is designed and built to achieve the highest levels of functionality, guaranteed by a rigorous and complete quality control program which involves the entire manufacturing cycle. EBARA centrifugal electric pumps, covered by several international patents, represent the future in fluid pumping. The stainless steel electric pumps are made through a completely robotic process which allows the optimization of the use of materials, rapid changes of the production line, high levels of standardization, quality control in line. Thanks to the construction technique acquired from the Japanese parent company, the EBARA stainless steel electric pumps are distinguished by their unmistakable hydraulic design.

    Two production plants , in Veneto (Brendola) and in Trentino (Cles). The Cles production line, fully automated and robotic, is designed to maximize the use of raw materials, allowing the creation of products at the highest levels of standardization and efficiency and minimizing energy requirements. The manufacturing processes are carefully structured to optimize the quality and reliability of the products. The experience accumulated over many years of activity, the ISO 9001 certification and the flexible manufacturing process, supported by advanced information systems (CAD, CAM, SAP), are synonymous with Quality: of the product, of the service, of the brand

    PRA-PRN

    Peripheral electric pumps in cast iron

    Applications:
    • Domestic uses
    • Boiler supply
    • Autoclave groups
    Technical features:
    • Silent
    • Practice
    • Easily transportable
    • Also available in the nickel-plated version (model PRN 0.50)
    Pump technical data:
    • Maximum working pressure:
      - 6 bars for PRA 0.50
      - 7.5 bar for PRA 0.80
      - 12 bars for the rest of the range
    • Maximum liquid temperature: 80°C
    • G1 delivery connection
    • G1 suction connection
    Engine technical data:
    • IE2 and IE3 energy efficient motors starting from 0.75kW
    • 2 pole asynchronous motor
    • Insulation class F
    • Degree of protection IP44
    • Single-phase voltage 230V ± 10% 50Hz, three-phase voltage 230/400V ±10% 50Hz
    • Permanently inserted capacitor and built-in automatic reset thermo-amperometric protection for the single-phase motor
    • Protection by the user for the three-phase version
    Materials:
    • Pump body and support in cast iron
    • Shaft in AVZ for the PRA 0.50 model, in AISI 303 (part in contact with the liquid) for the rest of the range
    • Impeller in brass
    • Mechanical seal in Carbon/Ceramic/NBR

    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase
    Data sheetData sheet
    • peso: 11.0 kg
    • alimentazione: Single phase
    • marca: Hebara
    • modello: PRN
    • potenza in kw: 0.37
    • tipologia : peripheral
