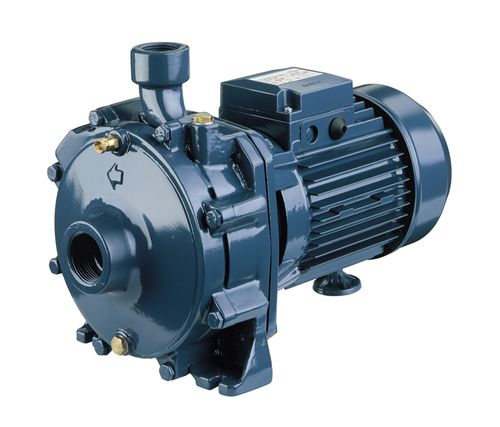

Ebara Double Impeller Centrifugal Electric Pump With Single Phase Cast Iron Body Cda/B 150 M 1210150000b

Description

Ebara single-phase centrifugal electric pump with cast iron body CDA/B 150 M 1210150000B




General characteristics



  • Brand: Ebara

  • Model: CDA/B 150 M

  • Code: 1210150000B


Data sheet



  • Maximum flow rate, m3/h: 6.6

  • Maximum pumping height: 52m

  • Maximum working pressure: 5.2 bar

  • Maximum liquid temperature: 90°C

  • Suction diameter: G1 ¼

  • Outlet diameter: G1

  • Electrical connection: 230V, single phase

  • Motor power: 1.1kW

  • Hydraulic seal: Standard (Ceramic/Carbon/NBR)

  • Pump material: Cast iron

  • Motor type: 2 poles



Description


APPLICATIONS
• Pressurization of domestic systems
• Small irrigation
• Handling of non-aggressive liquids for civil and industrial use
• Washing plants
• Vehicle washing




TECHNICAL FEATURES
• Available with brass impeller (CDA 0.75 M GO, CDA 1.00 M/T GO)
• They can be inserted in machinery for industrial use
PUMP TECHNICAL DATA
• Maximum working pressure: 6 bar for CDA 0.75 - 1.00,
10 bars for the rest of the range
• Maximum liquid temperature: 40°C for CDA 0.75 - 1.00,
90°C for the rest of the range
• Suction connection: G1 for CDA 0.75 - 1.00,
G1¼ for CDA 1.50 - 2.00 - 3.00, G1½ for CDA 4.00 - 5.50
• Delivery connection: G1 for CDA 0.75 - 1.00 - 1.50 - 2.00 - 3.00,
G1¼ for CDA 4.00 - 5.50




ENGINE TECHNICAL DATA
• IE3 high energy efficiency motors for powers from 0.75kW
• Self-ventilated 2-pole asynchronous motor
• Class of insulation F
• IP44 degree of protection
• Single-phase voltage 230V ± 10% 50Hz,
three-phase voltage 230/400V ± 10% 50Hz
• Permanently inserted capacitor and protection
built-in automatic reset thermo-amperometric sensor for the motor
single phase
• Protection by the user for the three-phase version




MATERIALS
• Pump body in cast iron
• Mechanical seal in Ceramic/Carbon/NBR
• Impeller in PPE+PS reinforced with glass fibers for CDA 0.75 - 1.00,
in brass for the rest of the range
• Shaft in AISI 303 for CDA 0.75 - 1.00 - 1.50 - 2.00 - 3.00,
in AISI 304 for CDA 4.00 - 5.50
• Support in aluminum for CDA 0.75 - 1.00, in cast iron for the rest of the
range
• Seal holder disc in AISI 304 for CDA 0.75 - 1.00, in integrated cast iron
on the engine mount for the rest of the range




Description


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Ebara Double Impeller Centrifugal Electric Pump With Single Phase Cast Iron Body Cda/B 150 M 1210150000b

Product form

Ebara single-phase centrifugal electric pump with cast iron body CDA/B 150 M 1210150000B General characteristics Brand: Ebara Model: CDA/B 150... Read more

€350,00 Incl. VAT

    Description

    Ebara single-phase centrifugal electric pump with cast iron body CDA/B 150 M 1210150000B




    General characteristics



    • Brand: Ebara

    • Model: CDA/B 150 M

    • Code: 1210150000B


    Data sheet



    • Maximum flow rate, m3/h: 6.6

    • Maximum pumping height: 52m

    • Maximum working pressure: 5.2 bar

    • Maximum liquid temperature: 90°C

    • Suction diameter: G1 ¼

    • Outlet diameter: G1

    • Electrical connection: 230V, single phase

    • Motor power: 1.1kW

    • Hydraulic seal: Standard (Ceramic/Carbon/NBR)

    • Pump material: Cast iron

    • Motor type: 2 poles



    Description


    APPLICATIONS
    • Pressurization of domestic systems
    • Small irrigation
    • Handling of non-aggressive liquids for civil and industrial use
    • Washing plants
    • Vehicle washing




    TECHNICAL FEATURES
    • Available with brass impeller (CDA 0.75 M GO, CDA 1.00 M/T GO)
    • They can be inserted in machinery for industrial use
    PUMP TECHNICAL DATA
    • Maximum working pressure: 6 bar for CDA 0.75 - 1.00,
    10 bars for the rest of the range
    • Maximum liquid temperature: 40°C for CDA 0.75 - 1.00,
    90°C for the rest of the range
    • Suction connection: G1 for CDA 0.75 - 1.00,
    G1¼ for CDA 1.50 - 2.00 - 3.00, G1½ for CDA 4.00 - 5.50
    • Delivery connection: G1 for CDA 0.75 - 1.00 - 1.50 - 2.00 - 3.00,
    G1¼ for CDA 4.00 - 5.50




    ENGINE TECHNICAL DATA
    • IE3 high energy efficiency motors for powers from 0.75kW
    • Self-ventilated 2-pole asynchronous motor
    • Class of insulation F
    • IP44 degree of protection
    • Single-phase voltage 230V ± 10% 50Hz,
    three-phase voltage 230/400V ± 10% 50Hz
    • Permanently inserted capacitor and protection
    built-in automatic reset thermo-amperometric sensor for the motor
    single phase
    • Protection by the user for the three-phase version




    MATERIALS
    • Pump body in cast iron
    • Mechanical seal in Ceramic/Carbon/NBR
    • Impeller in PPE+PS reinforced with glass fibers for CDA 0.75 - 1.00,
    in brass for the rest of the range
    • Shaft in AISI 303 for CDA 0.75 - 1.00 - 1.50 - 2.00 - 3.00,
    in AISI 304 for CDA 4.00 - 5.50
    • Support in aluminum for CDA 0.75 - 1.00, in cast iron for the rest of the
    range
    • Seal holder disc in AISI 304 for CDA 0.75 - 1.00, in integrated cast iron
    on the engine mount for the rest of the range




    Description


    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • alimentazione: Single phase
    • marca: Hebara
    • modello: 1210150000B
    • potenza in kw: 1.1
    • tipologia : Centrifuge
