Ebara Cast Iron Self-Priming Electric Pump Model Aga M 2.00 Single-Phase Motor 2.0
Ebara Cast Iron Self-Priming Electric Pump Model Aga M 2.00 Single-Phase Motor 2.0 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
How shipping works
How shipping works
Shipping costs vary depending on the weight and shipping method of your order. Our shipping services:
- Standard Shipping: Estimated delivery within 2 to 5 business days
- Premium Shipping: Guaranteed delivery within 24 business hours
- Premium Shipping + Home Delivery: Guaranteed delivery within 24 business hours
See the tables for standard shipping prices for Italy and the Minor Islands and Disadvantaged Areas.
For more details on Premium Shipping, please visit the Premium Shipping page.
Customer service
Customer service
Our customer service team is dedicated to providing support to our customers with any issues or questions they may have before or after purchasing our products.
Use the direct communication channel to speak with one of our representatives, or send us an email at one of the addresses listed on the contact us page.
Our customer service team is made up of highly qualified professionals who are always ready to help customers resolve any issue or answer any question quickly and efficiently. We are committed to ensuring maximum customer satisfaction and providing the highest quality after-sales service. So, if you need assistance, don't hesitate to contact us; we'll be happy to help in any way we can.
Description
Description
Self-priming cast iron electric pump Ebara Mod. Aga M 2.0 Single-phase motor
- Single-phase motor 230V ±10% 50Hz
- Flow rate up to 100 l/min (6 m³/h)
- Head up to 59 m
- Maximum operating pressure:
- 6 bar for AGA 0.60-0.75-1.00
- 10 bars for the rest of the range - Maximum liquid temperature: 45°C
- Maximum suction depth: 8 m
- High energy efficiency IE2 and IE3 motors starting from 0.75kW
- Insulation class F
- Degree of protection IP44
- Cast iron pump body
- Impeller in PPE+PS reinforced with glass fibres for AGA 0.60-0.75- 1.00, in brass for the rest of the range
AGA
The AGA - AGC electric pumps are self-priming cast iron electric pumps equipped with a Venturi group (ejector and diffuser) in PPE + PS reinforced with glass fibres. Practical, easy to use and easily transportable thanks to their low weight. The pump body is in cast iron for all models. Among their peculiarities is that of having the shaft in AISI 303 steel (for the part in contact with the liquid). The available impellers are in PPE + PS reinforced with glass fibres for AGA 0.60 – 0.75 – 1.00 and in brass for the rest of the range. The mechanical seal is in Ceramic/Carbon/NBR. The 2-pole asynchronous self-ventilated motors are high energy efficiency IE3 starting from 0.75 kW.

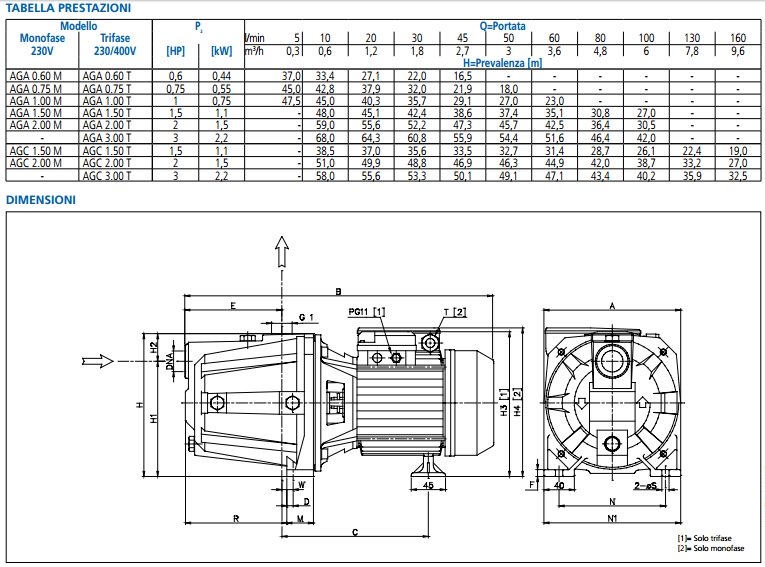

PUMP TECHNICAL DATA
- Head from 16.5 to 68 m
- Flow rate from 0.3 to 9.6 m3/h
-
Maximum operating pressure:
- 6 bar for AGA 0.60 - 0.75 - 1.00
- 10 bars for the rest of the range - Maximum liquid temperature 45°C
- Maximum suction depth 8 m
Product Warranty
All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
Technical Data Sheet
Technical Data Sheet
- peso: 11.0 kg
- alimentazione: Single phase
- marca: Hebara
- modello: aga-m-2.0
- potenza in kw: 1.5
- tipologia : Self priming
