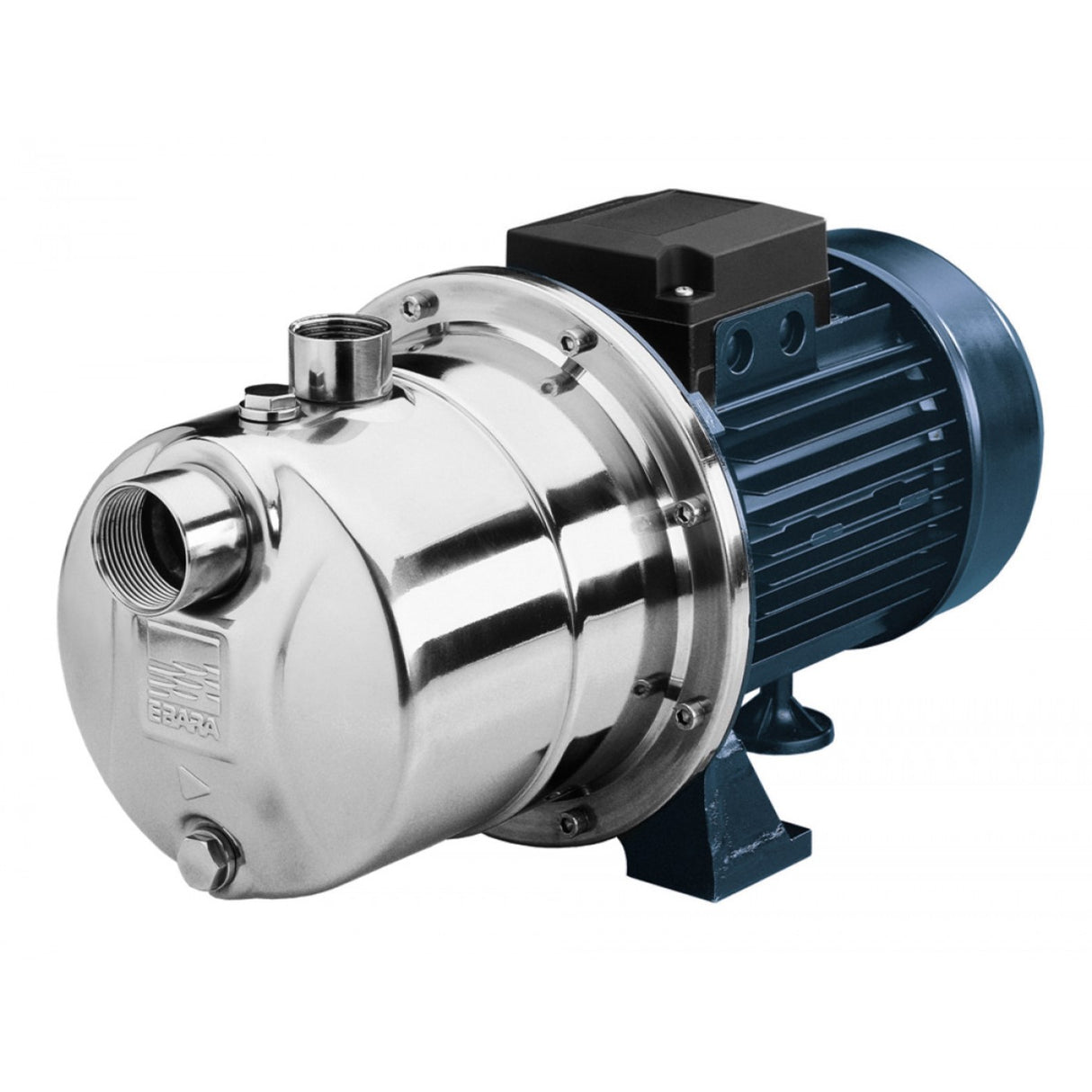

Ebara Self-Priming Electric Pump Model Jesxm 8* Hp 0.8 Kw 0.6 In Single-Phase Stainless Steel

Description

Technical features

  • Model : JESXM 8
  • HP power 0.8
  • KW: 0.6
  • Max flow rate at 37mt 5 l/min, 0.3 m3/h
  • Max pressure: 6 Bars

  • Max temperature: 45°C

  • Suction depth: 8m

  • Poles: 2

  • Insulation class: F

  • Degree of protection: IP54

  • Voltage 230V

  • Pump body: AISI 304 stainless steel

  • Impeller: PPE+PS with glass fibers

  • Shaft: AISI 303 stainless steel

  • Mechanical seal: Ceramic/carbon/NBR

  • Engine Mount: Aluminum

Impeller in glass fiber reinforced PPO


EBARA

Over 20 years of experience in the construction of electric pumps for the industrial and domestic market with a multinational company with over one hundred years of experience behind it. It is a philosophy that unites three inseparable concepts: quality , avant-garde and life .

Each EBARA product is designed and built to achieve the highest levels of functionality, guaranteed by a rigorous and complete quality control program which involves the entire manufacturing cycle. EBARA centrifugal electric pumps, covered by several international patents, represent the future in fluid pumping. The stainless steel electric pumps are made through a completely robotic process which allows the optimization of the use of materials, rapid changes of the production line, high levels of standardization, quality control in line. Thanks to the construction technique acquired from the Japanese parent company, the EBARA stainless steel electric pumps are distinguished by their unmistakable hydraulic design.

Two production plants , in Veneto (Brendola) and in Trentino (Cles). The Cles production line, fully automated and robotic, is designed to maximize the use of raw materials, allowing the creation of products at the highest levels of standardization and efficiency and minimizing energy requirements. The manufacturing processes are carefully structured to optimize the quality and reliability of the products. The experience accumulated over many years of activity, the ISO 9001 certification and the flexible manufacturing process, supported by advanced information systems (CAD, CAM, SAP), are synonymous with Quality: of the product, of the service, of the brand.

JESX-JEX

Self-priming electric pumps in AISI 304 stainless steel

Applications:
  • Drinking water supply
  • Domestic pressurization
  • Small garden irrigation
  • Emptying tanks and pools
  • Movement of clean water in general
Technical features:
  • Practice
  • Easily transportable
  • Light
Pump technical data:
  • Maximum working pressure: 6 bar
  • Maximum liquid temperature: 45°C
  • Maximum suction depth: 8 m
  • Suction port G1 for JESX, G1¼ for JEX
  • G1 delivery connection
Engine technical data:
  • IE2 and IE3 energy efficient motors starting from 0.75kW
  • Self-ventilated 2-pole asynchronous motor
  • Insulation class F
  • Degree of protection IP54 (on request IP55)
  • Single-phase voltage 230V ±10% 50Hz, three-phase voltage 230/400V ±10% 50Hz
  • Permanently inserted capacitor and built-in automatic reset thermo-amperometric protection for the single-phase motor
  • Protection by the user for the three-phase version
Materials:
  • Pump body and seal holder disc in AISI 304
  • Shaft in AISI 303 (part in contact with the liquid)
  • Impeller in AISI 304 for JEX, in PPE+PS reinforced with glass fibers for JESX
  • Venturi unit plus glass fiber reinforced PPO diffuser
  • Mechanical seal in Ceramic/Carbon/NBR
  • Aluminum support and motor case

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase

Ebara Self-Priming Electric Pump Model Jesxm 8* Hp 0.8 Kw 0.6 In Single-Phase Stainless Steel

Product form

Technical features Model : JESXM 8 HP power 0.8 KW: 0.6 Max flow rate at 37mt 5 l/min, 0.3 m3/h... Read more

€171,00 Incl. VAT

    Description

    Technical features

    • Model : JESXM 8
    • HP power 0.8
    • KW: 0.6
    • Max flow rate at 37mt 5 l/min, 0.3 m3/h
    • Max pressure: 6 Bars

    • Max temperature: 45°C

    • Suction depth: 8m

    • Poles: 2

    • Insulation class: F

    • Degree of protection: IP54

    • Voltage 230V

    • Pump body: AISI 304 stainless steel

    • Impeller: PPE+PS with glass fibers

    • Shaft: AISI 303 stainless steel

    • Mechanical seal: Ceramic/carbon/NBR

    • Engine Mount: Aluminum

    Impeller in glass fiber reinforced PPO


    EBARA

    Over 20 years of experience in the construction of electric pumps for the industrial and domestic market with a multinational company with over one hundred years of experience behind it. It is a philosophy that unites three inseparable concepts: quality , avant-garde and life .

    Each EBARA product is designed and built to achieve the highest levels of functionality, guaranteed by a rigorous and complete quality control program which involves the entire manufacturing cycle. EBARA centrifugal electric pumps, covered by several international patents, represent the future in fluid pumping. The stainless steel electric pumps are made through a completely robotic process which allows the optimization of the use of materials, rapid changes of the production line, high levels of standardization, quality control in line. Thanks to the construction technique acquired from the Japanese parent company, the EBARA stainless steel electric pumps are distinguished by their unmistakable hydraulic design.

    Two production plants , in Veneto (Brendola) and in Trentino (Cles). The Cles production line, fully automated and robotic, is designed to maximize the use of raw materials, allowing the creation of products at the highest levels of standardization and efficiency and minimizing energy requirements. The manufacturing processes are carefully structured to optimize the quality and reliability of the products. The experience accumulated over many years of activity, the ISO 9001 certification and the flexible manufacturing process, supported by advanced information systems (CAD, CAM, SAP), are synonymous with Quality: of the product, of the service, of the brand.

    JESX-JEX

    Self-priming electric pumps in AISI 304 stainless steel

    Applications:
    • Drinking water supply
    • Domestic pressurization
    • Small garden irrigation
    • Emptying tanks and pools
    • Movement of clean water in general
    Technical features:
    • Practice
    • Easily transportable
    • Light
    Pump technical data:
    • Maximum working pressure: 6 bar
    • Maximum liquid temperature: 45°C
    • Maximum suction depth: 8 m
    • Suction port G1 for JESX, G1¼ for JEX
    • G1 delivery connection
    Engine technical data:
    • IE2 and IE3 energy efficient motors starting from 0.75kW
    • Self-ventilated 2-pole asynchronous motor
    • Insulation class F
    • Degree of protection IP54 (on request IP55)
    • Single-phase voltage 230V ±10% 50Hz, three-phase voltage 230/400V ±10% 50Hz
    • Permanently inserted capacitor and built-in automatic reset thermo-amperometric protection for the single-phase motor
    • Protection by the user for the three-phase version
    Materials:
    • Pump body and seal holder disc in AISI 304
    • Shaft in AISI 303 (part in contact with the liquid)
    • Impeller in AISI 304 for JEX, in PPE+PS reinforced with glass fibers for JESX
    • Venturi unit plus glass fiber reinforced PPO diffuser
    • Mechanical seal in Ceramic/Carbon/NBR
    • Aluminum support and motor case

    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase
    Data sheetData sheet
    • peso: 11.0 kg
    • alimentazione: Single phase
    • marca: Hebara
    • modello: JESXM 8
    • potenza in kw: 0.75
    • tipologia : Self priming
