Air Conditioner Daitsu Group Fujitsu Dual Split Inverter 9+12 Asd912ui R410 9000+12000

Technical features

Model:

• Catalog code: 3NDA8305
• Model: ASD912UI
• Typology : INVERTER

Energy efficiency:

• SEER 5.60
• SCOP 3.80
• Cooling energy class A+
• Heating energy class A

Performance:

• Cooling capacity (W): 2,600 + 3,500
• Heating Capacity (W): 2,800 + 3,800
• Indoor unit sound pressure level High / Medium / Low dB(A) 34 / 31 / 28 - 34 / 32 / 30
• Max sound pressure level outdoor unit dB(A) 63
• Indoor unit fan flow rate Min / Max m3/h: 410 / 380 / 320 - 500 / 420 / 350
• External unit fan flow rate Max m3/h: 3200

Electrical data:

• Power supply (V/Hz/Φ) : 230/50/1
• Heating Absorbed Power (kW): 1.56
• Absorbed Power Cooling (kW) :1.55

Characteristics:

• Refrigerant gas : R410A
• Piping diameter Liquid / Gas l” 1/4”-3/8”
• Pipe length (Max) Total / Vertical m 20 / 10
• External temperature range in cooling °C +18/+43
• External temperature range in heating °C -7/+24

Dimensions and weight:

• Internal Unit Dimensions (LxHxP): 790 x 265 x 170
• Indoor Unit Weight: 9 Kg
• External Unit Dimensions (LxHxP): 955x700x396 mm
• Weight of Outdoor Unit: 50 Kg

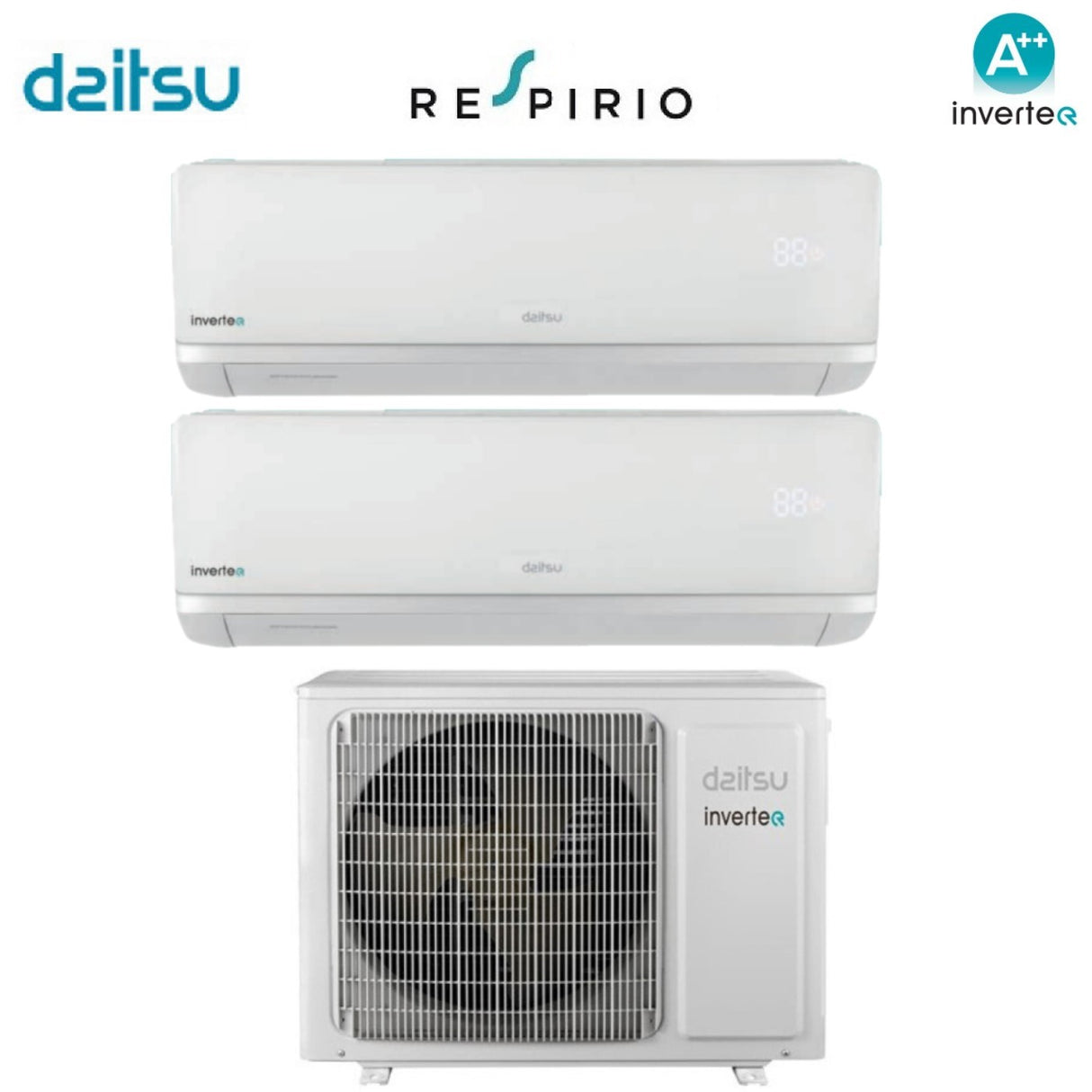

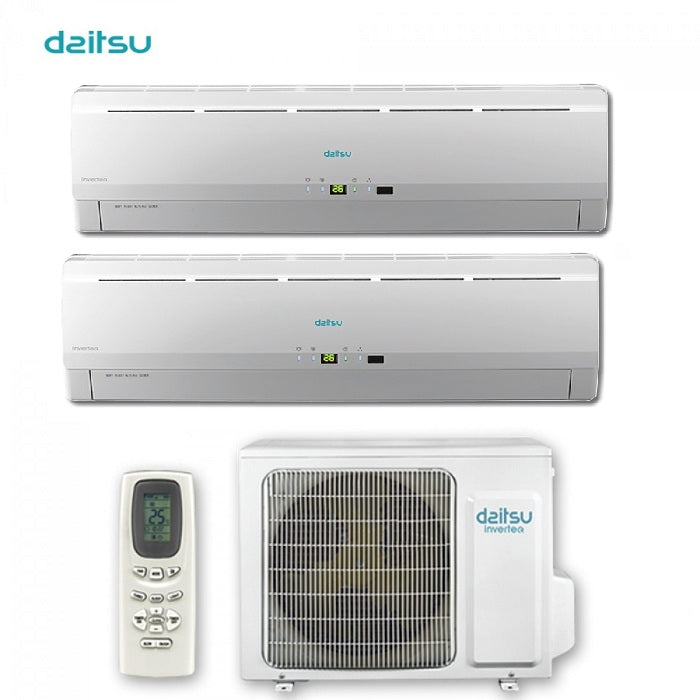

MULTISPLIT WALL INVERTER A+ ASD912UI

The new Daitsu range features a new elegant and compact design with soft lines that can be integrated into any environment. In particular, it offers great savings and an excellent balance between the level of comfort and energy savings.

It stands out in particular for the great savings offered, with a perfect balance between the level of comfort and the lowest possible consumption thanks to the "Energy Saving" mode. The “Low Voltage Start up” function allows a correct start up of the unit in places where the current is unstable or low. (170~265V).

Product specific performance:

• TURBO: increases the cooling or heating power to accelerate the air conditioning of the room and quickly reach the desired temperature.

• X-FAN: With the X-Fan function, the fan keeps running to eliminate humidity. This prevents mold from appearing, keeping the unit clean and healthy.

• SWING : the air outlet flaps move vertically and automatically to distribute the air evenly.

• LIGHT : The function allows you to turn off all the indicator lights on the indoor unit

• SLEEP : Adjusts the room temperature level for maximum comfort and energy saving.

• FOUR AIR SPEEDS:

  - High: for optimal dehumidification;
  - Medium: for normal operation;
  - Low: for silent operation;
  - Auto option: select the appropriate speed at all times.
  - Ventilation: operating option in ventilation mode.

• TEST : Checks the operation of the equipment and displays the error code on the panel of the indoor unit.

• TIMER : allows complete programming.

• DRY : reduces the humidity in the room

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase

• peso: 55.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• gas: R-410
• marca: Daitsu
• metri quadri : 25/35
• modello: Daitsu 9+12
• potenza btu: 9000+12000
• superficie riscaldabile mq: 25/35
