Technical features
Model
Energy efficiency
- SEER: 6.08
- SCOP: 3.87
- Energy Efficiency Class in Cooling : A+
- Heating Energy Efficiency Class: A
- Annual energy consumption in Cooling : 328 kWh/a
- Annual energy consumption in heating: 1704 kWh/a
Performance
- Nominal cooling capacity : 5.7 kW
- Nominal heating capacity: 7.2 kW
- Sound Power Level Indoor Unit : 54 dB(A)
- External Unit Sound Power Level: 63 dB(A)
- Sound Pressure Level Indoor Unit : 33 ~ 37 dB(A)
- Sound Pressure Level Outdoor Unit: 48 dB(A)
Characteristics:
- Power (V/Hz/Φ) : 220~240/50/1
- Refrigerant gas : R-32
- Operating range
- - Cooling: -10° ~ 50°C
- - Heating: -20° ~ 24°C
Installation data
- Pipe diameter Liquid : 6.35 mm (1/4")
- Gas pipe diameter: 12.70 mm (1/2")
- Maximum Piping Length: 30 m
- Maximum height difference Internal Unit / External Unit: 20 m
Dimensions and weight
- Internal Unit Dimensions (HxWxD): 235x1270x690 mm
- Indoor Unit Weight: 31 Kg
- External Unit Dimensions (HxWxD): 734x940x376 mm
- Weight of Outdoor Unit: 50 Kg
Kizuna 2+2 guarantee

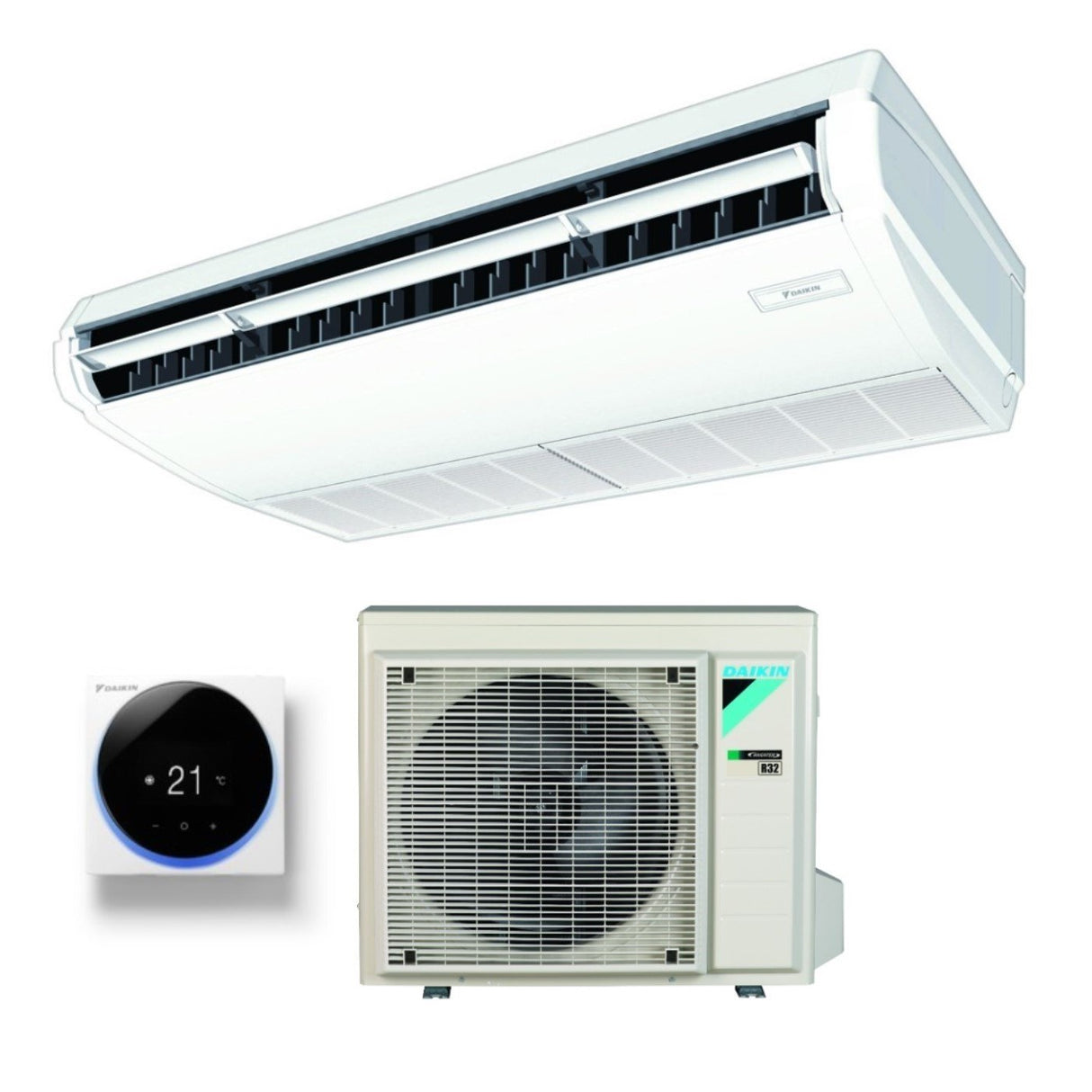

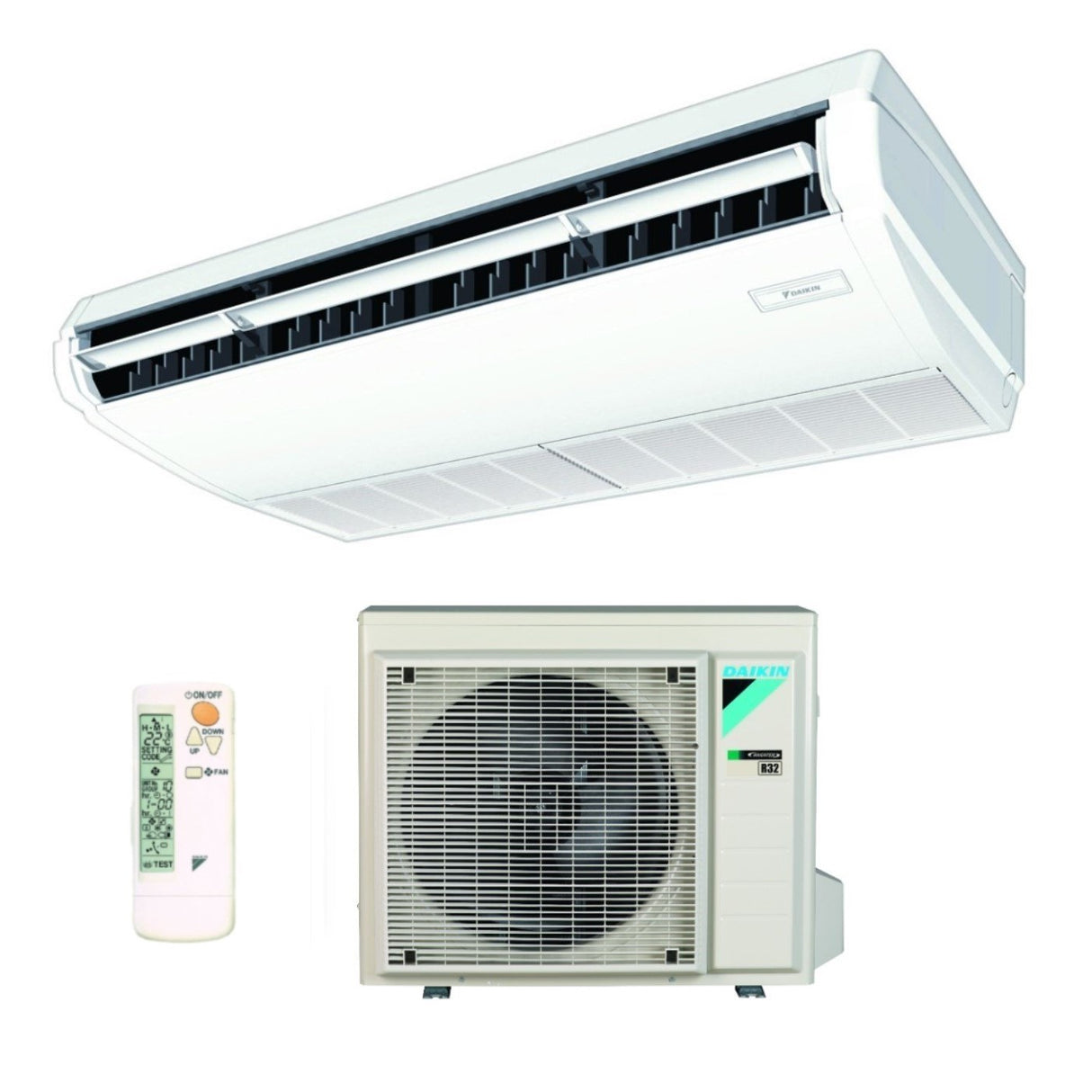

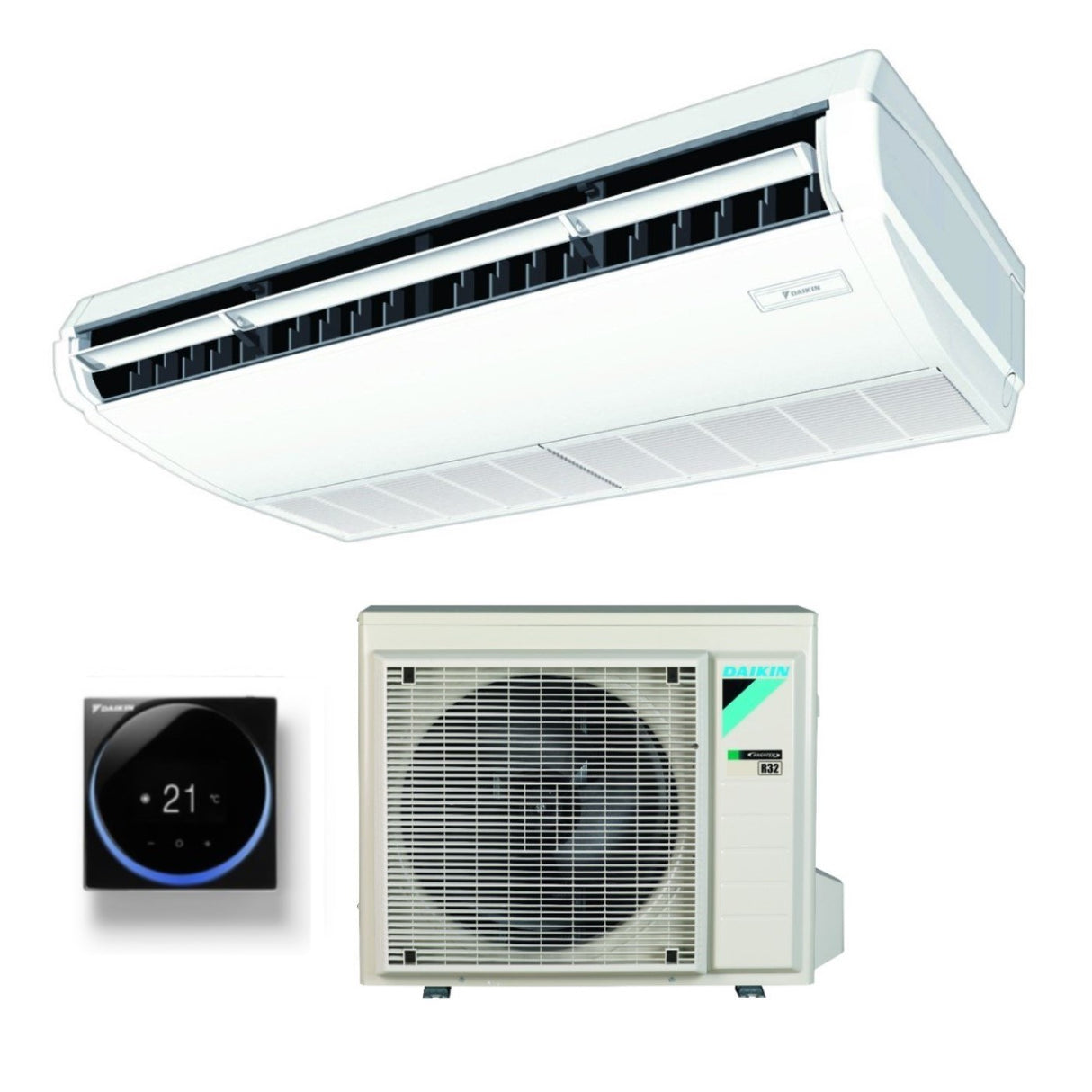

Daikin FHA-A Ceiling Wall Unit For large rooms, without a false ceiling and free floor space
Ideal for comfortable airflow in large rooms thanks to the Coanda effect: discharge angle up to 100°. Choosing an R-32 product reduces the environmental impact by 68% compared to R-410A systems and leads to a direct reduction in energy consumption thanks to the high energy efficiency. Even rooms with ceilings of up to 3.8m in height can be easily heated or cooled without loss of capacity The outdoor units are equipped with a swing-type compressor, known for its low noise and high energy efficiency characteristics. It can be easily installed in both construction and renovation projects. Outdoor units for monosplit applications. The combination with R-32 Bluevolution technology reduces the environmental impact by 68% compared to R-410A systems, involves a direct reduction in energy consumption thanks to the high energy efficiency and has a lower refrigerant charge - up to 16% in less. The lateral clearance of only 30 mm required for maintenance allows the unit to be easily installed in corners and confined spaces. Daikin outdoor units are well-finished and robust and can be easily installed on a roof or terrace, or simply against an external wall. Range of unified indoor units for R-32 and R-410A. Fins of the outdoor unit heat exchanger with anti-corrosion treatment. Low energy consumption with specially designed fan DC motor. There are 5 different fan speeds for maximum comfort. The stylish unit blends in perfectly with any décor. The flaps close completely when the unit is not in operation and the suction grilles are not visible.
Home leave mode
It manages the internal temperature during your absence with energy savings, while still guaranteeing room comfort.
Outdoor unit silent function
The "Silent" button on the remote controller reduces the operation sound level of the outdoor unit by 3dB(A) so as not to disturb the neighbourhood.
Automatic vertical swing
Possibility of selecting the automatic vertical movement of the delivery deflectors, to make the air flow and temperature distribution uniform throughout the room.
Ventilation only
The unit can also be used in fan mode only, without cooling or heating.
Automatic switching of operating modes
Automatically selects cooling or heating mode to maintain the set temperature
Fan speed in steps (3 steps)
Allows you to select different fan speed values (2 steps)
Dehumidification program
Reduces humidity in the air, preventing excessive cooling
Air filter
Eliminates airborne dust particles, improving air quality
Infrastructure cooling
The heat constantly produced by IT equipment and servers can be removed reliably, efficiently and flexibly ensuring maximum life and at the same time offering the best return on investment.
Weekly timer
It can be set to start cooling or heating at any time on a daily or weekly basis.
Infrared remote control (Optional)
Allows remote control of the climate control functions
Wired remote control (Optional)
Allows control of the climate control functions
Centralized remote control (Optional)
Allows management of the climate control functions from a centralized control.
Online controller via app
Possibility of controlling the indoor unit from any location via the app
Auto restart function
After a power failure, the unit automatically restarts with the original settings.
Self diagnostics
Simplifies maintenance by indicating system malfunctions or malfunctions.
Drain pump kit (Optional)
Facilitates the evacuation of condensate from the indoor unit.
Twin/triple/double twin application
Possibility of connecting 2, 3 or 4 indoor units, even if with different capacities, to a single outdoor unit. All indoor units operate in the same mode (cooling or heating), which can be activated using a single remote control.
Multi application
Possibility of connecting up to 5 indoor units, even if of different capacities, to a single outdoor unit. Each of the indoor units can be operated individually within the same cooling or heating mode.
