Technical features
Model:
- Indoor unit catalog code: FDXM60F3/F9
- Outdoor unit catalog code: RXM60M9
- Power : 21000 Btu
- Optional Wi-Fi Card ( Code BRP069A81 )
- Optional infrared remote control ( Code BRC4C65 )
- Optional White Modoka Wire Control ( Code BRC1H519W )
- Optional Silver Modoka Wire Control ( Code BRC1H519S )
- Optional Black Modoka Wire Control ( Code BRC1H519K )
Energy efficiency
- SEER: 5.56
- SCOP: 3.8
- Energy Efficiency Class in Cooling : A
- Heating Energy Efficiency Class:
- Annual Energy Consumption in Cooling : 315 kWh/a
- Annual Energy Consumption in Heating: 1693 kWh/a
Performance
- Cooling Capacity: 6.0 kW
- Heating Capacity: 7.0 kW
- Internal Unit air flow: 14.8 m 3 /min
- Sound Power Level Indoor Unit : 56 dB(A)
- External Unit Sound Power Level: 63 dB(A)
- Sound Pressure Level Indoor Unit : 30~38 dB(A)
- Sound Pressure Level Outdoor Unit: 48 dB(A)
Characteristics:
- Power (V/Hz/Φ) : 220~240/50/1
- Refrigerant gas : R-32
- Operating range
- - Cooling: -10° ~ 46°C
- - Heating: -15° ~ 18°C
Installation data
- Pipe diameter Liquid : 6.35 mm (1/4")
- Gas pipe diameter: 12.70 mm (1/2")
- Maximum piping length: 30 m
- Maximum height difference Indoor Unit / Outdoor Unit: 20 m
Dimensions and weight
- Internal Unit Dimensions (WxHxD): 1150x200x620 mm
- Indoor Unit Weight: 28 Kg
- External Unit Dimensions (WxHxD): 940x734x376 mm
- Weight of Outdoor Unit: 44 Kg

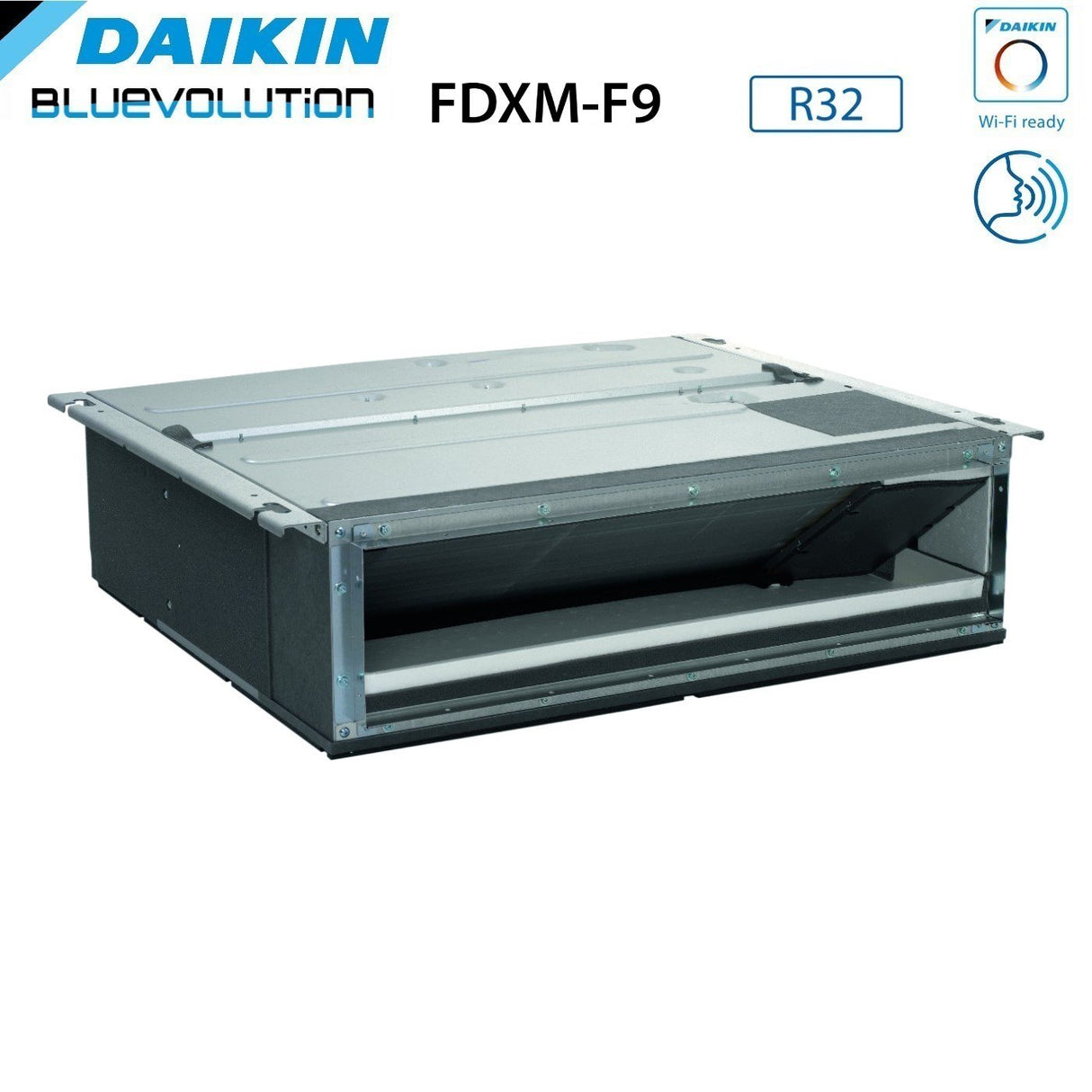

Daikin Ducted FDXM-F
It redefines market standards for efficiency, silence, pure air and consumption control, with particular attention to environmental impact .
" Daikin BLUEVOLUTION redefines market standards for efficiency, silence, pure air and consumption control , with particular attention to environmental impact. "
Discover the well-being of the future
Those who choose Daikin for their home simply choose the best. Today, Daikin has taken the concept of comfort to a whole new level, reinventing the environment with its Bluevolution range . By choosing Daikin technologies, you can have maximum efficiency, silence and pure air. The high levels of seasonal efficiency guarantee the best atmosphere both in summer and in winter, minimizing consumption. The new R-32 refrigerant is more environmentally friendly than standard refrigerants. Daikin's vast experience and the wide range of products offered are synonymous with reliability and long-lasting systems, perfect for your home. And even when you are not at home, you can control and regulate the temperature in the rooms and the operating mode via an easy-to-use smartphone app. Let Daikin guide you to create the perfect atmosphere.
Take a deep breath of Pure Air
A large choice
Daikin solutions are elegant, silent and efficient. For one or more rooms, Daikin has the right unit for you.
Why Choose Daikin?
The Daikin Bluevolution series offers the best in comfort and fresh air, design and performance. Whether you want to heat or cool one or more rooms, whether you prefer wall-mounted or concealed ceiling units, Daikin has the right solution for you.
Ductable unit
FDXM-F is a compact concealed ceiling unit, with a height of only 200mm
Silent installation
Once installed, FDXM-F is invisible as it is recessed into the false ceiling. Only the suction and discharge grilles are visible.
24 hour timer
It can be set to start the unit at any time in any 24 hour period
Simplified maintenance
The self-cleaning filter guarantees air quality, greater operating efficiency and lower maintenance costs
Product guarantee: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
