icon Daikin Bluevolution Ducted Air Conditioner Medium Prevalence 36000 Btu Fba100a + Rzag100nv1 Single-Phase R-32 Wi-Fi Optional With Wired Control | CaldaieMurali

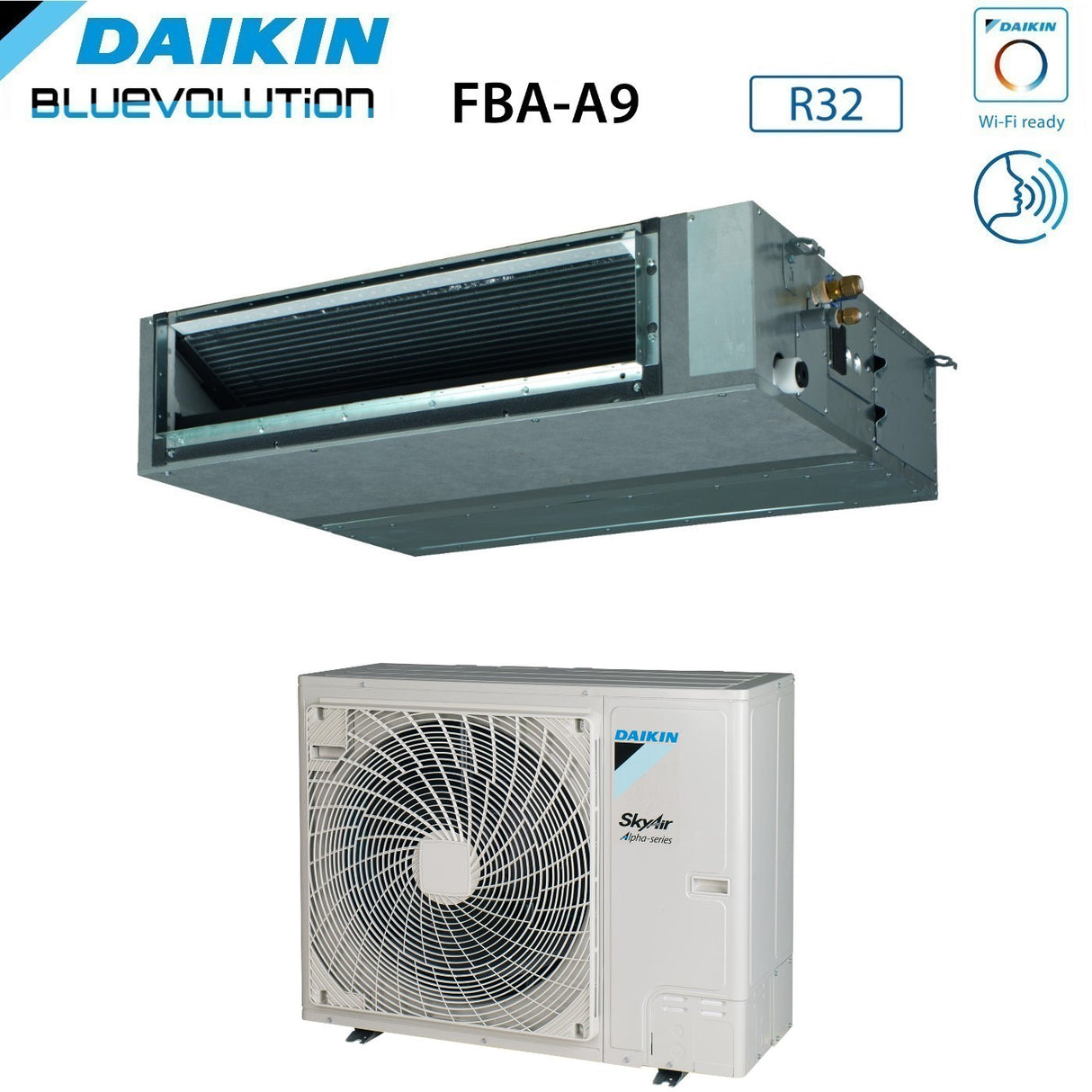

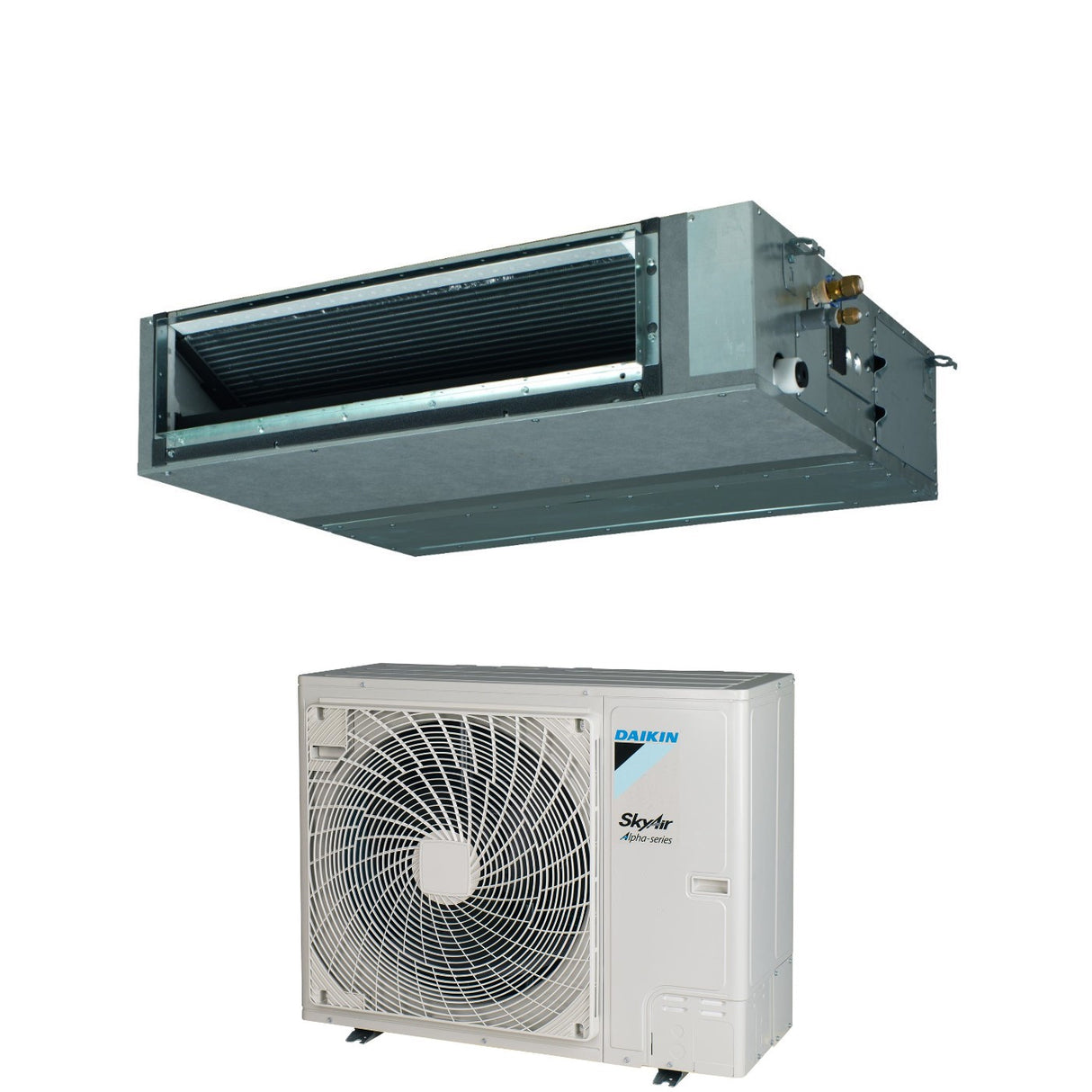

Daikin Bluevolution Ducted Air Conditioner Medium Prevalence 36000 Btu Fba100a + Rzag100nv1 Single-Phase R-32 Wi-Fi Optional With Wired Control

Description

Technical features

Model:

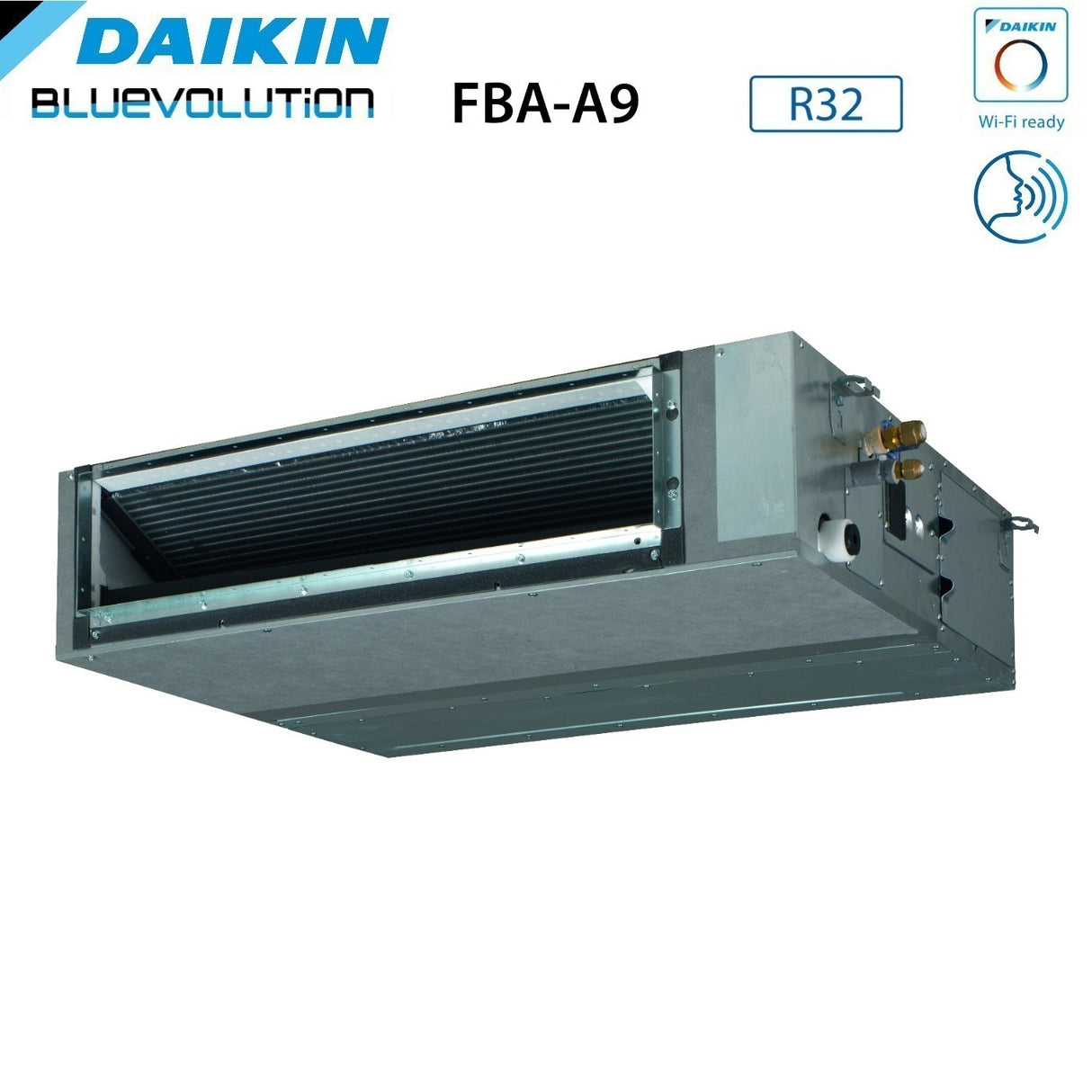

  • Indoor unit catalog code: FBA100A
  • Outdoor unit catalog code: RZAG100NV1
  • Power : 36000 Btu
  • Optional Wi-Fi Card ( Code BRP069A81 )

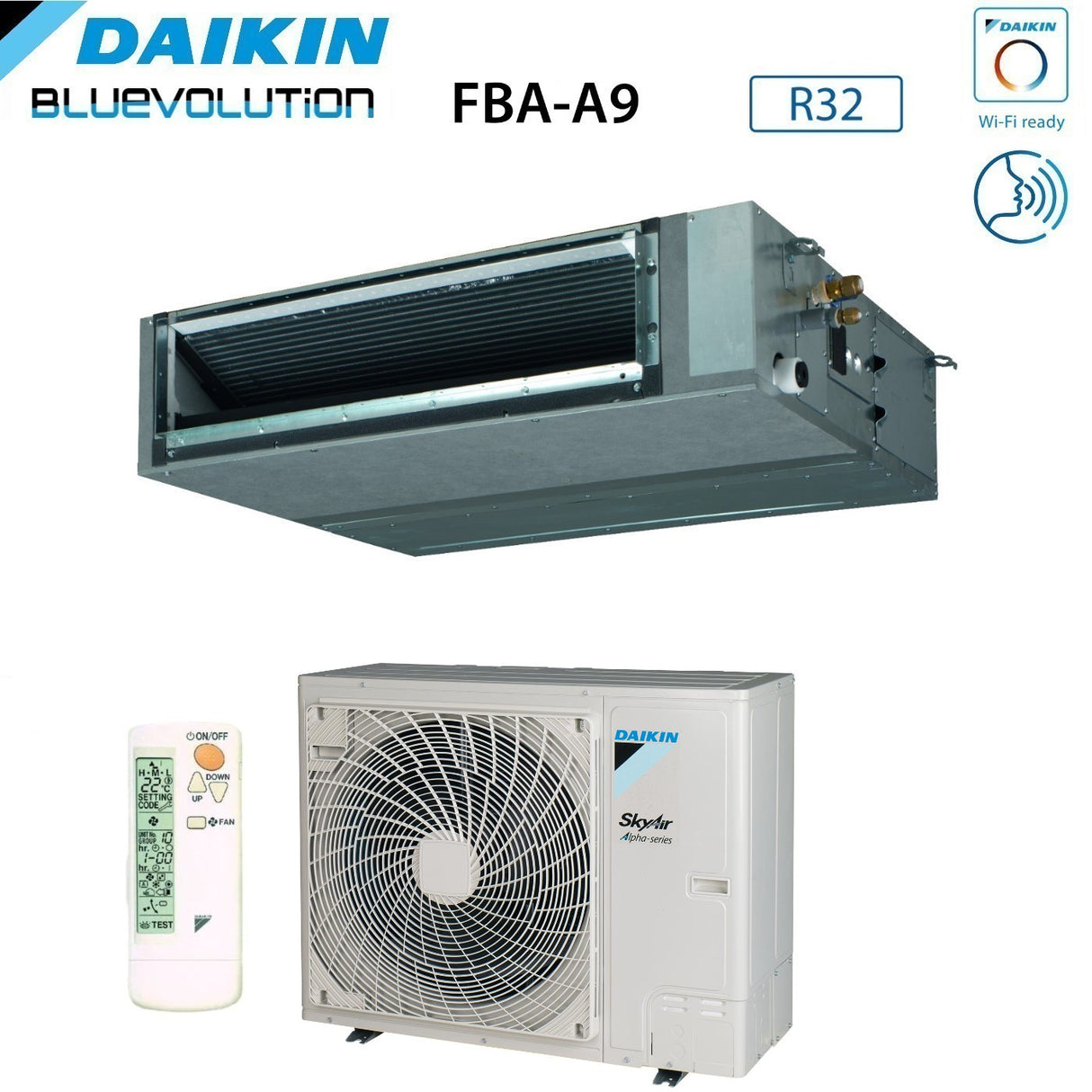

  • Optional infrared remote control ( Code BRC4C65 )

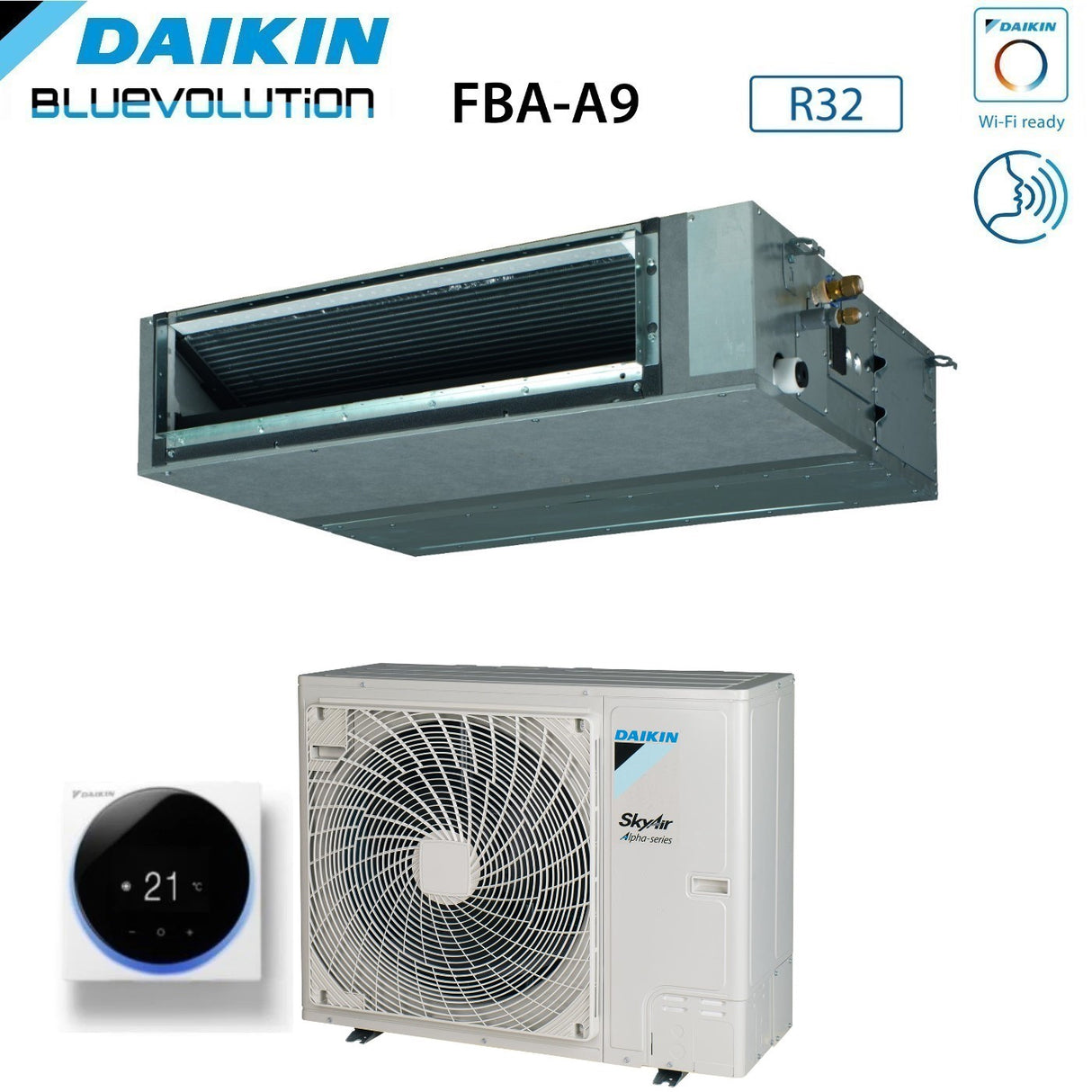

  • White Modoka Wire Control ( Code BRC1H519W )
  • Optional Silver Modoka Wire Control ( Code BRC1H519S )

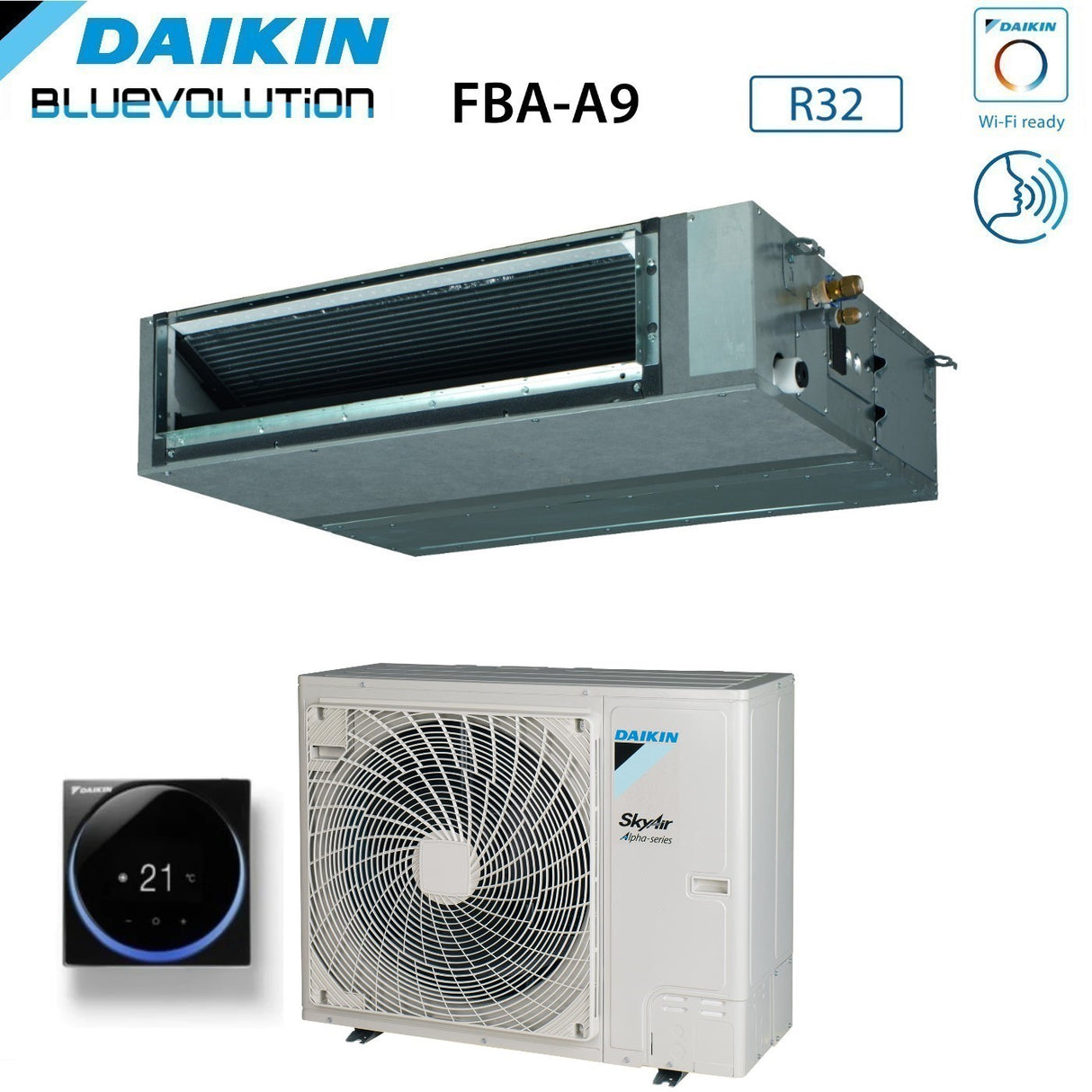

  • Optional Black Modoka Wire Control ( Code BRC1H519K )

Energy efficiency

  • SEER: 6.47
  • SCOP: 4.36
  • Energy Efficiency Class in Cooling : A++
  • Heating Energy Efficiency Class: A+
  • Annual Energy Consumption in Cooling : 514 kWh/a
  • Annual Energy Consumption in Heating: 2505 kWh/a

Performance

  • Cooling Capacity: 9.50 kW
  • Heating Capacity: 10.8 kW
  • Internal Unit air flow: 26 m 3 /min
  • Sound Power Level Indoor Unit : 58 dB(A)
  • External Unit Sound Power Level: 66 dB(A)
  • Sound Pressure Level Indoor Unit : 30~36 dB(A)
  • Sound Pressure Level Outdoor Unit : 47~50 dB(A)

Characteristics:

  • Power (V/Hz/Φ) : 220~240/50/1
  • Refrigerant gas : R-32
  • Operating range
  • - Cooling: -20° ~ 52°C
  • - Heating: -20° ~ 18°C
Installation data
  • Pipe diameter Liquid : 9.52 mm (3/8")
  • Gas pipe diameter: 15.87 mm (5/8")
  • Maximum piping length: 85 m
  • Maximum height difference Indoor Unit / Outdoor Unit: 30 m

Dimensions and weight

  • Internal Unit Dimensions (HxWxD): 245x1400x800 mm
  • Indoor Unit Weight: 46 Kg
  • External Unit Dimensions (HxWxD): 870x1100x460 mm
  • Weight of Outdoor Unit: 85 Kg

Daikin Ducted FBA-A

The most compact and most powerful medium static pressure unit on the market.

Split FBA


" Daikin BLUEVOLUTION redefines market standards for efficiency, silence, pure air and consumption control , with particular attention to environmental impact. "

Discover the well-being of the future

Those who choose Daikin for their home simply choose the best. Today, Daikin has taken the concept of comfort to a whole new level, reinventing the environment with its Bluevolution range . By choosing Daikin technologies, you can have maximum efficiency, silence and pure air. The high levels of seasonal efficiency guarantee the best atmosphere both in summer and in winter, minimizing consumption. The new R-32 refrigerant is more environmentally friendly than standard refrigerants. Daikin's vast experience and the wide range of products offered are synonymous with reliability and long-lasting systems, perfect for your home. And even when you are not at home, you can control and regulate the temperature in the rooms and the operating mode via an easy-to-use smartphone app. Let Daikin guide you to create the perfect atmosphere.


Ductable from false ceiling with inverter driven fan

• High energy efficiency units: up to energy class A

• Reduction of energy consumption thanks to inverter controlled fans

• Fits perfectly into any decor. Only the intake and delivery grilles are visible

• Greater comfort thanks to 3-step airflow control

• static pressure up to 150 Pa allows the unit to be used with flexible ducts of various lengths – ideal for medium sized shops and offices

• The possibility of modifying the head by means of a wired remote control makes it possible to optimize the air flow introduced

• Extremely quiet operation: sound pressure reduced to 29 dBA

• Simplified installation thanks to the automatic adjustment of the range and the height of only 245 mm

• Standard air filter removes airborne dust particles, thus ensuring a constant supply of clean air

• The integrated drain pump included in the standard equipment increases the reliability of the drain system

• No optional adapter is required for DIII connection


Easy Control

You can manage Sensira using your smartphone. Simply connect to Wi-Fi and download the Daikin Residential Controller app to start creating your perfect climate

Facile Controllo


Voice Control

The Daikin Residential Controller application is designed for those who live a busy life and want to manage their system via smartphone. To further increase comfort and convenience, the Daikin Residential Controller app is now available with voice control. The ability to control the application hands-free cuts down on necessary clicks and allows for faster drive management than ever before. Transversal and multilingual, voice control can be combined with smart speakers, such as Google Assistant and Amazon Alexa

Unit Always Connected

The unit can be managed via the new Daikin Residential Controller App and compatible with Amazon Alexa and Google Home voice assistants. The Wi-Fi connection is guaranteed thanks to the SD card integrated in the unit

FTXM-R Alexa


Programming

Set up a schedule to define system operating times, and create up to six different actions per day

Spunta Program the room temperature and operating mode

Spunta Enable vacation mode to save on energy costs

Monitoring

Get a complete overview of system performance and energy consumption

Spunta Check system status

Spunta Access energy consumption graphs (daily, weekly, monthly)

Check

Customize the system to fit your lifestyle and year-round comfort needs

Spunta Change the ambient temperature

Spunta Turn on Powerful mode to boost operation

Feature availability depends on system type, configuration, and mode of operation. The app features are only available if both the Daikin system and the app use a reliable internet connection

Daikin App


Product guarantee: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Daikin Bluevolution Ducted Air Conditioner Medium Prevalence 36000 Btu Fba100a + Rzag100nv1 Single-Phase R-32 Wi-Fi Optional With Wired Control

Product form

Technical features Model: Indoor unit catalog code: FBA100A Outdoor unit catalog code: RZAG100NV1 Power : 36000 Btu  Optional Wi-Fi Card... Read more

€3.385,00 Incl. VAT

    Description

    Technical features

    Model:

    • Indoor unit catalog code: FBA100A
    • Outdoor unit catalog code: RZAG100NV1
    • Power : 36000 Btu
    • Optional Wi-Fi Card ( Code BRP069A81 )
    • Optional infrared remote control ( Code BRC4C65 )
    • White Modoka Wire Control ( Code BRC1H519W )
    • Optional Silver Modoka Wire Control ( Code BRC1H519S )
    • Optional Black Modoka Wire Control ( Code BRC1H519K )

    Energy efficiency

    • SEER: 6.47
    • SCOP: 4.36
    • Energy Efficiency Class in Cooling : A++
    • Heating Energy Efficiency Class: A+
    • Annual Energy Consumption in Cooling : 514 kWh/a
    • Annual Energy Consumption in Heating: 2505 kWh/a

    Performance

    • Cooling Capacity: 9.50 kW
    • Heating Capacity: 10.8 kW
    • Internal Unit air flow: 26 m 3 /min
    • Sound Power Level Indoor Unit : 58 dB(A)
    • External Unit Sound Power Level: 66 dB(A)
    • Sound Pressure Level Indoor Unit : 30~36 dB(A)
    • Sound Pressure Level Outdoor Unit : 47~50 dB(A)

    Characteristics:

    • Power (V/Hz/Φ) : 220~240/50/1
    • Refrigerant gas : R-32
    • Operating range
    • - Cooling: -20° ~ 52°C
    • - Heating: -20° ~ 18°C
    Installation data
    • Pipe diameter Liquid : 9.52 mm (3/8")
    • Gas pipe diameter: 15.87 mm (5/8")
    • Maximum piping length: 85 m
    • Maximum height difference Indoor Unit / Outdoor Unit: 30 m

    Dimensions and weight

    • Internal Unit Dimensions (HxWxD): 245x1400x800 mm
    • Indoor Unit Weight: 46 Kg
    • External Unit Dimensions (HxWxD): 870x1100x460 mm
    • Weight of Outdoor Unit: 85 Kg

    Daikin Ducted FBA-A

    The most compact and most powerful medium static pressure unit on the market.

    Split FBA


    " Daikin BLUEVOLUTION redefines market standards for efficiency, silence, pure air and consumption control , with particular attention to environmental impact. "

    Discover the well-being of the future

    Those who choose Daikin for their home simply choose the best. Today, Daikin has taken the concept of comfort to a whole new level, reinventing the environment with its Bluevolution range . By choosing Daikin technologies, you can have maximum efficiency, silence and pure air. The high levels of seasonal efficiency guarantee the best atmosphere both in summer and in winter, minimizing consumption. The new R-32 refrigerant is more environmentally friendly than standard refrigerants. Daikin's vast experience and the wide range of products offered are synonymous with reliability and long-lasting systems, perfect for your home. And even when you are not at home, you can control and regulate the temperature in the rooms and the operating mode via an easy-to-use smartphone app. Let Daikin guide you to create the perfect atmosphere.


    Ductable from false ceiling with inverter driven fan

    • High energy efficiency units: up to energy class A

    • Reduction of energy consumption thanks to inverter controlled fans

    • Fits perfectly into any decor. Only the intake and delivery grilles are visible

    • Greater comfort thanks to 3-step airflow control

    • static pressure up to 150 Pa allows the unit to be used with flexible ducts of various lengths – ideal for medium sized shops and offices

    • The possibility of modifying the head by means of a wired remote control makes it possible to optimize the air flow introduced

    • Extremely quiet operation: sound pressure reduced to 29 dBA

    • Simplified installation thanks to the automatic adjustment of the range and the height of only 245 mm

    • Standard air filter removes airborne dust particles, thus ensuring a constant supply of clean air

    • The integrated drain pump included in the standard equipment increases the reliability of the drain system

    • No optional adapter is required for DIII connection


    Easy Control

    You can manage Sensira using your smartphone. Simply connect to Wi-Fi and download the Daikin Residential Controller app to start creating your perfect climate

    Facile Controllo


    Voice Control

    The Daikin Residential Controller application is designed for those who live a busy life and want to manage their system via smartphone. To further increase comfort and convenience, the Daikin Residential Controller app is now available with voice control. The ability to control the application hands-free cuts down on necessary clicks and allows for faster drive management than ever before. Transversal and multilingual, voice control can be combined with smart speakers, such as Google Assistant and Amazon Alexa

    Unit Always Connected

    The unit can be managed via the new Daikin Residential Controller App and compatible with Amazon Alexa and Google Home voice assistants. The Wi-Fi connection is guaranteed thanks to the SD card integrated in the unit

    FTXM-R Alexa


    Programming

    Set up a schedule to define system operating times, and create up to six different actions per day

    Spunta Program the room temperature and operating mode

    Spunta Enable vacation mode to save on energy costs

    Monitoring

    Get a complete overview of system performance and energy consumption

    Spunta Check system status

    Spunta Access energy consumption graphs (daily, weekly, monthly)

    Check

    Customize the system to fit your lifestyle and year-round comfort needs

    Spunta Change the ambient temperature

    Spunta Turn on Powerful mode to boost operation

    Feature availability depends on system type, configuration, and mode of operation. The app features are only available if both the Daikin system and the app use a reliable internet connection

    Daikin App


    Product guarantee: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 140.0 kg
    • classe energetica raffreddamento: A++
    • classe energetica riscaldamento: A+
    • gas: R-32
    • marca: DAIKIN
    • metri quadri : 100 - 130 m2
    • modello: FBA100 + RZAG100NV1
    • potenza btu: 36000
    • superficie riscaldabile mq: 100
