icon Daikin Air Conditioner Bluevolution Ducted Ductable Medium Prevalence 42000 Btu Fba125a + Rzag125ny1 Three-phase R-32 Wi-Fi Optional Class A++/A+ | CaldaieMurali

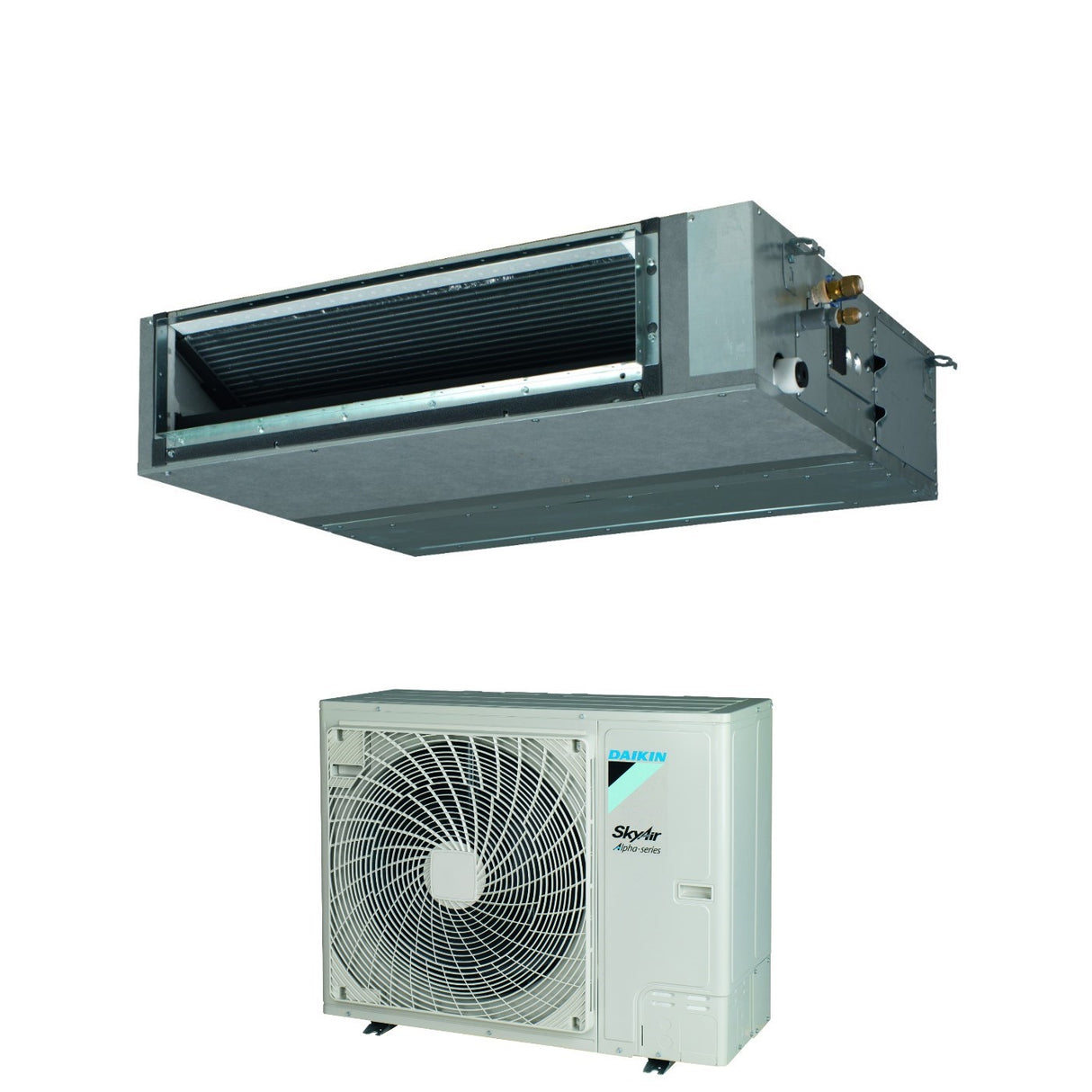

Daikin Air Conditioner Bluevolution Ducted Ductable Medium Prevalence 42000 Btu Fba125a + Rzag125ny1 Three-phase R-32 Wi-Fi Optional Class A++/A+

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Description

Technical features

  • Indoor unit catalog code : FBA125A
  • Outdoor unit catalog number : RZAG125NY1
  • Power : 42000 Btu

Optional accessories

  • Wi-Fi card : BRP069A81
  • White Modoka wired control : BRC1H52W
  • Silver Modoka wired control : BRC1H52S
  • Black Modoka wired control : BRC1H52K
  • Infrared remote control : BRC4C65

Energy efficiency

  • SEER: 6.56
  • SCOP: 4.37
  • Energy efficiency class in cooling : -
  • Energy efficiency class in heating : -
  • Annual energy consumption in cooling : 1107 kWh/a
  • Annual energy consumption in heating : 3050 kWh/a

Performance

  • Cooling capacity : 12.1 kW
  • Heating capacity: 13.5 kW
  • Internal unit air flow: 29 m 3 /min
  • Indoor unit sound power level : 62 dB(A)
  • Outdoor unit sound power level : 68~69 dB(A)
  • Indoor unit sound pressure level : 32~38 dB(A)
  • Outdoor Unit Sound Pressure Level : 49~52 dB(A)

Characteristics

  • Power (V/Hz/F) : 380~415/50/3
  • Refrigerant gas : R-32
  • Operating range
  • - Cooling: -20°C ~ 52°C
  • - Heating: -20°C ~ 18°C
Installation data
  • Liquid pipe diameter : 9.52 mm (3/8")
  • Gas pipe diameter: 15.88 mm (5/8")
  • Maximum piping length: 85 m
  • Maximum difference in height indoor unit / outdoor unit: 30 m

Dimensions and weight

  • Internal unit dimensions (HxWxD): 245x1400x800 mm
  • Indoor unit weight: 46.0 Kg
  • External unit dimensions (HxWxD): 870x1100x460 mm
  • Outdoor unit weight: 94.0 Kg

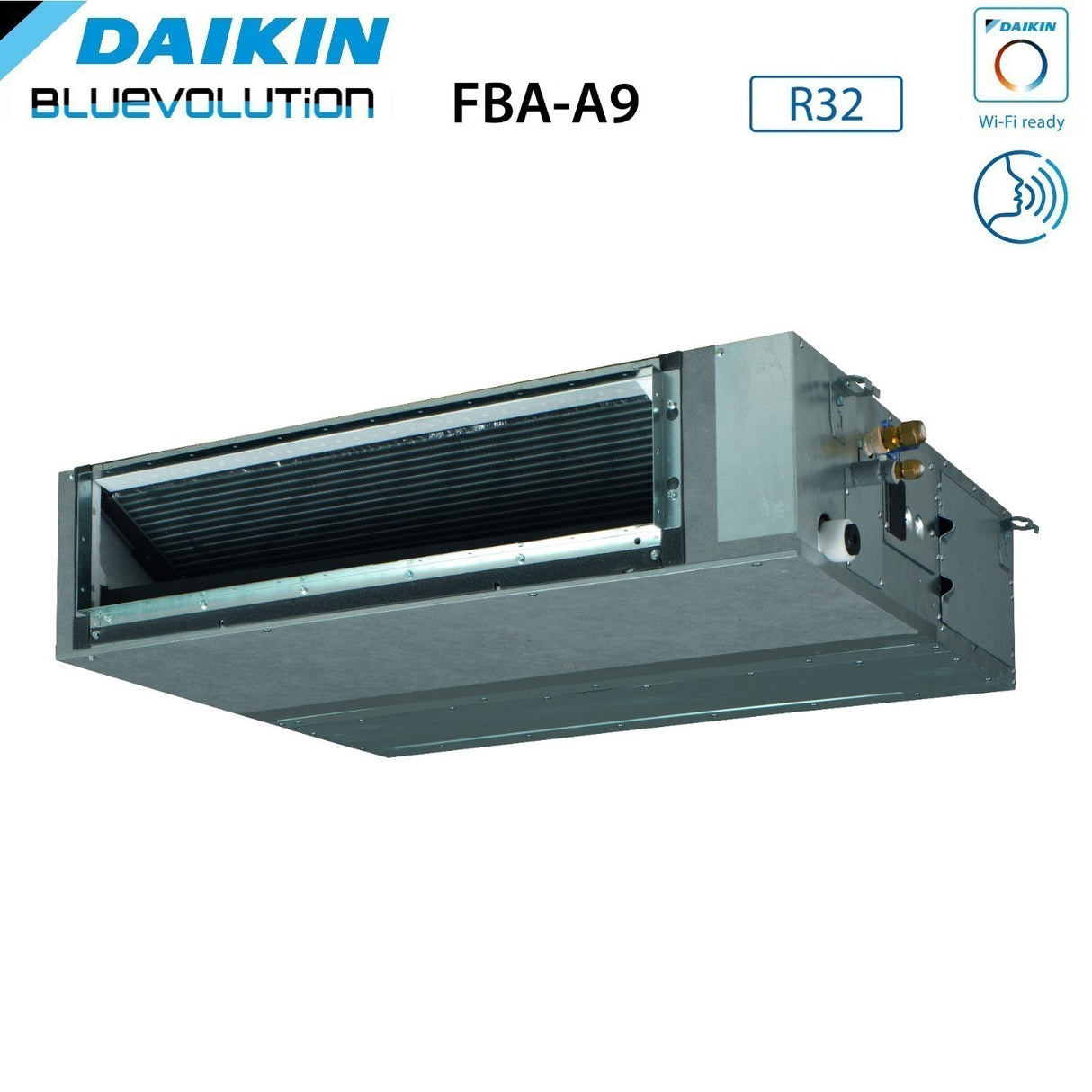

Ducted Daikin FBA-A Ductable false ceiling unit with medium prevalence

The most compact and most powerful medium static pressure unit on the market.

Split FBA


" Daikin BLUEVOLUTION redefines market standards for efficiency, silence, pure air and consumption control , with particular attention to environmental impact. "

Discover the well-being of the future

Those who choose Daikin for their home simply choose the best. Today, Daikin has taken the concept of comfort to a whole new level, reinventing the environment with its Bluevolution range . By choosing Daikin technologies, you can have maximum efficiency, silence and pure air. The high levels of seasonal efficiency guarantee the best atmosphere both in summer and in winter, minimizing consumption. The new R-32 refrigerant is more environmentally friendly than standard refrigerants. Daikin's vast experience and the wide range of products offered are synonymous with reliability and long-lasting systems, perfect for your home. And even when you are not at home, you can control and regulate the temperature in the rooms and the operating mode via an easy-to-use smartphone app. Let Daikin guide you to create the perfect atmosphere.


Ductable from false ceiling with inverter driven fan

• High energy efficiency units: up to energy class A

• Reduction of energy consumption thanks to inverter controlled fans

• Fits perfectly into any decor. Only the intake and delivery grilles are visible

• Greater comfort thanks to 3-step airflow control

• static pressure up to 150 Pa allows the unit to be used with flexible ducts of various lengths – ideal for medium sized shops and offices

• The possibility of modifying the head by means of a wired remote control makes it possible to optimize the air flow introduced

• Extremely quiet operation: sound pressure reduced to 29 dBA

• Simplified installation thanks to the automatic adjustment of the range and the height of only 245 mm

• Standard air filter removes airborne dust particles, thus ensuring a constant supply of clean air

• The integrated drain pump included in the standard equipment increases the reliability of the drain system

• No optional adapter is required for DIII connection


Onecta App Full control, wherever you are

Are not you at home? Thanks to the Onecta app, this isn't a problem. The app allows instant access to all functions. You can easily adjust Daikin Emura settings via smartphone, anywhere, anytime.

  • Check all the functions of your Daikin Emura air conditioner
  • Create different schedules and operating modes
  • Monitor energy usage on a daily, weekly or yearly basis
  • Identify the room in your home to easily control the different units

Simply connect to the WLAN network and download the Onecta app to start creating the perfect climate for your home

The Onecta app allows you to connect Daikin to the Wi-Fi network and control the air conditioning system from anywhere, using Apple or Android devices. Even when you're not at home, you can turn it on and off, set cooling or heating operation , adjust the room temperature and the air flow of the air conditioner. It's that simple

Voice Control

To further increase comfort and convenience, the Daikin Onecta app - Residential Controller is now available with voice control. The ability to control the application hands-free cuts down on necessary clicks and allows for faster drive management than ever before. Transversal and multilingual, voice control can be combined with smart speakers, such as Google Assistant and Amazon Alexa

Unit Always Connected

The unit can be managed via the new Daikin Onecta App - Residential Controller and compatible with the Amazon Alexa and Google Home voice assistants. The Wi-Fi connection is guaranteed thanks to the SD card integrated in the unit

FTXM-R Alexa

Programming

Set up a schedule to define system operating times, and create up to six different actions per day

Spunta Program the room temperature and operating mode

Spunta Enable vacation mode to save on energy costs

Monitoring

Get a complete overview of system performance and energy consumption

Spunta Check system status

Spunta Access energy consumption graphs (daily, weekly, monthly)

Check

Customize the system to fit your lifestyle and year-round comfort needs

Spunta Change the ambient temperature

Spunta Turn on Powerful mode to boost operation

Feature availability depends on system type, configuration, and mode of operation. The app features are only available if both the Daikin system and the app use a reliable internet connection

Onecta app


Daikin Sk Air Alpha series outdoor unit Industry-leading technology for commercial applications as well as utility rooms

› Maximum efficiency : Energy classes up to A++ in both cooling and heating and the compressor offers substantial efficiency improvements

› Perfect balance between efficiency and comfort thanks to the variable refrigerant temperature function: maximized seasonal efficiency during most of the year and quick adjustment on the hottest days

› Suitable for highly sensitive infrastructure cooling applications

› Replacement of existing systems with R32 technology without having to replace the pipes

› Guarantees operation in heating and cooling mode down to -20 °C

› Reliable and guaranteed cooling with refrigerant cooled PCB, not affected by ambient temperature

› Outdoor units for monosplit, twin, triple, double twin configurations


Product guarantee: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Daikin Air Conditioner Bluevolution Ducted Ductable Medium Prevalence 42000 Btu Fba125a + Rzag125ny1 Three-phase R-32 Wi-Fi Optional Class A++/A+

Product form

Technical features Indoor unit catalog code : FBA125A Outdoor unit catalog number : RZAG125NY1 Power : 42000 Btu Optional accessories... Read more

€3.810,00 Incl. VAT

    Description

    Technical features

    • Indoor unit catalog code : FBA125A
    • Outdoor unit catalog number : RZAG125NY1
    • Power : 42000 Btu

    Optional accessories

    • Wi-Fi card : BRP069A81
    • White Modoka wired control : BRC1H52W
    • Silver Modoka wired control : BRC1H52S
    • Black Modoka wired control : BRC1H52K
    • Infrared remote control : BRC4C65

    Energy efficiency

    • SEER: 6.56
    • SCOP: 4.37
    • Energy efficiency class in cooling : -
    • Energy efficiency class in heating : -
    • Annual energy consumption in cooling : 1107 kWh/a
    • Annual energy consumption in heating : 3050 kWh/a

    Performance

    • Cooling capacity : 12.1 kW
    • Heating capacity: 13.5 kW
    • Internal unit air flow: 29 m 3 /min
    • Indoor unit sound power level : 62 dB(A)
    • Outdoor unit sound power level : 68~69 dB(A)
    • Indoor unit sound pressure level : 32~38 dB(A)
    • Outdoor Unit Sound Pressure Level : 49~52 dB(A)

    Characteristics

    • Power (V/Hz/F) : 380~415/50/3
    • Refrigerant gas : R-32
    • Operating range
    • - Cooling: -20°C ~ 52°C
    • - Heating: -20°C ~ 18°C
    Installation data
    • Liquid pipe diameter : 9.52 mm (3/8")
    • Gas pipe diameter: 15.88 mm (5/8")
    • Maximum piping length: 85 m
    • Maximum difference in height indoor unit / outdoor unit: 30 m

    Dimensions and weight

    • Internal unit dimensions (HxWxD): 245x1400x800 mm
    • Indoor unit weight: 46.0 Kg
    • External unit dimensions (HxWxD): 870x1100x460 mm
    • Outdoor unit weight: 94.0 Kg

    Ducted Daikin FBA-A Ductable false ceiling unit with medium prevalence

    The most compact and most powerful medium static pressure unit on the market.

    Split FBA


    " Daikin BLUEVOLUTION redefines market standards for efficiency, silence, pure air and consumption control , with particular attention to environmental impact. "

    Discover the well-being of the future

    Those who choose Daikin for their home simply choose the best. Today, Daikin has taken the concept of comfort to a whole new level, reinventing the environment with its Bluevolution range . By choosing Daikin technologies, you can have maximum efficiency, silence and pure air. The high levels of seasonal efficiency guarantee the best atmosphere both in summer and in winter, minimizing consumption. The new R-32 refrigerant is more environmentally friendly than standard refrigerants. Daikin's vast experience and the wide range of products offered are synonymous with reliability and long-lasting systems, perfect for your home. And even when you are not at home, you can control and regulate the temperature in the rooms and the operating mode via an easy-to-use smartphone app. Let Daikin guide you to create the perfect atmosphere.


    Ductable from false ceiling with inverter driven fan

    • High energy efficiency units: up to energy class A

    • Reduction of energy consumption thanks to inverter controlled fans

    • Fits perfectly into any decor. Only the intake and delivery grilles are visible

    • Greater comfort thanks to 3-step airflow control

    • static pressure up to 150 Pa allows the unit to be used with flexible ducts of various lengths – ideal for medium sized shops and offices

    • The possibility of modifying the head by means of a wired remote control makes it possible to optimize the air flow introduced

    • Extremely quiet operation: sound pressure reduced to 29 dBA

    • Simplified installation thanks to the automatic adjustment of the range and the height of only 245 mm

    • Standard air filter removes airborne dust particles, thus ensuring a constant supply of clean air

    • The integrated drain pump included in the standard equipment increases the reliability of the drain system

    • No optional adapter is required for DIII connection


    Onecta App Full control, wherever you are

    Are not you at home? Thanks to the Onecta app, this isn't a problem. The app allows instant access to all functions. You can easily adjust Daikin Emura settings via smartphone, anywhere, anytime.

    • Check all the functions of your Daikin Emura air conditioner
    • Create different schedules and operating modes
    • Monitor energy usage on a daily, weekly or yearly basis
    • Identify the room in your home to easily control the different units

    Simply connect to the WLAN network and download the Onecta app to start creating the perfect climate for your home

    The Onecta app allows you to connect Daikin to the Wi-Fi network and control the air conditioning system from anywhere, using Apple or Android devices. Even when you're not at home, you can turn it on and off, set cooling or heating operation , adjust the room temperature and the air flow of the air conditioner. It's that simple

    Voice Control

    To further increase comfort and convenience, the Daikin Onecta app - Residential Controller is now available with voice control. The ability to control the application hands-free cuts down on necessary clicks and allows for faster drive management than ever before. Transversal and multilingual, voice control can be combined with smart speakers, such as Google Assistant and Amazon Alexa

    Unit Always Connected

    The unit can be managed via the new Daikin Onecta App - Residential Controller and compatible with the Amazon Alexa and Google Home voice assistants. The Wi-Fi connection is guaranteed thanks to the SD card integrated in the unit

    FTXM-R Alexa

    Programming

    Set up a schedule to define system operating times, and create up to six different actions per day

    Spunta Program the room temperature and operating mode

    Spunta Enable vacation mode to save on energy costs

    Monitoring

    Get a complete overview of system performance and energy consumption

    Spunta Check system status

    Spunta Access energy consumption graphs (daily, weekly, monthly)

    Check

    Customize the system to fit your lifestyle and year-round comfort needs

    Spunta Change the ambient temperature

    Spunta Turn on Powerful mode to boost operation

    Feature availability depends on system type, configuration, and mode of operation. The app features are only available if both the Daikin system and the app use a reliable internet connection

    Onecta app


    Daikin Sk Air Alpha series outdoor unit Industry-leading technology for commercial applications as well as utility rooms

    › Maximum efficiency : Energy classes up to A++ in both cooling and heating and the compressor offers substantial efficiency improvements

    › Perfect balance between efficiency and comfort thanks to the variable refrigerant temperature function: maximized seasonal efficiency during most of the year and quick adjustment on the hottest days

    › Suitable for highly sensitive infrastructure cooling applications

    › Replacement of existing systems with R32 technology without having to replace the pipes

    › Guarantees operation in heating and cooling mode down to -20 °C

    › Reliable and guaranteed cooling with refrigerant cooled PCB, not affected by ambient temperature

    › Outdoor units for monosplit, twin, triple, double twin configurations


    Product guarantee: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 100.0 kg
    • alimentazione: Three-phase
    • gas: R-32
    • marca: Daikin
    • metri quadri : 130 - 160 m2
    • modello: FBA125A + RZAG125NY1_1
    • potenza btu: 42000
