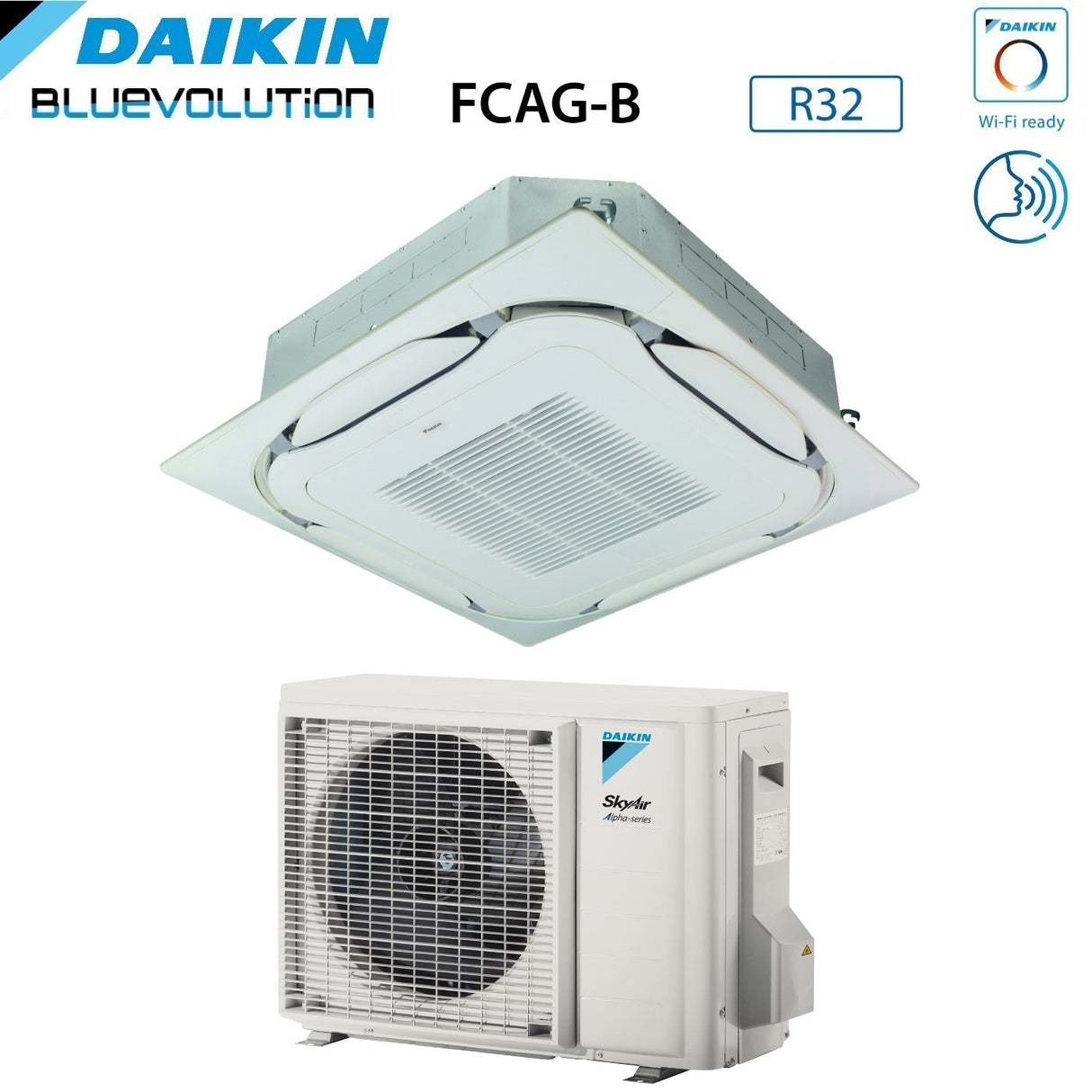

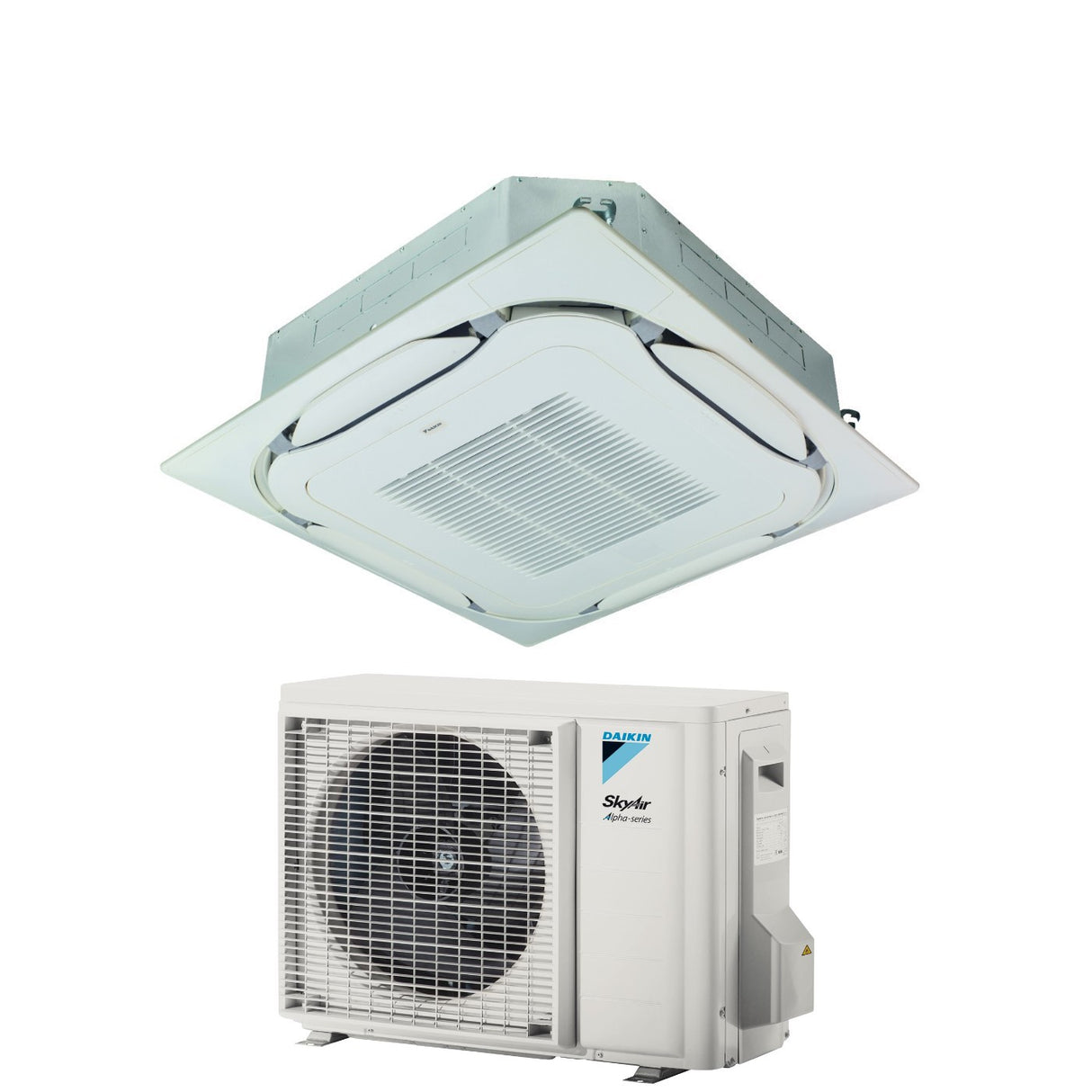

Technical features
Model:
- Indoor unit catalog code: FCAG35B
- Outdoor unit catalog code: RZAG35A
- Standard Grill Code: BYCQ140E
- Power: 12000 Btu
- Optional Wi-Fi Card (Code BRP069B82 )
- Optional infrared remote control (Code BRC7FA532F )
- Madoka White Wired Control Optional (Code BRC1H519W )
- Madoka Wired Control Silver Optional (Code BRC1H519S )
- Madoka Black Wired Control Optional (Code BRC1H519K )
Energy Efficiency
- SER: 7.30
- SCOP: 4.30
- Energy Efficiency Class in Cooling: A++
- Energy Efficiency Class in Heating: A+
- Annual Energy Consumption in Cooling: 168 kWh/a
- Annual Energy Consumption in Heating: 1074 kWh/a
Performance
- Cooling capacity: 3.5 kW
- Heating capacity: 4.0 kW
- Indoor Unit Air Flow Rate: 10.6 m3 /min
- Sound Power Level Indoor Unit: 49 dB(A)
- Sound Power Level Outdoor Unit: 62 dB(A)
- Sound pressure level Indoor unit : 27~31 dB(A)
- Sound pressure level Outdoor unit: 48 dB(A)
Characteristics:
- Power supply (V/Hz/Φ) : 220~240/50/1
- Refrigerant gas: R-32
- Operating range
- - Cooling: -20° ~ 52° C
- - Heating: -20° ~ 24° C
Installation Data
- Liquid Pipe Diameter: 6.35mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Maximum length of pipes: 50 m
- Maximum height difference between internal unit and external unit: 30 m
Dimensions and Weight
- Internal Unit Dimensions (HxWxD): 204x840x840 mm
- Internal Unit Weight: 18 Kg
- External Unit Dimensions (HxWxD): 734x870x373 mm
- External Unit Weight: 52 Kg
- Grid dimensions (HxWxD): 50x950x950 mm
- Grill weight: 5.4 Kg
Why choose SkyAir A-series The better the control, the greater the well-being
› Intuitive control via Residential Controller App
› Variable coolant temperature for optimum comfort
› Customization based on the needs of your customers
In the heart of the system
› Equipped with exclusive Daikin technologies, tested and reliable
› Low environmental impact, the GWP value of R32 refrigerant is 68% lower than that of R410A
Flexibility in design
› More compact
› Quieter
› Extended operating range in all weather conditions
Designed for you
› Faster and easier installation and use
› Quick and reliable replacement
R32 is the future. Join us!
› R32 is more environmentally friendly than previously used refrigerants
› Daikin is the market leader and has been driving technological innovation for years
› First complete range on the market with R32 for small commercial applications
The new Sky Air A series range ideal for any small-commercial application
Lighter and more compact units for easy on-site installation. Special range with single fans up to 14 kW
New replacement technology
A faster, easier and more reliable approach when replacing old, obsolete systems
› Reduction of any inconvenience and obtaining a system capable of significantly reducing consumption and energy bills
› Hepta filtration ensures reliable operation without having to clean the pipes
› Cost and time effective solution, as it is sufficient to replace the internal and external units without any modifications to the pipes
Advantages
› Pipe length increased up to 85 m
› Widest operating range: Cooling mode from -20°C to 52°C, heating mode down to -20°C
› Complete range of indoor units available with R32: Over 45 different options for indoor units
› Faster installation with pre-charged piping up to 40 m: 60% of applications can be installed without additional refrigerant charge
› Tilting front panel: new design for easy access to system components
› New 7-segment display: To view any errors and system settings
› Reliability: guaranteed in all weather conditions, to reduce requests for on-site assistance
› New refrigerant passages: The bottom of the outdoor unit's heat exchanger and drain holes are left completely open, allowing cold water to flow freely, eliminating the risk of ice build-up.
› Refrigerant-cooled PCBs: Stable and reliable cooling, regardless of external conditions
› Integrated leak detection function: for maximum reliability and minimum on-site checks

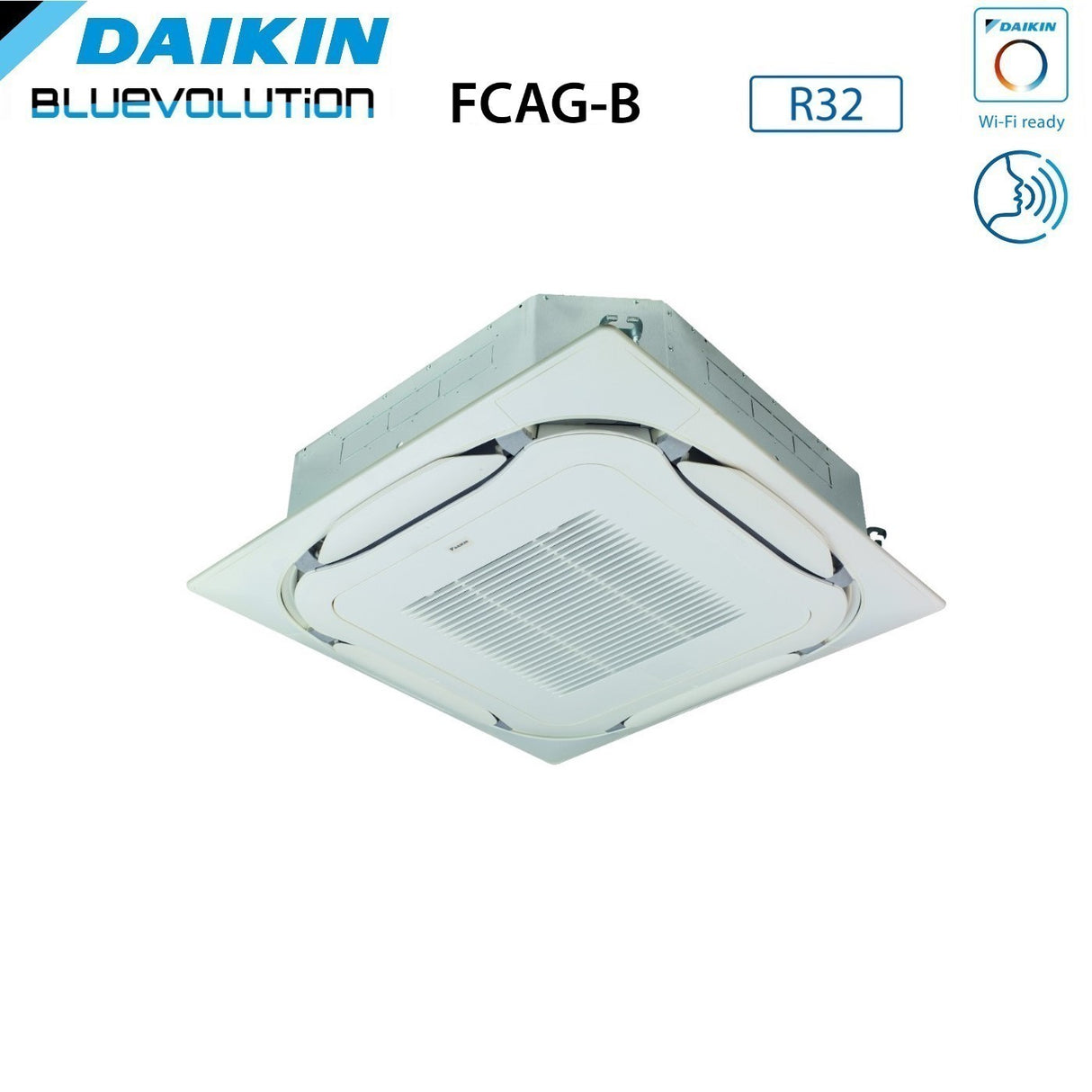

Daikin Cassette Round Flow
Daikin Italy , the Italian branch of the Japanese multinational world leader in air conditioning and heating systems, as well as in the entire cold chain in the refrigeration sector, announces the new Round Flow Cassette , recognized as the most efficient on the market thanks to the cutting-edge technology and excellent design that distinguishes it.
To develop the new Round Flow Cassette, Daikin started from a research carried out which revealed the three most important aspects for users: the small size , the level of comfort and the aesthetics .

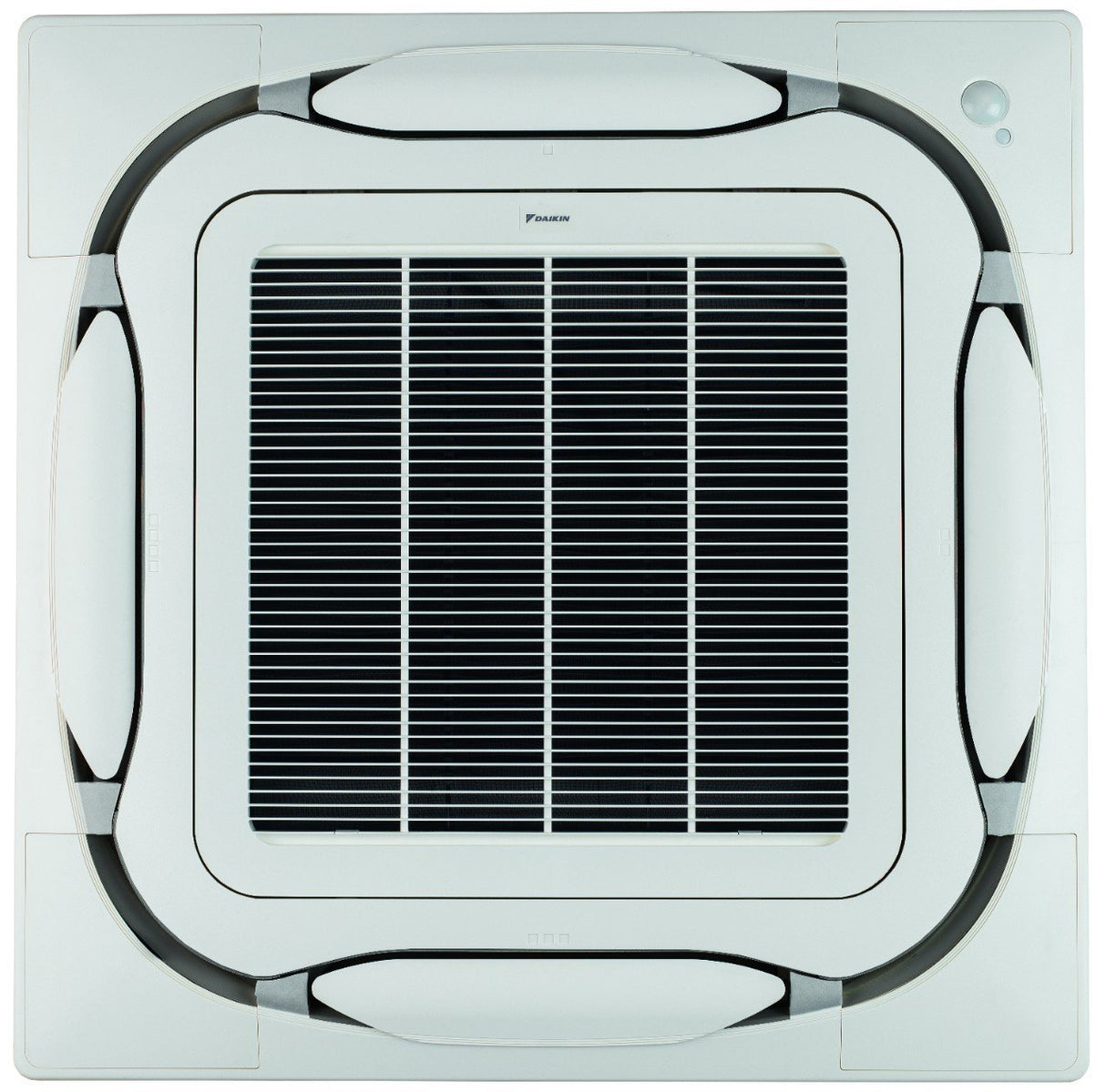

Compact and attractive design
In response to customer needs, the new panel expresses elegance and high technology; it is essential in appearance and easily adapts to any type of furniture. The air intake grilles are invisible and give it a very refined appearance.
With a height of 204 mm , the new Daikin Round Flow Cassette is the most compact available on the market and offers greater design flexibility to adapt to the environment and different structural constraints.
The greatest possible comfort
Starting from the proven Round Flow cassette design, Daikin has applied a new technology, increasing the comfort that can be achieved in a room and energy efficiency.
Its important 360° air jet and smart sensors guarantee homogeneous temperatures and air distribution in every point of the room (working only when necessary and thus avoiding energy waste). Thanks to the new wider deflectors and the Coanda effect, the air flow is in fact more uniform.
Individual control and/or closing via wired remote control allows the customization of the device which can thus adapt to the specific configurations of the environment.
The new Active Circulation Airflow logic has also been added. Activated when the device starts, this new function allows the set temperature to be reached as quickly and efficiently as possible. Active Circulation Airflow also allows for a quicker start-up and energy savings of 5% in cooling mode and up to 15% in heating mode.
The Round Flow Cassette, with a 360° air jet, offers the best comfort available on the market and increases efficiency by up to 50% thanks to self-cleaning technology.
Smart technologies for a comfortable climate
The Daikin Casstta Round Flow’s 360° airflow eliminates cold drafts or uneven air distribution. The Intelligent Eye sensor detects people and directs air away from them, while floor sensors ensure an even temperature from floor to ceiling.

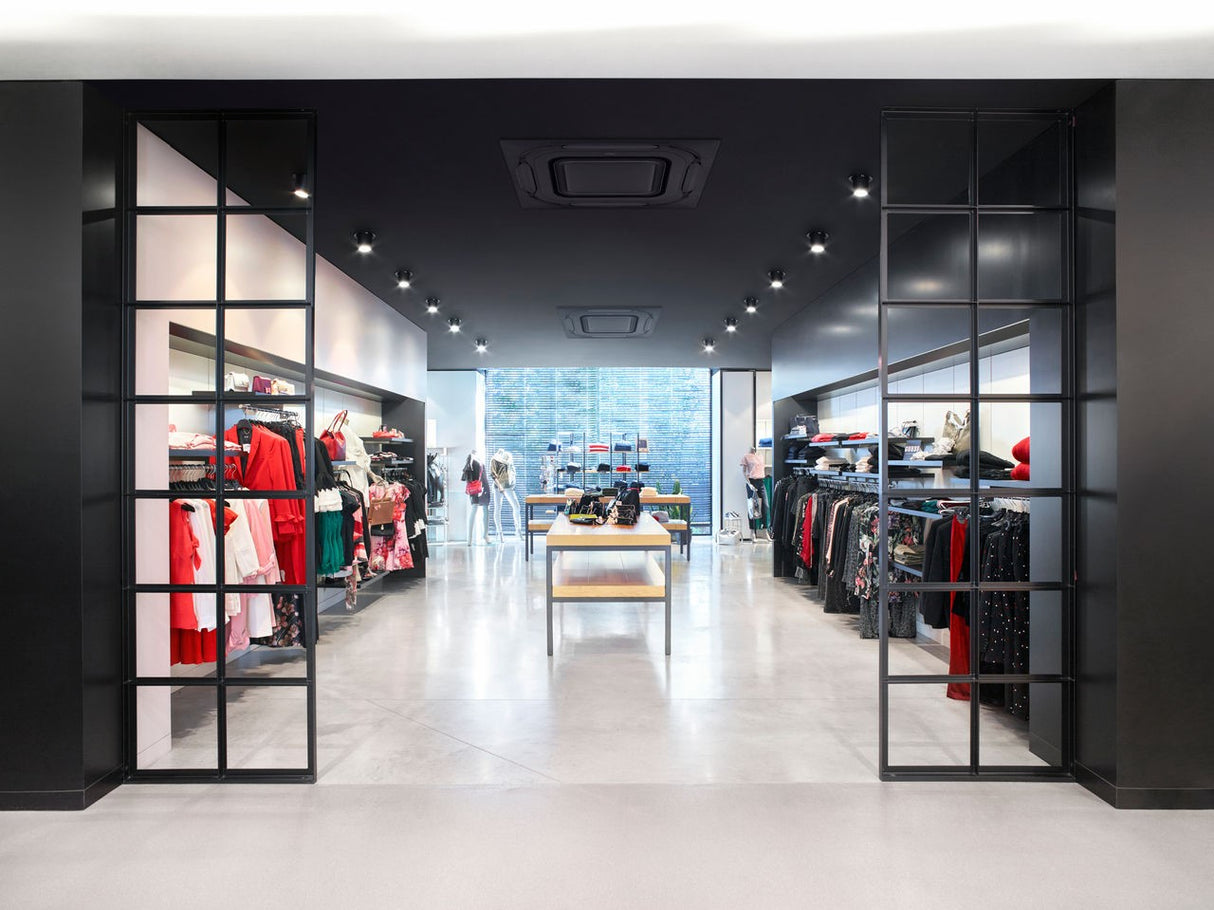

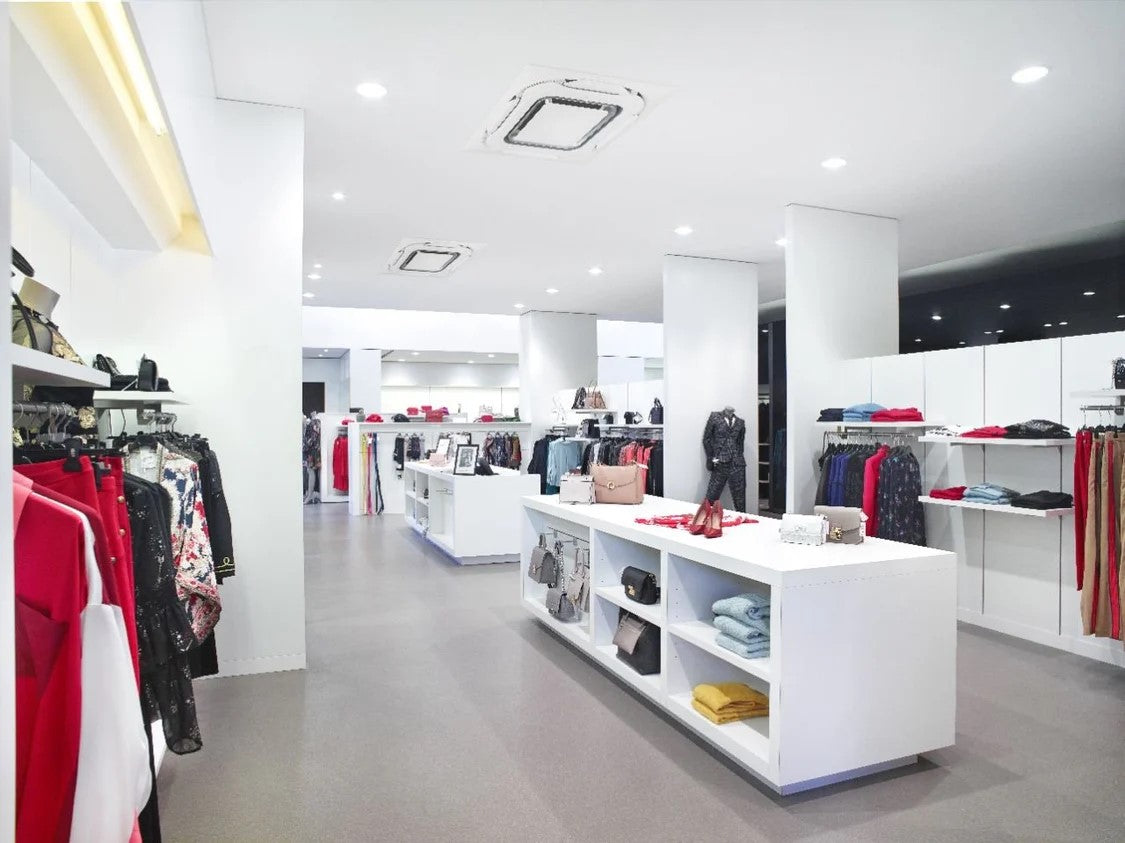

Daikin's Round Flow Cassette, with 23 possible airflow patterns , can adapt to any room layout. The remote control, adjustable flaps and optional closure kit help create 2, 3 or 4-way patterns, allowing installation in corners, close to walls or in irregularly shaped rooms . This feature is particularly useful when reorganising rooms, as it allows the airflow to be changed without moving the unit .
Greater energy efficiency increases savings
The Daikin Round Flow Cassette features a unique auto-cleaning filter panel that reduces maintenance costs and increases savings with up to 50% higher energy efficiency than conventional cassettes. The intelligent Eye sensor automatically switches the cassette to energy-saving mode or turns it off when no one is present, reducing energy costs by up to 27% .
Ease of maintenance
Daikin's Auto-Cleaning Round Flow Cassette features a unique Auto-Cleaning Filter Panel, reducing maintenance time and costs. A clean filter also improves energy efficiency by up to 50% compared to a standard cassette, resulting in significant savings. The Intelligent Eye sensor detects people and directs air away from them, as well as reducing energy costs by 27% when it automatically switches to economy mode or switches off the unit when no one is present.
Forget about stairs and a cleaning technician: all you have to do to remove dust from the collection box is connect it to a regular vacuum cleaner.
Voice Control
The Daikin Residential Controller app is designed for people with a busy lifestyle who want to manage their system via smartphone. To further enhance comfort and convenience, the Daikin Residential Controller app is now available with voice control. The ability to control the app hands-free eliminates the need for clicking and allows for faster unit management than ever before. Cross-platform and multilingual, voice control can be combined with smart speakers, such as Google Assistant and Amazon Alexa
Always Connected Unit
The unit is manageable via the new Daikin Residential Controller App and compatible with Amazon Alexa and Google Home voice assistants. Wi-Fi connection is guaranteed thanks to the SD card integrated into the unit
Programming
Set a schedule to define when the system will run, and create up to six different actions per day
Program the room temperature and operating mode
Enable vacation mode to save on energy costs
Monitoring
Get a complete overview of system performance and energy consumption
Check system status
Access energy consumption graphs (daily, weekly, monthly)
Check
Customize your system to fit your lifestyle and year-round comfort needs
Change the room temperature
Activate Powerful mode to enhance operation
Availability of features depends on the system type, configuration and operation mode. App features are only available if both the Daikin system and the app use a reliable internet connection.
