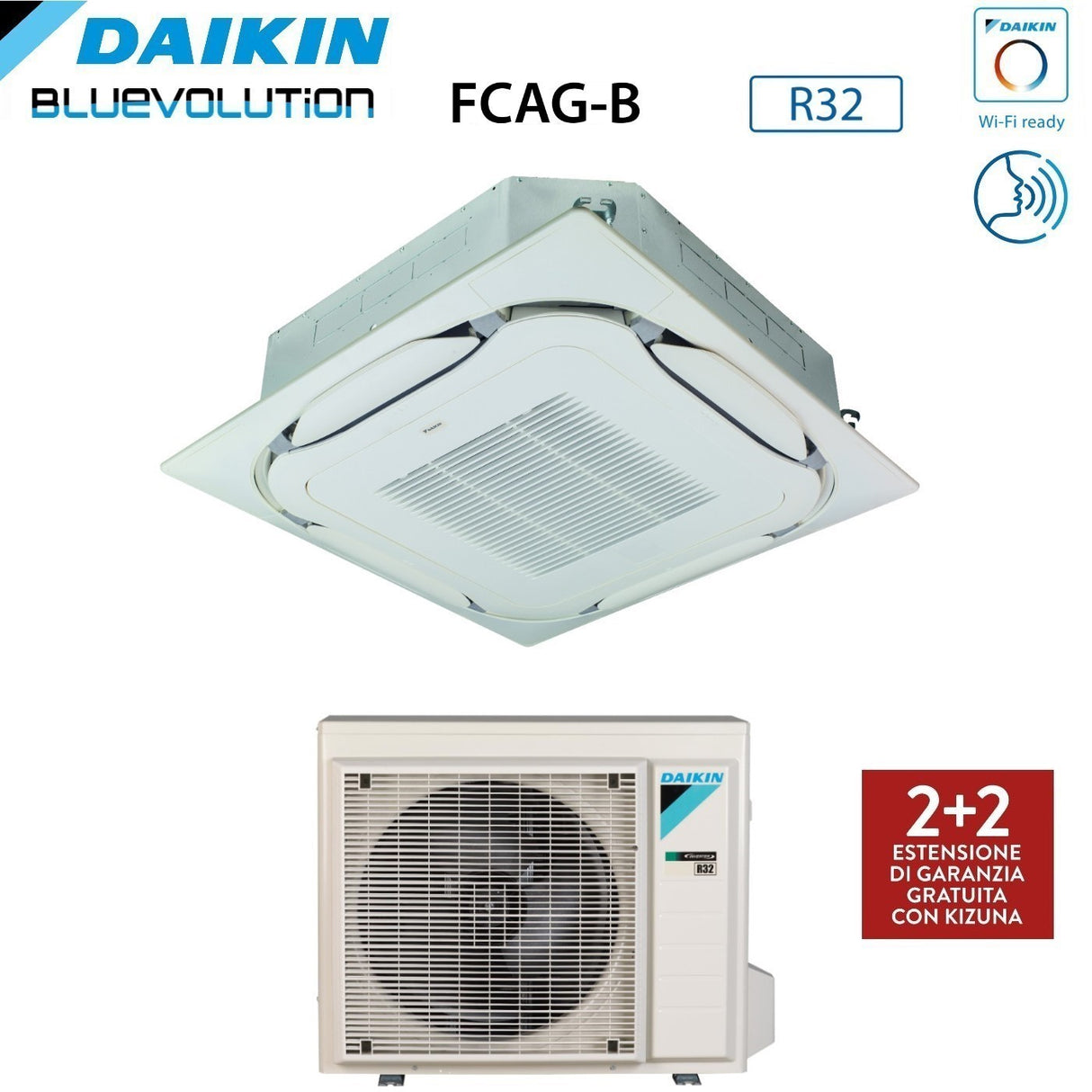

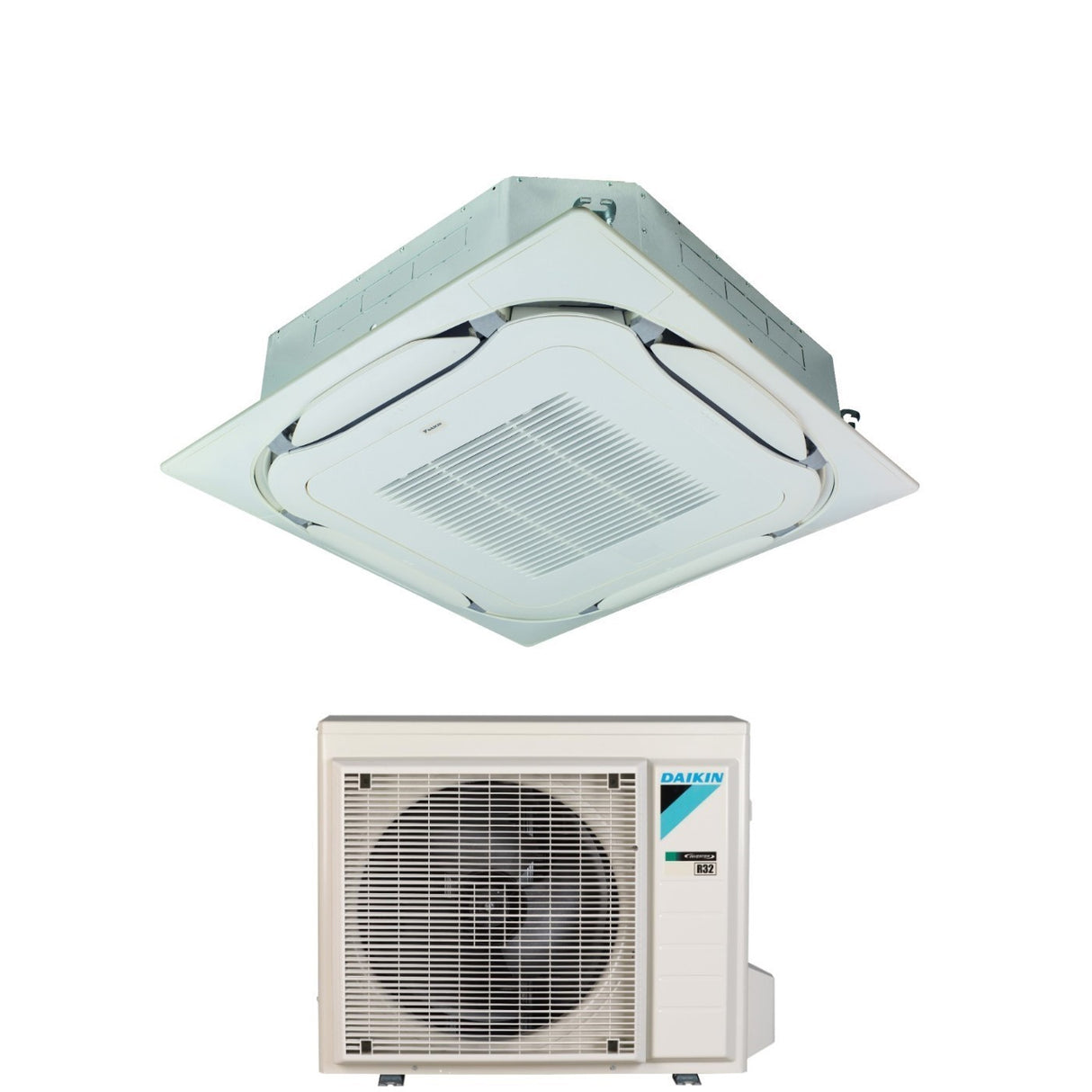

icon Daikin Bluevolution Cassette Air Conditioner Round Flow 12000 Btu FCAG35b R-32 Wi-Fi Optional Class A++/A++ With Standard Grid Included - Italian Warranty | CaldaieMurali

Daikin Bluevolution Cassette Air Conditioner Round Flow 12000 Btu FCAG35b R-32 Wi-Fi Optional Class A++/A++ With Standard Grid Included - Italian Warranty

Important Notice on Regulations for Fluorinated Gases IN ITALY

In accordance with Regulation (EU) No. 517/2014 and Presidential Decree No. 146/2018, equipment containing fluorinated gases that is not hermetically sealed can only be sold if installed by a certified company.

By law, each sale must be recorded in the Fluorinated Gas Database, including a declaration from the buyer ensuring that the installation complies with the regulations. Therefore, before completing the order, it will be necessary to provide this mandatory declaration.

Description

Technical features

Model:

  • Indoor unit catalog code: FCAG35B
  • Outdoor unit catalog code: RXM35N9/R9
  • Standard grid code : BYCQ140E
  • Power : 12000 Btu
Optional commands
  • Optional Wi-Fi Card (Code BRP069B82 )
  • Optional infrared remote control ( Code BRC7FA532F )
  • Wired control Modoka White Included ( Code BRC1H519W )
  • Optional Silver Modoka Wire Control ( Code BRC1H519S )
  • Optional Black Modoka Wire Control ( Code BRC1H519K )

Energy efficiency

  • SEER: 6.35
  • SCOP : 4.90
  • Energy Efficiency Class in Cooling : A++
  • Heating Energy Efficiency Class: A++
  • Annual Energy Consumption in Cooling : 193 kWh/a
  • Annual Energy Consumption in Heating: 948 kWh/a

Performance

  • Cooling Capacity: 3.5 kW
  • Heating Capacity: 4.2 kW
  • Internal Unit air flow: 10.6 m 3 /min
  • Sound Power Level Indoor Unit : 49 dB(A)
  • External Unit Sound Power Level: 61 dB(A)
  • Sound Pressure Level Indoor Unit : 27~31 dB(A)
  • Sound Pressure Level Outdoor Unit: 49 dB(A)

Characteristics:

  • Power (V/Hz/F) : 220~240/50/1
  • Refrigerant gas : R-32
  • Operating range
  • - Cooling: -10° ~ 50°C
  • - Heating: -20° ~ 24° C
Installation data
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 9.52 mm (3/8")
  • Maximum piping length: 20 m
  • Maximum difference in height indoor unit / outdoor unit: 10 m

Dimensions and weight

  • Internal Unit Dimensions (HxWxD): 204x840x840 mm
  • Indoor Unit Weight: 18 Kg
  • External Unit Dimensions (HxWxD): 552x828x350 mm
  • Weight of Outdoor Unit: 32 Kg
  • Grid dimensions (HxWxD): 50x950x950 mm
  • Grid Weight: 5.4 Kg

Kizuna 2+2 guarantee

KIZUNA

The Daikin Italia guarantee can be activated within 1 month from the date of purchase at the address https://standbyme.daikin.it/it/

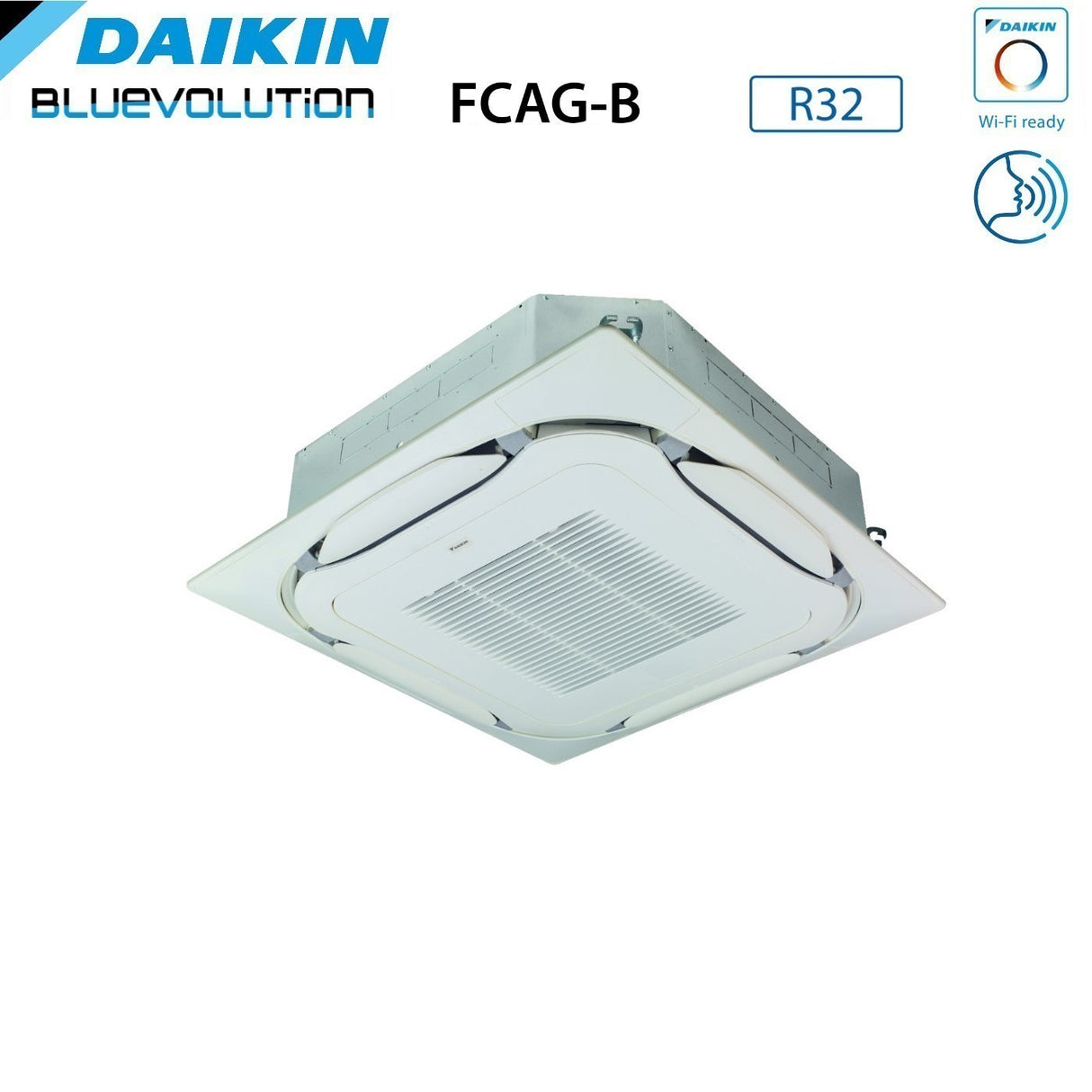

Daikin Cassette Round Flow

Daikin Italy , the Italian branch of the Japanese multinational world leader in air conditioning and heating systems, as well as for the entire cold chain in the field of refrigeration, announces the new Cassetta Round Flow , recognized as the most efficient on the market thanks to the technology of avant-garde and excellent design that sets it apart.

To develop the new Cassette Round Flow, Daikin started from a research which revealed the three most important aspects for users: the small size , the level of comfort and the aesthetics .

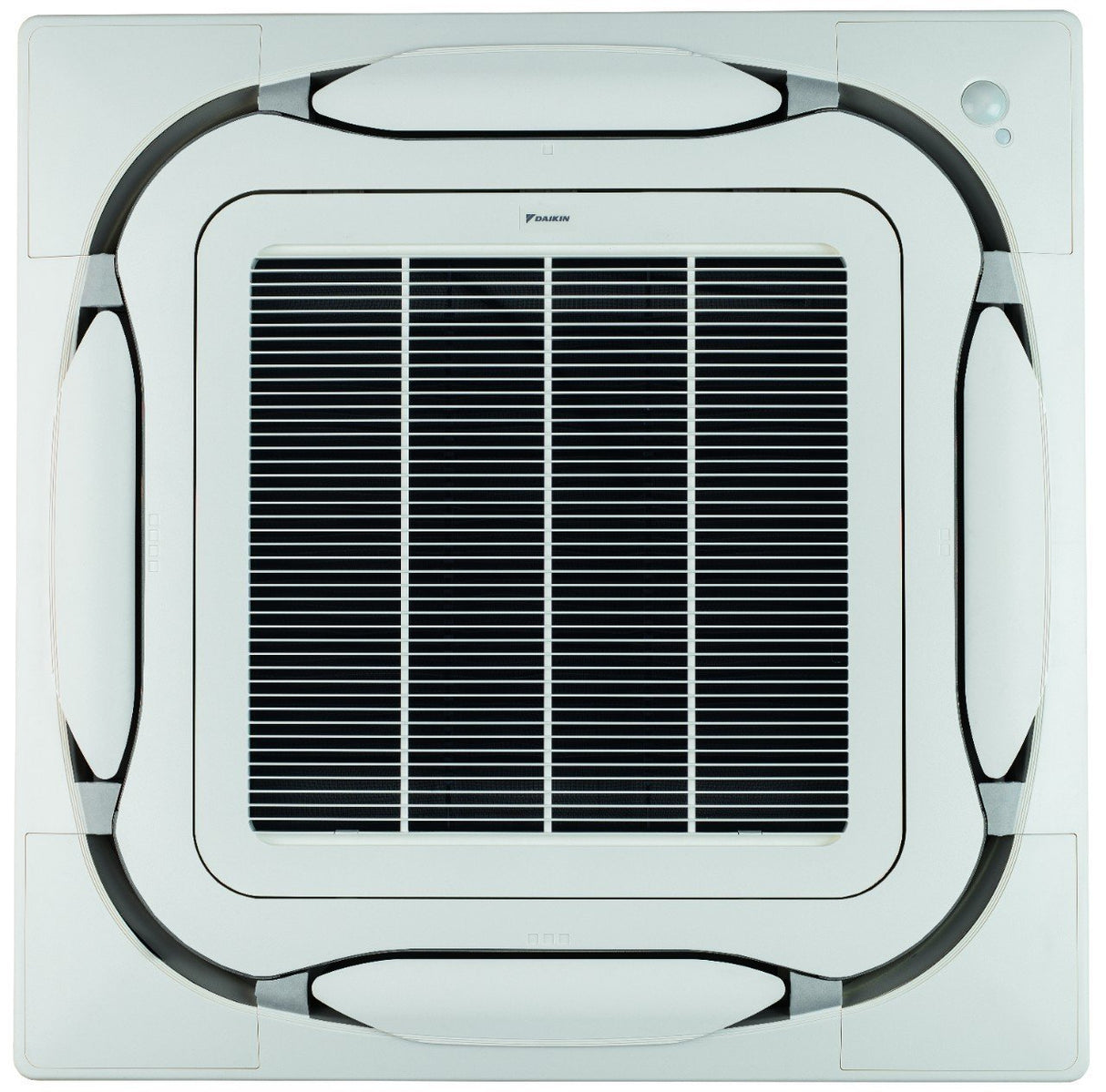

Compact and attractive design

In response to customer needs, the new panel expresses elegance and high technology; it is essential in appearance and easily adapts to any type of furniture. The air intake grilles are invisible and give it a very refined look.

With a height of 204 mm , the new Daikin Round Flow Cassette is the most compact available on the market and offers greater design flexibility to adapt to the environment and to different structural constraints


The greatest possible comfort

Starting from the proven design of the Round Flow cistern, Daikin has applied a new technology, increasing the comfort that can be obtained in a room and energy efficiency.

Its large 360° air jet and smart sensors guarantee homogeneous temperatures and air distribution in every point of the room (working only when necessary and thus avoiding energy waste). Thanks to the new wider deflectors and the Coanda effect, the air flow is in fact more uniform.

The individual control and/or locking via wired remote control allows for the customization of the device which thus manages to adapt to the specific configurations of the environment.

The new Active Circulation Air Flow logic was then added. Activated when the device is started, this new function allows you to reach the set temperature as quickly and efficiently as possible. The Air Flow in Active Circulation also allows for faster start-up and energy savings of 5% in cooling mode and up to 15% in heating mode

The Round Flow Cassette, with a 360° air jet, offers the best comfort available on the market and increases efficiency up to 50% thanks to the self-cleaning technology.
Intelligent technologies for a comfortable climate
The 360° air jet of the Casstta Ruond Flow Daikin eliminates the problem of cold air currents or uneven air distribution. The intelligent eye sensor detects the presence of people and directs the air away from them, while i floor sensors ensure a homogeneous temperature from floor to ceiling.
Daikin's Round Flow cistern, with 23 possible airflow configurations , can fit any room layout. Remote control, adjustable flaps and optional enclosure kit help create configurations a 2,3 or 4 ways which allow for its installation in corners , close to walls or in irregularly shaped rooms . This function is particularly useful when rearranging rooms, because allows you to change the airflow without moving the unit .
Greater energy efficiency increases savings
The Daikin Round Flow Cassette is equipped with the exclusive self-cleaning filter panel which reduces maintenance costs and increase savings thanks to up to 50% higher energy efficiency compared to normal cassettes. The intelligent eye sensor automatically switches the cassette into energy saving mode or switches it off when it detects no people in the environment, reducing energy costs by up to 27% .
Ease of maintenance
Daikin's self-cleaning Round Flow Cassette features the unique self-cleaning filter panel, which reduces maintenance time and associated costs. Furthermore, an always clean filter improves energy efficiency by up to 50% compared to normal cassettes, guaranteeing considerable savings. The intelligent eye sensor detects the presence of people and directs the air away from them, as well as reducing energy costs by 27%. when it automatically switches to energy saving mode or turns off the unit in case there are no people in the room.
Forget the ladders and the cleaning technician – all you have to do to get the dust out of the collection box is connect it to a regular vacuum cleaner.
Manutenzione FCAG

Voice Control

The Daikin Residential Controller application is designed for those who live a busy life and want to manage their system via smartphone. To further increase comfort and convenience, the Daikin Residential Controller app is now available with voice control. The ability to control the application hands-free cuts down on necessary clicks and allows for faster drive management than ever before. Transversal and multilingual, voice control can be combined with smart speakers, such as Google Assistant and Amazon Alexa

Unit Always Connected

The unit can be managed via the new Daikin Residential Controller App and compatible with Amazon Alexa and Google Home voice assistants. The Wi-Fi connection is guaranteed thanks to the SD card integrated in the unit

FTXM-R Alexa


Programming

Set up a schedule to define system operating times, and create up to six different actions per day

Spunta Program the room temperature and operating mode

Spunta Enable vacation mode to save on energy costs

Monitoring

Get a complete overview of system performance and energy consumption

Spunta Check system status

Spunta Access energy consumption graphs (daily, weekly, monthly)

Check

Customize the system to fit your lifestyle and year-round comfort needs

Spunta Change the ambient temperature

Spunta Turn on Powerful mode to boost operation

Feature availability depends on system type, configuration, and mode of operation. The app features are only available if both the Daikin system and the app use a reliable internet connection

Onecta app


Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Daikin Bluevolution Cassette Air Conditioner Round Flow 12000 Btu FCAG35b R-32 Wi-Fi Optional Class A++/A++ With Standard Grid Included - Italian Warranty

Product form

Technical features Model: Indoor unit catalog code: FCAG35B Outdoor unit catalog code: RXM35N9/R9 Standard grid code : BYCQ140E Power :... Read more

€1.930,00 Incl. VAT

    Description

    Technical features

    Model:

    • Indoor unit catalog code: FCAG35B
    • Outdoor unit catalog code: RXM35N9/R9
    • Standard grid code : BYCQ140E
    • Power : 12000 Btu
    Optional commands
    • Optional Wi-Fi Card (Code BRP069B82 )
    • Optional infrared remote control ( Code BRC7FA532F )
    • Wired control Modoka White Included ( Code BRC1H519W )
    • Optional Silver Modoka Wire Control ( Code BRC1H519S )
    • Optional Black Modoka Wire Control ( Code BRC1H519K )

    Energy efficiency

    • SEER: 6.35
    • SCOP : 4.90
    • Energy Efficiency Class in Cooling : A++
    • Heating Energy Efficiency Class: A++
    • Annual Energy Consumption in Cooling : 193 kWh/a
    • Annual Energy Consumption in Heating: 948 kWh/a

    Performance

    • Cooling Capacity: 3.5 kW
    • Heating Capacity: 4.2 kW
    • Internal Unit air flow: 10.6 m 3 /min
    • Sound Power Level Indoor Unit : 49 dB(A)
    • External Unit Sound Power Level: 61 dB(A)
    • Sound Pressure Level Indoor Unit : 27~31 dB(A)
    • Sound Pressure Level Outdoor Unit: 49 dB(A)

    Characteristics:

    • Power (V/Hz/F) : 220~240/50/1
    • Refrigerant gas : R-32
    • Operating range
    • - Cooling: -10° ~ 50°C
    • - Heating: -20° ~ 24° C
    Installation data
    • Pipe diameter Liquid : 6.35 mm (1/4")
    • Gas pipe diameter: 9.52 mm (3/8")
    • Maximum piping length: 20 m
    • Maximum difference in height indoor unit / outdoor unit: 10 m

    Dimensions and weight

    • Internal Unit Dimensions (HxWxD): 204x840x840 mm
    • Indoor Unit Weight: 18 Kg
    • External Unit Dimensions (HxWxD): 552x828x350 mm
    • Weight of Outdoor Unit: 32 Kg
    • Grid dimensions (HxWxD): 50x950x950 mm
    • Grid Weight: 5.4 Kg

    Kizuna 2+2 guarantee

    KIZUNA

    The Daikin Italia guarantee can be activated within 1 month from the date of purchase at the address https://standbyme.daikin.it/it/


    Daikin Cassette Round Flow

    Daikin Italy , the Italian branch of the Japanese multinational world leader in air conditioning and heating systems, as well as for the entire cold chain in the field of refrigeration, announces the new Cassetta Round Flow , recognized as the most efficient on the market thanks to the technology of avant-garde and excellent design that sets it apart.

    To develop the new Cassette Round Flow, Daikin started from a research which revealed the three most important aspects for users: the small size , the level of comfort and the aesthetics .


    Compact and attractive design

    In response to customer needs, the new panel expresses elegance and high technology; it is essential in appearance and easily adapts to any type of furniture. The air intake grilles are invisible and give it a very refined look.

    With a height of 204 mm , the new Daikin Round Flow Cassette is the most compact available on the market and offers greater design flexibility to adapt to the environment and to different structural constraints


    The greatest possible comfort

    Starting from the proven design of the Round Flow cistern, Daikin has applied a new technology, increasing the comfort that can be obtained in a room and energy efficiency.

    Its large 360° air jet and smart sensors guarantee homogeneous temperatures and air distribution in every point of the room (working only when necessary and thus avoiding energy waste). Thanks to the new wider deflectors and the Coanda effect, the air flow is in fact more uniform.

    The individual control and/or locking via wired remote control allows for the customization of the device which thus manages to adapt to the specific configurations of the environment.

    The new Active Circulation Air Flow logic was then added. Activated when the device is started, this new function allows you to reach the set temperature as quickly and efficiently as possible. The Air Flow in Active Circulation also allows for faster start-up and energy savings of 5% in cooling mode and up to 15% in heating mode

    The Round Flow Cassette, with a 360° air jet, offers the best comfort available on the market and increases efficiency up to 50% thanks to the self-cleaning technology.
    Intelligent technologies for a comfortable climate
    The 360° air jet of the Casstta Ruond Flow Daikin eliminates the problem of cold air currents or uneven air distribution. The intelligent eye sensor detects the presence of people and directs the air away from them, while i floor sensors ensure a homogeneous temperature from floor to ceiling.
    Daikin's Round Flow cistern, with 23 possible airflow configurations , can fit any room layout. Remote control, adjustable flaps and optional enclosure kit help create configurations a 2,3 or 4 ways which allow for its installation in corners , close to walls or in irregularly shaped rooms . This function is particularly useful when rearranging rooms, because allows you to change the airflow without moving the unit .
    Greater energy efficiency increases savings
    The Daikin Round Flow Cassette is equipped with the exclusive self-cleaning filter panel which reduces maintenance costs and increase savings thanks to up to 50% higher energy efficiency compared to normal cassettes. The intelligent eye sensor automatically switches the cassette into energy saving mode or switches it off when it detects no people in the environment, reducing energy costs by up to 27% .
    Ease of maintenance
    Daikin's self-cleaning Round Flow Cassette features the unique self-cleaning filter panel, which reduces maintenance time and associated costs. Furthermore, an always clean filter improves energy efficiency by up to 50% compared to normal cassettes, guaranteeing considerable savings. The intelligent eye sensor detects the presence of people and directs the air away from them, as well as reducing energy costs by 27%. when it automatically switches to energy saving mode or turns off the unit in case there are no people in the room.
    Forget the ladders and the cleaning technician – all you have to do to get the dust out of the collection box is connect it to a regular vacuum cleaner.
    Manutenzione FCAG

    Voice Control

    The Daikin Residential Controller application is designed for those who live a busy life and want to manage their system via smartphone. To further increase comfort and convenience, the Daikin Residential Controller app is now available with voice control. The ability to control the application hands-free cuts down on necessary clicks and allows for faster drive management than ever before. Transversal and multilingual, voice control can be combined with smart speakers, such as Google Assistant and Amazon Alexa

    Unit Always Connected

    The unit can be managed via the new Daikin Residential Controller App and compatible with Amazon Alexa and Google Home voice assistants. The Wi-Fi connection is guaranteed thanks to the SD card integrated in the unit

    FTXM-R Alexa


    Programming

    Set up a schedule to define system operating times, and create up to six different actions per day

    Spunta Program the room temperature and operating mode

    Spunta Enable vacation mode to save on energy costs

    Monitoring

    Get a complete overview of system performance and energy consumption

    Spunta Check system status

    Spunta Access energy consumption graphs (daily, weekly, monthly)

    Check

    Customize the system to fit your lifestyle and year-round comfort needs

    Spunta Change the ambient temperature

    Spunta Turn on Powerful mode to boost operation

    Feature availability depends on system type, configuration, and mode of operation. The app features are only available if both the Daikin system and the app use a reliable internet connection

    Onecta app


    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
    Data sheetData sheet
    • peso: 35.0 kg
    • classe energetica raffreddamento: A++
    • classe energetica riscaldamento: A++
    • gas: R-32
    • marca: Daikin
    • metri quadri : 25-40 m2
    • modello: FCAG35B + RXM35
    • potenza btu: 12000
    • superficie riscaldabile mq: 35
    Icon for coinShipping cost

    Shipping costs vary according to the weight of the order.

    Consult the tables with the weights for Italy and for the smaller islands and disadvantaged areas.

    Warranty detailsWarranty details

    Pursuant to art. 63 of the Consumer Code, the risk of loss and damage to the goods, for reasons not attributable to the seller, is transferred to the consumer when the latter, or a third party designated by him and other than the carrier, physically comes into possession of goods. However, the risk is transferred to the consumer as soon as the goods are delivered to the carrier. The Customer who at the time of purchase has decided to make use of the extra insurance service for the transport of the purchased goods, in the event that he finds anomalies at the time of delivery (packaging damaged or otherwise altered in the closing seals, damaged product or scratched, missing one or more packages ordered), must accept the product by writing on the document provided by the carrier: "WE ACCEPT WITH RESERVE" + description of the anomaly found. In fact, to enforce the insurance coverage it is not sufficient to note "ACCEPTED WITH RESERVE" or "ACCEPTED WITH SUBJECT TO INSPECTION", BUT the reason for the reservation must be explained in detail. If the package or the product should show visible damage, scratches or any other type of anomaly and the courier should refuse to affix a specific reserve, the goods must be refused and the incident reported immediately (and in any case in a timely manner) to the Customer Service of Decidiprice srl. In any case, without prejudice to the seller's obligations in terms of legal guarantee pursuant to articles 128 et seq. of the Consumer Code, Decidiprezzo srl will not be held responsible for any anomalies found in the state of the product, after delivery, if the Customer, in the presence of an anomaly, has accepted the package without making a specific reservation (in the corrected above). Any damage or anomalies must be reported to Customer Service by email to postvendita@climaconvenienza.it. The request must be forwarded no later than 8 calendar days from receipt of the goods. Any notification beyond the aforementioned terms will not be taken into consideration.

    Customer service detailsCustomer service details

    Our customer service department is dedicated to providing support to our customers with any problems or questions they may have before or after purchasing our products.

    Use the direct communication channel to speak to one of our operators, or send us an email to one of the addresses listed on the contact us page.

    Our customer service team is made up of highly trained professionals who are always ready to help customers solve any problem or answer any question quickly and efficiently. We are committed to ensuring maximum customer satisfaction and providing the highest quality after-sales service. So if you need any assistance, don't hesitate to contact us; we will be happy to help you in any way we can.
