DAIKIN
Garanzia Italiana 24 mesi
Classe energetica di riscaldamento: A+
Classe energetica di raffreddamento: A++
SKU: FFA50A + RZAG50 + BRC1H519K

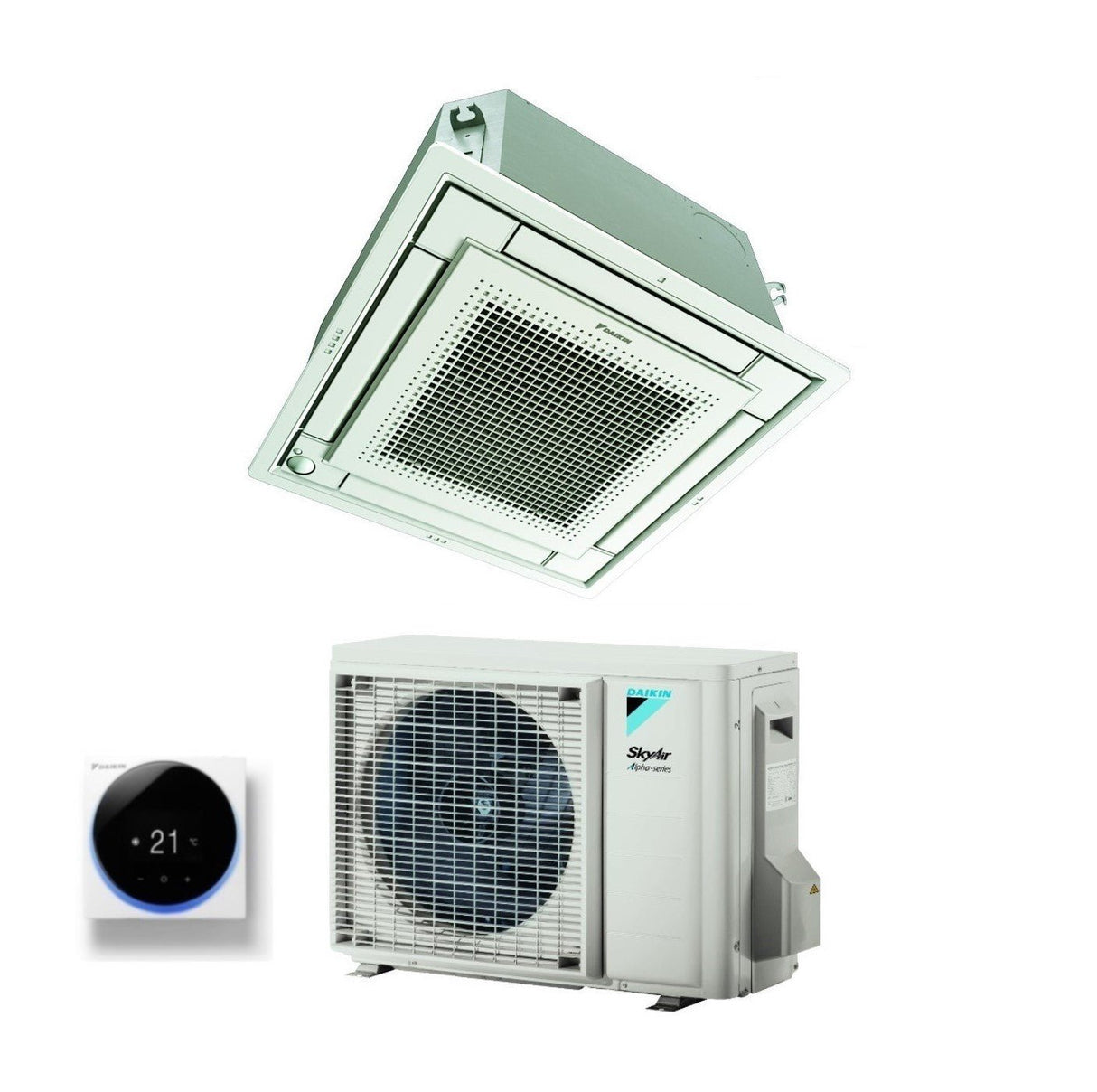

Daikin Cassette Air Conditioner Fully Flat 18000 Btu Ffa50a + Rzag50a R-32 Wi-Fi Optional With Wired Control And Grid Included

€2.533,00 VAT included
Tax included Shipping calculated at checkout.
Costi di spedizione calcolati in fase di checkout

How shipping works

Shipping costs vary depending on the weight and shipping method of your order. Our shipping services:

  • Standard Shipping: Estimated delivery within 2 to 5 business days
  • Premium Shipping: Guaranteed delivery within 24 business hours
  • Premium Shipping + Home Delivery: Guaranteed delivery within 24 business hours

    See the tables for standard shipping prices for Italy and the Minor Islands and Disadvantaged Areas.

    For more details on Premium Shipping, please visit the Premium Shipping page.

Customer service

Our customer service team is dedicated to providing support to our customers with any issues or questions they may have before or after purchasing our products.

Use the direct communication channel to speak with one of our representatives, or send us an email at one of the addresses listed on the contact us page.

Our customer service team is made up of highly qualified professionals who are always ready to help customers resolve any issue or answer any question quickly and efficiently. We are committed to ensuring maximum customer satisfaction and providing the highest quality after-sales service. So, if you need assistance, don't hesitate to contact us; we'll be happy to help in any way we can.

Description

ATTENTION ! The product will be available on order and will be shipped in 10 working days!

Technical features

Model:

  • Indoor unit catalog code: FFA50A9
  • Outdoor unit catalog code: RZAG50A
  • Decorative Panel Code : BYFQ60CW
  • Power : 18000 Btu
  • Optional Wi-Fi Card ( Code BRP069A81 )
  • Optional infrared remote control ( Code BRC7F530W/S )
  • Wired control Modoka White Included ( Code BRC1H519W )
  • Optional Silver Modoka Wire Control ( Code BRC1H519S )
  • Optional Black Modoka Wire Control ( Code BRC1H519K )

Energy efficiency

  • SEERS: 6.30
  • SCOP: 4.01
  • Energy Efficiency Class in Cooling : A++
  • Heating Energy Efficiency Class: A+
  • Annual Energy Consumption in Cooling : 278 kWh/a
  • Annual Energy Consumption in Heating: 1501 kWh/a

Performance

  • Cooling Capacity: 5.0 kW
  • Heating Capacity: 5.8 kW
  • Internal Unit air flow: 10.0 m 3 /min
  • Sound Power Level Indoor Unit : 56 dB(A)
  • External Unit Sound Power Level: 63 dB(A)
  • Sound Pressure Level Indoor Unit : 27~39 dB(A)
  • Sound Pressure Level Outdoor Unit: 49 dB(A)

Characteristics:

  • Power (V/Hz/Φ) : 220~240/50/1
  • Refrigerant gas : R-32
  • Operating range
  • - Cooling: -20° ~ 52°C
  • - Heating: -20° ~ 24°C
Installation data
  • Pipe diameter Liquid : 6.35 mm (1/4")
  • Gas pipe diameter: 12.70 mm (1/2")

Dimensions and weight

  • Internal Unit Dimensions (HxWxD): 260x575x575 mm
  • Indoor Unit Weight: 17.5 Kg
  • External Unit Dimensions (HxWxD): 734x940x376 mm
  • Weight of Outdoor Unit: 52 Kg
  • Panel dimensions (HxWxD): 55x700x700 mm
  • Panel Weight: 2.7 Kg

FFA-A ultra-flat cassette

Unique design on the market that allows installation perfectly flush in the ceiling
Smart Sensors
Optional smart sensors detect the presence of people and direct the air away from them to eliminate cold drafts. The system automatically switches to energy saving mode or turns off the unit when it does not detect people in the environment. An additional floor sensor checks that the temperature remains constant from floor to ceiling.
Caldaiemurali.it

Exclusive award-winning design

Designed in Europe for Europe , Daikin's Fully Flat cassette integrates seamlessly into standard ceiling tiles. The compact design protrudes only 8 mm from the ceiling. Fully Flat received the Universal Design Award in 2014 and the German Design Award Special in 2016. The discreet design of the Fully Flat Cassette, available in white and silver, makes it ideal for any environment.

Design FFA
Individual flap controls
The remote controlled adjustable discharge louvres allow you to create different airflow distribution screens to allow installation in corners, on walls and even in irregularly shaped rooms . This feature is particularly useful when rearranging rooms as it allows you to change the airflow without moving the unit .
Silent operation
With only 25 dB(A) , the Fully Flat Cassette is the quietest unit currently on the market


Product features
• Fits perfectly flush with standard ceiling tiles, leaving only 8mm

• Maximum efficiency: Energy classes up to A++ in both cooling and heating modes, compressor which significantly increases efficiency

• Unique combination of design and technology, with elegant white or silver and white finishes
• The outdoor units are equipped with a swing type compressor known for its low noise and high energy efficiency characteristics
• The choice of an R-32 product reduces the environmental impact by 68% compared to R-410A systems, involves a direct reduction in energy consumption thanks to the high energy efficiency and has a lower refrigerant charge
• Suitable for high sensitivity applications for infrastructure cooling
• The combination with R-32 Bluevolution technology reduces the environmental impact by 68% compared to R-410A systems, involves a direct reduction of energy consumption thanks to the high energy efficiency and has a lower refrigerant charge - up to 16 % in less
• Two optional smart sensors improve energy efficiency and comfort
• Reuse of existing R-22 or R-407C technology
• Individual flap control - Flexibility to match the interior layout of any room without having to move the unit!
• Range of unified indoor units for R-32 and R-410A
• Guarantees operation in both heating and cooling modes down to -20°C
• Reduced energy consumption thanks to specially designed small diameter tube heat exchanger, DC fan motor and drain pump
• Optional external air intake
• Maximum piping length up to 50m
• Only available for monosplit systems (capacity from 35 up to 60)
• Supply branch allows you to optimize the air distribution in irregularly shaped rooms or to supply air to small adjoining rooms
• Standard drain pump with 630mm lift increases installation flexibility and speed
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Technical Data Sheet
  • peso: 80.0 kg
  • classe energetica raffreddamento: A++
  • classe energetica riscaldamento: A+
  • gas: R-32
  • marca: Daikin
  • metri quadri : 50-60 sq m
  • modello: FFA50A + RZAG50
  • potenza btu: 18000
  • superficie riscaldabile mq: 50
