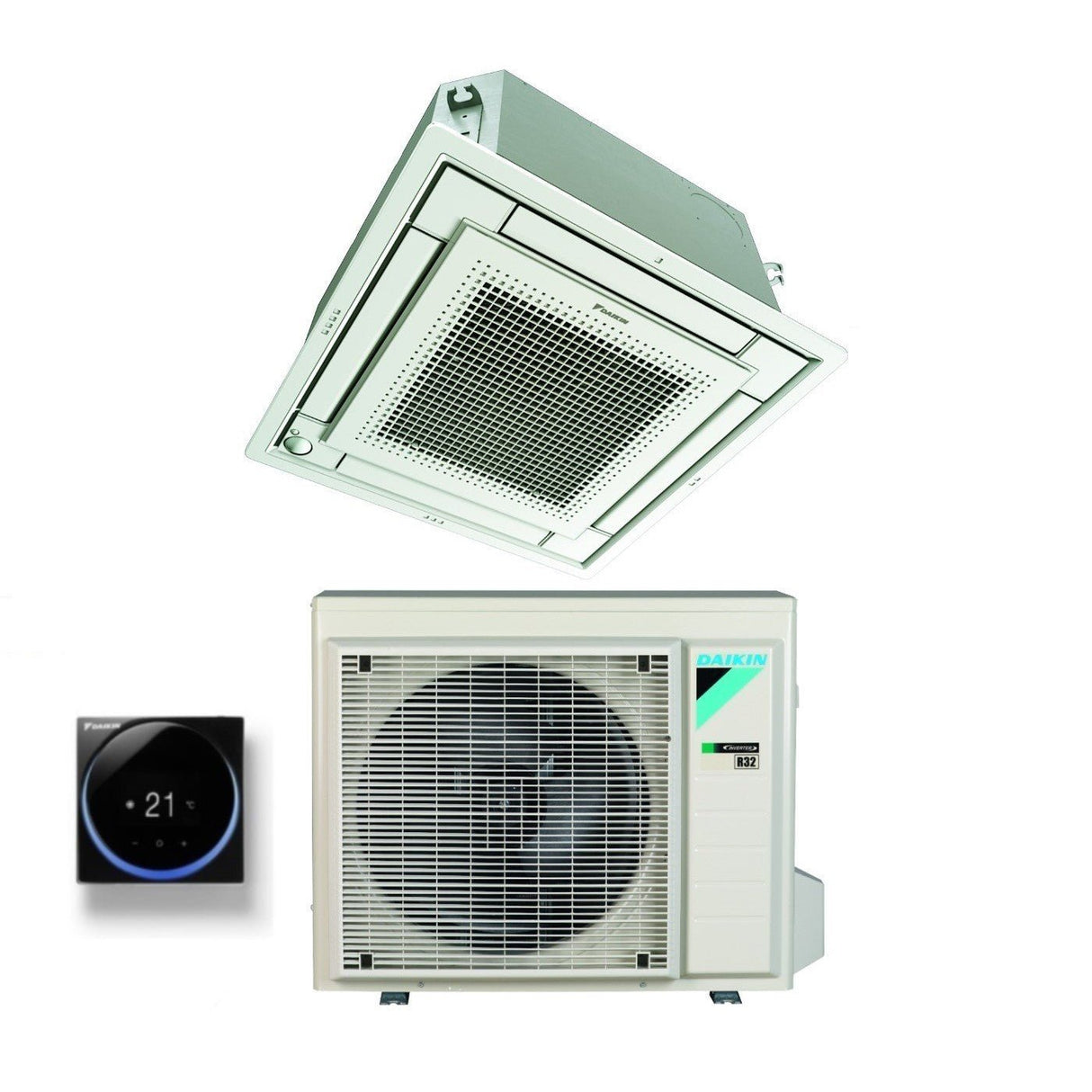

Daikin Cassette Air Conditioner Fully Flat 12000 Btu FFA35A9 R-32 Wi-Fi Optional with Grille Included Class A++/A+ - Italian Warranty

Technical features

• Indoor unit catalog code: FFA35A9
• Outdoor unit catalog code: RXM35R9/A
• White grill catalog code: BYFQ60CW
• Power: 12000 Btu
• Optional Wi-Fi: BRP069C81

• White Infrared Remote Control : BRC7F530W
• Madoka white wired control: BRC1H52W
• Madoka silver wired control: BRC1H52S
• Madoka black wired control: BRC1H52K

Energy efficiency

• SEER : 6.38
• SCOP : 4.10
• Energy efficiency class in cooling: A++
• Energy efficiency class in heating: A+
• Annual energy consumption in cooling: 186 kWh/a
• Annual energy consumption in heating: 1058 kWh/a

Performance

• Cooling capacity: 3.40 kW
• Heating capacity: 4.20 kW
• Cooling absorption: 0.89 kW
• Heating absorption: 1.20 kW
• Indoor unit air flow rate: 6.5 ~ 10.0 m ³ /min
• Sound power level indoor unit: 51 dB(A)
• Sound power level of outdoor unit: 61 dB(A)
• Indoor unit sound pressure level : 25~34 dB(A)
• Sound pressure level of outdoor unit: 49 dB(A)

Electrical data

• Power supply (V,Hz,Ø) : 220~240/50/1
• Refrigerant gas: R-32
• Operating range
  - Cooling: -10° ~ 50°C
  - Heating: -20° ~ 24°C

• Liquid pipe diameter: 6.35 mm (1/4")
• Gas pipe diameter: 9.52 mm (3/8")
• Maximum pipe length: 20 m
• Maximum height difference between internal unit and external unit: 15 m

Dimensions and weight

• Internal unit dimensions (HxWxD): 260x575x575 mm
• Internal unit weight: 16.0 Kg
• Grid dimensions (HxWxD): 46x620x620 mm
• Panel weight: 2.8 Kg
• External unit dimensions (HxWxD): 552x828x350 mm
• External unit weight: 32.0 Kg

Kizuna 2+2 Guarantee

The Daikin Italia warranty can be activated within 1 month from the date of purchase at https://standbyme.daikin.it/it/

---

Ultra-flat cassette FFA-A Unique design on the market that allows for installation perfectly flush with the ceiling

Optional smart sensors detect the presence of people and direct air away from them to eliminate cold drafts. The system automatically switches to energy saving mode or turns off the unit when no one is detected in the room. An additional floor sensor ensures that the temperature remains constant from floor to ceiling.

Exclusive award-winning design

Designed in Europe for Europe , the Daikin Fully Flat cassette integrates seamlessly into standard ceiling panels. The compact design protrudes just 8 mm from the ceiling. Fully Flat received the Universal Design Award in 2014 and the German Design Award Special in 2016. The discreet design of the Fully Flat Cassette, available in white and silver, makes it ideal for any environment.



Individual deflector controls

The remote- controlled adjustable airflow deflectors allow you to create different airflow distribution screens to allow installation in corners, on walls and even in irregularly shaped rooms . This function is particularly useful when rearranging rooms, as it allows you to change the airflow without moving the unit .

Quiet operation At just 25 dB(A) , the Fully Flat Cassette is the quietest unit currently on the market.

Onecta App Full control, wherever you are

Not at home? With the Onecta app, this is not a problem. The app gives you instant access to all functions. You can easily adjust settings via your smartphone, anywhere, anytime.

• Check all the features of your air conditioner

• Create different programs and operating modes

• Monitor energy consumption on a daily, weekly or yearly basis

• Identify the room in your home to easily control different units

Simply connect the optional BRP069C81 card to the indoor unit, connect to the WLAN network and download the Onecta app to start creating the perfect climate for your home.

The Onecta app allows you to connect Daikin to your Wi-Fi network and control your air conditioning system from anywhere, using Apple or Android devices. Even when you are not at home, you can turn on, off, set the cooling or heating operation , adjust the room temperature and the air flow of the air conditioner. It's very simple

Voice control

To further enhance your comfort and convenience, the Daikin Onecta app is now available with voice control. The ability to control the app hands-free eliminates the need for clicking and allows for faster unit management than ever before. Cross-platform and multilingual, voice control can be combined with smart speakers, such as Google Assistant and Amazon Alexa

Always connected unit

The unit can be managed via the new Daikin Onecta App and is compatible with Amazon Alexa and Google Home voice assistants. Wi-Fi connection is guaranteed thanks to the SD card integrated into the unit

Programming

Set a schedule to define when the system will run, and create up to six different actions per day

Program the room temperature and operating mode

Enable vacation mode to save on energy costs

Monitoring

Get a complete overview of system performance and energy consumption

Check system status

Access energy consumption graphs (daily, weekly, monthly)

Check

Customize your system to fit your lifestyle and year-round comfort needs

Change the room temperature

Activate Powerful mode to enhance operation

Availability of features depends on the system type, configuration and operation mode. App features are only available if both the Daikin system and the app use a reliable internet connection.

Characteristics

• Perfectly flush integration with standard ceiling panels, leaving only 8mm
• Choosing an R-32 product reduces the environmental impact by 68% compared to R-410A systems and leads to a direct reduction in energy consumption thanks to the high energy efficiency.
• Unique combination of design and technology, with elegant finishes in white or silver and white
• The outdoor units are equipped with a Swing type compressor, known for its low noise characteristics and high energy efficiency.
• The combination with R-32 Bluevolution technology reduces the environmental impact by 68% compared to R-410A systems, leads to a direct reduction in energy consumption thanks to high energy efficiency and has a lower refrigerant charge - up to 16% less.
• External units for monosplit applications
• Two optional smart sensors improve energy efficiency and comfort
• Individual louver control: flexibility to adapt to the interior layout of any room without having to move the unit!
• Daikin outdoor units are well-designed and robust and can be easily installed on a roof or terrace, or simply against an external wall.
• Unified indoor unit range for R-32 and R-410A
• Outdoor unit heat exchanger fins with anti-corrosion treatment
• Reduced energy consumption thanks to the specially designed small diameter tube exchanger, DC fan motor and condensate drain pump
• Optional external air intake
• The supply branch allows you to optimize the air distribution in irregularly shaped rooms or to supply air to small adjacent rooms.
• The standard condensate drain pump with 630 mm lift increases flexibility and speed of installation.

---

Product Warranty : The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: DAIKIN
• metri quadri : 25-40 m2
• modello: FFA35A + RXM35
• potenza btu: 12000
• superficie riscaldabile mq: 35
