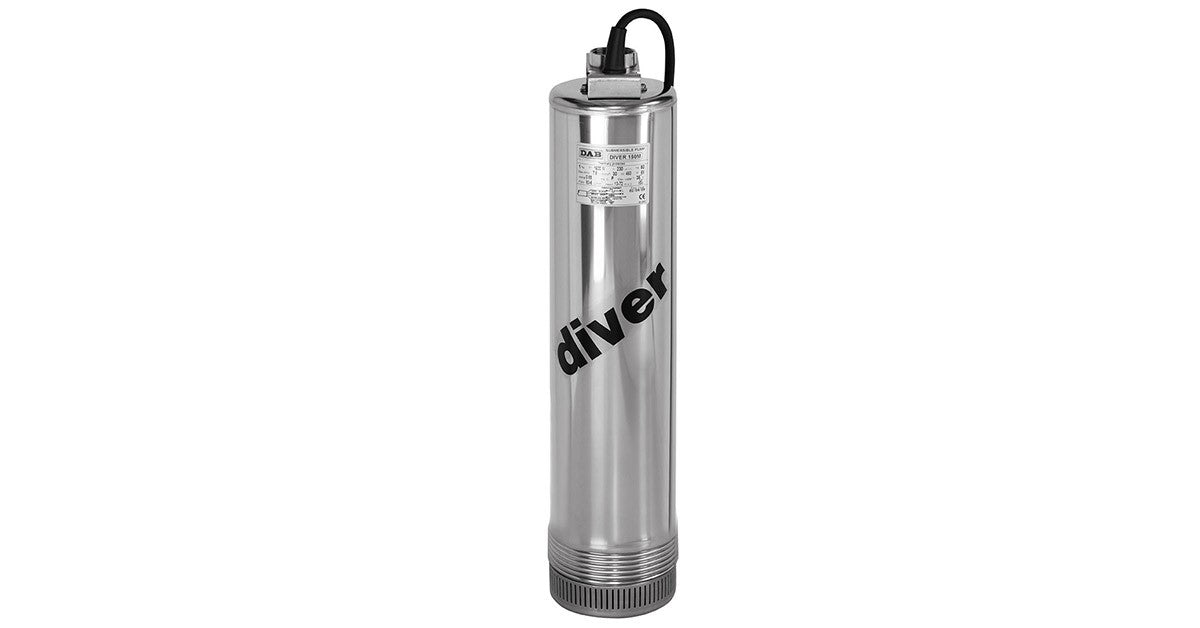

Dab Diver 100 T-Na 1 Hp Three-Phase Multistage Electric Submersible Pump 99381103

Description

ATTENTION The product will be available on order and will be shipped in 10 working days!

Technical features

  • Product code : DIVER 100 T-NA
  • Power supply : 3x400V~ 50Hz
  • Power : 0.75 kW (1 HP)
  • Diameter : 127mm
  • Operating range: from 0.6 to 12 m3 /h with head up to 96 metres
  • Pumped liquid: Clean, without solid or abrasive bodies, non-aggressive
  • Maximum presence of sand in the water: 50gr/ m3
  • Liquid Temperature Range : from 0°C to +35°C
  • Maximum immersion : 20 metres
  • Delivery port diameter: 1" 1/4 Gas
  • Power Tolerance : +6% / -10%
  • Maximum number of starts: 20/h
  • Motor Protection Degree: IP 68
  • Engine Protection Class : F
  • Installation : In wells, tanks and cisterns, in vertical position
  • Special Executions on Request: Other voltages and/or frequencies. Automatic version with float.

Applications
DIVER electric pumps are used in systems for lifting clear water from wells, first collection tanks or cisterns, Roman wells or streams and are suitable for the distribution of pressurized water in domestic systems, small agriculture, sprinkler irrigation of gardens and vegetable gardens. The pump, particularly silent, used inside wells or tanks avoids all the problems related to suction and deactivation
Construction features of the pump
Submersible monobloc multistage pump with the hydraulic part under the motor which is cooled by the pumped liquid. Impellers and diffusers in Noryl reinforced with glass fiber with wear-resistant wear ring in stainless steel. Outer jacket, stator jacket, upper head with sleeve and closing ring in AISI 304 steel. Encapsulated stator. Cast iron supports. Rotor shaft extension in AISI 304. Motor side lip seal and silicon carbide/silicon carbide mechanical seal on pump side
Construction Characteristics of the Engine
• Submersible two-pole asynchronous type built completely in stainless steel, dry and cooled from the outside by the pumped liquid. Stator encapsulated in AISI 304L
• Squirrel cage rotor mounted on ball bearings, and oversized to guarantee silence, reliability and durability
• On request, the single-phase version is supplied with the CONTROL BOX
• Protection by the user for the three-phase version
• Automatic version with float available
• Version with support base and side suction (DRY) available on request
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Dab Diver 100 T-Na 1 Hp Three-Phase Multistage Electric Submersible Pump 99381103

Product form

ATTENTION The product will be available on order and will be shipped in 10 working days! Technical features Product code... Read more

€480,48 Incl. VAT

    Description

    ATTENTION The product will be available on order and will be shipped in 10 working days!

    Technical features

    • Product code : DIVER 100 T-NA
    • Power supply : 3x400V~ 50Hz
    • Power : 0.75 kW (1 HP)
    • Diameter : 127mm
    • Operating range: from 0.6 to 12 m3 /h with head up to 96 metres
    • Pumped liquid: Clean, without solid or abrasive bodies, non-aggressive
    • Maximum presence of sand in the water: 50gr/ m3
    • Liquid Temperature Range : from 0°C to +35°C
    • Maximum immersion : 20 metres
    • Delivery port diameter: 1" 1/4 Gas
    • Power Tolerance : +6% / -10%
    • Maximum number of starts: 20/h
    • Motor Protection Degree: IP 68
    • Engine Protection Class : F
    • Installation : In wells, tanks and cisterns, in vertical position
    • Special Executions on Request: Other voltages and/or frequencies. Automatic version with float.

    Applications
    DIVER electric pumps are used in systems for lifting clear water from wells, first collection tanks or cisterns, Roman wells or streams and are suitable for the distribution of pressurized water in domestic systems, small agriculture, sprinkler irrigation of gardens and vegetable gardens. The pump, particularly silent, used inside wells or tanks avoids all the problems related to suction and deactivation
    Construction features of the pump
    Submersible monobloc multistage pump with the hydraulic part under the motor which is cooled by the pumped liquid. Impellers and diffusers in Noryl reinforced with glass fiber with wear-resistant wear ring in stainless steel. Outer jacket, stator jacket, upper head with sleeve and closing ring in AISI 304 steel. Encapsulated stator. Cast iron supports. Rotor shaft extension in AISI 304. Motor side lip seal and silicon carbide/silicon carbide mechanical seal on pump side
    Construction Characteristics of the Engine
    • Submersible two-pole asynchronous type built completely in stainless steel, dry and cooled from the outside by the pumped liquid. Stator encapsulated in AISI 304L
    • Squirrel cage rotor mounted on ball bearings, and oversized to guarantee silence, reliability and durability
    • On request, the single-phase version is supplied with the CONTROL BOX
    • Protection by the user for the three-phase version
    • Automatic version with float available
    • Version with support base and side suction (DRY) available on request
    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
    Data sheetData sheet
    • peso: 13.0 kg
    • alimentazione: Three-phase
    • marca: DAB extension
    • modello: Diver 100 T-NA
    • potenza in kw: 0.75
    • tipologia : Submerged
