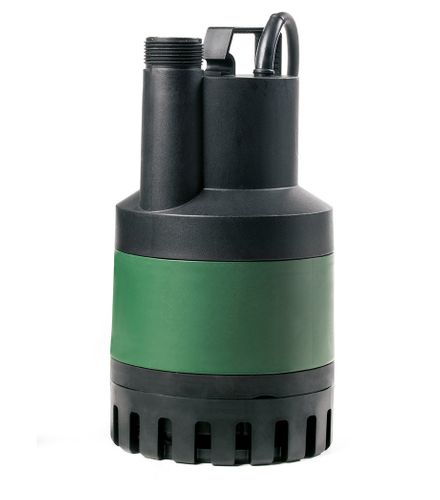

Dab Nova Up 300 M-Na Submersible Electric Pump For Draining Clear Water For Domestic Use 99391515

Description

Technical features

  • Model

    Dab Submersible Electric Pump Model Nova Up 300 M-NA For Draining Clear Water For Domestic Use

  • Energy efficiency

    Operating range:
    from 1 to 15 m3
    /h with heads up to 10 metres.
    Liquid temperature range:
    from 0°C to +35°C for domestic use.
    Pumped liquid: cloudy water without fibers
    Minimum draft depth:
    NOVA UP 300 MA 120 mm
    NOVA UP 300 M-NA 60 mm
    NOVA UP 600 MA 165 mm
    NOVA UP 600 M-NA 70 mm
    Maximum immersion: 7 meters.
    Installation: vertical, fixed or portable.
    Degree of protection: IP68.
    Insulation class: F.


APPLICATIONS
The submersible drainage pump with vertical delivery is suitable for domestic use of stationary applications with automatic operation,
for draining basements and garages subject to flooding.

Thanks to its compact and handy shape, it also finds particular application as a portable pump for emergencies such as: drawing water from tanks or rivers, emptying pools and fountains or excavations and
underpasses.

Also suitable for gardening and hobby work in general.

This pump can be used with liquids containing sized bodies
solid up to 10mm. The level switch allows a fixed installation guaranteeing its automatic operation. Equipped with a removable filter, it sucks
down to a minimum of 2/3mm (with filter removed).


CONSTRUCTION CHARACTERISTICS OF THE PUMP


Pump body, impeller, cap and suction grille in water-resistant technopolymer.
Motor, rotor shaft and screws in stainless steel.
Triple seal with interposed rings with pre-oil chamber.

CONSTRUCTION CHARACTERISTICS OF THE ENGINE


Continuous service asynchronous submersible type.
Stator inserted in a stainless steel hermetic casing and covered by a cap that encloses wiring, microswitch and capacitor.
Rotor mounted on greased-for-life and oversized ball bearings to guarantee silence and durability. Thermo-amperometric protection
built-in and permanently inserted capacitor.




Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Dab Nova Up 300 M-Na Submersible Electric Pump For Draining Clear Water For Domestic Use 99391515

Product form

Technical features Model Dab Submersible Electric Pump Model Nova Up 300 M-NA For Draining Clear Water For Domestic Use Energy... Read more

€124,00 Incl. VAT

    Description

    Technical features

    • Model

      Dab Submersible Electric Pump Model Nova Up 300 M-NA For Draining Clear Water For Domestic Use

    • Energy efficiency

      Operating range:
      from 1 to 15 m3
      /h with heads up to 10 metres.
      Liquid temperature range:
      from 0°C to +35°C for domestic use.
      Pumped liquid: cloudy water without fibers
      Minimum draft depth:
      NOVA UP 300 MA 120 mm
      NOVA UP 300 M-NA 60 mm
      NOVA UP 600 MA 165 mm
      NOVA UP 600 M-NA 70 mm
      Maximum immersion: 7 meters.
      Installation: vertical, fixed or portable.
      Degree of protection: IP68.
      Insulation class: F.


    APPLICATIONS
    The submersible drainage pump with vertical delivery is suitable for domestic use of stationary applications with automatic operation,
    for draining basements and garages subject to flooding.

    Thanks to its compact and handy shape, it also finds particular application as a portable pump for emergencies such as: drawing water from tanks or rivers, emptying pools and fountains or excavations and
    underpasses.

    Also suitable for gardening and hobby work in general.

    This pump can be used with liquids containing sized bodies
    solid up to 10mm. The level switch allows a fixed installation guaranteeing its automatic operation. Equipped with a removable filter, it sucks
    down to a minimum of 2/3mm (with filter removed).


    CONSTRUCTION CHARACTERISTICS OF THE PUMP


    Pump body, impeller, cap and suction grille in water-resistant technopolymer.
    Motor, rotor shaft and screws in stainless steel.
    Triple seal with interposed rings with pre-oil chamber.

    CONSTRUCTION CHARACTERISTICS OF THE ENGINE


    Continuous service asynchronous submersible type.
    Stator inserted in a stainless steel hermetic casing and covered by a cap that encloses wiring, microswitch and capacitor.
    Rotor mounted on greased-for-life and oversized ball bearings to guarantee silence and durability. Thermo-amperometric protection
    built-in and permanently inserted capacitor.




    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 10.0 kg
    • alimentazione: Single phase
    • marca: DAB extension
    • modello: Nova Up 300 M-NA
    • potenza in kw: 0.21
    • tipologia : Submerged
