Technical features
- Product code : DTRON 3 35/90
- Power supply : 220~240/50/1
- Power : 0.52 kW (0.7 HP)
- Maximum flow : Up to 100 l/min
- Maximum head : Up to 36 m
- Maximum ambient and liquid temperature: 50°C
- Factory cut-in : 2.4 bar (±0.2)
- Flanging or delivery thread : Threaded 1" 1/4
- Dimensions : 651x185mm

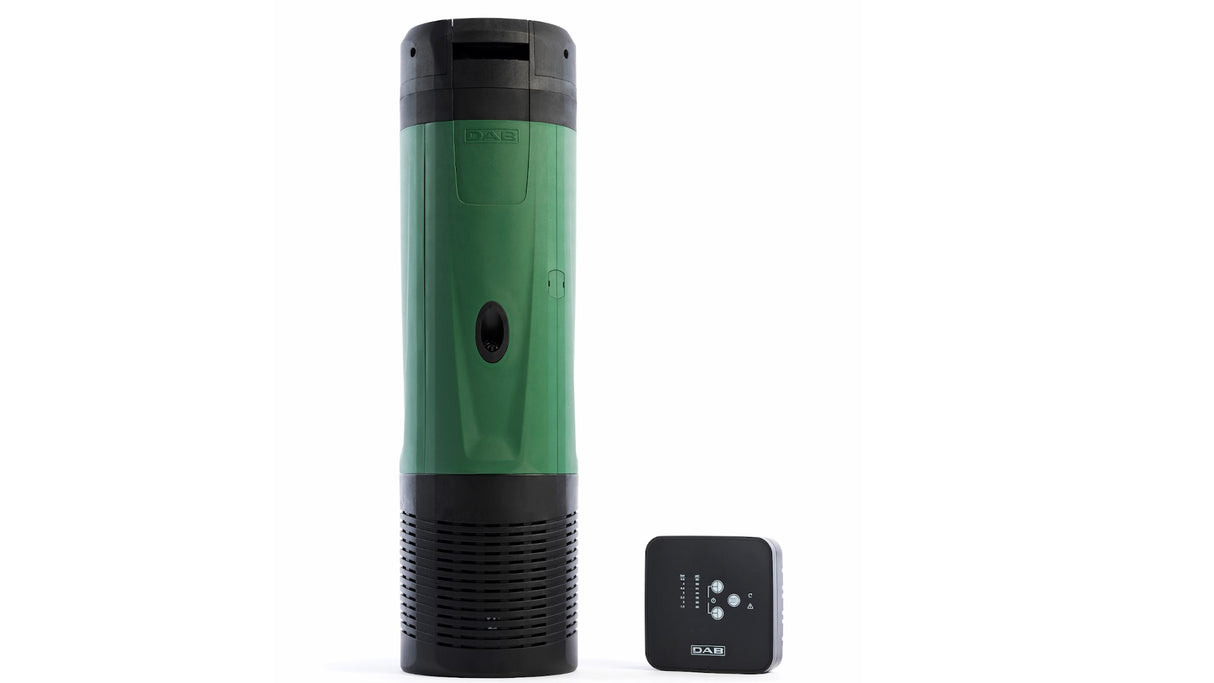

New DTron 3 series The evolution of the submerged autoclave
43 years of experience. An unstoppable drive towards innovation. Constant communication with all markets. This is the ecosystem in which DAB products are born and evolve. The new DTron series is proof of this: an important step forward in redefining the characteristics of submersible pumps , made with the security of the market leader
DTron 2 and DTron 3 are born from the desire to create a range of "easy" but extremely efficient pumps . Technologically advanced but simple to use. Reliable and performing, in the various applications, thanks also to a set of intelligent accessories.
DTron 3
Together with a series of fully integrated and modular accessories, they represent an offer of solutions for every use in different types of installations.
The customized value
For Dab it is essential to design solutions according to the real needs of all the players in the sector
The new DTron submersible pumps guarantee advantages for installers, distributors and end users by saving them space, time and costs
A large, constant and rapid evolution possible only thanks to the attention and listening of our top market experts: you.
A Global Listen
We move water all over the world, with over 2 million pumps installed every year we are also able to handle special needs.
In Australia where nature still has a dominant role in the territory, the functioning of our products is put to the test by insects and small reptiles that infiltrate the pumps to make their den
Thanks to this experience DAB has designed the new models of the DTron range making them unassailable by any external agent, solving the case that emerged in Australia and in fact making our solutions even safer in all geographical areas of the world
Experiences and Innovation
43 years of experience, an unstoppable drive towards innovation and constant communication with all markets. This is the ecosystem in which DAB products are born and evolve
The new DTron series is proof of this: an important step forward in redefining the characteristics of pumps
submerged, made with the safety of the market leader
DTron 3 was created to create a range of "easy" but extremely efficient pumps. Very advanced but simple
to use. Reliable and performing, in the various applications, thanks also to a set of intelligent accessories
Integrated vase
A quick and easy installation. A more essential and less bulky system. Greater reliability
in time. The expansion vessel improves the pressure tightness of the system, avoiding unnecessary restarts, reducing water hammer and lengthening the life of the pump. With this integrated component, installation times are reduced
NFC technology
A simple and constant control of the pump. Maximum ease and autonomy in the installation of
accessories.
NFC (Near Field Communication) allows the use of pumps with float and level sensor* without the need for any additional wiring. The accessories attach without having to disassemble the pump body. All this guarantees speed and reliability.
PLC technology Only for DTron 3
A simple and constant control of the pump. Maximum ease and autonomy in the installation of accessories. PLC (Power Line Communication) allows the use of the Com Box electronic control device without the need for any physical connection but through the electric power supply line.
DConnect
With DConnect Box 2 you access the DAB cloud service. The new App allows you to manage and monitor the system pressure, the alarms and the residual availability of water in the tank directly from your smartphone or tablet wherever you are! DTron 3 thus becomes the first submersible pump equipped with a display
DOC68
Maximum installation flexibility. The ultimate in waterproofing. The maximum of unassailability. With this accessory and the IP68 certification, DTron pumps can also be installed out of the water, thus transforming submersible pumps into real traditional autoclaves
Vent valve
Benefits during installation and throughout use. The vent valve allows for immediate priming upon first installation and always guarantees the correct functioning of the pump.
Facilitated maintenance
Modular and functional construction. Thanks to the modular components of the pump it is possible to make maintenance easier. Elements that can be disassembled, repaired and replaced separately which simplify the management of any problems, reducing maintenance costs.
Com Box Only for DTron 3
More comfortable. Smarter. With Com Box you can intervene on the pump pressure parameters and view any alarms. No direct connection to the pump is required (PLC
Optional accessories
X-Kit for the X version
Combined with the X version, it allows the suction of water at a level such as to avoid the pumping of dust and sludge present on the bottom of wells and tanks
DOC68
With the DOC68 it is possible to install DTron also outdoors as an IP68 certified surface pump
Floating
Allows the water level of the tank to be detected, preventing emptying of the same, and the pump to go into blockage, avoiding dry running due to too low a water level
Level sensor Only for DTron 3
Connected to the DConnect Box 2, it checks the water level in the tank and communicates it to the user via the App (only on DTron 3)
COM Box Only for DTron 3
It allows you to change the start and stop pressure and to check any pump alarms, in an easy and intuitive way
DConnect Box 2 Only for DTron 3
Thanks to DConnect Box 2 you can control the pump, set the start and stop parameters, see alarm details and monitor the pressure directly from your smartphone, obtaining the best performance and lightness of maintenance never seen before
