icon Dab Jetinox 102 M Hp 1.0 Single-Phase Self-Priming Centrifugal Electric Pump 99470852 | CaldaieMurali

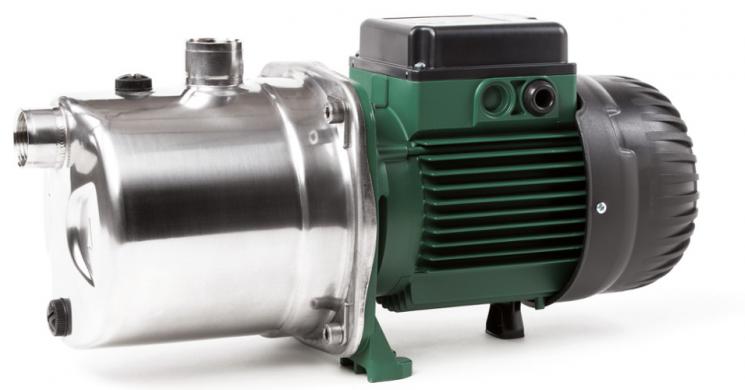

Dab Jetinox 102 M Hp 1.0 Single-Phase Self-Priming Centrifugal Electric Pump 99470852

Description

Technical features

  • Model : Jetinox 102 M
  • Operating range : Up to 0.4 to 10.5 m3/h with heads up to 62 metres.
  • Pumped liquid: clean, free from solid or abrasive substances, non viscous, non aggressive, non crystallized and chemically neutral.
  • Liquid temperature range : From 0 °C to +35°C for domestic use (EN 60335-2-41)
  • From 0°C to +40°C for other uses.
  • Maximum suction depth: 8 meters
  • Maximum ambient temperature: +50°C
  • Maximum working pressure: 8 bar (800 kPa)
  • Installation: fixed or portable in horizontal position.
  • Special executions on request: other voltages and/or frequencies.
  • Motor protection degree: IP 44
  • Degree of protection of the terminal block: IP 55
  • Insulation class: F
  • Series voltages: single-phase 220-240V / 50Hz
  • three-phase 230-400V / 50Hz

General characteristics

Self-priming centrifugal pump with excellent suction capacity even in the presence of air bubbles. Particularly suitable for water supply in domestic systems, small-scale agriculture, gardening and in general where the self-priming function is required.

CONSTRUCTION CHARACTERISTICS OF THE PUMP

Pump body, seal holder cover and shim ring in stainless steel. Engine mount in die-cast aluminium; Impeller, diffuser and Venturi tube in technopolymer. Mechanical seal in carbon/ceramic.

CONSTRUCTION CHARACTERISTICS OF THE ENGINE

Asynchronous type, closed, cooled by external ventilation. Rotor mounted on greased-for-life and oversized ball bearings to guarantee silence and durability. Built-in thermo-amperometric protection and capacitor permanently inserted in the single-phase version. For the protection of the three-phase motor it is recommended to use a motor protection switch in accordance with current standards. Construction according to CEI 2-3 and CEI 61-69 (EN 60335-2-41) standards.

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Dab Jetinox 102 M Hp 1.0 Single-Phase Self-Priming Centrifugal Electric Pump 99470852

Product form

Technical features Model : Jetinox 102 M Operating range : Up to 0.4 to 10.5 m3/h with heads up to... Read more

€181,00 Incl. VAT

    Description

    Technical features

    • Model : Jetinox 102 M
    • Operating range : Up to 0.4 to 10.5 m3/h with heads up to 62 metres.
    • Pumped liquid: clean, free from solid or abrasive substances, non viscous, non aggressive, non crystallized and chemically neutral.
    • Liquid temperature range : From 0 °C to +35°C for domestic use (EN 60335-2-41)
    • From 0°C to +40°C for other uses.
    • Maximum suction depth: 8 meters
    • Maximum ambient temperature: +50°C
    • Maximum working pressure: 8 bar (800 kPa)
    • Installation: fixed or portable in horizontal position.
    • Special executions on request: other voltages and/or frequencies.
    • Motor protection degree: IP 44
    • Degree of protection of the terminal block: IP 55
    • Insulation class: F
    • Series voltages: single-phase 220-240V / 50Hz
    • three-phase 230-400V / 50Hz

    General characteristics

    Self-priming centrifugal pump with excellent suction capacity even in the presence of air bubbles. Particularly suitable for water supply in domestic systems, small-scale agriculture, gardening and in general where the self-priming function is required.

    CONSTRUCTION CHARACTERISTICS OF THE PUMP

    Pump body, seal holder cover and shim ring in stainless steel. Engine mount in die-cast aluminium; Impeller, diffuser and Venturi tube in technopolymer. Mechanical seal in carbon/ceramic.

    CONSTRUCTION CHARACTERISTICS OF THE ENGINE

    Asynchronous type, closed, cooled by external ventilation. Rotor mounted on greased-for-life and oversized ball bearings to guarantee silence and durability. Built-in thermo-amperometric protection and capacitor permanently inserted in the single-phase version. For the protection of the three-phase motor it is recommended to use a motor protection switch in accordance with current standards. Construction according to CEI 2-3 and CEI 61-69 (EN 60335-2-41) standards.

    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 11.0 kg
    • alimentazione: Single phase
    • marca: DAB extension
    • modello: Jetinox 102
    • potenza in kw: 0.75
    • tipologia : Centrifuge
