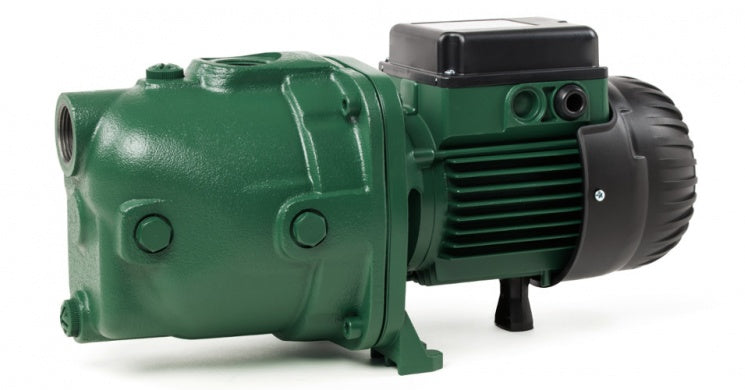

Self-priming centrifugal electric pump Dab Jet 132 M Hp 1.36 Single-phase 99330514

Description

Technical features
  • Model: JET 132 M single-phase
  • Code: 102660100
  • Power supply: 1 x 220-240V~50Hz
  • Power: 1kW (1.36HP)
  • Capacitor capacity: 25mF
  • Operating range: flow rate up to 80 l/min (4.8 m3/h) with heads up to 48 metres.
  • Liquid temperature range: from 0°C to +35°C or 40°C
  • Maximum working pressure : 6 bar (600 kPa)
  • Maximum ambient temperature: +40°C.

To view more product information (dimensions, absorption) CLICK HERE and consult the attached images.

DAB PUMPS

There is a name in the electric pump sector that has been synonymous with high technology and reliability all over the world for over 30 years. This name is DAB, a company that has been designing and building electric pumps since 1975 with a very specific viewpoint: that of responding to the increasingly demanding market demands not only with products that attest to the highest levels of quality, but also with an efficient service and versatile.

35 years of experience and innovation

Founded in 1975 in Veneto, DAB PUMPS SpA is today an international point of reference in the water handling sector. Its core business concerns the design, production and sale of electric hydraulic pumps able to satisfy any need for any type of domestic and professional application.

A network as big as the world

During its 35 years of constant growth, DAB PUMPS has also developed a sales network and technical assistance centers which provide widespread coverage of the national and international market. In addition to its 5 production plants located in Italy, the corporate structure is made up of 9 foreign branches and numerous distributors all over the world.

The most reliable products

With over 2 million pieces produced every year, DAB PUMPS electric pumps have become synonymous with high technology and reliability.
DAB has a very wide range of water pumps, suitable for every need, made with cutting-edge materials that make them increasingly resistant to internal and external stresses, capable of guaranteeing high performance, quality and resistance over the long term, limiting the environmental impact. DAB pumps are the result of continuous research and technology, elements that try to offer flexible and easy-to-use solutions in every field of application. The specific attention that the company places on the materials and the homologation procedures to which each line is subjected before the production release, allows DAB PUMPS to simultaneously ensure the highest degree of resistance and the maximum performance of its products.

General characteristics

JET

Self-priming centrifugal electric pumps

DOMESTIC WATER SUPPLY

Self-priming centrifugal pump with excellent suction capacity even in the presence of air bubbles. Particularly suitable for water supply in domestic systems, small-scale agriculture, gardening and in general where the self-priming function is required.

  • Jet: pump body in cast iron.
  • Motor support in cast iron, impeller, diffuser, Venturie tube in technopolymer sand guard.
  • Stainless steel shim rings.
  • Mechanical seal in carbon/ceramic.
  • Asynchronous type motor, enclosed and cooled by external ventilation.
  • Built-in thermo-amperometric protection and capacitor permanently inserted for the single-phase version.
  • To protect the three-phase motor, the use of a motor protection switch is recommended in accordance with current standards.

Series features:

  • Operating range: from 0.4 to 10.5 m3/h with heads up to 62 metres.
  • Liquid temperature range:
    from 0°C to +35°C for domestic use (EN60335-2-41)
    from 0°C to +40°C for other uses.
  • Pumped liquid: clean, free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallised and chemically neutral.
  • Maximum ambient temperature: + 40°C.
  • Maximum working pressure:
    6 bar (600 kPa) for Jet and Jetcom.
    8 bar (800 kPa) for Jetinox and jet 200-300-151-251.
  • Degree of protection: IP 44 (IP 55 at the terminal block).
  • Insulation class: F
Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Self-priming centrifugal electric pump Dab Jet 132 M Hp 1.36 Single-phase 99330514

Product form

Technical features Model: JET 132 M single-phase Code: 102660100 Power supply: 1 x 220-240V~50Hz Power: 1kW (1.36HP) Capacitor capacity: 25mF... Read more

€139,00 Incl. VAT

    Description

    Technical features
    • Model: JET 132 M single-phase
    • Code: 102660100
    • Power supply: 1 x 220-240V~50Hz
    • Power: 1kW (1.36HP)
    • Capacitor capacity: 25mF
    • Operating range: flow rate up to 80 l/min (4.8 m3/h) with heads up to 48 metres.
    • Liquid temperature range: from 0°C to +35°C or 40°C
    • Maximum working pressure : 6 bar (600 kPa)
    • Maximum ambient temperature: +40°C.

    To view more product information (dimensions, absorption) CLICK HERE and consult the attached images.

    DAB PUMPS

    There is a name in the electric pump sector that has been synonymous with high technology and reliability all over the world for over 30 years. This name is DAB, a company that has been designing and building electric pumps since 1975 with a very specific viewpoint: that of responding to the increasingly demanding market demands not only with products that attest to the highest levels of quality, but also with an efficient service and versatile.

    35 years of experience and innovation

    Founded in 1975 in Veneto, DAB PUMPS SpA is today an international point of reference in the water handling sector. Its core business concerns the design, production and sale of electric hydraulic pumps able to satisfy any need for any type of domestic and professional application.

    A network as big as the world

    During its 35 years of constant growth, DAB PUMPS has also developed a sales network and technical assistance centers which provide widespread coverage of the national and international market. In addition to its 5 production plants located in Italy, the corporate structure is made up of 9 foreign branches and numerous distributors all over the world.

    The most reliable products

    With over 2 million pieces produced every year, DAB PUMPS electric pumps have become synonymous with high technology and reliability.
    DAB has a very wide range of water pumps, suitable for every need, made with cutting-edge materials that make them increasingly resistant to internal and external stresses, capable of guaranteeing high performance, quality and resistance over the long term, limiting the environmental impact. DAB pumps are the result of continuous research and technology, elements that try to offer flexible and easy-to-use solutions in every field of application. The specific attention that the company places on the materials and the homologation procedures to which each line is subjected before the production release, allows DAB PUMPS to simultaneously ensure the highest degree of resistance and the maximum performance of its products.

    General characteristics

    JET

    Self-priming centrifugal electric pumps

    DOMESTIC WATER SUPPLY

    Self-priming centrifugal pump with excellent suction capacity even in the presence of air bubbles. Particularly suitable for water supply in domestic systems, small-scale agriculture, gardening and in general where the self-priming function is required.

    • Jet: pump body in cast iron.
    • Motor support in cast iron, impeller, diffuser, Venturie tube in technopolymer sand guard.
    • Stainless steel shim rings.
    • Mechanical seal in carbon/ceramic.
    • Asynchronous type motor, enclosed and cooled by external ventilation.
    • Built-in thermo-amperometric protection and capacitor permanently inserted for the single-phase version.
    • To protect the three-phase motor, the use of a motor protection switch is recommended in accordance with current standards.

    Series features:

    • Operating range: from 0.4 to 10.5 m3/h with heads up to 62 metres.
    • Liquid temperature range:
      from 0°C to +35°C for domestic use (EN60335-2-41)
      from 0°C to +40°C for other uses.
    • Pumped liquid: clean, free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallised and chemically neutral.
    • Maximum ambient temperature: + 40°C.
    • Maximum working pressure:
      6 bar (600 kPa) for Jet and Jetcom.
      8 bar (800 kPa) for Jetinox and jet 200-300-151-251.
    • Degree of protection: IP 44 (IP 55 at the terminal block).
    • Insulation class: F
    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
    Data sheetData sheet
    • peso: 14.0 kg
    • alimentazione: Single phase
    • marca: DAB extension
    • modello: Jet 132
    • potenza in kw: 1
    • tipologia : Centrifuge
