Polywarm Cordivari Kettle Model Extra 2 Wxc 500 With 2 Removable Exchangers In 316l Stainless Steel

Description

AVAILABLE TO ORDER FROM THE END OF NOVEMBER




Technical features

  • Model : Extra 2 WXC 5 00
  • Code : 3082162360133
  • Insulation : Soft Removable
  • 316L stainless steel exchanger surface: 1.5 m2
  • Energy Class: C
  • Volume : 503 litres
  • Weight : 105Kg

EXTRA 2WX

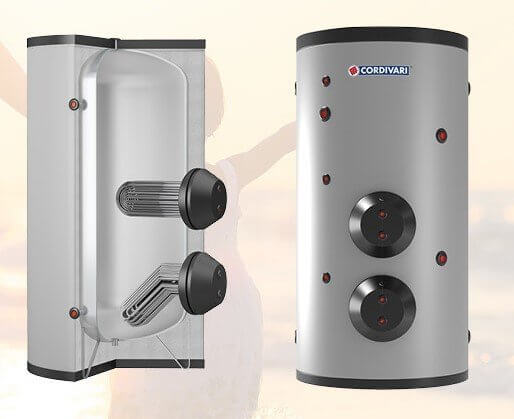

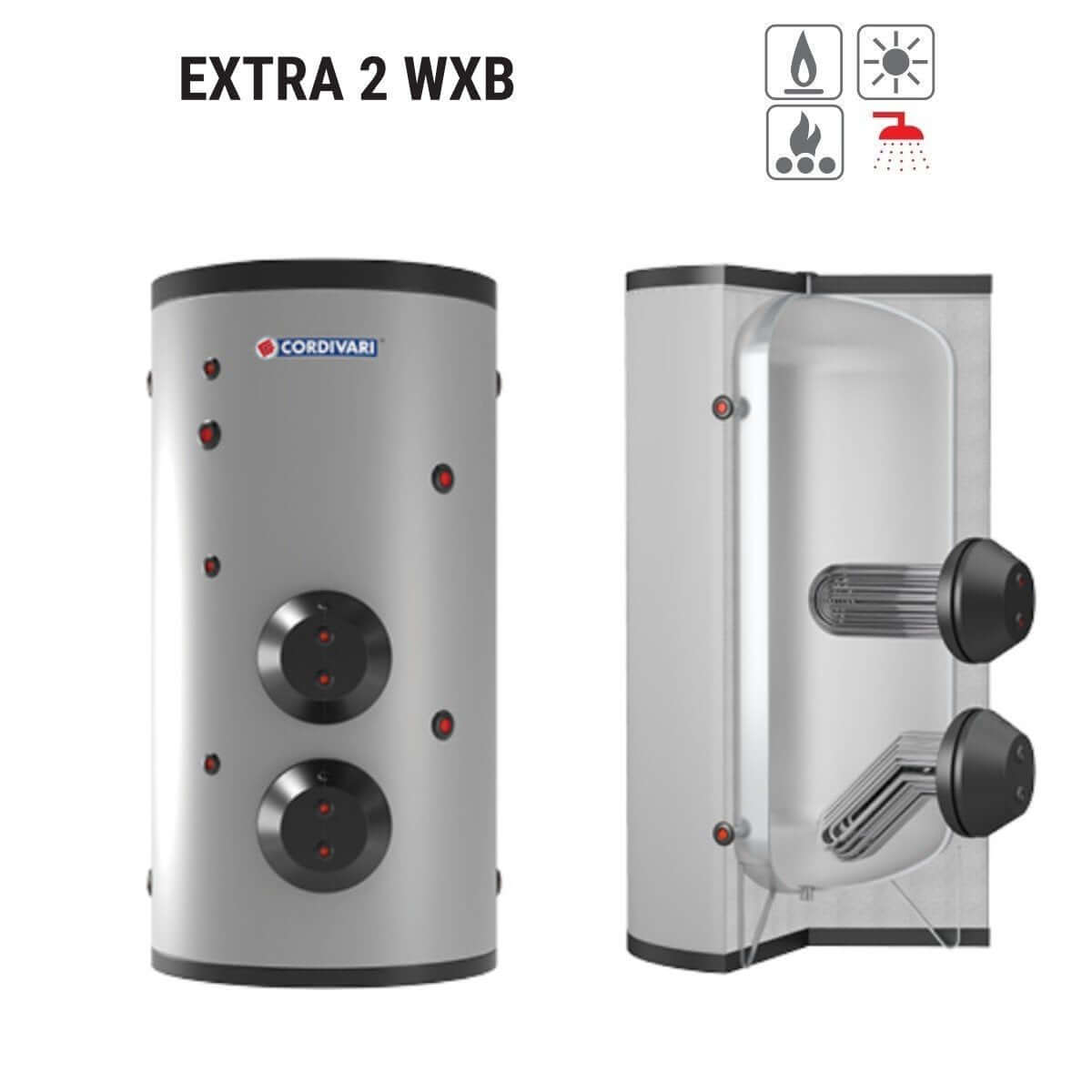

Polywarm® boiler with 2 removable exchangers in 316L stainless steel

The particular and exclusive shape of the Cordivari Antilegionella® Serpentine heat exchangers allows the entire volume of the boiler to be heated. Consequently, compared to boilers with a traditional exchanger, the energy stored is greater and the preheating times are to be understood as referring to the entire volume of the boiler. In a boiler with a traditional extractable exchanger (not an Antilegionella® coil) a percentage between 9% and 17% of the total volume of DHW is not heated, with the consequent reduction in efficiency and an increase in the legionella risk.

Cordivari


USE

Production and accumulation of domestic hot water (DHW)


MATERIALS AND FINISHES

Polywarm® coated steel (ACS - SSICA - DVGW - W270 certifications) suitable for drinking water pursuant to Ministerial Decree n. 174 dated 06.04.04


HEAT EXCHANGER

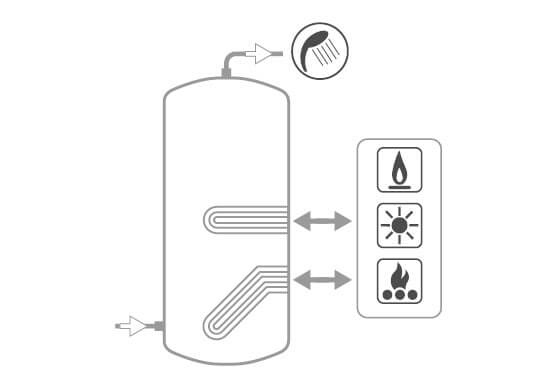

2 shell and tube heat exchangers in Stainless Steel 316L (upper straight - lower bent downwards Antilegionella ® type)


RIGID INSULATION

Expanded polyurethane with high thermal insulation; SOFT ; DETACHABLE: recyclable NOFIRE ® polyester fiber with high thermal insulation and fire resistance class B-s2d0 (EN 13501). External coating in PVC


CATHODIC PROTECTION

Magnesium anode. Models > 1500 2 magnesium anodes


I UNLOAD

Discharge through hose at the bottom. Models > 1000 drain pipe already mounted


GASKETS-RETURN HEAD

Gaskets in food grade silicone rubber (DM n.174 of 2004); operating resistance up to 200 °C. Head in carbon steel with anticorrosive treatment


CHARACTERISTICS


Domestic Hot Water (DHW)
HOT WATER
Solar energy
SOLAR POWER
Integration With Biomass Boiler
BIOMASS BOILER INTEGRATION
Integration With Gas Boiler
INTEGRATION WITH GAS BOILER
CORDIVARI Lab
ErP
TÜV Rheinland Energie und Umwelt GmbH declares that the testing procedures and the Cordivari laboratory are qualified for execution in compliance with the EN 15332 standard indicated by the ErP Ecodesign directive

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
