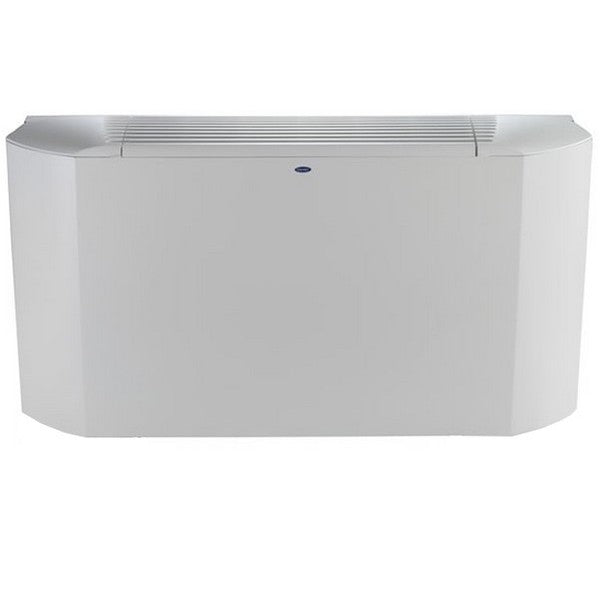

Fan Coil Carrier Idrofan 42nms 42f

Fan Coil Carrier IDROFAN 42NMS 42F

• Vertical console with cabinet
• Cooling capacity: 4.5 kW
• Heating capacity: 6.4 kW
• Electric resistance (high capacity) W 2000
• Electric resistance (low capacity) W 1000
• Dimensions WxD: 1230 x 220
• Height (with 100mm feet): 657
• Weight: 22Kg

CARRIER

Thanks to its simple and elegant design (winner of the ADI Design award) it is the ideal solution for many applications, such as hotels, offices and commercial buildings. Maximum optimization of comfort and reduction of energy costs. Available in the built-in version for installation in false ceilings or with cabinet for visible installation (only 220 mm in height for the built-in unit). Both in the version with high-efficiency variable-speed LEC (brushless) motors and with multispeed AC motor, it allows you to promptly respond to the need for comfort, efficiency and versatility. A variety of thermostats and controls are available either on board or remote for wall installation

Energy efficiency is the class of its success

The range of IDROFAN 42N fan coil units fits perfectly with the new reference requirements for buildings with low energy consumption, offering greater energy savings and immediate comfort for users. Its success is essentially due to low energy consumption and construction features based on modularity, ease of installation and reliability. Reducing CO2 emissions into the atmosphere by 20% by 2020 is a goal that IDROFAN already achieved a few years ago. IDROFAN is designed to maximize efficiency and savings, through the use of more flexible technologies aimed at protecting the natural environment. The new range of IDROFAN 42N fan coils is the ideal solution for multiple applications, such as hotels, offices and commercial buildings, allowing you to optimize comfort and reduce energy costs

The high performance fan of the IDROFAN range incorporates the latest technology of LEC motors, variable speed, or five speeds, improving user comfort thanks to a noise level reduction of up to -10 dB(A) compared to previous models. The LEC variable speed motor coupled to the latest generation NTC electronic control, the almost imperceptible air flow and the fan speeds that can be customized on site, ensure the best comfort and ultra-quiet operation.

Accessories

• TYPE "A" Electronic Thermostat Control for IDROFAN 2-pipe fan coils, 42N series, wall-mounted, CARRIER ( Code 33TA-AC01)
• Kit for installation of type "A" control on board the 42NM/Z unit (Cod. 42N9100)

The TYPE "A" CARRIER control is suitable for controlling IDROFAN convectors in both heating and cooling modes.
With:

• Power button for switching on/off the fan coil;
• Mode button for manual adjustment of the heating/cooling functions indicated by special red/blue LEDs;
• Ventilation Adjustment Button with the 3 Speeds (I-II-III) that can be set manually, the Economy mode for energy saving and the Auto mode, all signaled from time to time by special LEDs;
• Temperature Selector Knob with a range from + 10°C. at + 30°C.
• Antifreeze function which is activated with temperatures below 7°C.,
• Night and Dimming mode which acts on the lights of the operating LEDs,
• AutoTest , possibility of configuring the adjustments during installation using special microswitches, possibility of using the internal temperature sensor in case of wall installation or a remote sensor - Minimum Temperature Probe in case of installation on the machine (to be purchased separately) .

The CARRIER Type "A" Control can be installed on the fan-coil using the special Kit for installing the Type "A" Control on the 42NM/Z unit ( allows connection of the Control to the electrical components of the fan coil and consists supplied by: cable kit, air probe, bracket, adhesive bands, screws ) Code 42N9100. Controls the fan coil in both the heating and cooling functions where the system is set up for this type of function.

Product Guarantee
All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

• peso: 70.0 kg
• marca: Carrier
• modello: 42NMS 42F
