icon Fan Coil Carrier Idrofan 42nms 26f | CaldaieMurali

Fan Coil Carrier Idrofan 42nms 26f

Description

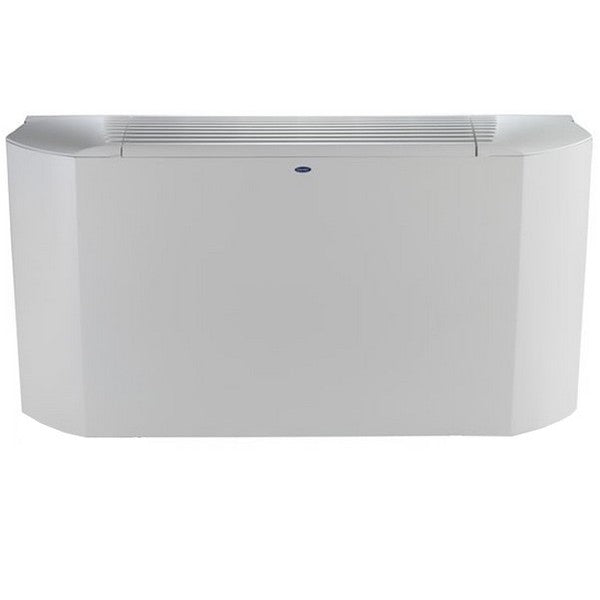

IDROFAN 42NMS 26F Fan Coil Carrier fan coil


  • Vertical console with cabinet
  • Cooling capacity: 3.6 kW
  • Thermal capacity: 4.38 kW
  • Electric resistance (high capacity) W 2000
  • Electric resistance (low capacity) W 1000
  • Dimensions LxW: 1030 x 220
  • Height (with 100mm feet): 657
  • Weight: 19 Kg

CARRIER

Thanks to its simple and elegant design (winner of the ADI Design award) it is the ideal solution for multiple applications, such as hotels, offices and commercial buildings. Maximum optimization of comfort and reduction of energy costs. Available in the built-in version for installation in false ceilings or with cabinet for exposed installation (only 220 mm high for the built-in unit). Both in the version with high efficiency variable speed LEC (brushless) motors and with multispeed AC motor, it allows you to respond promptly to the needs of comfort, efficiency and versatility. Various thermostats and controls are available mounted on board or remote for wall installation

Energy efficiency is the class of its success


The IDROFAN 42N fan coil range perfectly fits the new reference requirements for low energy buildings, offering greater energy savings and immediate comfort for users. Its success is essentially due to its low energy consumption and construction features based on modularity, ease of installation and reliability. Reducing CO2 emissions into the atmosphere by 20% by 2020 is a goal that IDROFAN has already achieved some years ago. IDROFAN is designed to maximize efficiency and savings, through the use of more flexible technologies and oriented towards the protection of the natural environment. The new IDROFAN 42N fan coil range is the ideal solution for multiple applications, such as hotels, offices and commercial buildings, allowing you to optimize comfort and reduce energy costs

The high-performance fan of the IDROFAN range incorporates the latest LEC motor technology, variable speed, or five speeds, improving user comfort thanks to a reduction in noise levels of up to -10 dB(A) compared to previous models. The LEC variable speed motor coupled with the latest generation NTC electronic control, the almost imperceptible air flow and the fan speeds customizable on site, ensure the best comfort and ultra-quiet operation.

Reduced consumption

facilitate compliance with new laws regarding energy consumption

Maximum flexibility

minimum footprint and wide range of power for any installation and climate

Perfect integration

and low noise impact with any building management system

Improved comfort

thanks to advanced technologies that guarantee silence and well-being

Accessories

  • Electronic Thermostat Control TYPE "A" for IDROFAN 2-pipe fan coil units, 42N series wall-mounted, CARRIER ( Cod. 33TA-AC01)
  • Kit for installation of type “A” control on board the 42NM/Z unit (Cod. 42N9100)


The TYPE "A" CARRIER control is suitable for controlling IDROFAN convectors in both heating and cooling modes.
Equipped with:

  • Power button to turn the fan coil on/off;
  • Mode button for manual regulation of the heating/cooling functions indicated by specific red/blue LEDs;
  • Ventilation adjustment button with 3 speeds (I-II-III) that can be set manually, the Economy mode for energy saving and the Auto mode, all indicated from time to time by special LEDs;
  • Temperature Selector Knob with a range from + 10°C to + 30°C.
  • Antifreeze function that activates at temperatures below 7°C.
  • Night and Dimming mode that acts on the operating LED lights,
  • AutoTest , possibility of configuring the settings during installation using special microswitches, possibility of using the internal temperature sensor in case of wall installation or a remote sensor - Minimum Temperature Probe in case of installation on the machine (to be purchased separately).


The CARRIER Type "A" Control can be installed on board the fan coil using the specific Kit for installing the Type "A" Control on board the 42NM/Z unit ( allows the connection of the Control to the electrical components of the fan coil and is made up of: cable kit, air probe, bracket, adhesive strips, screws ) Cod. 42N9100. It controls the fan coil in both the heating and cooling functions where the system is set up for this type of function.


Product Warranty
All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

Fan Coil Carrier Idrofan 42nms 26f

Product form

IDROFAN 42NMS 26F Fan Coil Carrier fan coil Vertical console with cabinet Cooling capacity: 3.6 kW Thermal capacity: 4.38 kW... Read more

€221,00 Incl. VAT

    Description

    IDROFAN 42NMS 26F Fan Coil Carrier fan coil


    • Vertical console with cabinet
    • Cooling capacity: 3.6 kW
    • Thermal capacity: 4.38 kW
    • Electric resistance (high capacity) W 2000
    • Electric resistance (low capacity) W 1000
    • Dimensions LxW: 1030 x 220
    • Height (with 100mm feet): 657
    • Weight: 19 Kg

    CARRIER

    Thanks to its simple and elegant design (winner of the ADI Design award) it is the ideal solution for multiple applications, such as hotels, offices and commercial buildings. Maximum optimization of comfort and reduction of energy costs. Available in the built-in version for installation in false ceilings or with cabinet for exposed installation (only 220 mm high for the built-in unit). Both in the version with high efficiency variable speed LEC (brushless) motors and with multispeed AC motor, it allows you to respond promptly to the needs of comfort, efficiency and versatility. Various thermostats and controls are available mounted on board or remote for wall installation

    Energy efficiency is the class of its success


    The IDROFAN 42N fan coil range perfectly fits the new reference requirements for low energy buildings, offering greater energy savings and immediate comfort for users. Its success is essentially due to its low energy consumption and construction features based on modularity, ease of installation and reliability. Reducing CO2 emissions into the atmosphere by 20% by 2020 is a goal that IDROFAN has already achieved some years ago. IDROFAN is designed to maximize efficiency and savings, through the use of more flexible technologies and oriented towards the protection of the natural environment. The new IDROFAN 42N fan coil range is the ideal solution for multiple applications, such as hotels, offices and commercial buildings, allowing you to optimize comfort and reduce energy costs

    The high-performance fan of the IDROFAN range incorporates the latest LEC motor technology, variable speed, or five speeds, improving user comfort thanks to a reduction in noise levels of up to -10 dB(A) compared to previous models. The LEC variable speed motor coupled with the latest generation NTC electronic control, the almost imperceptible air flow and the fan speeds customizable on site, ensure the best comfort and ultra-quiet operation.

    Reduced consumption

    facilitate compliance with new laws regarding energy consumption

    Maximum flexibility

    minimum footprint and wide range of power for any installation and climate

    Perfect integration

    and low noise impact with any building management system

    Improved comfort

    thanks to advanced technologies that guarantee silence and well-being

    Accessories

    • Electronic Thermostat Control TYPE "A" for IDROFAN 2-pipe fan coil units, 42N series wall-mounted, CARRIER ( Cod. 33TA-AC01)
    • Kit for installation of type “A” control on board the 42NM/Z unit (Cod. 42N9100)


    The TYPE "A" CARRIER control is suitable for controlling IDROFAN convectors in both heating and cooling modes.
    Equipped with:

    • Power button to turn the fan coil on/off;
    • Mode button for manual regulation of the heating/cooling functions indicated by specific red/blue LEDs;
    • Ventilation adjustment button with 3 speeds (I-II-III) that can be set manually, the Economy mode for energy saving and the Auto mode, all indicated from time to time by special LEDs;
    • Temperature Selector Knob with a range from + 10°C to + 30°C.
    • Antifreeze function that activates at temperatures below 7°C.
    • Night and Dimming mode that acts on the operating LED lights,
    • AutoTest , possibility of configuring the settings during installation using special microswitches, possibility of using the internal temperature sensor in case of wall installation or a remote sensor - Minimum Temperature Probe in case of installation on the machine (to be purchased separately).


    The CARRIER Type "A" Control can be installed on board the fan coil using the specific Kit for installing the Type "A" Control on board the 42NM/Z unit ( allows the connection of the Control to the electrical components of the fan coil and is made up of: cable kit, air probe, bracket, adhesive strips, screws ) Cod. 42N9100. It controls the fan coil in both the heating and cooling functions where the system is set up for this type of function.


    Product Warranty
    All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

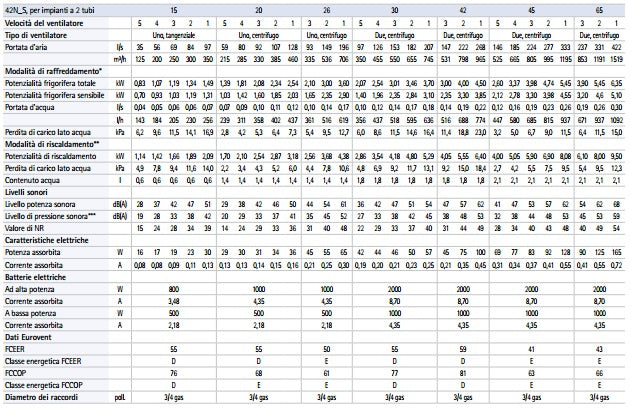

    Data sheetData sheet
    • peso: 70.0 kg
    • marca: Carrier
    • modello: 42NMS 26F
    Icon for coinShipping cost

    Shipping costs vary according to the weight of the order.

    Consult the tables with the weights for Italy and for the smaller islands and disadvantaged areas.
