Product Description

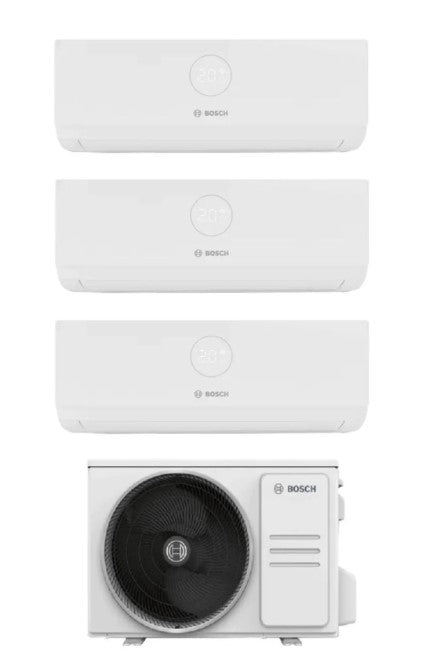

- Product code: CLIMATE 5000I 9+9+12 79
- Category: Trial split
- Wi-Fi Optional ( Code G 10 CL-1 )
Internal Units
1) Model
- Internal Unit Catalog Code: 2x CL5000iU W 26 E
- Power: 9000 btu/h
- Cooling Capacity : 2.6 kW
- Heating capacity: 2.93 kW
- Treated Air: 300~510 m3/h
- Sound Power Level: 56 dB(A)
- Sound pressure level : 21~37 dB(A)
- Liquid Pipe Diameter: 6.35mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (WxDxH): 802 x 200 x 295mm
- Internal Unit Weight: 8.7 Kg
2) Model
- Internal Unit Catalog Code: 1x CL5000iU W 35 E
- Power: 12000 btu/h
- Cooling Capacity : 3.5 kW
- Heating capacity: 3.81 kW
- Treated Air: 310~520 m3/h
- Sound Power Level: 60 dB(A)
- Sound pressure level : 21~37 dB(A)
- Liquid Pipe Diameter: 6.35mm (1/4")
- Gas pipe diameter: 9.52 mm (3/8")
- Internal Unit Dimensions (WxDxH): 802 x 200 x 295 mm
- Internal Unit Weight: 8.7 Kg
External Unit
Model:
- Internal Unit Catalog Code: CL5000M 79/3 E
- Max indoor units: up to 3 indoor units
Energy Efficiency:
- SEER : 6.3
- SCOP : 4.0
- Energy Efficiency Class Cooling: A++
- Heating Energy Efficiency Class: A+
Performance:
- Cooling capacity:7.9 kW
- Heating capacity: 8.2 kW
- Cooling power consumption: 2.50 kW
- Heating absorption: 2.21 kW
- Sound power level: 68 dB(A)
- Sound pressure level: 58 dB(A)
Characteristics:
- Power supply (V/Hz/Φ) : 220~240/50/1
- Refrigerant gas: R-32
- Installation Data:
- Refrigerant pipe diameter: 3xΦ6.35/3xΦ9.52
- Maximum length of pipes: 60 m
Dimensions:
- External Unit Dimensions (WxDxH): 890x342x673 mm
- External Unit Weight: 48 Kg
Easy to use and install, versatile and refined, Bosch Climate air conditioners will “simply” amaze you
Simply the right atmosphere
Is it too hot outside? Or has the weather suddenly cooled down? Simply choose the right function from the simple and intuitive remote control menu to have your own oasis of comfort and well-being at home, with the right level of cooling or heating.
Breathe fresh air
Are air pollution levels rising? Are pollen season threatening your well-being? Not in your home, thanks to powerful filters that improve the air quality in your home by capturing microbes and other impurities.
Save energy
The air conditioners of the Climate series by Bosch are as easy to use as they are convenient. They work highly efficiently and use only the energy necessary to ensure the desired well-being, without waste, also thanks to the "Stand-by" and "Timer" functions.
Relax in complete tranquility
The high silence of Climate air conditioners makes them discreet companions in your home. Relax and enjoy Bosch air conditioning!
Our Two Apps: Alone Exceptional, Together Stunning
Climate Select App: Find the perfect setup
Point your device's camera at the wall where you would like to install your air conditioner and watch it appear in augmented reality. View the different sizes and choose the one that best suits your environment.
Find the best position for optimal aesthetics and easy maintenance. Take and save a photo to memorize the settings you have defined.
HomeCom Easy App: Control the functions of your air conditioners
View all your appliances at a glance and adjust their main functions right from your Home via Wi-Fi. Set operating modes, temperatures and airflow direction for maximum comfort in every room. Stay informed about the operating status of your air conditioners and any anomalies via push notifications.
Optional accessory G 10 CL-1 required
Climate 5000i Elegance without sacrificing comfort for fresh and clean air
-
Efficiency
Class A+++ in cooling and A+ in heating.
-
Excellent air quality
To enjoy clean and healthy air, mold, bacteria and other pollutants in the air are eliminated thanks to the combination of cold catalyst, biofilter, high-density filter and ionizer technology. In addition, the integrated cleaning function keeps the appliance clean.
-
3D airflow
Two motors control the movement of both the vertical and horizontal blades, ensuring comfort and uniformity in air distribution.
-
Eye-catching design
The essential and modern lines make Climate 5000i a real furnishing accessory, suitable for any environment.
Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.
