Biasi c low NOx outdoor condensing boiler complete with flue gas exhaust kit - New
NB: PRODUCT AVAILABLE IN 6-8 WEEKS
- Heating / DHW nominal heat input kW 21.0 / 26.0
- Yield name 60°/80°C * % 96.6
- NOx class n° 6
- Minimum / maximum heating pressure bar 3.0 / 0.3
- Expansion tank capacity (total / useful) l 7.0 / 3.5
- Maximum flow rate (ΔT=25 K) / (ΔT=35 K) l/min 14.4 / 10.3
- Voltage / Power at nominal heat input V~/ W 230/99
- Degree of protection n° IPX5D
- Height x Width x Depth mm 946x509x287; 30.7 kW
- Performance Stars ****

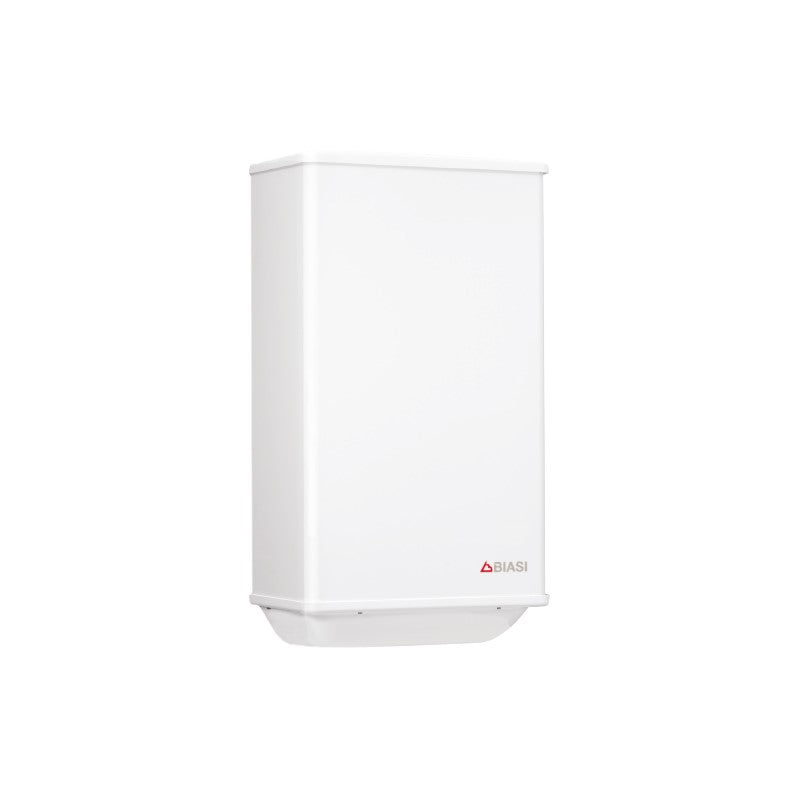

ARTICA PLUS
Artica Plus is the new BIASI range of wall-mounted condensing boilers for outdoor use : excellent performance thanks to the new heat exchanger and ease of use thanks to the digital control panel with display. In the version for heating and domestic hot water production Artica Plus is available in two powers, 20 and 30 kW, in the same extremely compact dimensions (946 x 509 x 287 mm). Artica Plus has its strong point in the innovative heat exchanger designed to provide high yields that last over time. Digital control panel, designed to communicate with the user easily and conveniently thanks to the remote control plus supplied as standard. Like the entire BIASI condensing range, Artica Plus allows you to obtain maximum savings from climatic thermoregulation, based on the system in which the boiler is installed.
Main features
- High yields (★★★★ compliant with yield directive 92/42 EEC and Legislative Decree 311/06)
- Sanitary comfort (★★★ EN 13203)
- Primary condensing exchanger in stainless steel with steel lining to offer maximum resistance to corrosion
- Total premix burner, built in stainless steel (Class NOx 6)
- Modulation 1:5 CNG and also LPG
- Sanitary plate heat exchanger in stainless steel
- 7 l expansion tank for mod. 25S and 10 l for mod. 35S
- Maximum power adjustable according to the system
- High efficiency pump with low energy consumption
- Degree of protection IPX5D
- Can be installed in a partially protected place
- Closing the covers by means of magnets makes system loading operations and access to the gas cock immediate
- Digital control panel with backlit display
- Analog reading of the pressure on the machine, digital on the remote
- Automatic filling via remote
- Remote control plus as standard
- Standard external probe.
High circulation single coil primary heat exchanger Biasi introduces on the market the new
stainless steel heat exchanger for condensing boilers: Round. Round is a compact monothermal heat exchanger based on a stainless steel coil with an oval section. The heat exchanger consists of a combustion chamber, condensing area and an insulated metal disc protected with silicone ceramic fiber which separates the two areas. By using a single strip of stainless steel to produce the coil, including inlet/outlet fittings, the following benefits are achieved:
- Accumulation of dirt and debris is avoided
- The water flow is uniformly distributed and guarantees a homogeneous heat exchange
- The water flow is constant for a longer life of the product
- Reduction of pressure drops with optimized circuit.
The ease of cleaning and the robustness of this exchanger are one of the main strengths of the product since it can be used on new systems but also on old systems in the event of renovations. Round integrates the round flow function in which the water produces a centrifugal cleaning effect on the internal walls of the single coil. The absence of circuits in parallel guarantees an easy "washing" operation of the exchanger and the elimination of any air present in the system circuit.
Control panel
- Summer/winter/off selector
- Heating temperature regulator
- DHW temperature regulator
- Analog pressure reading
- DHW and heating temperature visualization from the display
- Display of fault diagnostics, block status and fault history
- Recommended fill display and fill guide
- View annual maintenance expiry
The display operates according to the modes:
1. INFO. Info mode displays the following information:
- External temperature (in case of external probe connected)
- K value (in case of external probe connected)
- Sanitary / heating temperatures chosen by the user
- Smoke temperatures
2. PROGRAMMING. The programming mode allows you to change the boiler parameters.
- In chimney sweep mode it is possible to test the boiler and adjust the gas valve.
Thermoregulation
By connecting the external probe (standard) and the remote control plus (standard) directly to the boiler, climatic regulation can be used. Artica Plus will adapt the system water temperature to the external climatic conditions, ensuring that the desired room temperature is reached without waste and optimizing consumption. By using the climatic regulation, the regulation efficiency is also raised, giving greater value to your home.
Warranty All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
