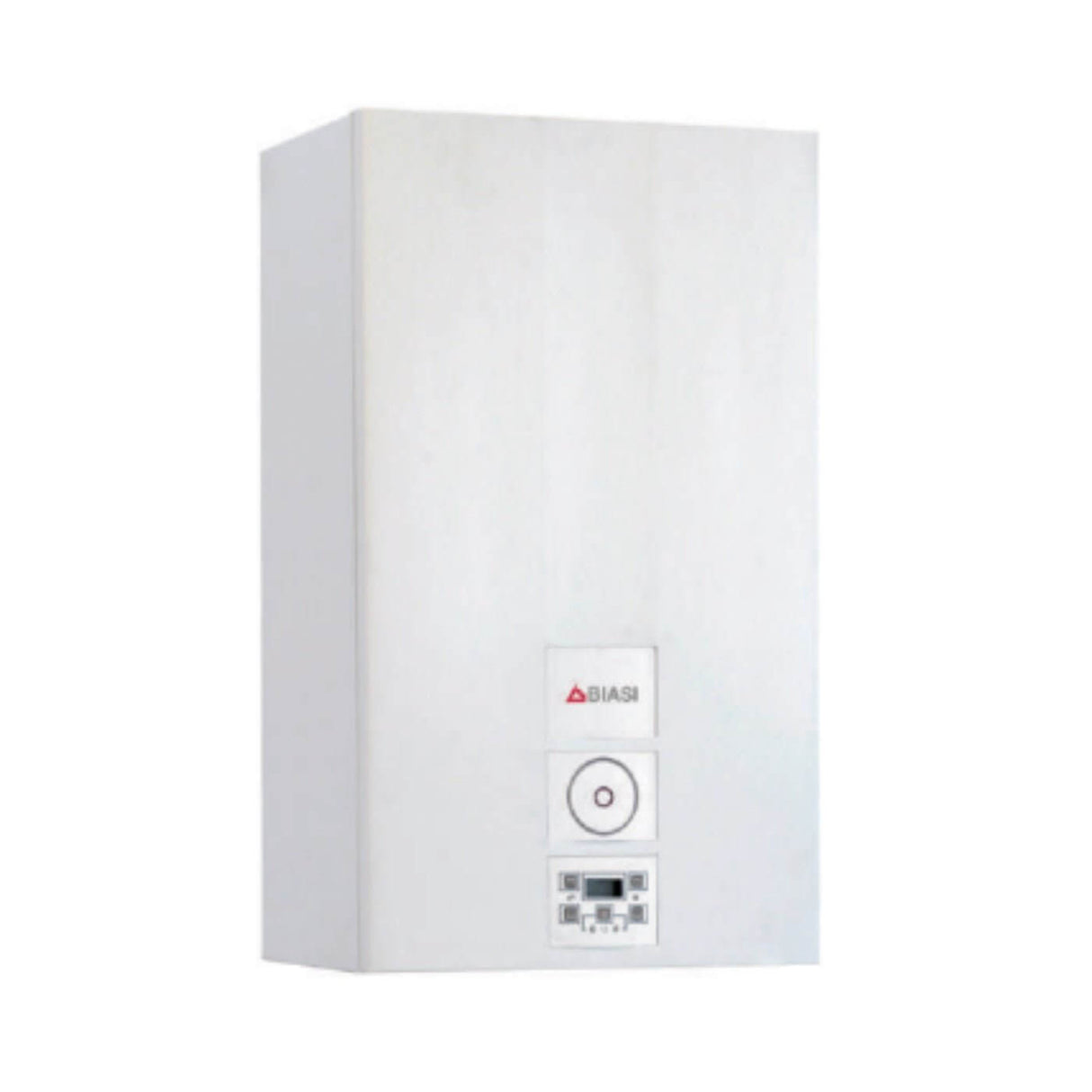

BIASI rinNOVA COND XE 35S CONDENSING BOILER COMPLETE WITH LPG METHANE FUME EXHAUST KIT - NEW ErP
Technical specifications
Model: rinNOVA COND XE 35S
Energy label specifications according to the European ErPÿ directive
Class A heating energy efficiency
Sanitary energy efficiency Class A
Withdrawal profiles: XXL
Characteristics of heating/sanitary exercises:
Thermal powerÿuseful sanitaryÿ(80/60ø C)ÿkW (kcal/h)ÿ33.4 (28,724)
Heating capacityÿuseful heatingÿ(80/60ø C)ÿkW (kcal/h)ÿ32.1 (27,606)
Heat input(*)ÿnominalÿkW (kcal/h)ÿ34.0 (29,240)
Heat inputÿminimumÿkW (kcal/h)ÿ8.5 (7,309)
Sanitary flowÿt =25øKÿl/minÿ21.6
Dimensions (HxWxD) 700x400x290 mm
Main features
renew COND Xÿ
RinNova Cond X The BIASI premixed condensing range completes: perfectÿfor underfloor systems for radiator systems, the compact condensing boiler that ensures high yields, low consumption and respect for the environment. Availableÿfor heating and domestic hot water production, in powers of 25 and 35 kW and forÿheating only in powers of 16, 25 and 35 kW.
Characteristics:
High yields (in compliance with yield directive 92/42 EEC and Legislative Decree 311/06)
Sanitary comfortÿÿ(EN 13203)
Primary and condensing exchanger in stainless steel with plastic linings to offer maximum resistance to corrosion
Total premix burner, built in stainless steel (class NOx 5)
Sanitary plate heat exchanger in stainless steel
High efficiency pump with low energy consumption
Maximum power adjustable according to the needs of the system
Degrees of protection IPX5D
Installability in a partially protected place
Integration with BIASI solar systems using a solar kit
digital control panel with backlit display
Digital pressure reading by pressure transducer
Arrangement for external probe remote control
Four-controllers
Summer/winter/off selector
Heating temperature regulator
DHW temperature regulator
Digital pressure reading
DHW and heating temperature visualization from display
Display of fault diagnostics, fault history block status
View recommended fill
View annual maintenance expiry
The display operates according to the modes:
1. INFO. Inf mode displays the following information:
External temperature (in case of connected external probe)
K value (in case of connected external probe)
Sanitary / heating temperatures chosen by the user
Smoke temperatures.
2. PROGRAMMING. The programming mode allows you to modify the boiler parameters.
In chimney sweep mode it is possible to test the boiler and make adjustments to the gas valve.
RinNova Cond XE: Adjustable maximum power
The adjustable maximum useful heating power parameter meets the needs of modern construction without compromising comfort
required in the production of domestic hot water. In fact, this function makes it possible to limit the maximum useful power in heating, independently of the useful domestic power.
Hot water even with the sun
RinNova Cond XE for heating and hot water production: the sanitary exchangerÿin stainless steel combined with the electronic management and low inertia of the primary exchangerÿdetermine excellent performance even in the production of domestic hot water.ÿFor the production of domestic hot water RinNova Cond XE can be combined with BIASI solar systems using specific solar kit (optional). The boiler cuts in only when necessary, making the most of solar energy and guaranteeing the comfort required by the user.
Included in delivery:
Boiler support bracket and paper template
Boiler power cable
Condensate collection siphon
Quick instruction to the user.
All ready for Energy Labeling
What is it about
From 26 September 2015 the directives of the European Commission concerning eco-design and energy labeling will apply.
These two directives aim to achieve savings in one of the most polluting and most energy intensive sectors: construction
For placing on the European market, the directive on ÿeco-designÿ(ErP notcome®ÿEnergy Related Productsÿ¯) imposes a minimum energy efficiency for heating devices and hot water production in domestic premises. The directive applies to:
generators with a capacity of less than 400 kW
water heaters with a capacity of less than 400 kW,
kettles with a capacity of less than 2000 litres
or
As in the household appliances sector, the energy labelingÿof products, with a capacity of less than 70 kW, will give consumers simple, recognizable information which allows them to make comparisonsÿon the performance and energy consumption of the product they wish to purchase.
The energy label will be included in all boilers, water heaters and storage tanks placed on the market from 26 September 2015.
It's about me tooÿ
YES, it affects everyone: professionals and end users
The information indicated on the energy labelÿwill allow professionals to recommend the right productÿÿindividuals to benefit from the information available.
The user will be able to easily compare the performance of the products.
From 26 September 2015, the label will be present on the following products: boilers, electric water heaters, thermodynamic water heaters, solar water heaters, storage tanks, heat pumps, solar systems and control systems.
Supplier's responsibility
The company that supplies the product on the market is required to equip its system devices with the following documentation:
product energy label;ÿ
product data sheet;ÿ
system energy label in addition to that of the product, both if it sells a system that includes the product in question, and if this, in the future, can be sold combined with other additional devices;ÿ
technical data sheet of the system with the parts relating to the products and the system already completed.
Responsibilities of Resellersÿ
First of all, it should be clarified that the reseller can be anyone who sells, rents, offers for rent/sale and exhibits a device/system to the public. Therefore, even professionals such as plumbers, installers, designers can fall into this category. All bound to ensure that:
all appliances and/systems having their respective labels and making sure they are clearly visible;ÿ
all appliances and/systems must always be accompanied by the obligatory technical data sheets;ÿ
every type of advertising material, technical promotional material which shows energy data and price indications, contains an indication of the energy efficiency class.
The new ErP regulations
ENERGY LABELLING:
Appliances for space heating and the production of hot water will have to be equipped with the new energy label which will report the energy class and the main performance data. The energy class must also be mentioned in the technical, commercial and advertising documentation of the appliances.
ECODESIGN (ErP):
The new ErP regulations impose the minimum energy efficiency that space heating and hot water production appliances must achieve in order to obtain the CE mark and be marketed in Europe. These new limits will exclude obsolete technologies from the market, significantly raising the level of energy efficiency of products.
PRODUCT LABEL
There are different labels depending on the type of appliance. Those with efficiency classes A, A+ and A++ certify products with the highest performance. Furthermore, two different classifications are foreseen for domestic heating and for hot water production services, so much so that mixed products must show both classifications. In addition to the energy class, the labels contain other information, so that the end customer can make his choice in the most aware way possible.
SYSTEM LABEL
In addition to the product label, the system label is also providedÿin cases where a series of appliances combined with each other is offered. This label must also be included in the technical and commercial documentation of the system. Those proposing such systems will have to calculate the performance using a predefined calculation algorithm and display the label so as to inform the end user in the best possible way.
Warranty
All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
