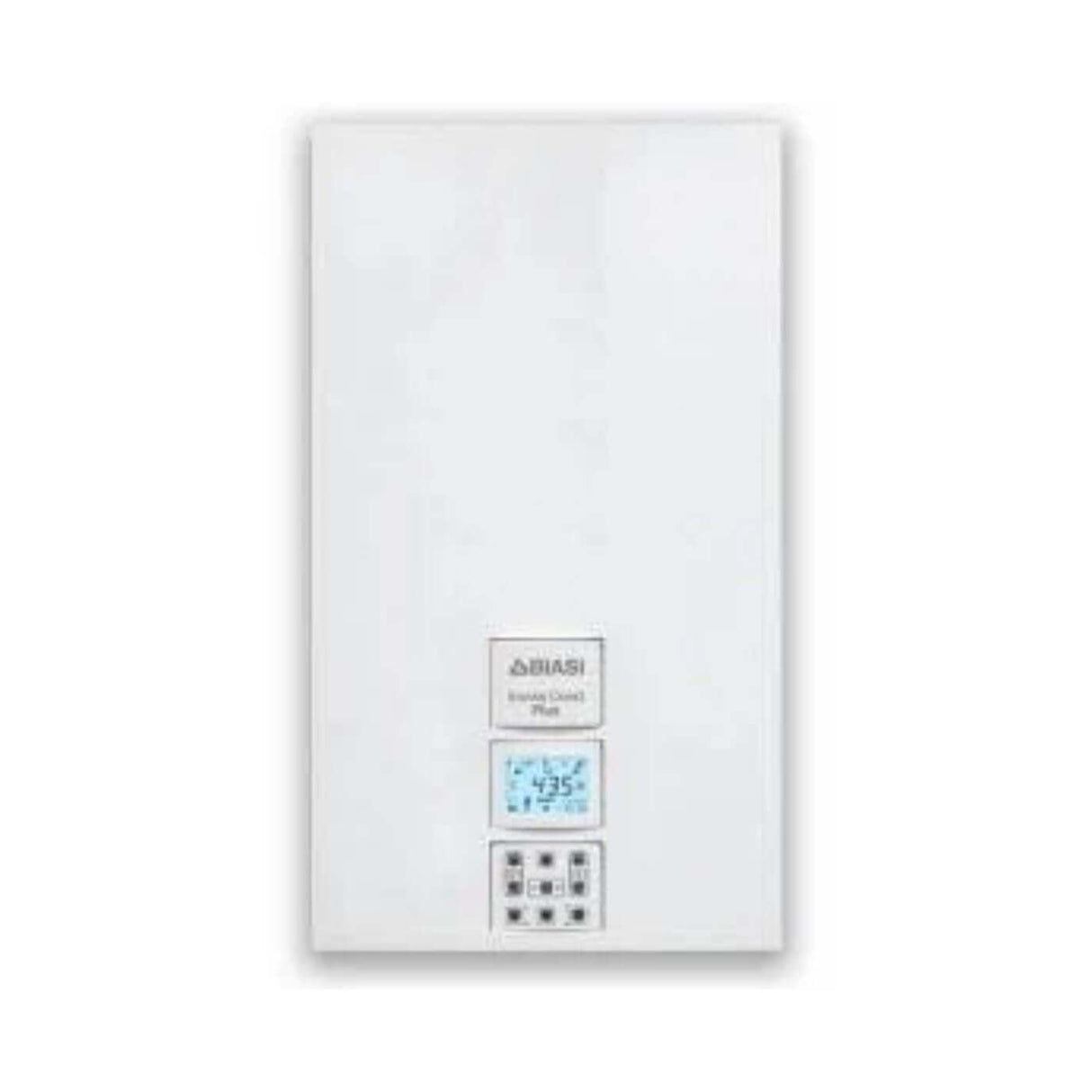

Biasi Gas Boiler Renew Cond Plus 35 S Methane Complete With Fume Exhaust Kit

Description

Technical features
Model: rinNOVA COND PLUS E 35S

Energy label specifications according to the European ErP directive
Class A heating energy efficiency
Sanitary energy efficiency Class A
Withdrawal profile: XL

Characteristics of heating/DHW operation:
Heating / DHW nominal heat input kW 29.0 / 33.5
Heating / DHW maximum useful output 60°/80°C * 28.2 / 32.5
Energy yield n° ****
NOx class 6
Expansion vessel capacity 7.0 l (total)
Maximum range (ΔT=25K) / (ΔT=35K) 18.6 / 13.3
Degree of protection IPX5D
Dimensions HxWxD 700x400x290; 34.5Kg

General characteristics

renew COND PLUS

RinNova Cond Plus is the new BIASI range of wall-mounted condensing boilers: excellent performance thanks to the new heat exchanger and ease of use thanks to the digital control panel with display. Available in versions for heating and domestic hot water production and for heating only RinNova Cond Plus presents a complete range of powers, 20 and 30 kW combi models and 16 KW SV models, in the same extremely compact dimensions (700 x 400 x 290 mm) .

RinNova Cond Plus has its strong point in the innovative heat exchanger designed to provide high yields that last over time digital control panel, designed to communicate with the user in an easy and comfortable way. Like the entire BIASI condensing range, RinNova Cond Plus allows you to obtain maximum savings from climatic thermoregulation, based on the system in which the boiler is installed

Characteristics:

High yields (★★★★ compliant with yield directive 92/42 EEC and Legislative Decree 311/06)
Sanitary comfort (★★★ EN 13203)
Primary condensing exchanger in stainless steel with steel lining to offer maximum resistance to corrosion
Total premix burner, built in stainless steel (Class NOx 6)
Modulation 1:5 CNG and also LPG
Sanitary plate heat exchanger in stainless steel
7 liter expansion tank
High efficiency pump with low energy consumption
Maximum power adjustable according to the system • IPX5D degree of protection
Can be installed in a partially protected place
Integration with BIASI solar systems, using a solar kit
Digital control panel with backlit display
Analog pressure reading
Arrangement for remote control and external probe.

Control panel

Summer/winter/off selector
Heating temperature regulator
DHW temperature regulator
Analog pressure reading
DHW and heating temperature visualization from the display
Display of fault diagnostics, block status and fault history
Recommended fill display and fill guide
View annual maintenance expiry
The display operates according to the modes:
1. INFO. Info mode displays the following information:
External temperature (in case of external probe connected)
K value (in case of external probe connected)
Sanitary / heating temperatures chosen by the user
Smoke temperatures.
2. PROGRAMMING. The programming mode allows you to change the boiler parameters. - In chimney sweep mode it is possible to test the boiler and adjust the gas valve.

Thermoregulation

By connecting the external probe and the remote control (optional) directly to the boiler, climatic regulation can be used. RinNova Cond Plus will adapt the system water temperature to the external climatic conditions, ensuring that the desired room temperature is reached without waste and optimizing consumption. By using the climatic regulation, the regulation efficiency is also raised, giving greater value to your home.

High regulation single coil primary heat exchanger

Biasi introduces on the market the new stainless steel heat exchanger for condensing boilers: Round. Round is a compact monothermal heat exchanger based on a stainless steel coil with an oval section. The heat exchanger consists of a combustion chamber, condensing area and an insulated metal disc protected with silicone ceramic fiber which separates the two areas. By using a single strip of stainless steel to produce the coil, including inlet/outlet fittings, the following benefits are achieved:

Accumulation of dirt and debris is avoided
The water flow is uniformly distributed and guarantees a homogeneous heat exchange
The water flow is constant for a longer life of the product
Reduction of pressure drops with optimized circuit.

The ease of cleaning and the robustness of this exchanger are one of the main strengths of the product since it can be used on new systems but also on old systems in the event of renovations. Round integrates the round flow function in which the water produces a centrifugal cleaning effect on the internal walls of the single coil. The absence of circuits in parallel guarantees an easy "washing" operation of the exchanger and the elimination of any air present in the system circuit.

All ready for Energy Labeling

What is it about?

From 26 September 2015 the directives of the European Commission concerning eco-design and energy labeling will apply.

These two directives aim to achieve savings in one of the most polluting and most energy-intensive sectors: construction

For placing on the European market, the eco-design directive ( ErP known as « Energy Related Products ») imposes a minimum energy efficiency for heating devices and hot water production in domestic premises. The directive applies to:

generators with a capacity of less than 400 kW
water heaters with a capacity of less than 400 kW,
kettles with a capacity of less than 2000 litres

As in the household appliances sector, the energy labeling of products with a capacity of less than 70 kW will give consumers simple, recognizable information which allows for comparisons on the performance and energy consumption of the product you wish to purchase.

The energy label will be included in all boilers, water heaters and storage tanks placed on the market from 26 September 2015.

Is it about me too?

YES, it affects everyone: professionals and end users

The information indicated on the energy label will allow professionals to recommend the right product and individuals to benefit from the information available.

The user will be able to easily compare the performance of the products.

From 26 September 2015 , the label will be present on the following products: boilers, electric water heaters, thermodynamic water heaters, solar water heaters, storage tanks, heat pumps, solar systems and control systems.

Supplier responsibility

The company that supplies the product on the market is required to equip its devices or systems with the following documentation:

product energy label;
technical product sheet;
system energy label in addition to that of the product, both if it sells a system that includes the product in question, and if this, in the future, can be sold combined with other additional devices;
technical data sheet of the system with the parts relating to the product or system already completed.

Dealer Responsibility

First of all, it should be clarified that the reseller can be anyone who sells, rents, offers for rent/sale and exhibits a device and/or system to the public. Therefore even professionals such as plumbers, installers or planners can fall into this category. Everyone is required to ensure that:

all appliances and/or systems have their respective labels and make sure that they are clearly visible;
all devices and/or systems are always accompanied by the mandatory technical data sheets;
any type of advertising, promotional or technical material showing energy data or price indications contains an indication of the energy efficiency class.

The new ErP regulations

ENERGY LABELLING:

Appliances for space heating and hot water production will have to be equipped with the new energy label which will report the energy class and the main performance data. The energy class must also be mentioned in the technical, commercial and advertising documentation of the appliances.

ECODESIGN (ErP) :

The new ErP regulations impose the minimum energy efficiency that space heating and hot water production appliances must achieve in order to obtain the CE mark and be marketed in Europe. These new limits will exclude obsolete technologies from the market, significantly raising the level of energy efficiency of products.

PRODUCT LABEL

Depending on the type of device, there are different labels. Those with efficiency classes A, A+ and A++ certify the products with the highest performance. Furthermore, two different classifications are envisaged for domestic heating and for the hot water production service, so much so that mixed products must show both classifications. In addition to the energy class, the labels contain other information, so that the final customer can make his choice in the most informed way possible.

SYSTEM LABEL

In addition to the product label, the system label is also provided if a series of matched appliances is offered. This label must also be included in the technical and commercial documentation of the system. Those proposing such systems will have to calculate the performance using a predefined calculation algorithm and display the label in order to inform the end user in the best possible way.

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Biasi Gas Boiler Renew Cond Plus 35 S Methane Complete With Fume Exhaust Kit

Product form

Technical features Model: rinNOVA COND PLUS E 35S Energy label specifications according to the European ErP directive Class A heating... Read more

€1.024,00 Incl. VAT

    Description

    Technical features
    Model: rinNOVA COND PLUS E 35S

    Energy label specifications according to the European ErP directive
    Class A heating energy efficiency
    Sanitary energy efficiency Class A
    Withdrawal profile: XL

    Characteristics of heating/DHW operation:
    Heating / DHW nominal heat input kW 29.0 / 33.5
    Heating / DHW maximum useful output 60°/80°C * 28.2 / 32.5
    Energy yield n° ****
    NOx class 6
    Expansion vessel capacity 7.0 l (total)
    Maximum range (ΔT=25K) / (ΔT=35K) 18.6 / 13.3
    Degree of protection IPX5D
    Dimensions HxWxD 700x400x290; 34.5Kg

    General characteristics

    renew COND PLUS

    RinNova Cond Plus is the new BIASI range of wall-mounted condensing boilers: excellent performance thanks to the new heat exchanger and ease of use thanks to the digital control panel with display. Available in versions for heating and domestic hot water production and for heating only RinNova Cond Plus presents a complete range of powers, 20 and 30 kW combi models and 16 KW SV models, in the same extremely compact dimensions (700 x 400 x 290 mm) .

    RinNova Cond Plus has its strong point in the innovative heat exchanger designed to provide high yields that last over time digital control panel, designed to communicate with the user in an easy and comfortable way. Like the entire BIASI condensing range, RinNova Cond Plus allows you to obtain maximum savings from climatic thermoregulation, based on the system in which the boiler is installed

    Characteristics:

    High yields (★★★★ compliant with yield directive 92/42 EEC and Legislative Decree 311/06)
    Sanitary comfort (★★★ EN 13203)
    Primary condensing exchanger in stainless steel with steel lining to offer maximum resistance to corrosion
    Total premix burner, built in stainless steel (Class NOx 6)
    Modulation 1:5 CNG and also LPG
    Sanitary plate heat exchanger in stainless steel
    7 liter expansion tank
    High efficiency pump with low energy consumption
    Maximum power adjustable according to the system • IPX5D degree of protection
    Can be installed in a partially protected place
    Integration with BIASI solar systems, using a solar kit
    Digital control panel with backlit display
    Analog pressure reading
    Arrangement for remote control and external probe.

    Control panel

    Summer/winter/off selector
    Heating temperature regulator
    DHW temperature regulator
    Analog pressure reading
    DHW and heating temperature visualization from the display
    Display of fault diagnostics, block status and fault history
    Recommended fill display and fill guide
    View annual maintenance expiry
    The display operates according to the modes:
    1. INFO. Info mode displays the following information:
    External temperature (in case of external probe connected)
    K value (in case of external probe connected)
    Sanitary / heating temperatures chosen by the user
    Smoke temperatures.
    2. PROGRAMMING. The programming mode allows you to change the boiler parameters. - In chimney sweep mode it is possible to test the boiler and adjust the gas valve.

    Thermoregulation

    By connecting the external probe and the remote control (optional) directly to the boiler, climatic regulation can be used. RinNova Cond Plus will adapt the system water temperature to the external climatic conditions, ensuring that the desired room temperature is reached without waste and optimizing consumption. By using the climatic regulation, the regulation efficiency is also raised, giving greater value to your home.

    High regulation single coil primary heat exchanger

    Biasi introduces on the market the new stainless steel heat exchanger for condensing boilers: Round. Round is a compact monothermal heat exchanger based on a stainless steel coil with an oval section. The heat exchanger consists of a combustion chamber, condensing area and an insulated metal disc protected with silicone ceramic fiber which separates the two areas. By using a single strip of stainless steel to produce the coil, including inlet/outlet fittings, the following benefits are achieved:

    Accumulation of dirt and debris is avoided
    The water flow is uniformly distributed and guarantees a homogeneous heat exchange
    The water flow is constant for a longer life of the product
    Reduction of pressure drops with optimized circuit.

    The ease of cleaning and the robustness of this exchanger are one of the main strengths of the product since it can be used on new systems but also on old systems in the event of renovations. Round integrates the round flow function in which the water produces a centrifugal cleaning effect on the internal walls of the single coil. The absence of circuits in parallel guarantees an easy "washing" operation of the exchanger and the elimination of any air present in the system circuit.

    All ready for Energy Labeling

    What is it about?

    From 26 September 2015 the directives of the European Commission concerning eco-design and energy labeling will apply.

    These two directives aim to achieve savings in one of the most polluting and most energy-intensive sectors: construction

    For placing on the European market, the eco-design directive ( ErP known as « Energy Related Products ») imposes a minimum energy efficiency for heating devices and hot water production in domestic premises. The directive applies to:

    generators with a capacity of less than 400 kW
    water heaters with a capacity of less than 400 kW,
    kettles with a capacity of less than 2000 litres

    As in the household appliances sector, the energy labeling of products with a capacity of less than 70 kW will give consumers simple, recognizable information which allows for comparisons on the performance and energy consumption of the product you wish to purchase.

    The energy label will be included in all boilers, water heaters and storage tanks placed on the market from 26 September 2015.

    Is it about me too?

    YES, it affects everyone: professionals and end users

    The information indicated on the energy label will allow professionals to recommend the right product and individuals to benefit from the information available.

    The user will be able to easily compare the performance of the products.

    From 26 September 2015 , the label will be present on the following products: boilers, electric water heaters, thermodynamic water heaters, solar water heaters, storage tanks, heat pumps, solar systems and control systems.

    Supplier responsibility

    The company that supplies the product on the market is required to equip its devices or systems with the following documentation:

    product energy label;
    technical product sheet;
    system energy label in addition to that of the product, both if it sells a system that includes the product in question, and if this, in the future, can be sold combined with other additional devices;
    technical data sheet of the system with the parts relating to the product or system already completed.

    Dealer Responsibility

    First of all, it should be clarified that the reseller can be anyone who sells, rents, offers for rent/sale and exhibits a device and/or system to the public. Therefore even professionals such as plumbers, installers or planners can fall into this category. Everyone is required to ensure that:

    all appliances and/or systems have their respective labels and make sure that they are clearly visible;
    all devices and/or systems are always accompanied by the mandatory technical data sheets;
    any type of advertising, promotional or technical material showing energy data or price indications contains an indication of the energy efficiency class.

    The new ErP regulations

    ENERGY LABELLING:

    Appliances for space heating and hot water production will have to be equipped with the new energy label which will report the energy class and the main performance data. The energy class must also be mentioned in the technical, commercial and advertising documentation of the appliances.

    ECODESIGN (ErP) :

    The new ErP regulations impose the minimum energy efficiency that space heating and hot water production appliances must achieve in order to obtain the CE mark and be marketed in Europe. These new limits will exclude obsolete technologies from the market, significantly raising the level of energy efficiency of products.

    PRODUCT LABEL

    Depending on the type of device, there are different labels. Those with efficiency classes A, A+ and A++ certify the products with the highest performance. Furthermore, two different classifications are envisaged for domestic heating and for the hot water production service, so much so that mixed products must show both classifications. In addition to the energy class, the labels contain other information, so that the final customer can make his choice in the most informed way possible.

    SYSTEM LABEL

    In addition to the product label, the system label is also provided if a series of matched appliances is offered. This label must also be included in the technical and commercial documentation of the system. Those proposing such systems will have to calculate the performance using a predefined calculation algorithm and display the label in order to inform the end user in the best possible way.

    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
    Data sheetData sheet
    • peso: 50.0 kg
    • classe energetica produzione acs: A
    • classe energetica riscaldamento: A
    • gas: Methane
    • marca: Blame
    • metri quadri : 250
    • modello: rinNOVA COND PLUS 35 S METANO
    • potenza in kw: 35
    • potenza nominale: 35
    • superficie riscaldabile mq: 250
