icon Gas Boiler Biasi Inovia Cond Plus 25s Condensing Complete With Methane Fume Exhaust Kit - New Erp | CaldaieMurali

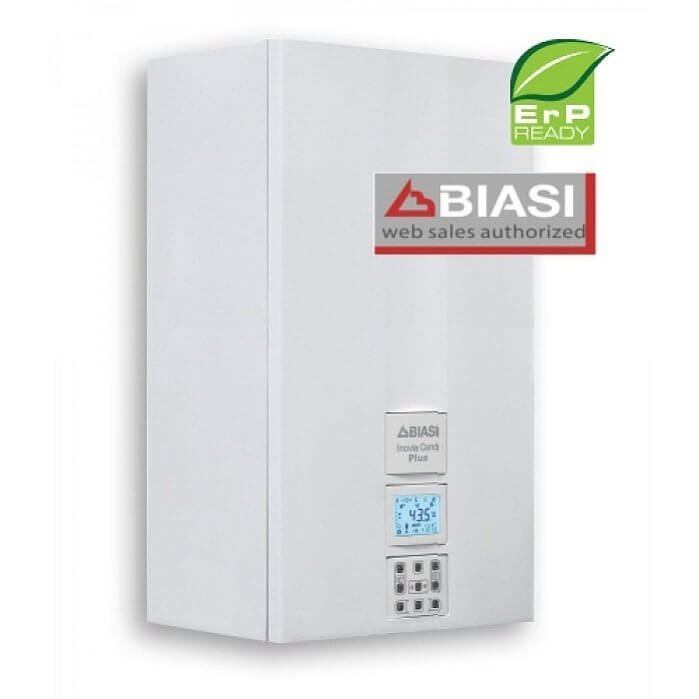

Gas Boiler Biasi Inovia Cond Plus 25s Condensing Complete With Methane Fume Exhaust Kit - New Erp

Description

Overview

BIASI INOVIA COND PLUS 25S CONDENSING METHANE LPG BOILER - NEW ErP, SEALED CHAMBER COMPLETE WITH FUME EXHAUST KIT: Inovia Cond Plus is the new BIASI range of wall mounted condensing boilers: excellent performance thanks to the new heat exchanger and ease of use thanks to the panel digital control with large displays.

Technical specifications

Model: Inovia Cond Plus 25S

Energy label specifications according to the European ErPÿ directive

Class A heating energy efficiency

Sanitary energy efficiency Class A

Withdrawal profiles: XL

Characteristics of heating/sanitary exercises:

Heating/DHW maximum useful power: 19.3/25.1ÿkWÿ

Heating/DHW nominal heat input: 20/26 kW

Yield name 60ø/80øC:ÿ96.7%

Yield at 30% load: 107.4%

High yields (in compliance with yield directive 92/42 CEE and Legislative Decree 311/06)

Sanitary comfort( EN 13203)ÿ

8 liter expansion tankÿ

Degrees of protection IPX5Dÿ

Maximum flow rate (T=25 K) / (T=35 K): 14.4/10.3 l/minÿ

Specific sanitary flow rate (T=30 K): 12.0ÿl/minÿ

Dimensions hxwxd: mmÿ700 x 400 x 290; 32kg

NOx class : 6

ÿMETHANEÿorÿLPG power supply

Main features

Inovia Cond Plus

Wall mounted condensing boilersÿ

Inovia Cond Plus is the new BIASI range of wall-mounted condensing boilers: excellent performance thanks to the new heat exchanger and ease of use thanks to the digital control panel with large displays. Available in the versions for heating and domestic hot water production and for heating only, Inovia Cond Plus presents a complete range of powers, 25 and 35 kW combi models and 25 and 35 SV models, in the same extremely compact dimensions (700 x 400 x 290mm).

Inovia Cond Plusÿhas its strength in the innovative heat exchangerÿdesigned to provide high yields that last in the digital control panel, designed to communicate with the user in an easy and comfortable way. Like the entire BIASI condensing range, Inovia Cond Plus allows you to obtain maximum savings from climatic thermoregulation, based on the system in which the boiler is installed.

High yields (complies with 92/42 EEC yield directive and Legislative Decree 311/06) Sanitary comfort (EN 13203)ÿ

Primary and condensing heat exchanger in stainless steel withÿaluminium coatings to offer maximum resistance to corrosionÿ

Total premix burner, built in stainless steel (Class NOx5)

Sanitary plate heat exchanger in INOXÿ steel

High efficiency pump with low energy consumption

8 liter expansion tankÿ

Maximum power adjustable according to the systemÿ

Degrees of protection IPX5Dÿ

Can be installed in a partially protected placeÿ

Integration with BIASI solar systems, using a solar kitÿ

Innovative digital control panelÿ

Digital pressure readoutÿ

Arrangement for external probe remote controlÿ

Possibility of managing a zone valve by remote control in multi-zone systems.

High circulation primary heat exchanger

Biasi produces the new Steelcoil compound exchanger with a stainless steel spiral enclosed in an aluminum shell. Thanks to the large exchange surface of the coil, greater thermal efficiency is guaranteed with a lower loss of charge and easier cleaning. The ease of cleaning and the sturdiness of this exchanger are one of the main strengths of the product which can be used on new systems but also on old systems in case of renovations. Steelcoil integrates the round flow function in which the water produces a centrifugal cleaning effect on the internal walls of the monspira. Does the absence of parallel circuits guarantee an easy cleaning operation? of the exchanger and the elimination of any air present in the system circuit.

Thermoregulationÿ

By connecting the external probe and the remote control (optional) directly to the boiler, climatic regulation can be used. Inovia Cond Plus will adapt the water temperature of the system to the external climatic conditions, guaranteeing the achievement of the desired room temperature without waste and optimizing consumption. By using climatic regulation, the regulation efficiency is also increased, giving greater value to your home.

All ready for Energy Labeling

What is it about

From 26 September 2015 the directives of the European Commission concerning eco-design and energy labeling will apply.

These two directives aim to achieve savings in one of the most polluting and most energy intensive sectors: construction

For placing on the European market, the directive on ÿeco-designÿ(ErP notcome®ÿEnergy Related Productsÿ¯) imposes a minimum energy efficiency for heating devices and hot water production in domestic premises. The directive applies to:

generators with a capacity of less than 400 kW

water heaters with a capacity of less than 400 kW,

kettles with a capacity of less than 2000 litres

or

As in the household appliances sector, the energy labelingÿof products, with a capacity of less than 70 kW, will give consumers simple, recognizable information which allows them to make comparisonsÿon the performance and energy consumption of the product they wish to purchase.

The energy label will be included in all boilers, water heaters and storage tanks placed on the market from 26 September 2015.

It's about me tooÿ

YES, it affects everyone: professionals and end users

The information indicated on the energy labelÿwill allow professionals to recommend the right productÿÿindividuals to benefit from the information available.

The user will be able to easily compare the performance of the products.

From 26 September 2015, the label will be present on the following products: boilers, electric water heaters, thermodynamic water heaters, solar water heaters, storage tanks, heat pumps, solar systems and control systems.

Supplier's responsibility

The company that supplies the product on the market is required to equip its system devices with the following documentation:

product energy label;ÿ

product data sheet;ÿ

system energy label in addition to that of the product, both if it sells a system that includes the product in question, and if this, in the future, can be sold combined with other additional devices;ÿ

technical data sheet of the system with the parts relating to the products and the system already completed.

Responsibilities of Resellersÿ

First of all, it should be clarified that the reseller can be anyone who sells, rents, offers for rent/sale and exhibits a device/system to the public. Therefore, even professionals such as plumbers, installers, designers can fall into this category. All bound to ensure that:

all appliances and/systems having their respective labels and making sure they are clearly visible;ÿ

all appliances and/systems must always be accompanied by the obligatory technical data sheets;ÿ

every type of advertising material, technical promotional material which shows energy data and price indications, contains an indication of the energy efficiency class.

The new ErP regulations

ENERGY LABELLING:

Appliances for space heating and the production of hot water will have to be equipped with the new energy label which will report the energy class and the main performance data. The energy class must also be mentioned in the technical, commercial and advertising documentation of the appliances.

ECODESIGN (ErP):

The new ErP regulations impose the minimum energy efficiency that space heating and hot water production appliances must achieve in order to obtain the CE mark and be marketed in Europe. These new limits will exclude obsolete technologies from the market, significantly raising the level of energy efficiency of products.

PRODUCT LABEL

There are different labels depending on the type of appliance. Those with efficiency classes A, A+ and A++ certify products with the highest performance. Furthermore, two different classifications are foreseen for domestic heating and for hot water production services, so much so that mixed products must show both classifications. In addition to the energy class, the labels contain other information, so that the end customer can make his choice in the most aware way possible.

SYSTEM LABEL

In addition to the product label, the system label is also providedÿin cases where a series of appliances combined with each other is offered. This label must also be included in the technical and commercial documentation of the system. Those proposing such systems will have to calculate the performance using a predefined calculation algorithm and display the label so as to inform the end user in the best possible way.

Warranty

All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Gas Boiler Biasi Inovia Cond Plus 25s Condensing Complete With Methane Fume Exhaust Kit - New Erp

Product form

Overview BIASI INOVIA COND PLUS 25S CONDENSING METHANE LPG BOILER - NEW ErP, SEALED CHAMBER COMPLETE WITH FUME EXHAUST KIT:... Read more

€1.160,00 Incl. VAT

    Description

    Overview

    BIASI INOVIA COND PLUS 25S CONDENSING METHANE LPG BOILER - NEW ErP, SEALED CHAMBER COMPLETE WITH FUME EXHAUST KIT: Inovia Cond Plus is the new BIASI range of wall mounted condensing boilers: excellent performance thanks to the new heat exchanger and ease of use thanks to the panel digital control with large displays.

    Technical specifications

    Model: Inovia Cond Plus 25S

    Energy label specifications according to the European ErPÿ directive

    Class A heating energy efficiency

    Sanitary energy efficiency Class A

    Withdrawal profiles: XL

    Characteristics of heating/sanitary exercises:

    Heating/DHW maximum useful power: 19.3/25.1ÿkWÿ

    Heating/DHW nominal heat input: 20/26 kW

    Yield name 60ø/80øC:ÿ96.7%

    Yield at 30% load: 107.4%

    High yields (in compliance with yield directive 92/42 CEE and Legislative Decree 311/06)

    Sanitary comfort( EN 13203)ÿ

    8 liter expansion tankÿ

    Degrees of protection IPX5Dÿ

    Maximum flow rate (T=25 K) / (T=35 K): 14.4/10.3 l/minÿ

    Specific sanitary flow rate (T=30 K): 12.0ÿl/minÿ

    Dimensions hxwxd: mmÿ700 x 400 x 290; 32kg

    NOx class : 6

    ÿMETHANEÿorÿLPG power supply

    Main features

    Inovia Cond Plus

    Wall mounted condensing boilersÿ

    Inovia Cond Plus is the new BIASI range of wall-mounted condensing boilers: excellent performance thanks to the new heat exchanger and ease of use thanks to the digital control panel with large displays. Available in the versions for heating and domestic hot water production and for heating only, Inovia Cond Plus presents a complete range of powers, 25 and 35 kW combi models and 25 and 35 SV models, in the same extremely compact dimensions (700 x 400 x 290mm).

    Inovia Cond Plusÿhas its strength in the innovative heat exchangerÿdesigned to provide high yields that last in the digital control panel, designed to communicate with the user in an easy and comfortable way. Like the entire BIASI condensing range, Inovia Cond Plus allows you to obtain maximum savings from climatic thermoregulation, based on the system in which the boiler is installed.

    High yields (complies with 92/42 EEC yield directive and Legislative Decree 311/06) Sanitary comfort (EN 13203)ÿ

    Primary and condensing heat exchanger in stainless steel withÿaluminium coatings to offer maximum resistance to corrosionÿ

    Total premix burner, built in stainless steel (Class NOx5)

    Sanitary plate heat exchanger in INOXÿ steel

    High efficiency pump with low energy consumption

    8 liter expansion tankÿ

    Maximum power adjustable according to the systemÿ

    Degrees of protection IPX5Dÿ

    Can be installed in a partially protected placeÿ

    Integration with BIASI solar systems, using a solar kitÿ

    Innovative digital control panelÿ

    Digital pressure readoutÿ

    Arrangement for external probe remote controlÿ

    Possibility of managing a zone valve by remote control in multi-zone systems.

    High circulation primary heat exchanger

    Biasi produces the new Steelcoil compound exchanger with a stainless steel spiral enclosed in an aluminum shell. Thanks to the large exchange surface of the coil, greater thermal efficiency is guaranteed with a lower loss of charge and easier cleaning. The ease of cleaning and the sturdiness of this exchanger are one of the main strengths of the product which can be used on new systems but also on old systems in case of renovations. Steelcoil integrates the round flow function in which the water produces a centrifugal cleaning effect on the internal walls of the monspira. Does the absence of parallel circuits guarantee an easy cleaning operation? of the exchanger and the elimination of any air present in the system circuit.

    Thermoregulationÿ

    By connecting the external probe and the remote control (optional) directly to the boiler, climatic regulation can be used. Inovia Cond Plus will adapt the water temperature of the system to the external climatic conditions, guaranteeing the achievement of the desired room temperature without waste and optimizing consumption. By using climatic regulation, the regulation efficiency is also increased, giving greater value to your home.

    All ready for Energy Labeling

    What is it about

    From 26 September 2015 the directives of the European Commission concerning eco-design and energy labeling will apply.

    These two directives aim to achieve savings in one of the most polluting and most energy intensive sectors: construction

    For placing on the European market, the directive on ÿeco-designÿ(ErP notcome®ÿEnergy Related Productsÿ¯) imposes a minimum energy efficiency for heating devices and hot water production in domestic premises. The directive applies to:

    generators with a capacity of less than 400 kW

    water heaters with a capacity of less than 400 kW,

    kettles with a capacity of less than 2000 litres

    or

    As in the household appliances sector, the energy labelingÿof products, with a capacity of less than 70 kW, will give consumers simple, recognizable information which allows them to make comparisonsÿon the performance and energy consumption of the product they wish to purchase.

    The energy label will be included in all boilers, water heaters and storage tanks placed on the market from 26 September 2015.

    It's about me tooÿ

    YES, it affects everyone: professionals and end users

    The information indicated on the energy labelÿwill allow professionals to recommend the right productÿÿindividuals to benefit from the information available.

    The user will be able to easily compare the performance of the products.

    From 26 September 2015, the label will be present on the following products: boilers, electric water heaters, thermodynamic water heaters, solar water heaters, storage tanks, heat pumps, solar systems and control systems.

    Supplier's responsibility

    The company that supplies the product on the market is required to equip its system devices with the following documentation:

    product energy label;ÿ

    product data sheet;ÿ

    system energy label in addition to that of the product, both if it sells a system that includes the product in question, and if this, in the future, can be sold combined with other additional devices;ÿ

    technical data sheet of the system with the parts relating to the products and the system already completed.

    Responsibilities of Resellersÿ

    First of all, it should be clarified that the reseller can be anyone who sells, rents, offers for rent/sale and exhibits a device/system to the public. Therefore, even professionals such as plumbers, installers, designers can fall into this category. All bound to ensure that:

    all appliances and/systems having their respective labels and making sure they are clearly visible;ÿ

    all appliances and/systems must always be accompanied by the obligatory technical data sheets;ÿ

    every type of advertising material, technical promotional material which shows energy data and price indications, contains an indication of the energy efficiency class.

    The new ErP regulations

    ENERGY LABELLING:

    Appliances for space heating and the production of hot water will have to be equipped with the new energy label which will report the energy class and the main performance data. The energy class must also be mentioned in the technical, commercial and advertising documentation of the appliances.

    ECODESIGN (ErP):

    The new ErP regulations impose the minimum energy efficiency that space heating and hot water production appliances must achieve in order to obtain the CE mark and be marketed in Europe. These new limits will exclude obsolete technologies from the market, significantly raising the level of energy efficiency of products.

    PRODUCT LABEL

    There are different labels depending on the type of appliance. Those with efficiency classes A, A+ and A++ certify products with the highest performance. Furthermore, two different classifications are foreseen for domestic heating and for hot water production services, so much so that mixed products must show both classifications. In addition to the energy class, the labels contain other information, so that the end customer can make his choice in the most aware way possible.

    SYSTEM LABEL

    In addition to the product label, the system label is also providedÿin cases where a series of appliances combined with each other is offered. This label must also be included in the technical and commercial documentation of the system. Those proposing such systems will have to calculate the performance using a predefined calculation algorithm and display the label so as to inform the end user in the best possible way.

    Warranty

    All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 50.0 kg
    • classe energetica produzione acs: A
    • classe energetica riscaldamento: A
    • gas: Methane
    • marca: Blame
    • metri quadri : 150
    • modello: INOVIA COND PLUS 25S METANO
    • potenza in kw: 25
    • potenza nominale: 25
    • superficie riscaldabile mq: 150
