Dimensions and weight
- Dimensions (LxHxP): 1385x945x526 mm
- Empty weight: 160.0 Kg

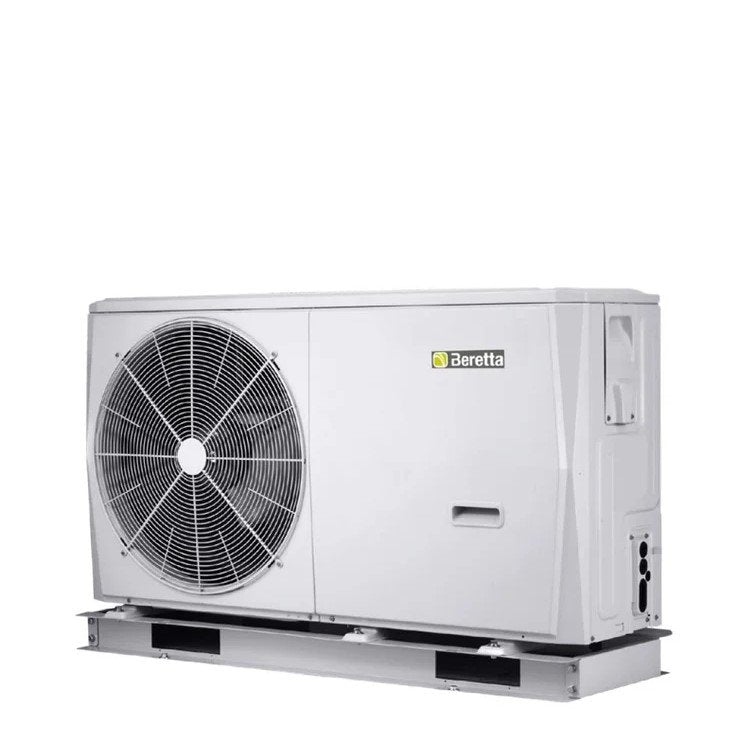

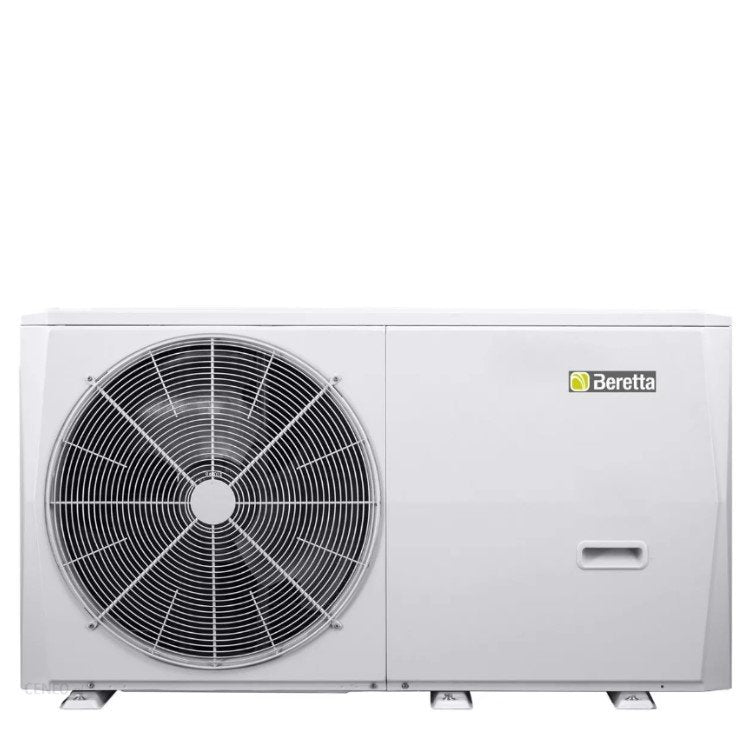

Beretta HYDRO UNIT M Inverter Monoblock Air-Water Hydronic Heat Pumps
These units are used for both heating and cooling applications as well as domestic hot water tanks. They can be combined with fan coil units, underfloor heating applications, low temperature high efficiency radiators, domestic hot water tanks and solar kits, all of which are field powered. A wired controller is supplied with the unit. The backup heater, available as an accessory, can increase the heating capacity in cold outside temperatures. The backup heater also serves as a backup in the event of a malfunction and as a freeze protection of the outdoor water pipes during the winter.
Efficiency and sustainability
The heat pumps of the HYDRO UNIT M series use R32 as the refrigerant gas, a gas with a lower Global Warming Potential than the traditional gases used. The design of a new sealed circuit for fluorinated gases, the use of R32, reduced load volumes, lower CO2 emissions and increased energy efficiency are the characteristics that differentiate HYDRO UNIT M and increase its sustainability environmental.
Quietness
The low noise level is guaranteed by the construction features used and can be further reduced thanks to the silent mode programming, available to the customer
Antifreeze function
The HYDRO UNIT M heat pump is foreseen for outdoor installation and equipped with the ANTIFREEZE function for the protection of the entire hydraulic circuit. This customer-programmable function activates automatically whenever the water temperature in the system drops below a pre-set value, ensuring the protection of the entire system
Better performance
The ten models available offer powers from 4 kW to 16 kW , with fast response to requests and reduced energy consumption which guarantee energy class A+++ up to 35°C and A++ up to 55°C
HP KEYMARK Certified
The design meets the requirements of the voluntary European HP KEYMARK certification
Easy and flexible
Installing HYDRO UNIT M is easy thanks to the hydronic kit that comes with the monobloc and which contains all the essential components. HYDRO UNIT M is flexible thanks to its ability to respond quickly to the real needs of the environments to be served

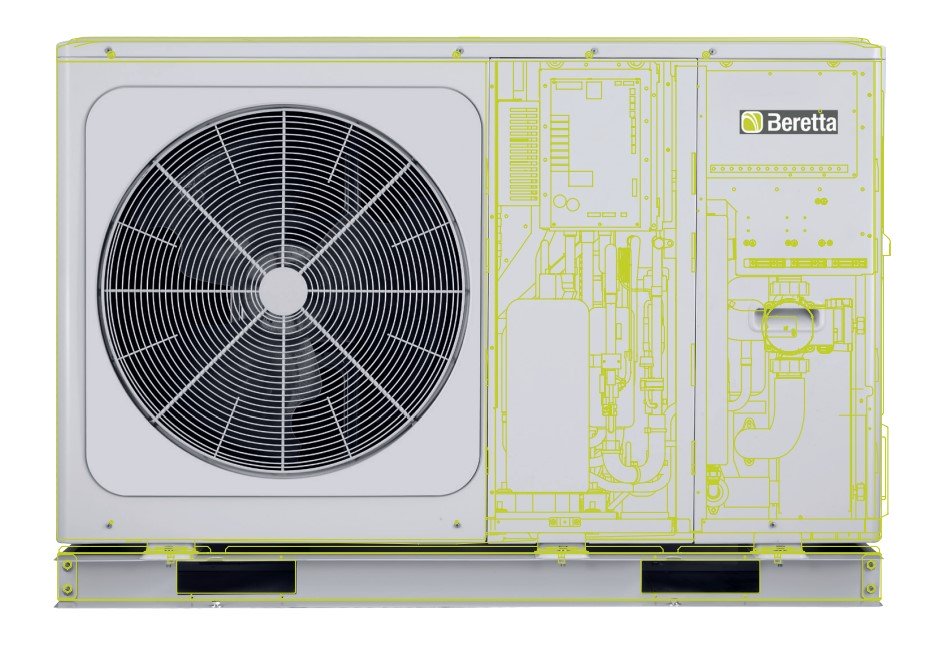

Functional elements Beretta Hydro Unit M
Inverter Control Board Maximizes power under critical load conditions and provides stability and efficiency at part loads
AISI 316 steel plate heat exchanger : protected with closed cell anti-condensation insulation, it offers high heat exchange efficiency
Control board Operating parameters constantly analyzes the ambient temperature and the water temperature to activate the different components and meet the demand
Hydronic module Including low consumption circulator, expansion vessel, automatic vent valve and safety valve
Electronic expansion valve Optimizes the flow of the refrigerant fluid in every situation
Twin rotary compressor Inverter System design including DC twin rotary compressor, fan motor and pump ensures precise motor speed control for the right power needed to perfectly match actual load and save energy
Fan Special design of the blade and its edge that allows optimizing the flow surface, improving efficiency and reducing fan noise
Heat exchange coil With extended surface and aluminum fins
Install more Hydro Unit M
HYDRO UNIT M offers the possibility of connecting up to six units to each other for the heating, cooling and domestic hot water needs of small condominiums and light commercial contexts. Each of the units responds individually to the demands of the environment in which it is installed
Easily manage the plant
Advanced remote control
This module, present in every HYDRO UNIT M installation, has a multilingual display and allows you to:
- Manage up to six units connected in cascade
- Activate the programmed functions such as the Antifreeze function and the Vacation function, for the serenity of the family
REC10MH management module
Designed for full-electric and hybrid applications, this module is installed inside the home and allows the user to easily manage the entire system. If the system is equipped with a Hybrid distribution system, REC10MH allows you to manage the multi-zone system to optimize the operation of the system. The module is equipped with a color display and a multilingual menu
USB
Each HYDRO UNIT M is equipped with a USB port to connect the USB flash memory to update the unit firmware
