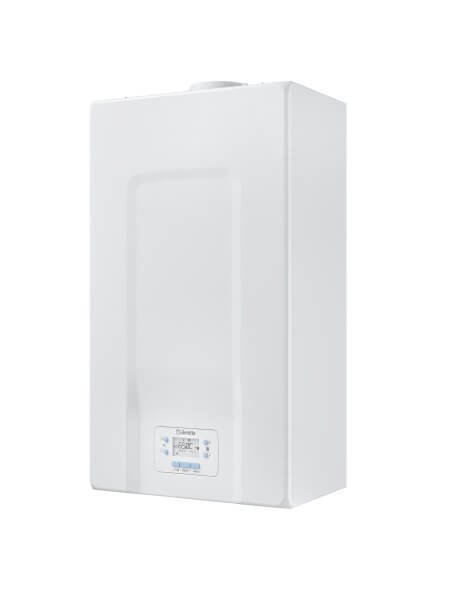

Beretta Mynute E 32c Low Nox Condensing Boiler Complete With Fume Exhaust Kit 20164602 Methane Or LPG Wi-Fi Optional - New

ATTENTION FOR THE OPERATION OF THE LPG BOILER IT IS NECESSARY TO CONTACT THE AUTHORIZED AREA ASSISTANCE CENTER IN ADVANCE

Beretta MYNUTE E 32C Low NOx condensing boiler complete with flue gas kit 20164602 Methane or LPG Wi-Fi Optional - NEW

• Boiler code 20164602
• Seasonal heating energy efficiency class A
• Energy efficiency class of the sanitary fixture A
• XL load profile
• NOx emission class 6

Technical features

• Heating thermal capacity (max-min) kW 29.00-6.00
• Nominal DHW heat input (max-min) kW 31.60-6.00
• Expansion vessel capacity on membrane l8
• DHW production at ΔT= 25°C / 30°C / 35°C l/min 18.1/15.1/12.9
• Supply voltage V-Hz 230 - 50
• IP X5D degree of protection

MYNUTE E

BERETTA PRESENTS MYNUTE E, THE NEW CONDENSING BOILER WHICH, COMBINING RELIABILITY AND COMFORT WITH INSTALLATION FLEXIBILITY, IS THE IDEAL CHOICE FOR REPLACING

The new MYNUTE E range is divided into three models combined in 25 kW and 32 kW power, one of which is a 25 kW DIN version, to also allow the replacement of boilers with hydraulic standards other than Beretta. The linear and modern design, in line with the recent generation Beretta boilers, the compactness of the dimensions and the installation flexibility make MYNUTE E easy to integrate into any living environment, both inside homes and outdoors (in partially protected places) or built-in, using dedicated accessories. The good efficiency, which places the range in class A, the ease of use and maintenance, and the excellent comfort, both in heating and DHW, complete the profile of this product, which will be appreciated for its reliability and functionality, in perfect harmony with the MYNUTE Beretta tradition.


MYNUTE E, RELIABILITY AND FLEXIBILITY FOR A WORRY-FREE REPLACEMENT

FEATURES

• Aluminum condensing exchanger
• Modulation range 1:5
• Low consumption modulating circulator (EEI ≤ 0.20), 6 m
• Low NOx emissions: CLASS 6 (UNI EN 15502)
• Availability of 25kw model also with sequence of DIN type hydraulic connections, ideal for replacing products with the same type of connections
• Installation flexibility: indoor, outdoor and recessed installation (in a partially protected place)
• The 25C and 25C DIN models are C10 approved. Smoke clapet (non-return valve) available as an accessory
• Click-fit flue connection: fast and safe, without the need for an external collar
• Antifreeze heater kit, hydraulic connections and external probe available as accessories
• IPX5D electrical protection degree
• “DOUBLE T” template supplied
• Compatible with hybrid connects for managing up to two system zones
• Compatible with air-propane gas (25C and 25C DIN models) and with LPG, through optional kits. For gas conversion, contact authorized Beretta Technical Assistance Centres
• Compatible with BeSmart WiFi comfort control as thermostat (OTBus communication), allowing the most advanced functions
• Possibility of intubating flues with the special flue in PP ø50, ø60 and ø80
• Polyphosphate dosing filter and compact magnetic filter available as accessories
• Hybrid Ready: Mynute E can be integrated into Beretta multi-energy systems through the Rec 10H Hybrid and the Connect Hybrids, available as accessories

Product Warranty The warranty on this item is 24 months from the date of purchase.

• peso: 35.0 kg
• classe energetica produzione acs: A
• classe energetica riscaldamento: A
• gas: Methane/LPG
• marca: BERETTA
• metri quadri : 220
• modello: 20164602
• potenza in kw: 32
• potenza nominale: 32
• superficie riscaldabile mq: 220
