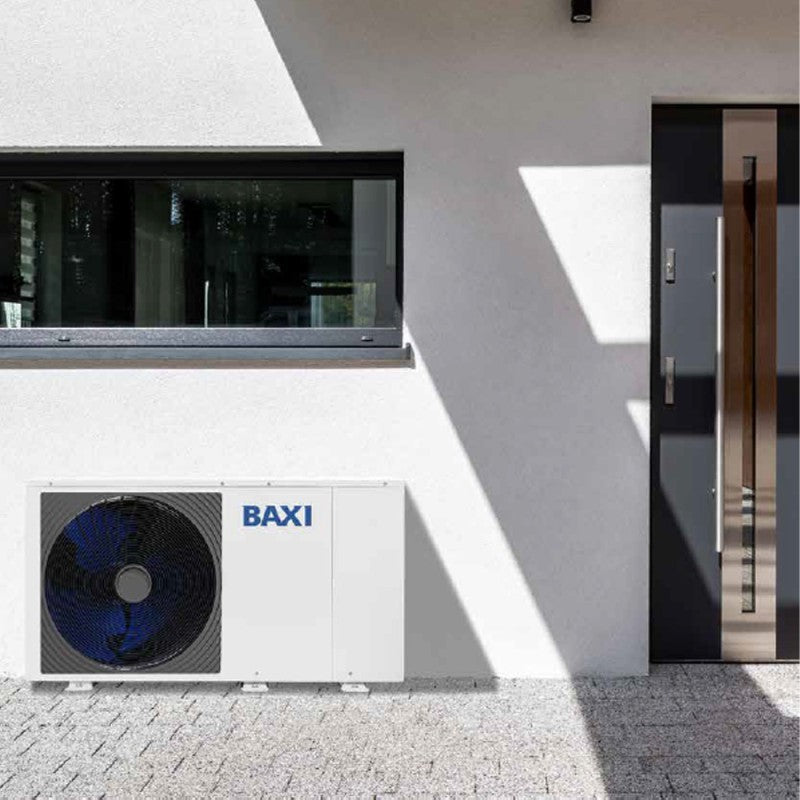

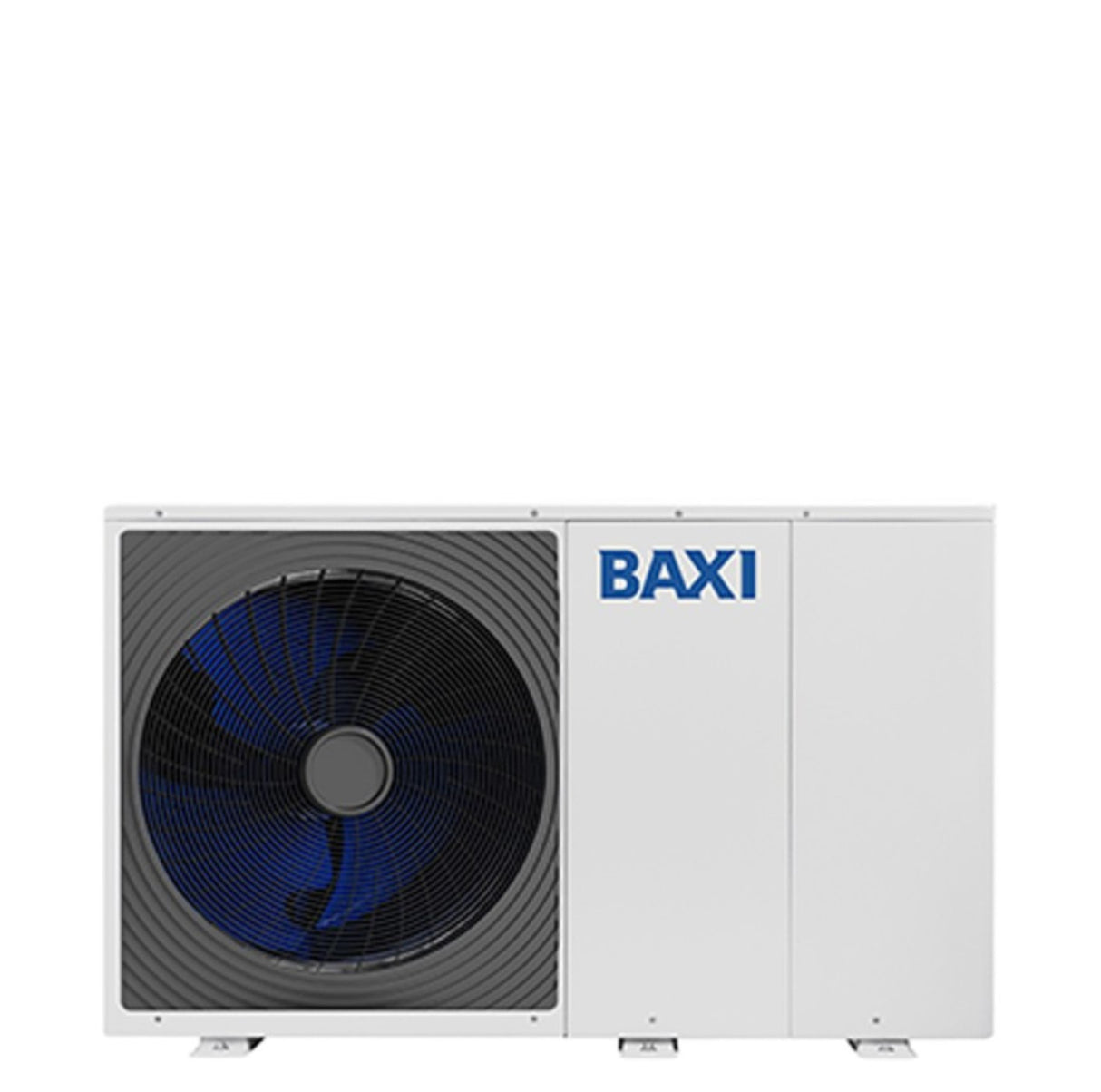

Air-Water Heat Pump Monoblock Inverter Baxi Auriga 12m-A R-32 Single-Phase A7794574 With Remote Control Panel Included - New

External air temperature 7°C - 87% RH Water temperature 35°C

• Nonimal thermal power: 12.30 kW
• Absorbed electrical power: 3.32 kW
• COP: 3.70

• Nonimal thermal power: 11.90 kW
• Absorbed electrical power: 3.90 kW
• COP: 3.05

External air temperature 35°C - Water temperature 7°C

• Exchanger water flow rate: 2.09 m ³ /h
• Available pump head: 60 kPa
• Sound power level : 65 dB(A)
• Sound pressure level : 53 dB(A)

Electrical data

• Power supply (V,Hz, Ø) : 220~240/50/1
• Refrigerant gas : R32

• External air temperature : -25°C ~ 35°C
• Introduced water temperature : 12°C~ 65°C

• Plumbing pipe diameter: 1'' 1/4

Dimensions and weight

• Dimensions (HxWxD): 865x1385x488 mm
• Empty weight: 144 Kg

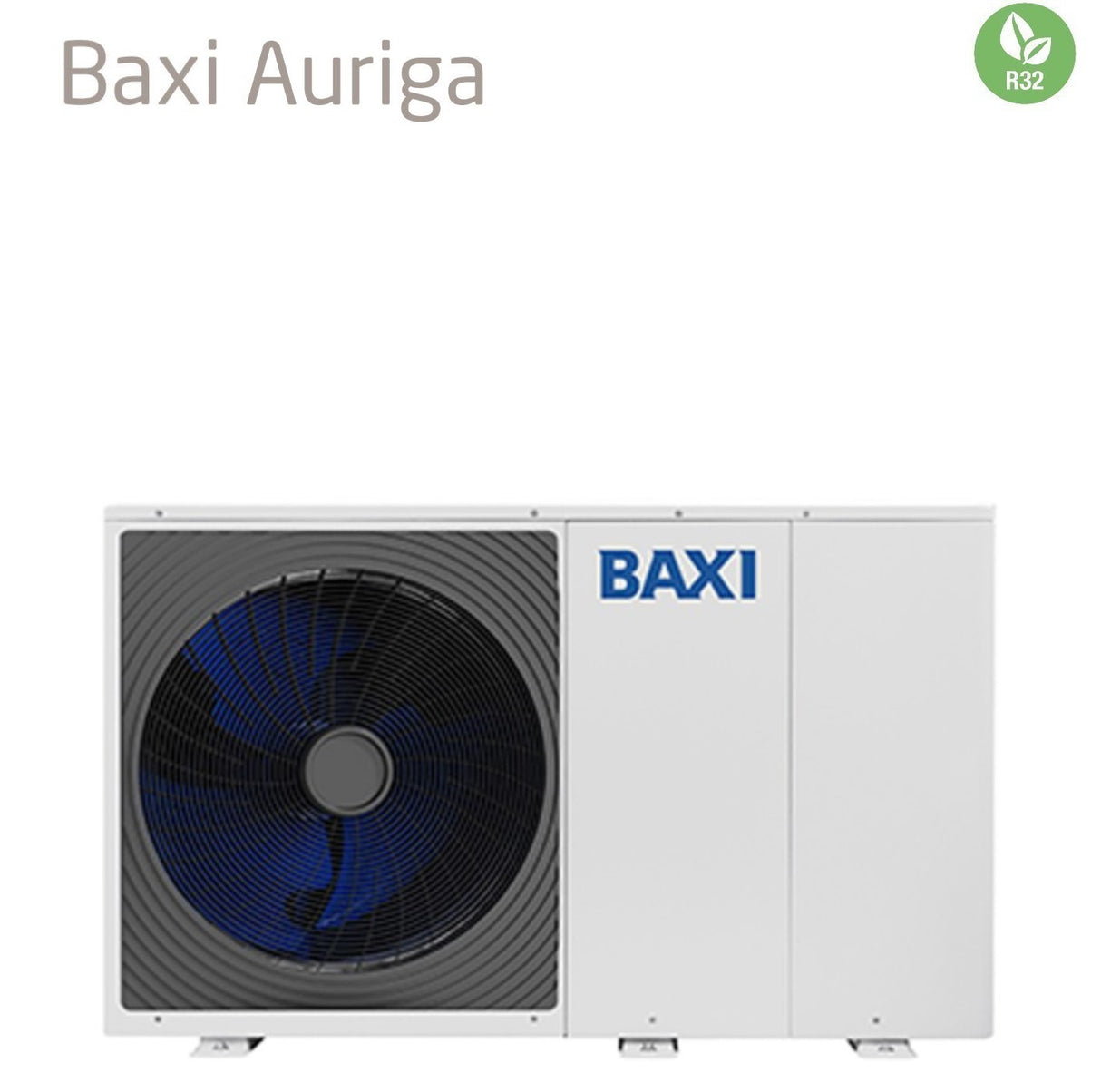

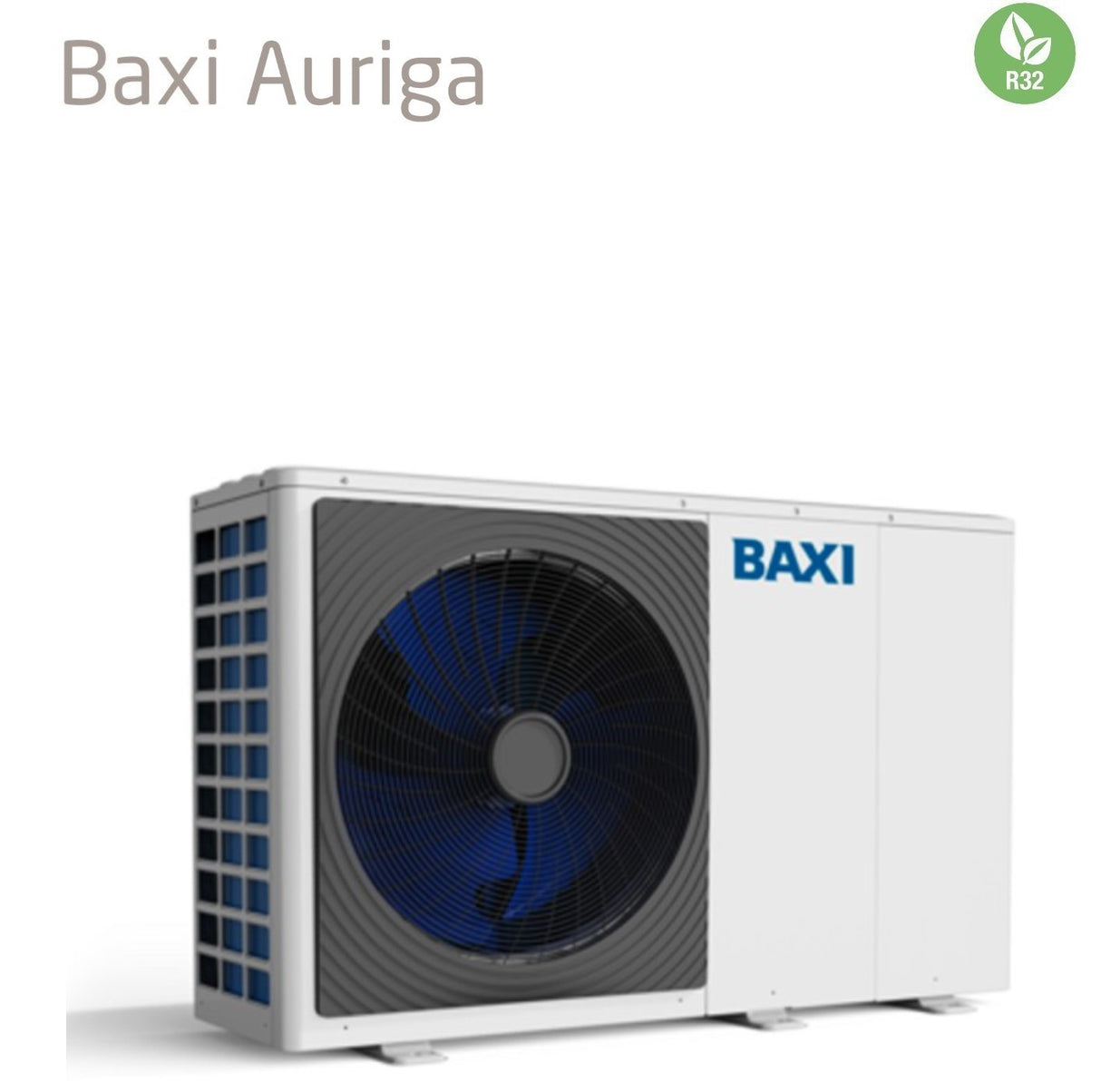

BAXI AURIGA Inverter Monobloc Air-Water Heat Pumps

introducing the new Auriga . The range is characterized by the ease and simplicity of installation, as well as for reliability and excellent performance . Furthermore, the high head of the circulator, fitted as STANDARD inside the unit, allows installation in large-sized systems, to cover greater distances from the boiler room or to install the unit directly at the service of the fan coils. The range expands and consists of well 8 models from 4 to 16 kW, single-phase and three-phase versions

Wide range of powers from 4 to 16 kW to satisfy all system requirements: heating, cooling and DHW production. The power range is made up of the following sizes: 4, 6, 8, 10, 12 and 16 kW.

Cascade Thanks to the new operating logics it is possible to install up to 6 units in cascade. By exploiting the modularity and redundancy of the generators, the system efficiently satisfies the requests of all plants.

Complete hydraulic equipment as standard High head circulation pump, flow switch, expansion vessel (8L), safety valve, pressure gauge and "Y" strainer

Remote control panel Control of system functions, programming and parameter verification. Furthermore, the possibility of connection via Modbus allows integration with BM systems

Operating range Wide operating range, with operating temperatures in heating up to 65 °C

ErP Energy Labeling The labeling regulation (EU Regulation 2017/1369) requires the labeling of products according to a decreasing energy scale that goes from A+++ to D (in heating) and from A+ to F (in sanitary). All models of the range (4M-A / 6M-A / 8M-A / 10M-A / 12M-A / 12T-A / 16M-A / 16T-A) reach an efficiency equal to A+++ in low temperature heating

Components

Twin rotary DC inverter compressor Complete with internal thermal protection and crankcase resistance, mounted on anti-vibration rubbers and wound on an insulating hood to reduce the transmission of noise and vibrations due to operation

Water-refrigerant exchanger With brazed plates in AISI 316 steel with external anti-condensation insulation in expanded polypropylene and anti-freeze resistance to prevent the formation of ice in the exchanger

Air-refrigerant exchanger Aluminum finned coil with hydrophilic treatment to facilitate the flow of condensate, mechanically expanded copper pipes with internal shaping to increase heat exchange. Furthermore, the optimized circuitry reduces the formation of ice in the coil during heat pump operation

Fan directly coupled to the high efficiency brushless DC variable speed motor. The fan is installed on aerodynamic nozzles and safety grilles

Refrigerant circuit Made of pickled copper, it includes the electronic expansion valve, drier filters, high and low pressure switches, pressure transducer, cycle inversion valves, liquid receiver and separator, refrigerant injection valve on the suction side

Hydraulic circuit In addition to the brazed plate heat exchanger, the unit includes the high head circulator, the expansion tank, the safety valve, the flow switch, the pressure gauge, the air vent valve and the metal mesh Y strainer (assembly by the installer)

Electrical panel Includes fuse protection of the main internal components; the terminal board is divided into a power section for unit power supply and a control terminal board for connecting auxiliary inputs and outputs and connection to the control panel

Main features Baxi Auriga

• Maximum energy efficiency

• Monobloc system for the production of heating, cooling and DHW

• Wide operating range, with external air down to -25°C in heating, up to 43°C in cooling

• DHW system management: production up to 65°C, storage tank temperature management, DHW recirculation pump and solar thermal integration

• Suitable for integration with radiant terminals, fan coils and mixed systems

• Integrated management with various plant systems: boiler integration, solar integration, management of diverter valves and secondary circuit pump

• Intelligent defrosting thanks to simultaneous monitoring of room temperature, coolant temperature, product water temperature and operating regime

• Compressor with DC inverter technology with high modulation range

• Modbus network connection

• low GWP refrigerant R32

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.
