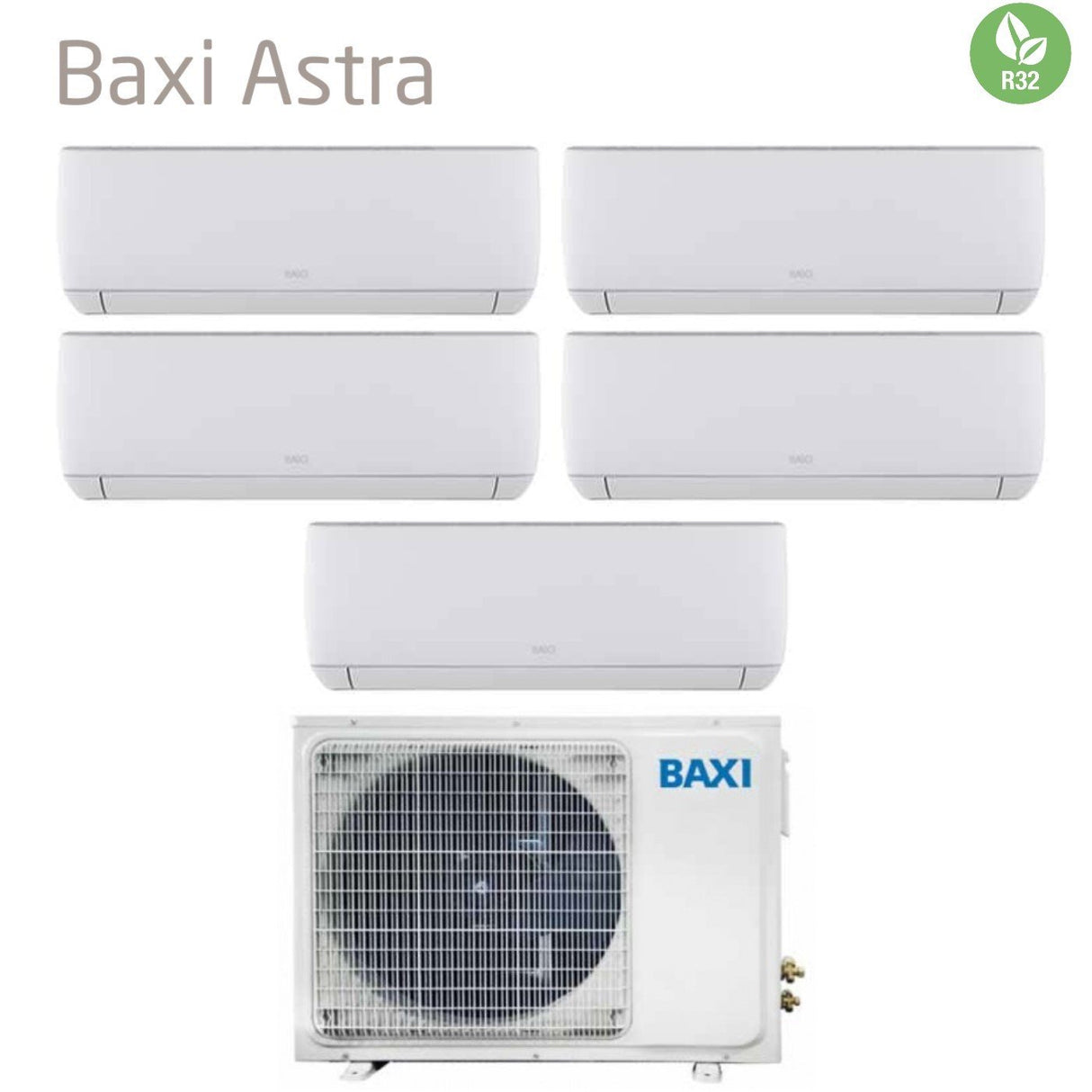

Air Conditioner Baxi Penta Split Inverter Astra Series 7+7+7+7+7 with LSGT125-5M R-32 Wi-Fi Optional 7000+7000+7000+7000+7000 - New

Technical Features

Internal Units

Model

External Unit

Model:

• Indoor Unit Catalog Code: LSGT125-5M
• Max indoor units: up to 5 indoor units

Energy Efficiency:

• SEER : 6.1
• SCOP : 4.1
• Energy Efficiency Class Cooling: A++
• Heating Energy Efficiency Class: A+

Performance:

• Cooling capacity : 12.0 kW
• Heating capacity: 13.0 kW
• Std Cooling Absorption: 4.23 kW
• Std Heating Absorption: 3.49 kW
• Sound power level: 68 dB(A)

Characteristics:

• Power supply (V/Hz/Φ) : 220~240/50/1
• Refrigerant gas: R-32
• Liquid Pipe Diameter: 6.35mm (1/4") x5
• Gas pipe diameter: 9.52 mm (3/8") x5
• Maximum Pipe Length: 80 m
• Maximum height difference between internal unit and external unit: 15 m

Dimensions:

• External Unit Dimensions (WxHxD): 985x808x395 mm
• External Unit Weight: 75 Kg

---

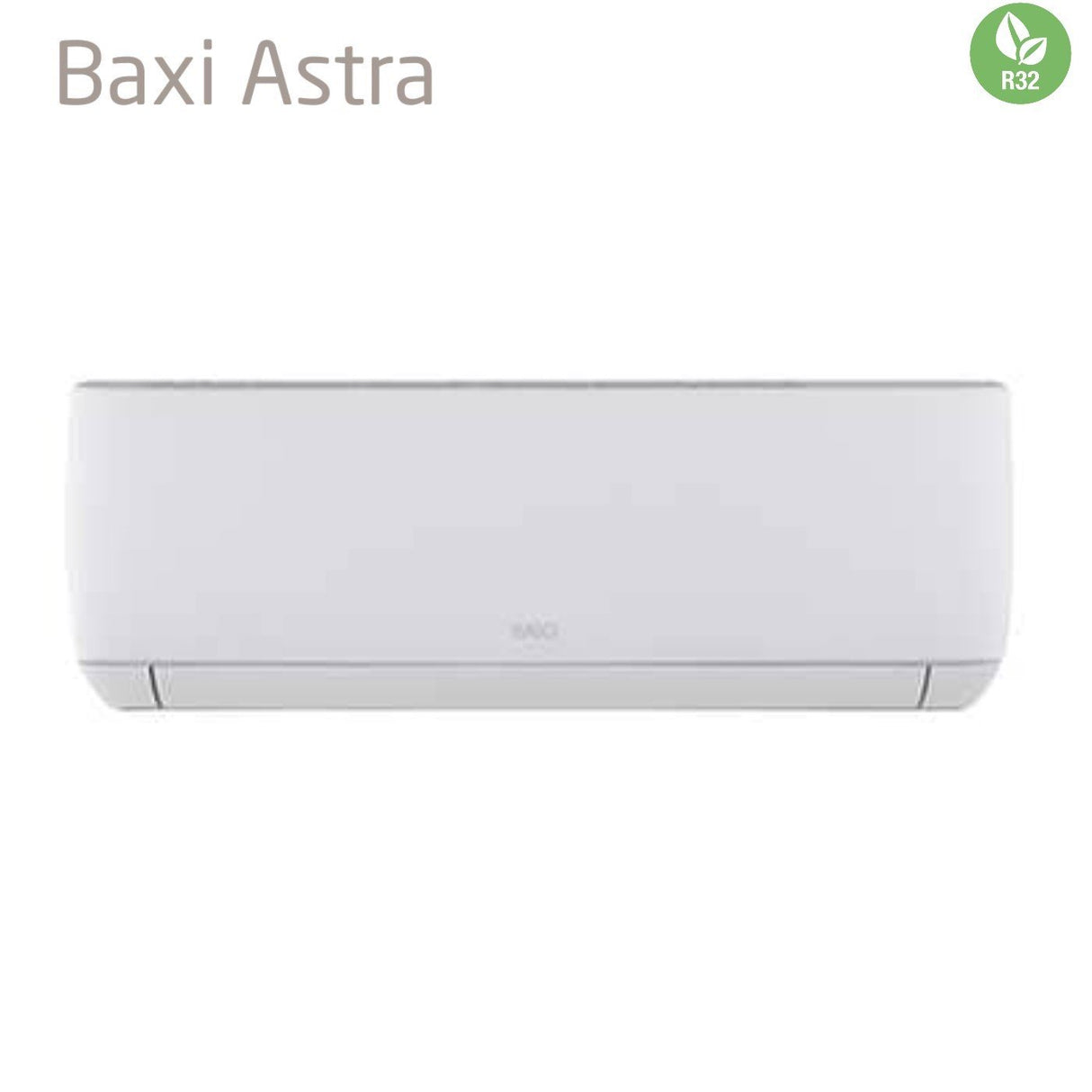

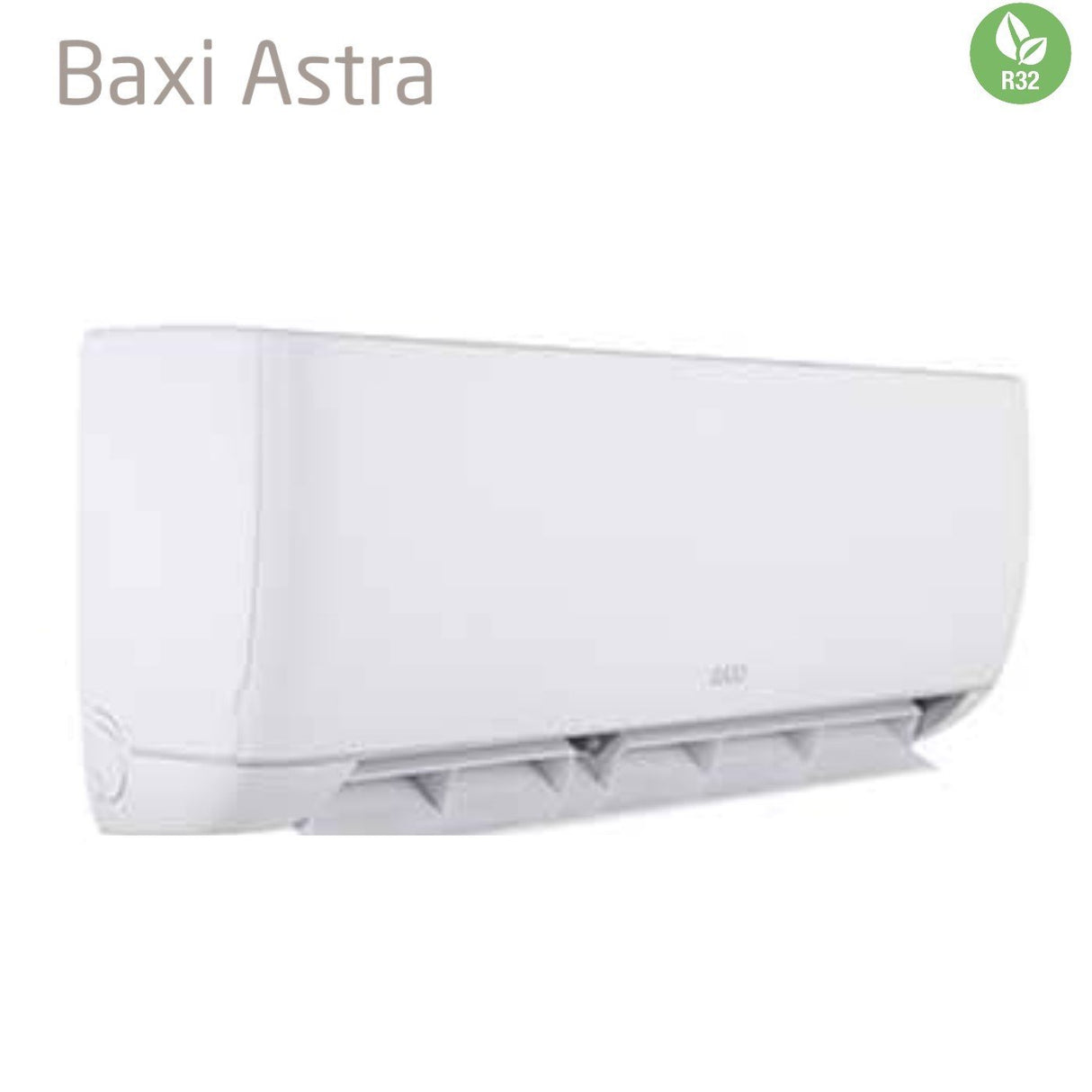

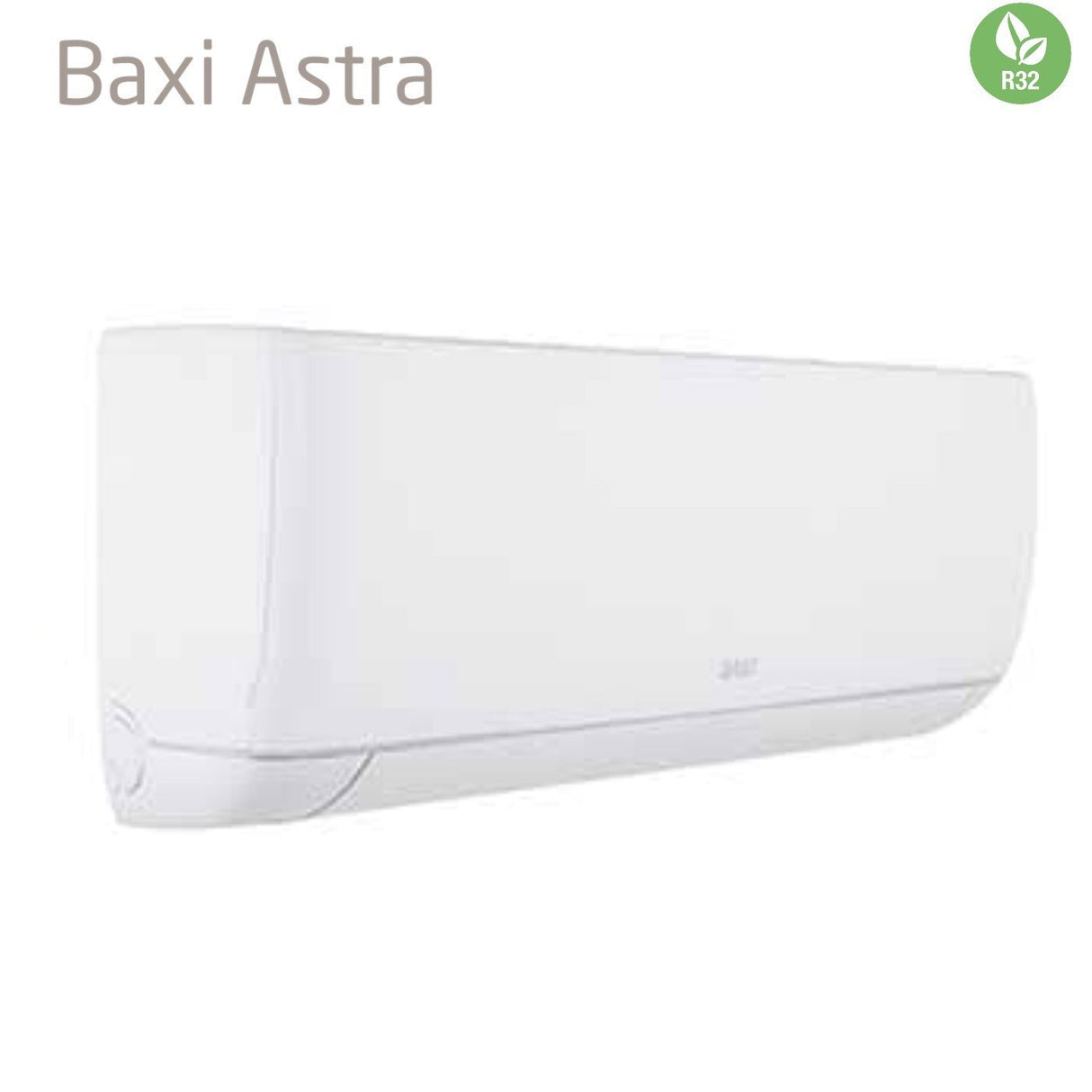

Baxi Astra

New modern matt white design

Totally new design, minimal and elegant with matt white surfaces. The front panel has a strongly vertical cut that makes the design harmonious and exclusive.

---

Structure of the new Baxi Astra

Lower attacks

The indoor unit can be wall mounted before connecting the pipes, without having to dismantle the entire casing; furthermore, it is not necessary to tilt the unit to make the connections. This reduces installation times.

Wings

Baxi Astra is equipped with a double set of vertical and horizontal fins, with leaf-shaped fins for even air distribution.

Knobs instead of locking screws

Instead of traditional screws, there are locking knobs for dismantling the plastic casing

---

Total climate control

Easy and intuitive comfort management

Comfort management takes place locally thanks to the remote control with liquid crystal display supplied as standard and complete with double keyboard with quick menu on the surface.

---

Wealth of exploitable functions

---

Smart comfort with Air Connect comfort at your fingertips

The Air Connect App and WI-FI module allow you to remotely control Baxi Astra air conditioners.

The WI-FI module of the Baxi Astra range consists of a Plug & Play USB device that is extremely simple to install.

Air Connect is the application that allows you to have full control of the temperature and comfort of your home, at any time and from wherever you are.

For the Baxi Astra range, the WI-FI module is available as an accessory. Therefore, after installing the WI-FI module and downloading the App, you can communicate with your Baxi air conditioner directly from your Smartphone and Tablet devices (iOs and Android).

With a simple touch you can: turn the air conditioner on/off, set the operating mode, fan speed, vertical and horizontal oscillation of the blades, active functions, timer, etc.

Air Connect means convenience and ease of use:

• No visual impact: the WI-FI module is inserted into the appropriate slot behind the front panel of the air conditioner

• Easy and intuitive time programming that allows the combination of comfort and high energy savings

• Possibility to control multiple devices with the same App, in the case of Multi Split air conditioners (Dual Split, Trial Split, etc.) equipped with the WI-FI module

• Presence of all the functions of the remote control directly on your device, such as: Turbo, Sleep, iClean, etc.

WI-FI module packaging

The package contains: physical WI-FI module, manual and warranty certificate

Terms of Use

This application is able to manage more than one device (air conditioner) as long as they are Baxi air conditioners, equipped with the appropriate WI-FI module.

---

A Complete Range

With the new range of Baxi Astra air conditioners, it is possible to create multiple combinations to satisfy the most varied installation needs: MONO, DUAL, TRIAL, QUADRI and PENTA Split. For the Multi Split models of the Baxi Astra range, the diagram shows, as an example, a typical combination and the maximum one that can be created for each configuration

---

Cutting-edge technology

The DC inverter technology, managing the air supply based on the real needs of the environment, guarantees the optimization of consumption and the reduction of noise thanks to:

• Internal DC fan
• External DC fan
• DC compressor
• Machine controller

---

The best synthesis between functionality and performance

---

Silent

Baxi Astra air conditioners are designed for extremely silent operation (up to max 20 dBA) to ensure quality comfort in the environment in which we stay.

---

Product Warranty: All products for sale on our site are new and packaged. The warranty on this item is 24 months from the date of purchase.

• peso: 120.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: BAXI
• modello: Astra 7+7+7+7+7 125
• potenza btu: 7000+7000+7000+7000+7000
• superficie riscaldabile mq: 20/20/20/20/20
