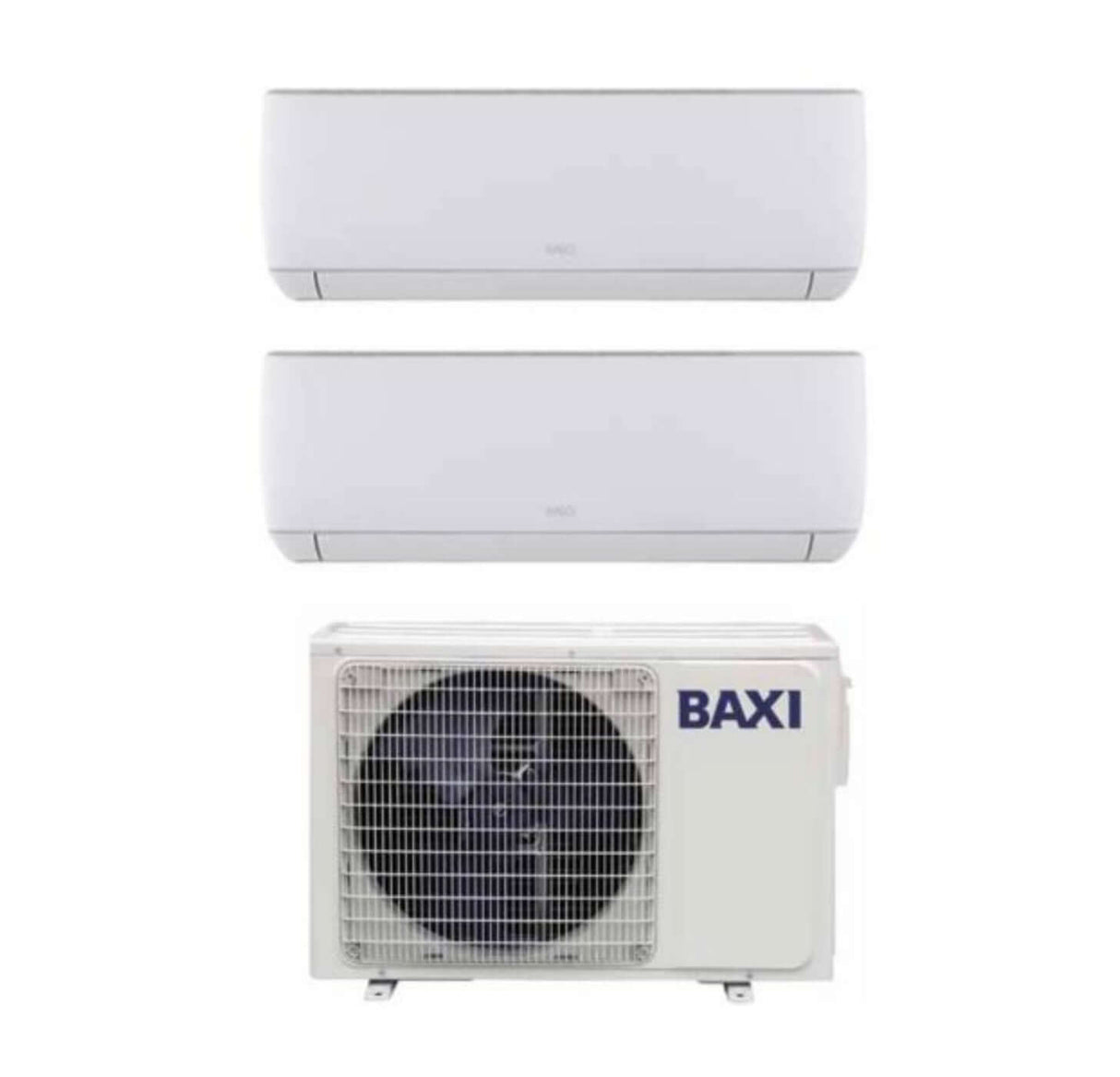

Baxi Dual Split Inverter Air Conditioner Astra 9+12 Series With Lsgt40-2m R-32 Wi-Fi Optional 9000+12000 - New

Technical features

Indoor Units

1) Model

Outdoor Unit

Model:

• Indoor Unit catalog code: LSGT125-5M
• Max indoor units: up to 5 indoor units

Energy efficiency:

• SEER : 6.1
• SCOP : 4.1
• Cooling Energy Efficiency Class: A++
• Heating Energy Efficiency Class: A+

Performance:

• Cooling Capacity: 12.0 kW
• Heating Capacity: 13.0 kW
• Std cooling absorption: 4.23 kW
• Std heating absorption: 3.49 kW
• Sound power level : 68 dB(A)

Characteristics:

• Power (V/Hz/Φ) : 220~240/50/1
• Refrigerant gas : R-32
• Pipe diameter Liquid : 6.35 mm (1/4") x5
• Gas pipe diameter : 9.52 mm (3/8") x5
• Maximum Piping Length: 80 m
• Maximum height difference Indoor Unit / Outdoor Unit: 15 m

Dimensions:

• External Unit Dimensions (WxHxD): 985x808x395 mm
• Weight of Outdoor Unit: 75 Kg

---

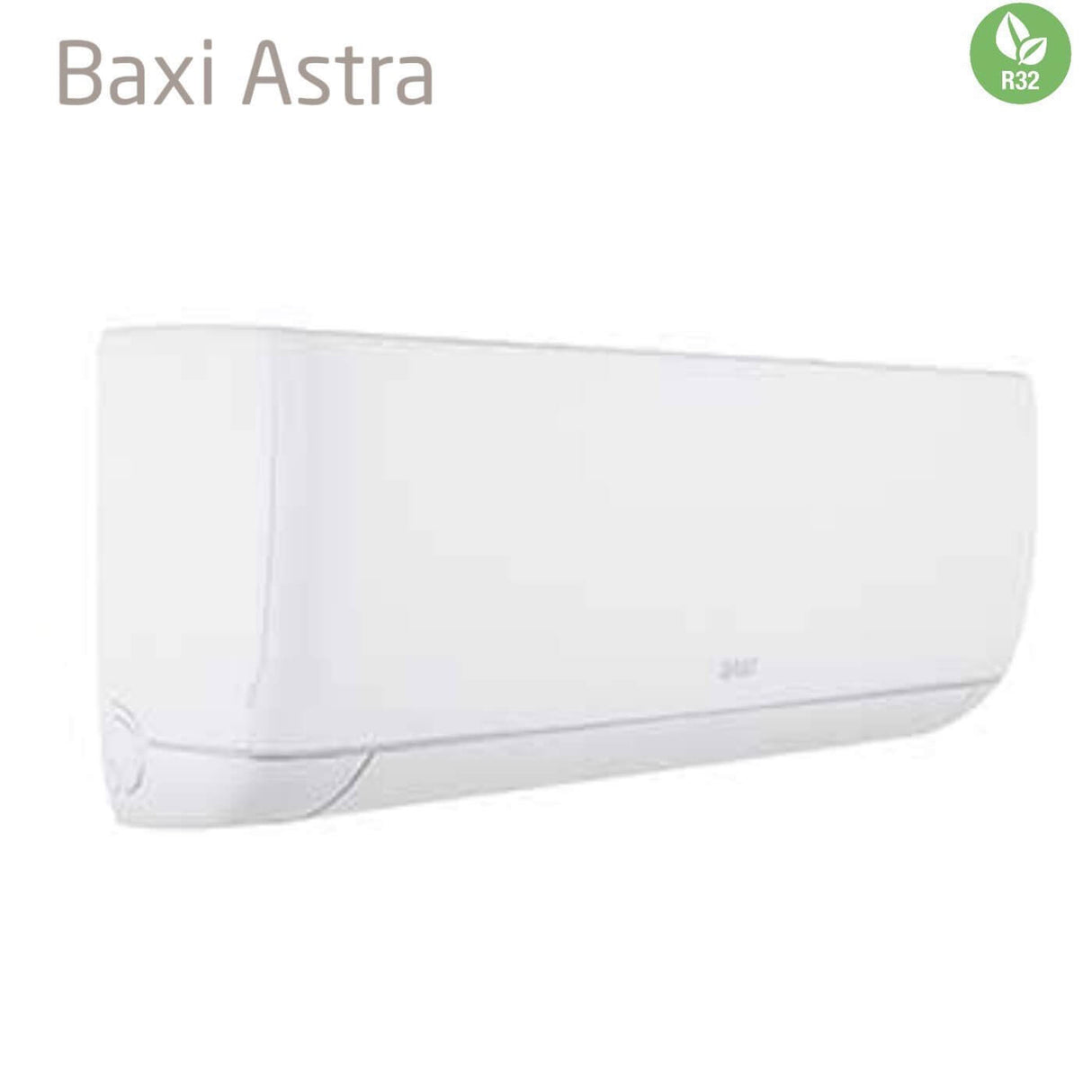

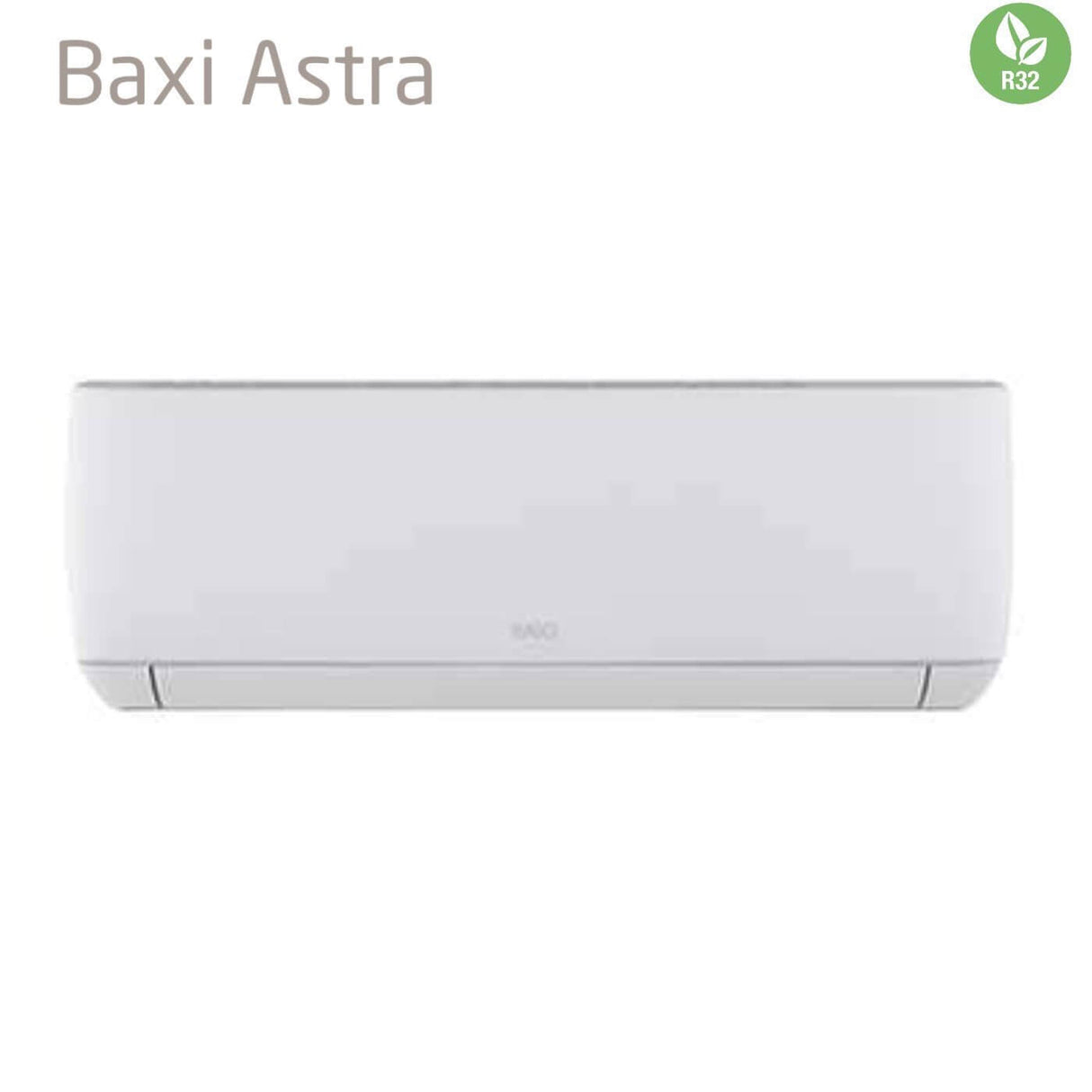

Baxi Astra

New matt white and modern design

Totally new, minimal and elegant design with matte white surfaces. The front panel has a strongly vertical cut which makes the design harmonious and exclusive.

---

Structure of the new Baxi Astra

Bottom bindings

It is possible to mount the indoor unit on the wall before connecting the pipes, without having to disassemble the entire casing; there is also no need to tilt the unit to make connections. This reduces installation times.

fins

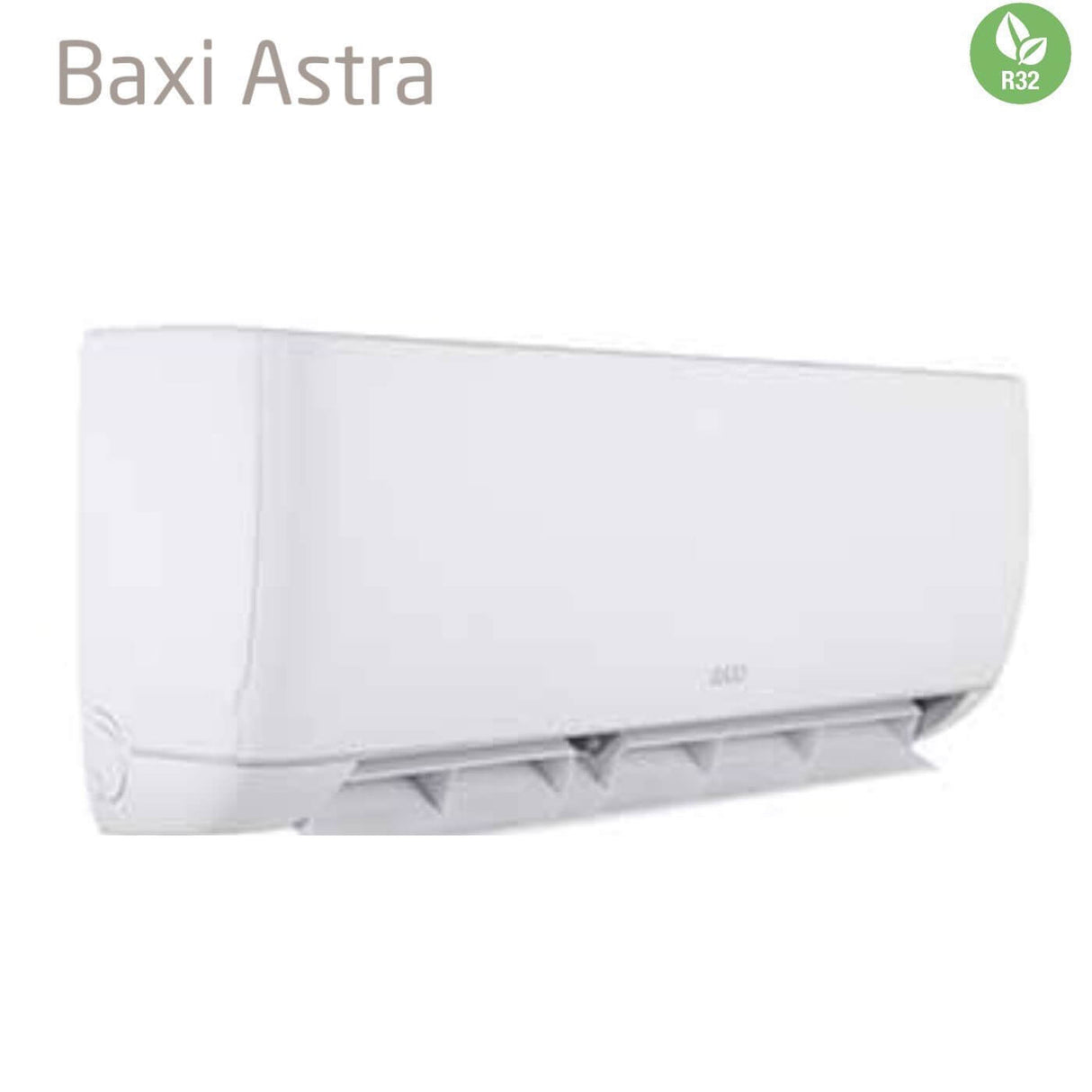

Baxi Astra is equipped with a double series of vertical and horizontal fins, with leaf-shaped fins for uniform air distribution.

Knobs instead of locking screws

Instead of the traditional screws, there are closing knobs for disassembling the plastic casing

---

Full climate control

Easy and intuitive comfort management

Comfort management takes place locally thanks to the remote control with liquid crystal display supplied as standard and complete with double keyboard with quick menu on the surface.

---

Wealth of exploitable functions

---

Smart comfort with Air Connect comfort at your smartphone's reach

The Air Connect App and the WI-FI module allow you to remotely control Baxi Astra air conditioners.

The WI-FI module of the Baxi Astra range consists of a Plug & Play USB device that is extremely simple to install.

Air Connect is the application that allows you to have full control of the temperature and comfort of your home, at any time and from wherever you are.

For the Baxi Astra range, the WI-FI module is available as an accessory. Therefore, after installing the WI-FI module and downloading the App, it is possible to communicate with your Baxi air conditioner directly from Smartphone and Tablet devices (iOs and Android).

With a simple touch you can: turn on/off the air conditioner, set the operating mode, fan speed, vertical and horizontal oscillation of the louvers, active functions, timers, etc.

Air Connect means practicality and ease of use:

• No visual impact: the WI-FI module is inserted in the special housing behind the front panel of the air conditioner

• Easy and intuitive time programming that allows the combination of comfort and high energy savings

• Possibility of controlling multiple appliances with the same App, in the case of Multi Split air conditioners (Dual Split, Trial Split, etc.) equipped with the WI-FI module

• Presence of all remote control functions directly on your device, such as: Turbo, Sleep, iClean, etc

WI-FI module packaging

The package contains: physical WI-FI module, manual and warranty certificate

Terms of use

This application is able to manage more than one device (air conditioner) as long as they are Baxi air conditioners, equipped with the appropriate WI-FI module.

---

A Complete Range

With the new range of Baxi Astra air conditioners it is possible to create multiple combinations to satisfy the most varied installation needs: MONO, DUAL, TRIAL, QUADRI and PENTA Split. For the Multi Split models of the Baxi Astra range, the diagram shows, by way of example, a typical combination and the maximum achievable for each configuration

---

Cutting edge technology

The DC inverter technology, managing the air supply according to the real needs of the environment, guarantees the optimization of consumption and the reduction of noise thanks to:

• Internal DC fan
• External DC fan
• DC compressor
• Machine controller

---

The best synthesis between functionality and performance

---

Silent

Baxi Astra air conditioners are designed for extremely silent operation (up to max 20 dBA) to ensure quality comfort in the environment where we stay.

---

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

• peso: 55.0 kg
• classe energetica raffreddamento: A++
• classe energetica riscaldamento: A+
• gas: R-32
• marca: Baxi
• metri quadri : 25/35
• modello: Astra 9+12 40
• potenza btu: 9000+12000
• superficie riscaldabile mq: 25/35
