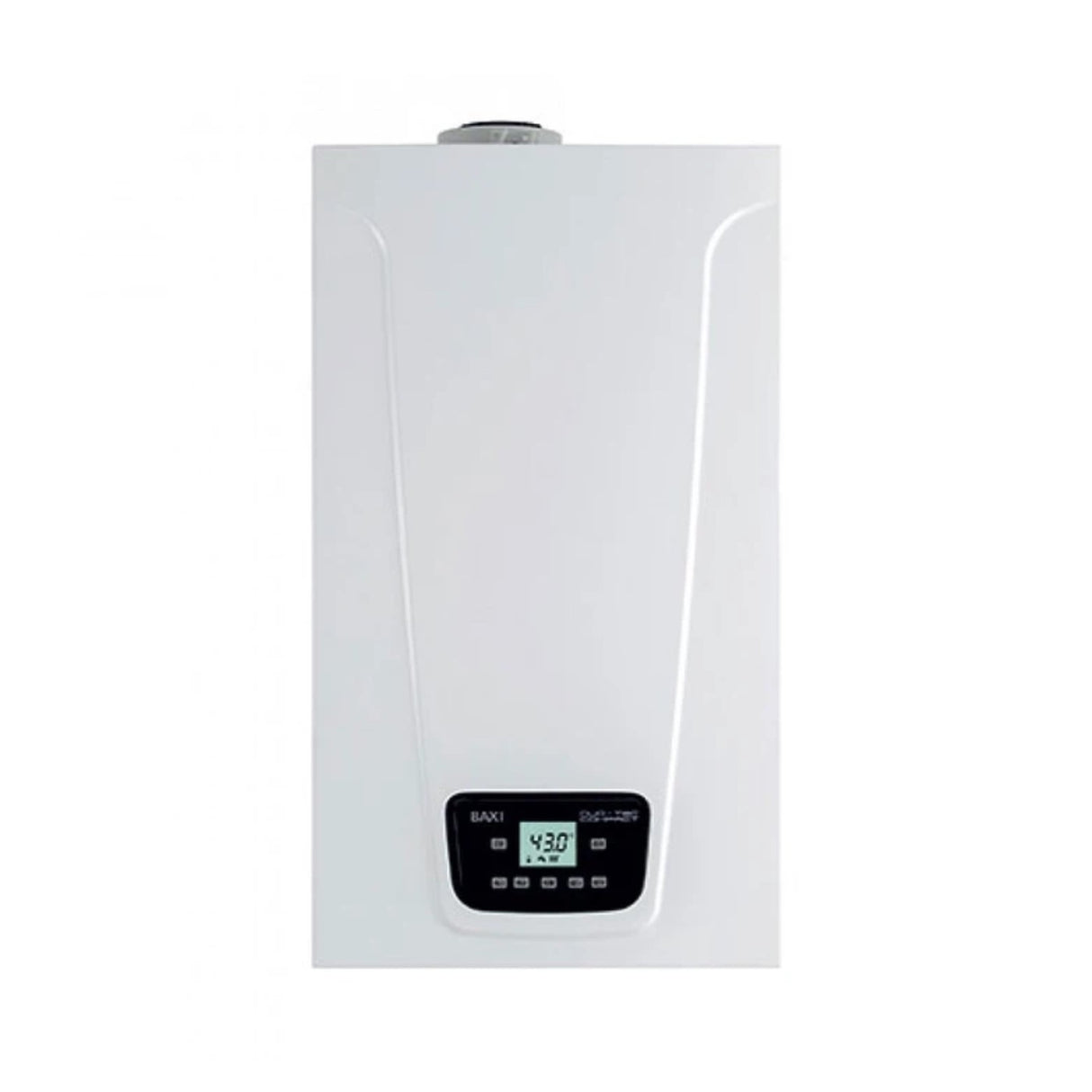

Baxi Duo-Tec Compact E 28 kW low NOx condensing boiler complete with methane or LPG fume exhaust kit - News
Technical features
- ErP energy efficiency class (heating and DHW): A
- Load profile: XL
- DHW nominal heat input kW 28.9
- Heating nominal heat input kW 24.7
- Seasonal space heating energy efficiency ŋs % 93
- Emissions of nitrogen oxides NOx mg/kWh 17
- Minimum operating temperature °C -5
- Expansion vessel capacity l 7
- Heating circuit water temperature adjustment °C 25-80
- Domestic hot water production ∆T 25°C (1) l/min 16.1
- DHW circuit minimum water flow rate l/min 2
- Expansion vessel capacity l 7
- Dimensions (hxlxp) mm 700x400x299
- Degree of protection IPX5D
NB: LPG OPERATION THROUGH ADJUSTMENT FROM THE AUTHORIZED SERVICE CENTER
DUO-TEC COMPACT E range
New design: change the aesthetics, not the performance.
Luna Duo-tec E and Duo-tec Compact E: the already well-known Baxi boilers present themselves today with a new aesthetic, increasingly modern and attentive to new design trends, which allows them to be inserted in any living context. The control panel has also been completely renewed and is equipped with a new backlit LCD display that is even clearer and simpler to use thanks to dedicated and independent keys. The new boilers, even more beautiful and modern thanks to the restyling, however keep intact the characteristics that have always distinguished the Duo-tec range: Reliability. Robustness, durability and reliability in performance; Efficiency and savings. The reduction of the on/off cycles translates into considerable benefits in terms of energy savings and lower emissions; Completeness of range. Heating only models, with instantaneous DHW production, and also the compact version with the possibility of outdoor installation. The range has been further enriched with the new models equipped as standard with the Baxi Ma go (duo tec mago) modulating chronothermostat with integrated wi-fi
The ideal boiler for new builds and replacements The Duo-tec E range of gas condensing boilers have been specifically designed in compliance with the requirements of the Ecodesign and Labeling Directives, to make them particularly suitable for both new builds and replacement old generator. The energy class, identified by a letter, expresses a range of efficiency values within which the one expressed by the product in question resides. The label was created for the final consumer, so that, through real and comparable data, he can make informed choices by targeting high-efficiency products.
Exchanger preheating function
The boilers in the Duo-tec E range are equipped with the exchanger pre-heating function which guarantees the immediate production of domestic hot water at the set comfort temperature. In fact, the sanitary water passing through the plates of the preheated exchanger is already supplied at the desired temperature without waiting times. The function can be easily activated/deactivated by a specific boiler parameter
Boiler info
By pressing the dedicated key , it is possible to view numerous information regarding boiler operation such as: heating system water pressure (electronic pressure transducer present in the hydraulic unit); heating flow/return temperature; external temperature (with external probe installed); domestic hot water temperature.
Efficiency and savings
- greater efficiency given by less switching on and off: with a high modulation ratio, the reduction of continuous switching on/off cycles leads to a significant reduction in consumption (by 8-10%) and an equal reduction in polluting emissions;
- adaptation of the thermal power produced to the power dissipated thus avoiding excessive overheating/cooling of the premises.
Gas Adaptive Control
It is an innovative system which, thanks to a new control electronics and a new electronic gas valve, guarantees automatic control of combustion to constantly maintain maximum efficiency values.
Advantages:
- there are no manual interventions - reduced measuring, calibration or changing nozzles
- with this system, the boiler self-adapts to the quality of the gas and the length of the flue gas pipes, keeping efficiency constant
- the boiler also constantly regulates itself to maintain the maximum efficiency values, favoring a reduction in gas consumption and generating less pollution thanks to the continuous control of emissions
Outdoor installation
Duo-tec Compact E boilers can be installed outdoors in partially protected places thanks to the new top cover kit and bottom closure kit (available as accessories). In fact, the Duo-tec Compact E range is equipped AS STANDARD with an electronic antifreeze system which guarantees operation down to a temperature of -5 °C: the IPX5D protection also protects the electrical parts from jets of water which may come from all directions.
- New modern and elegant design for the whole range
- Wide modulation range 1:7 greater efficiency and silence
- GAC (gas adaptive control): automatic combustion control
- Digital control panel with large backlit LCD display
- New cover kit: possibility of outdoor installation in partially protected places (optional accessory)
- Rigid and flexible Ø50 mm exhaust pipe connection: solution for restoring flues - for mod. 24 kW total length 40 meters (intake+exhaust)
- Compact dimensions: 700x400x299 mm
hydraulic system
- Electric three-way diverter valve
- Pre-mix burner in stainless steel
- Stainless steel water/fumes exchanger
- Increased DHW exchanger in stainless steel which allows the boiler to condense even in DHW operation
- Modulating fan with electronic speed variation
- Automatic by-pass High efficiency circulation pump with total modulation
- Pump anti-blocking system and three-way valve which intervenes every 24 hours
- Heating circuit safety valve at 3 bar
Thermoregulation system
- Standard climate control (with external probe available as an option)
- Arrangement for connection to a zone system
Control system
- Safety thermostat against overheating of the water/fumes exchanger
- Hydraulic pressure switch that blocks the gas in the event of a water shortage NTC safety probe against fume overheating
- Temperature control using NTC probes
- Total antifreeze device
- Electronic thermometer
- Heating circuit pressure gauge
