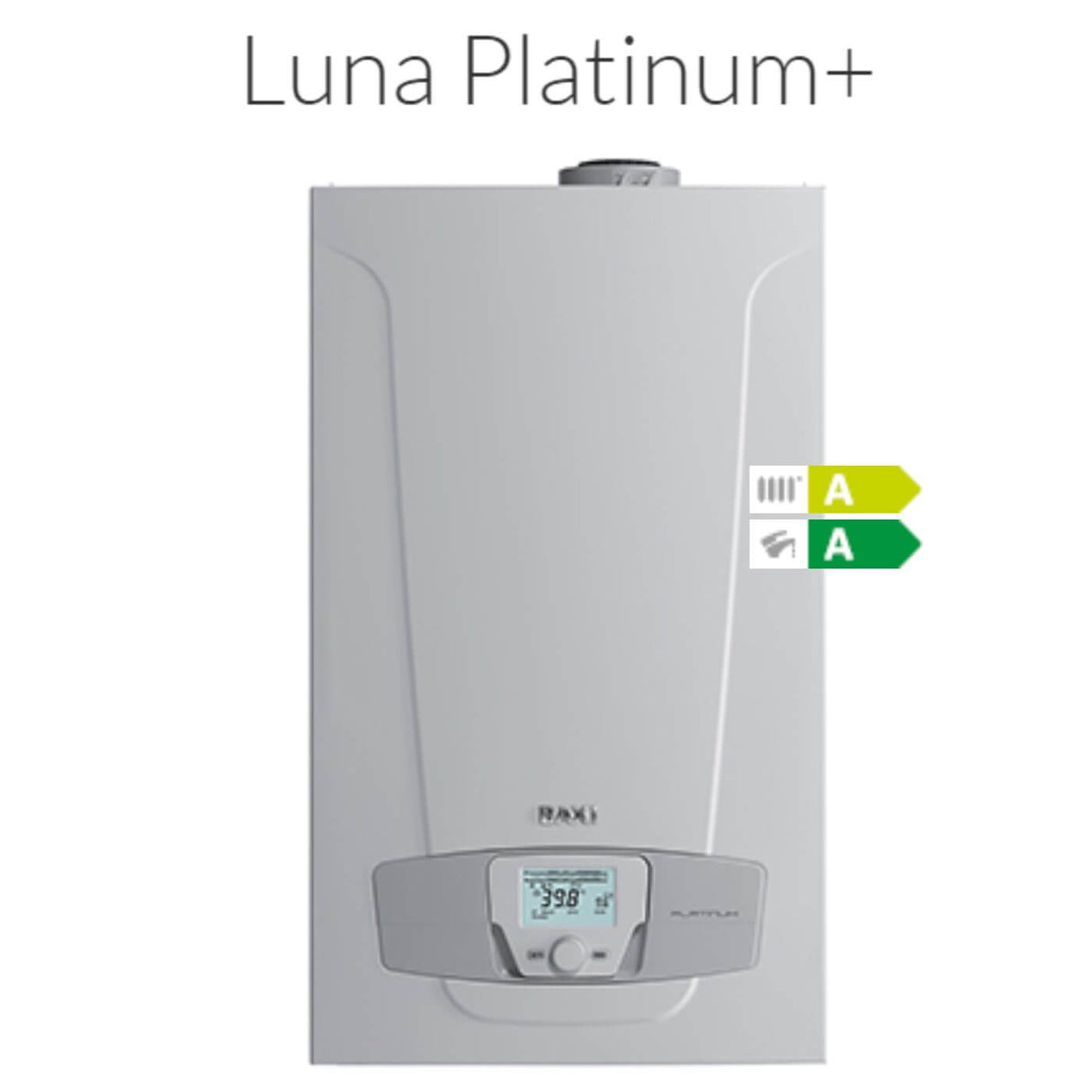

Baxi Condensing Gas Boiler Model Luna Platinum+ 24 Ga Methane Or LPG Complete With Smoke / LPG Exhaust Kit

Description

Technical features

  • ErP energy efficiency class (heating and DHW): A
  • Load profile: XL
  • DHW nominal heat input kW 24.7
  • Heating nominal heat input kW 20.6
  • Sanitary nominal thermal power kW 24
  • Energy efficiency (92/42/EEC) ****
  • Efficiency at 100% Pn (80-60°C): 97.7%
  • Efficiency at 100% Pn (50-30°C): 105.4%
  • Expansion/pre-charge vessel capacity l/bar 8/0.8
  • Sanitary water temperature adjustment °C 35-60
  • Sanitary water production ∆T 25°C l/min 13.8
  • Degree of protection: IPX5D
  • NOx class (EN 483) 5
  • Dimensions (h x w x d): 760 x 450 x 345 mm ; 38.5 kgs
  • Power supply: CNG or LPG
*Operation on LPG through adjustment by the Authorized Assistance Centre

Moon Platinum+

Wall mounted condensing gas boilers for heating only and instant DHW production.

Ecodesign and Labeling - From Baxi research comes a complete range of condensing boilers with high technological content designed in compliance with the requirements of the Ecodesign and Labeling directives, to ensure maximum domestic comfort. Latest generation electronics, high efficiency and compact design make the Platinum+ range the ideal solution for both new installations and replacement.
THINK raises system efficiency - The Platinum+ range of boilers is designed with the Think technology platform - intelligence within, an exclusive system that makes them "think" intelligently! With this authentic "the brain inside the box", the Baxi proposal confirms itself as the intelligent choice for making the boiler communicate in a simple and flexible way with all the main heating technologies, creating increasingly complex and energy-efficient design solutions. Furthermore, the Think platform makes the boiler very easy to use, in line with the Baxi design tradition aimed at totally user-friendly management of the appliance. Even the least experienced user can thus interact with the new control panel and program his own domestic comfort with the utmost simplicity. With the range of condensing boilers with the Think platform, Baxi comfort is easy and smart. The combination of the Platinum+ boiler for heating and DHW production and THINK controls for intelligent management of the system allows efficiency to be raised to class A+.

The Platinum+ range is equipped AS STANDARD with a removable control panel for remote management (wired or wireless) of the boiler, equipped with a large multifunction text display with modulating thermoregulation control unit functions.

GAC - The innovative automatic combustion control system GAC (Gas Adaptive Control) guarantees a wide modulation range up to 1:10: high efficiency and energy savings are ensured as the boiler is able to adapt the thermal power produced to the effective power dissipated by the building avoiding excessive overheating/cooling of the building.
Efficiency and savings - The objective of a heat generator is to supply the energy necessary to the rooms to maintain maximum comfort conditions inside: this means supplying the rooms, through the system, with the same amount of heat the building disperses. In new buildings, the regulations increasingly require greater insulation and consequently less dispersion. Usually there is a tendency to oversize heat generators to favor the production of sanitary water: this leads to an excess of power in heating which, together with the poor modulation capacity of traditional boilers, causes discontinuous functioning and therefore waste of fuel. Discontinuous processes generate energy losses (heat dispersion caused by the pre-washing of the combustion chamber, component wear caused by continuous on-off, decrease in generator efficiency). The modulation system of the Platinum+ range is able to adapt the thermal power produced to the effective power dissipated by the building, avoiding excessive overheating/cooling of the rooms.


Total modulation pump

Baxi

The Luna Platinum+ range is renewed with the introduction of a high efficiency electronic pump with permanent magnet motor.

The new fully modulated pump allows, compared to using a pump
traditional modulating:

  • Lower electricity consumption
  • Better performance
  • Greater durability

Plant deaeration

New electronic "system deaeration" function to facilitate the removal of air during initial ignition.

Efficiency and savings

The objective of a heat generator is to supply the energy necessary to the rooms to maintain conditions of maximum comfort inside them: this means supplying the rooms, through the system, with the same amount of heat that the building loses . In new buildings, the regulations increasingly require greater insulation and consequently less dispersion. Usually there is a tendency to oversize heat generators to favor the production of sanitary water: this leads to an excess of power in heating which, together with the poor modulation capacity of traditional boilers, causes discontinuous functioning and therefore waste of fuel. Discontinuous processes generate energy losses (heat dispersion caused by the pre-washing of the combustion chamber, component wear caused by continuous on-off, decrease in generator efficiency). The modulation system of the Platinum+ range is able to adapt the thermal power produced to the effective power dissipated by the building, avoiding excessive overheating/cooling of the rooms.

Baxi
The graph shown above highlights the reduction in on/off cycles which distinguishes the new Platinum+ boilers with modulation up to 1:10 compared to a condensing boiler with lower modulation. The reduction of the on/offs determines an improvement in the efficiency of the boiler and consequently a considerable saving for the end user. Standard condensing boilers, on the other hand, with a limited modulation range work at a minimum power level above 6 kW; this allows it to avoid the on/off cycles for only 3% of the period of operation in heating, compromising the performance of the boiler and the life of the components.

GAC : Gas Adaptive Control

The electronics and the gas valve with stepper motor that the new Platinum+ boilers are equipped with guarantee automatic combustion control which is based on:
  • on the flame signal
Baxi

The system continuously measures the flame signal during boiler operation and adjusts the gas flow rate so as to
maintain the quality of combustion constant and all this without requiring any additional component inside the
combustion chamber.

Installers and end users enjoy the following benefits of the GAC:

  • The automatic combustion control favors a reduction in installation times as no manual adjustment of the gas valve or nozzle change is required: in fact, it is sufficient to manually modify some parameters of the electronic board for operation with LPG
  • The boiler self-adapts to the quality of the gas and the length of the flue gas outlets: this means that there are no manual adjustments to make
  • High modulation field 1:10: high efficiency and savings, since such a wide modulation field determines a greater adaptability of the boiler to the thermal dispersions of the building to obtain a higher efficiency and greater durability of the components. The reduction of the on/off cycles, in addition to the greater efficiency, guarantees less noise produced by the boiler
  • Unlike traditional condensing boilers, the boiler always works adjusted to maximum efficiency values ​​favoring a reduction in gas consumption and consequently a lower environmental impact thanks to the control of CO/CO2 emissions

Power sets

The term Power set identifies the heating power regulation process according to the project data.
The thermal capacity of the boiler, through the Power set device, is adjusted according to the energy requirement: just act on the control panel to adjust some parameters.

Full soundproofing

C structure

Silence is the relative or absolute absence of sound or noise. The noise level of the Luna Platinum+ boiler is comparable to a normal conversation.


Digital pressure gauge

The electronic pressure transducer in the hydraulic unit allows you to check the pressure directly on the display. Double alarm level in the event of low pressure: a "warning" level in the event of low pressure in the boiler; a "block" level in the event of a lack of pressure.


Intubation solution

For the rehabilitation of flues

Baxi has developed a system that allows easy ducting in existing flues thanks to a Ø50 mm exhaust pipe (for 24kW models)


Characteristics:

  • wide modulation range 1:10 greater efficiency and silence
  • GAC (gas adaptive control): automatic combustion control
  • high-efficiency circulation pump with total modulation
  • removable and backlit control panel in wireless and wired version for wall installation, with large text display, adjustment knob and menu selection keys
  • power set: heating power adjustment according to project data
  • integrated electronic management for coupling to a solar system
  • Ø50 mm exhaust pipe: solution for restoring flues - mod. 24 kW
  • STANDARD installation kit (gas cock / DHW inlet / telescopic fittings)
  • antifreeze function and IPX5D degree of protection

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Baxi Condensing Gas Boiler Model Luna Platinum+ 24 Ga Methane Or LPG Complete With Smoke / LPG Exhaust Kit

Product form

Technical features ErP energy efficiency class (heating and DHW): A Load profile: XL DHW nominal heat input kW 24.7 Heating... Read more

€1.315,00 Incl. VAT

    Description

    Technical features

    • ErP energy efficiency class (heating and DHW): A
    • Load profile: XL
    • DHW nominal heat input kW 24.7
    • Heating nominal heat input kW 20.6
    • Sanitary nominal thermal power kW 24
    • Energy efficiency (92/42/EEC) ****
    • Efficiency at 100% Pn (80-60°C): 97.7%
    • Efficiency at 100% Pn (50-30°C): 105.4%
    • Expansion/pre-charge vessel capacity l/bar 8/0.8
    • Sanitary water temperature adjustment °C 35-60
    • Sanitary water production ∆T 25°C l/min 13.8
    • Degree of protection: IPX5D
    • NOx class (EN 483) 5
    • Dimensions (h x w x d): 760 x 450 x 345 mm ; 38.5 kgs
    • Power supply: CNG or LPG
    *Operation on LPG through adjustment by the Authorized Assistance Centre

    Moon Platinum+

    Wall mounted condensing gas boilers for heating only and instant DHW production.

    Ecodesign and Labeling - From Baxi research comes a complete range of condensing boilers with high technological content designed in compliance with the requirements of the Ecodesign and Labeling directives, to ensure maximum domestic comfort. Latest generation electronics, high efficiency and compact design make the Platinum+ range the ideal solution for both new installations and replacement.
    THINK raises system efficiency - The Platinum+ range of boilers is designed with the Think technology platform - intelligence within, an exclusive system that makes them "think" intelligently! With this authentic "the brain inside the box", the Baxi proposal confirms itself as the intelligent choice for making the boiler communicate in a simple and flexible way with all the main heating technologies, creating increasingly complex and energy-efficient design solutions. Furthermore, the Think platform makes the boiler very easy to use, in line with the Baxi design tradition aimed at totally user-friendly management of the appliance. Even the least experienced user can thus interact with the new control panel and program his own domestic comfort with the utmost simplicity. With the range of condensing boilers with the Think platform, Baxi comfort is easy and smart. The combination of the Platinum+ boiler for heating and DHW production and THINK controls for intelligent management of the system allows efficiency to be raised to class A+.

    The Platinum+ range is equipped AS STANDARD with a removable control panel for remote management (wired or wireless) of the boiler, equipped with a large multifunction text display with modulating thermoregulation control unit functions.

    GAC - The innovative automatic combustion control system GAC (Gas Adaptive Control) guarantees a wide modulation range up to 1:10: high efficiency and energy savings are ensured as the boiler is able to adapt the thermal power produced to the effective power dissipated by the building avoiding excessive overheating/cooling of the building.
    Efficiency and savings - The objective of a heat generator is to supply the energy necessary to the rooms to maintain maximum comfort conditions inside: this means supplying the rooms, through the system, with the same amount of heat the building disperses. In new buildings, the regulations increasingly require greater insulation and consequently less dispersion. Usually there is a tendency to oversize heat generators to favor the production of sanitary water: this leads to an excess of power in heating which, together with the poor modulation capacity of traditional boilers, causes discontinuous functioning and therefore waste of fuel. Discontinuous processes generate energy losses (heat dispersion caused by the pre-washing of the combustion chamber, component wear caused by continuous on-off, decrease in generator efficiency). The modulation system of the Platinum+ range is able to adapt the thermal power produced to the effective power dissipated by the building, avoiding excessive overheating/cooling of the rooms.


    Total modulation pump

    Baxi

    The Luna Platinum+ range is renewed with the introduction of a high efficiency electronic pump with permanent magnet motor.

    The new fully modulated pump allows, compared to using a pump
    traditional modulating:

    • Lower electricity consumption
    • Better performance
    • Greater durability

    Plant deaeration

    New electronic "system deaeration" function to facilitate the removal of air during initial ignition.

    Efficiency and savings

    The objective of a heat generator is to supply the energy necessary to the rooms to maintain conditions of maximum comfort inside them: this means supplying the rooms, through the system, with the same amount of heat that the building loses . In new buildings, the regulations increasingly require greater insulation and consequently less dispersion. Usually there is a tendency to oversize heat generators to favor the production of sanitary water: this leads to an excess of power in heating which, together with the poor modulation capacity of traditional boilers, causes discontinuous functioning and therefore waste of fuel. Discontinuous processes generate energy losses (heat dispersion caused by the pre-washing of the combustion chamber, component wear caused by continuous on-off, decrease in generator efficiency). The modulation system of the Platinum+ range is able to adapt the thermal power produced to the effective power dissipated by the building, avoiding excessive overheating/cooling of the rooms.

    Baxi
    The graph shown above highlights the reduction in on/off cycles which distinguishes the new Platinum+ boilers with modulation up to 1:10 compared to a condensing boiler with lower modulation. The reduction of the on/offs determines an improvement in the efficiency of the boiler and consequently a considerable saving for the end user. Standard condensing boilers, on the other hand, with a limited modulation range work at a minimum power level above 6 kW; this allows it to avoid the on/off cycles for only 3% of the period of operation in heating, compromising the performance of the boiler and the life of the components.

    GAC : Gas Adaptive Control

    The electronics and the gas valve with stepper motor that the new Platinum+ boilers are equipped with guarantee automatic combustion control which is based on:
    • on the flame signal
    Baxi

    The system continuously measures the flame signal during boiler operation and adjusts the gas flow rate so as to
    maintain the quality of combustion constant and all this without requiring any additional component inside the
    combustion chamber.

    Installers and end users enjoy the following benefits of the GAC:

    • The automatic combustion control favors a reduction in installation times as no manual adjustment of the gas valve or nozzle change is required: in fact, it is sufficient to manually modify some parameters of the electronic board for operation with LPG
    • The boiler self-adapts to the quality of the gas and the length of the flue gas outlets: this means that there are no manual adjustments to make
    • High modulation field 1:10: high efficiency and savings, since such a wide modulation field determines a greater adaptability of the boiler to the thermal dispersions of the building to obtain a higher efficiency and greater durability of the components. The reduction of the on/off cycles, in addition to the greater efficiency, guarantees less noise produced by the boiler
    • Unlike traditional condensing boilers, the boiler always works adjusted to maximum efficiency values ​​favoring a reduction in gas consumption and consequently a lower environmental impact thanks to the control of CO/CO2 emissions

    Power sets

    The term Power set identifies the heating power regulation process according to the project data.
    The thermal capacity of the boiler, through the Power set device, is adjusted according to the energy requirement: just act on the control panel to adjust some parameters.

    Full soundproofing

    C structure

    Silence is the relative or absolute absence of sound or noise. The noise level of the Luna Platinum+ boiler is comparable to a normal conversation.


    Digital pressure gauge

    The electronic pressure transducer in the hydraulic unit allows you to check the pressure directly on the display. Double alarm level in the event of low pressure: a "warning" level in the event of low pressure in the boiler; a "block" level in the event of a lack of pressure.


    Intubation solution

    For the rehabilitation of flues

    Baxi has developed a system that allows easy ducting in existing flues thanks to a Ø50 mm exhaust pipe (for 24kW models)


    Characteristics:

    • wide modulation range 1:10 greater efficiency and silence
    • GAC (gas adaptive control): automatic combustion control
    • high-efficiency circulation pump with total modulation
    • removable and backlit control panel in wireless and wired version for wall installation, with large text display, adjustment knob and menu selection keys
    • power set: heating power adjustment according to project data
    • integrated electronic management for coupling to a solar system
    • Ø50 mm exhaust pipe: solution for restoring flues - mod. 24 kW
    • STANDARD installation kit (gas cock / DHW inlet / telescopic fittings)
    • antifreeze function and IPX5D degree of protection

    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 35.0 kg
    • classe energetica produzione acs: A
    • classe energetica riscaldamento: A
    • gas: Methane/LPG
    • marca: BAXI
    • metri quadri : 120
    • modello: Luna Platinum+ 24
    • potenza in kw: 24
    • potenza nominale: 24
    • superficie riscaldabile mq: 120
