Baxi Condensing Gas Boiler Model Luna Duo-Tec In+ 24 Ga Methane Complete With Smoke Exhaust Kit

Description

BUILT-IN UNIT NOT INCLUDED!

TO PURCHASE RECESSED UNITS CLICK HERE

Technical features

  • ErP energy efficiency class (heating and DHW): A
  • Load profile: XL
  • Nominal heat input 24.7 kW
  • Nominal thermal power 24 kW
  • Energy efficiency (92/42/EEC) ****
  • Nominal efficiency 80/60°C % 97.7
  • Return at 30% % 108.8
  • Heating circuit water temperature control °C 25-80
  • Sanitary water temperature adjustment °C 35-60
  • Sanitary water production ∆T 25°C l/min 13.8
  • Minimum domestic water flow rate: 2 l/min
  • Minimum operating temperature: -15°C
  • Expansion/pre-charge vessel capacity l/bar: 8/0.8
  • NOx class (EN 483): 5
  • Dimensions (hxlxp) - with case: mm 1170 x 600 x 245
  • Dimensions (hxwxd) - boiler 770 x 470 x 238 mm; 32.5kg
  • Power supply: METHANE

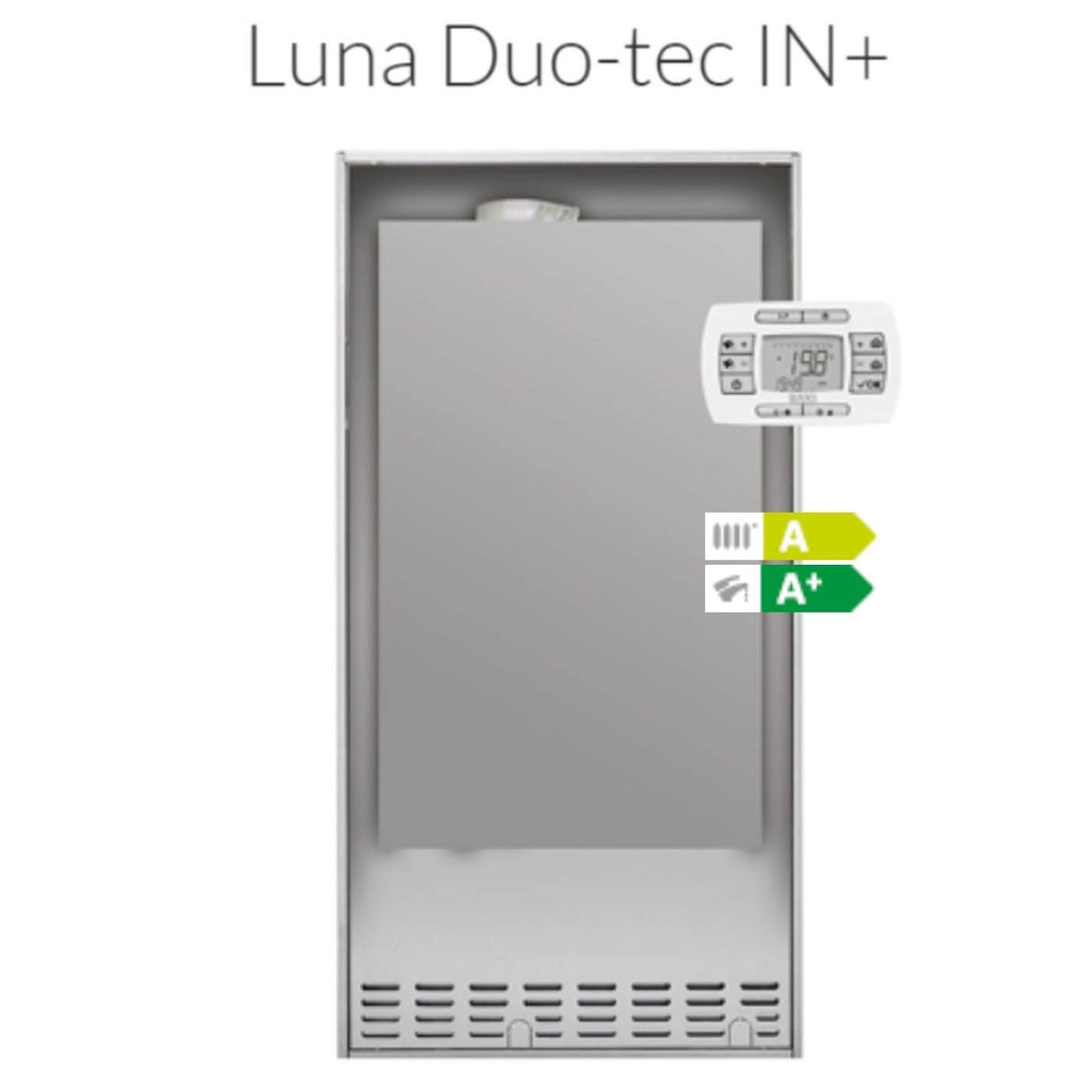

Luna Duo-Tec IN+

The efficiency of compact built-in comfort

Baxi has always offered the ideal system solution for any type of home: for this reason the Duo-tec+ range is expanding with built-in models and for outdoor installation.

Luna Duo-tec IN+ is the built-in condensing boiler, specifically designed to make it suitable for replacing an old built-in generator but also in new installations. The extremely compact dimensions of the boiler facilitate its installation in small/medium-sized apartments, and in general in all housing units where efficient space management is an important objective (for example in technical rooms or in the presence of )


Recessed installation outdoors

Luna Duo-tec IN+ is the built-in condensing boiler, specifically designed to make it suitable for replacing an old built-in generator but also in new installations. The extremely compact dimensions of the boiler facilitate its installation in small/medium-sized apartments, and in general in all housing units where efficient space management is an important objective (for example in technical rooms or in the presence of ). Inside the packaging there are the bracket and installation fittings for inserting the boiler into the containment box

Luna


Characteristics:

  • Wide modulation range up to 1:7 greater efficiency and silence
  • GAC (gas adaptive control): automatic combustion control
  • Automatic plant loading system
  • Minimum operating temperature: -15°C
  • Remote digital control panel with LCD display
  • Arrangement for combination with the Baxi integrated solar system
  • High efficiency circulation pump with total modulation
  • Ultra-compact dimensions: 770x470x238 mm (boiler)
  • STANDARD installation kit (gas cock / gas inlet / telescopic fittings)
  • Antifreeze function and IPX5D degree of protection

Digital control panel

The Duo-tec+ range of boilers is equipped with a digital control panel with backlit LCD display, easy to use thanks to dedicated and independent keys to adjust the temperature of the domestic hot water and the heating. The display allows you to view all the information and set the operating parameters in a clear and immediate way.
Gas Adaptive Control
Baxi

The innovative GAC ( Gas Adaptive Control ) automatic combustion control system guarantees a wide modulation range up to 1:10: high efficiency and energy savings are ensured as the boiler is able to adjust the thermal power produced to the actual power dissipated from the building avoiding excessive heating/cooling of the building.
Antifreeze function
The boilers have been designed to allow the boiler to operate down to -15°C. Furthermore, the antifreeze function provides for the automatic ignition of the burner, avoiding freezing phenomena.
Wide modulation range 1:7
  • greater efficiency given by fewer starts and stops: with a high modulation ratio, the reduction of the continuous on/off cycles leads to a significant reduction in consumption (by 8-10%) and an equal reduction in polluting emissions
  • adjustment of the thermal power produced to the power dissipated thus avoiding excessive overheating/cooling of the premises

Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

Baxi Condensing Gas Boiler Model Luna Duo-Tec In+ 24 Ga Methane Complete With Smoke Exhaust Kit

Product form

BUILT-IN UNIT NOT INCLUDED! TO PURCHASE RECESSED UNITS CLICK HERE Technical features ErP energy efficiency class (heating and DHW): A... Read more

€891,00 Incl. VAT

    Description

    BUILT-IN UNIT NOT INCLUDED!

    TO PURCHASE RECESSED UNITS CLICK HERE

    Technical features

    • ErP energy efficiency class (heating and DHW): A
    • Load profile: XL
    • Nominal heat input 24.7 kW
    • Nominal thermal power 24 kW
    • Energy efficiency (92/42/EEC) ****
    • Nominal efficiency 80/60°C % 97.7
    • Return at 30% % 108.8
    • Heating circuit water temperature control °C 25-80
    • Sanitary water temperature adjustment °C 35-60
    • Sanitary water production ∆T 25°C l/min 13.8
    • Minimum domestic water flow rate: 2 l/min
    • Minimum operating temperature: -15°C
    • Expansion/pre-charge vessel capacity l/bar: 8/0.8
    • NOx class (EN 483): 5
    • Dimensions (hxlxp) - with case: mm 1170 x 600 x 245
    • Dimensions (hxwxd) - boiler 770 x 470 x 238 mm; 32.5kg
    • Power supply: METHANE

    Luna Duo-Tec IN+

    The efficiency of compact built-in comfort

    Baxi has always offered the ideal system solution for any type of home: for this reason the Duo-tec+ range is expanding with built-in models and for outdoor installation.

    Luna Duo-tec IN+ is the built-in condensing boiler, specifically designed to make it suitable for replacing an old built-in generator but also in new installations. The extremely compact dimensions of the boiler facilitate its installation in small/medium-sized apartments, and in general in all housing units where efficient space management is an important objective (for example in technical rooms or in the presence of )


    Recessed installation outdoors

    Luna Duo-tec IN+ is the built-in condensing boiler, specifically designed to make it suitable for replacing an old built-in generator but also in new installations. The extremely compact dimensions of the boiler facilitate its installation in small/medium-sized apartments, and in general in all housing units where efficient space management is an important objective (for example in technical rooms or in the presence of ). Inside the packaging there are the bracket and installation fittings for inserting the boiler into the containment box

    Luna


    Characteristics:

    • Wide modulation range up to 1:7 greater efficiency and silence
    • GAC (gas adaptive control): automatic combustion control
    • Automatic plant loading system
    • Minimum operating temperature: -15°C
    • Remote digital control panel with LCD display
    • Arrangement for combination with the Baxi integrated solar system
    • High efficiency circulation pump with total modulation
    • Ultra-compact dimensions: 770x470x238 mm (boiler)
    • STANDARD installation kit (gas cock / gas inlet / telescopic fittings)
    • Antifreeze function and IPX5D degree of protection

    Digital control panel

    The Duo-tec+ range of boilers is equipped with a digital control panel with backlit LCD display, easy to use thanks to dedicated and independent keys to adjust the temperature of the domestic hot water and the heating. The display allows you to view all the information and set the operating parameters in a clear and immediate way.
    Gas Adaptive Control
    Baxi

    The innovative GAC ( Gas Adaptive Control ) automatic combustion control system guarantees a wide modulation range up to 1:10: high efficiency and energy savings are ensured as the boiler is able to adjust the thermal power produced to the actual power dissipated from the building avoiding excessive heating/cooling of the building.
    Antifreeze function
    The boilers have been designed to allow the boiler to operate down to -15°C. Furthermore, the antifreeze function provides for the automatic ignition of the burner, avoiding freezing phenomena.
    Wide modulation range 1:7
    • greater efficiency given by fewer starts and stops: with a high modulation ratio, the reduction of the continuous on/off cycles leads to a significant reduction in consumption (by 8-10%) and an equal reduction in polluting emissions
    • adjustment of the thermal power produced to the power dissipated thus avoiding excessive overheating/cooling of the premises

    Product Guarantee: All products for sale on our site are new and packed. The warranty on this item is 24 months from the date of purchase.

    Data sheetData sheet
    • peso: 40.0 kg
    • classe energetica produzione acs: A
    • classe energetica riscaldamento: A
    • gas: Methane
    • marca: BAXI
    • metri quadri : 120
    • modello: Luna Duo-Tec In+ 24 Metano
    • potenza in kw: 24
    • potenza nominale: 24
    • superficie riscaldabile mq: 120
